MTSKR1905WF IP67 Remote Control for Electric Skateboards

The MTSKR1905WF IP67 remote control features 2.4GHz bidirectional communication, a 20-meter range, and a long-lasting battery, making it ideal for electric skateboarding. More

Manufacturer: NEVEN Product code: 13285 Shipping and payment

126 EUR incl. VAT

The MTSKR1905WF IP67 remote control features 2.4GHz bidirectional communication, a 20-meter range, and a long-lasting battery, making it ideal for electric skateboarding. More

Manufacturer: NEVEN Product code: 13285 Shipping and payment

Description
Inquiry Form

MTSKR1905WF Electric Skateboard Remote Control

Features

Bidirectional communication at 2.4GHz, 40 channels, with automatic frequency modulation to avoid interference;
Communication range of 20 meters; 16 hours of operation time after a full charge;
Built-in 420mAh lithium battery with USB port for charging;
Color OLED display 128x64
Easy switching between fast and slow riding;
Automatic throttle calibration at power on;
Communication loss alert between the remote and receiver; if the signal is lost for 5 minutes, the remote automatically turns off to save battery;
If signal loss occurs between the remote and the receiver, the receiver disables the throttle for rider safety;
Memory code function, allows quick linking between remote and receiver on startup;
Switching function for forward and backward riding *

Note: Features marked with an asterisk * are available with the MTDU30A dual controller.

MTSKR1905WF V2 remote control for VESC

Specifications:

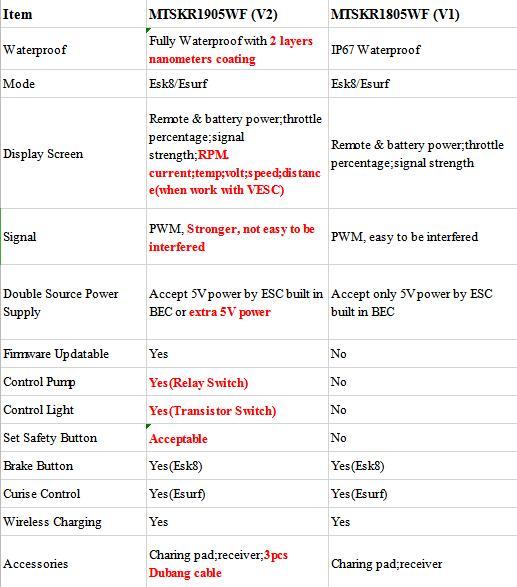

Model: MTSKR1905WF (V2), enhanced waterproofing and signal strength
Remote battery: 3.7V 420mAh
Frequency: 24 GHz

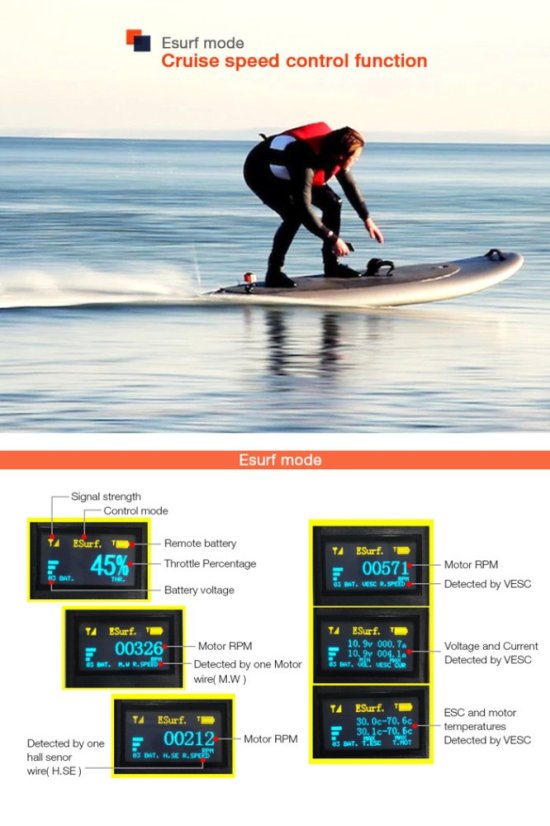

Control mode: Esk8/Esurf
Output power: 7 dBm
Working current: 26 mA
Operating time: 16 hours
Control distance: >20 meters

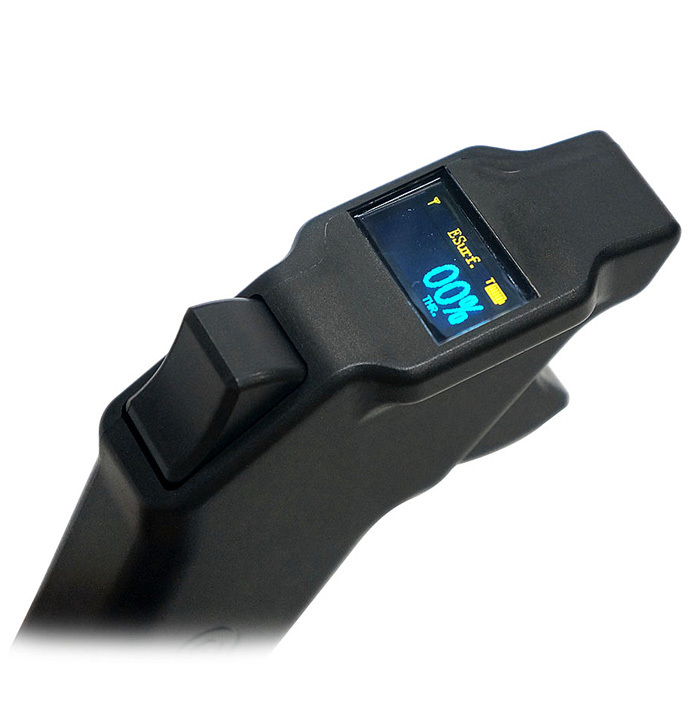

Display: 128 x 64 OLED
Wireless charging

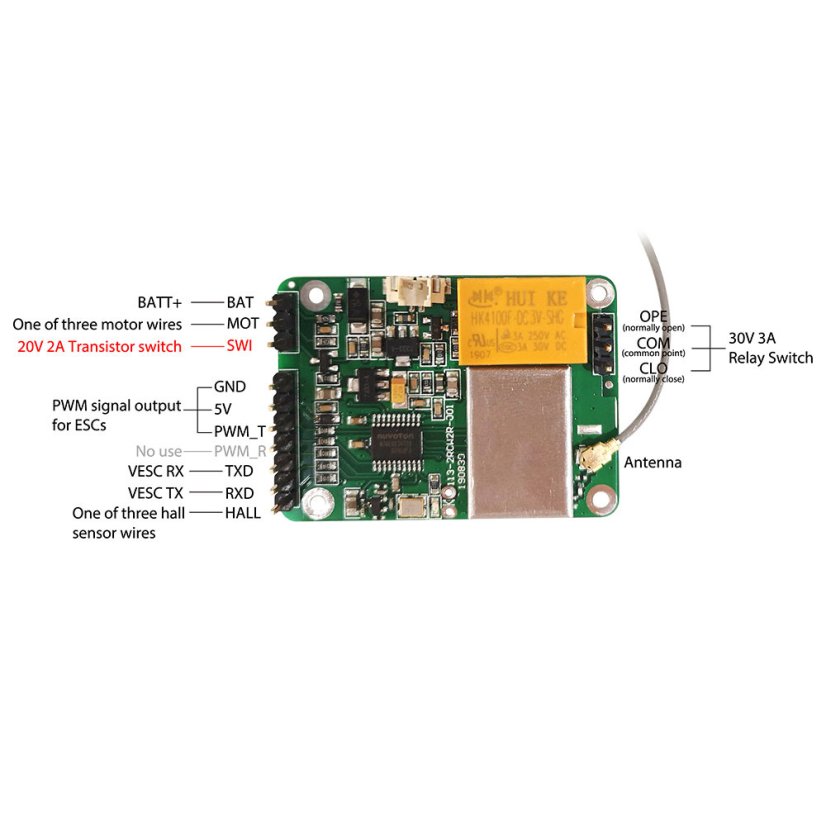

Signal format: supports standard PWM (PPM) and UART, output range from 10%-20%, compatible with ESC/VESCTOOL
Three adjustable speed modes

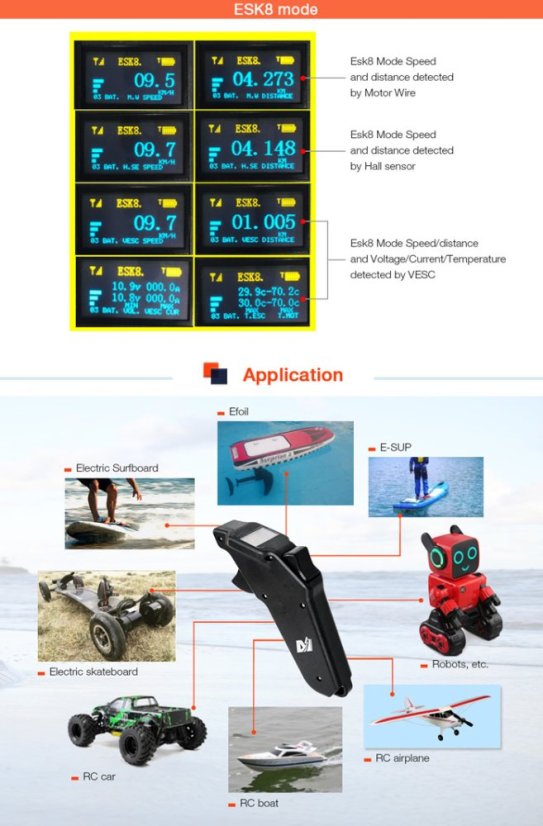

Speed and distance display
Battery capacity display for remote and skateboard
Dual trigger control
Compatible with: VESC4/VESC6/FOCBOX/PWM ESC
Throttle output: PWM 1ms-2ms 100Hz
30V 3A Mechanical relay
20V 2A transistor relay
Extended antenna: yes

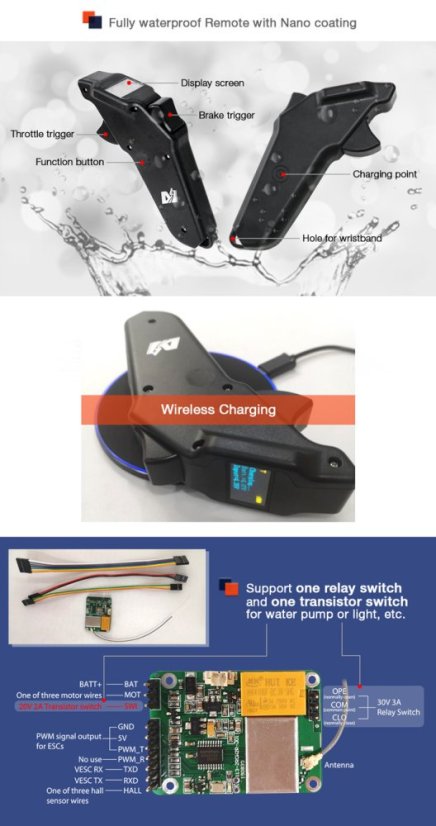

Waterproof rating: IP67 with 2 layers of nano-coating
Receiver weight: 11g
Transmitter weight: 96g

MTSKR1905WF V2 remote control for VESC

Manual: https://cdn.shopify.com/s/files/1/0089/3065/6320/files/2023_Maytech_MTSKR1905WF_Manual_V2.0_36fd4e91-a6c4-4863-9a59-d8542a414f97.pdf

How to display voltage, current, RPM, temperature on Maytech Remote with TX and RX?

Usage Tips:

1. Rinse the remote in freshwater after using it in saltwater.
2. The remote PCB is sealed with waterproof nano-coating and double protected with glue. The remote screen is sealed with waterproof nano-coating, not glue. When used in water, water may get between the outside and inside screens. This will not affect functionality. When not in use, please store it in a dry place to let it dry slowly.
3. Keep the remote dry while charging.
4. The receiver is not waterproof. Please keep the receiver in a dry place.
5. Since customers' usage situations may vary, some might need to replace the antenna with a longer one. If you mount the receiver deep in your board, we recommend changing to a longer 2.4GHz antenna and placing it near the top cover of your board for better signal.
6. When soldering, ensure that the two pins do not touch each other, as this may burn out the receiver.
7. The 1m and 3m extended antennas are not waterproof.

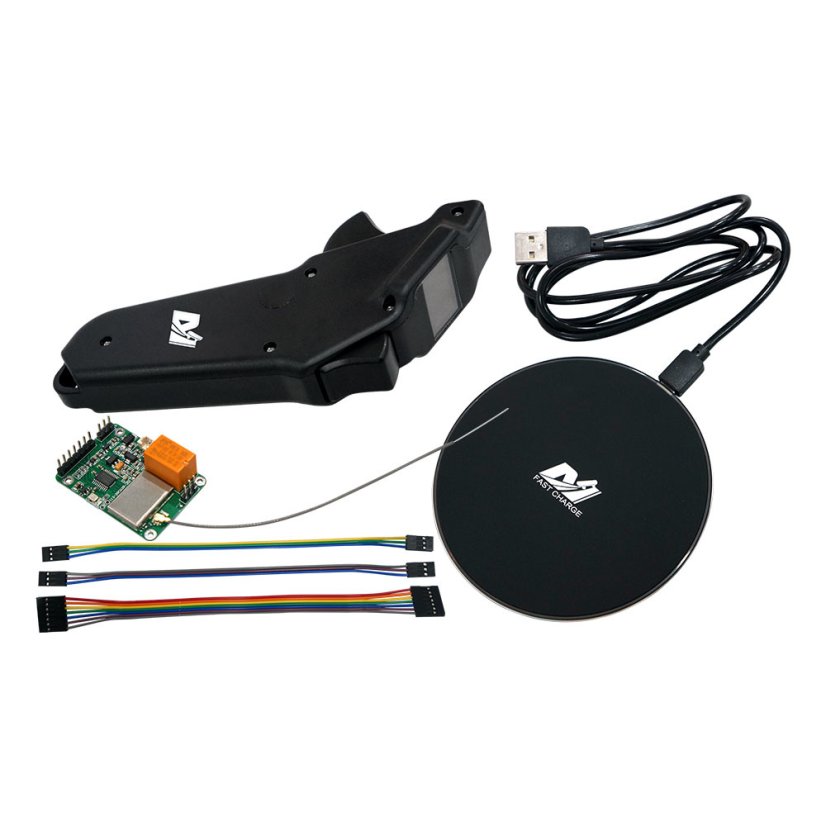

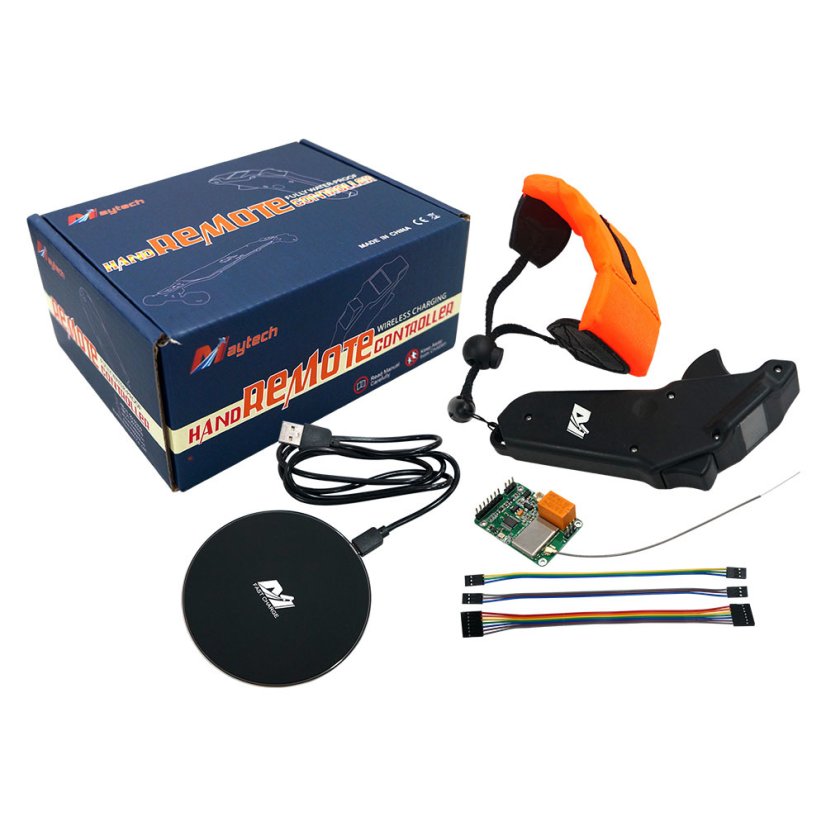

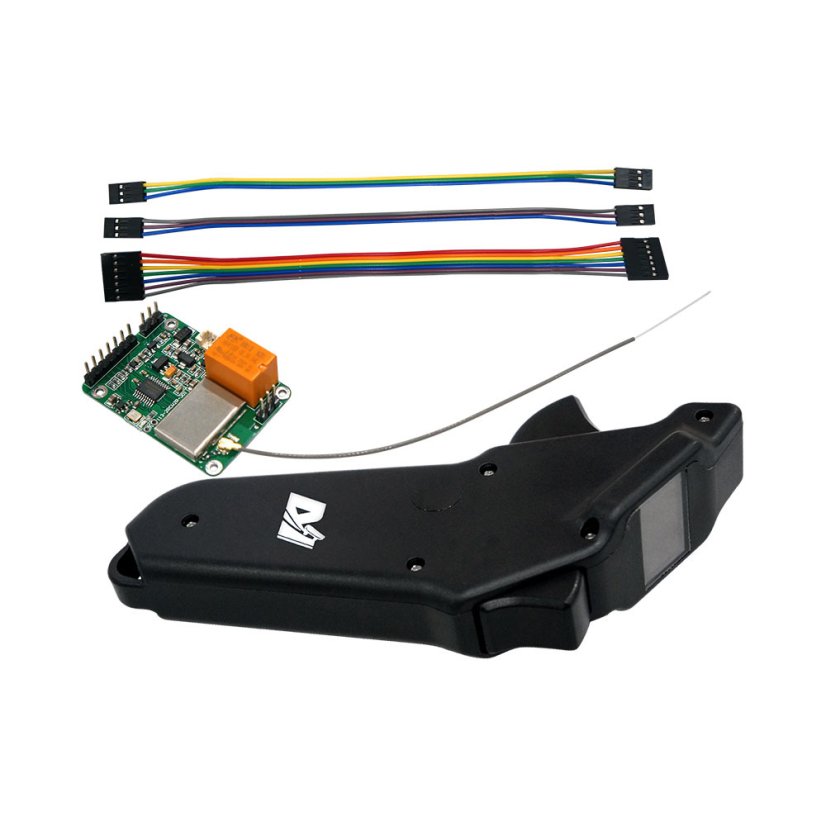

Package Contents:

MTSKR1905WF V2 Electric Skateboard Remote Control

Download

28011909-2023-mtsk20wfv2-maytech-remote-and-receiver-for-electric-skateboard-simple-instructions-.pdf (pdf, 424.7 kB)

MTSKR1905WF Electric Skateboard Remote Control
