Multifunctional USB Tester USB-C, PD, QC 45W - Fast Charging and Performance Monitoring

Multifunctional USB Tester USB-C, PD, QC

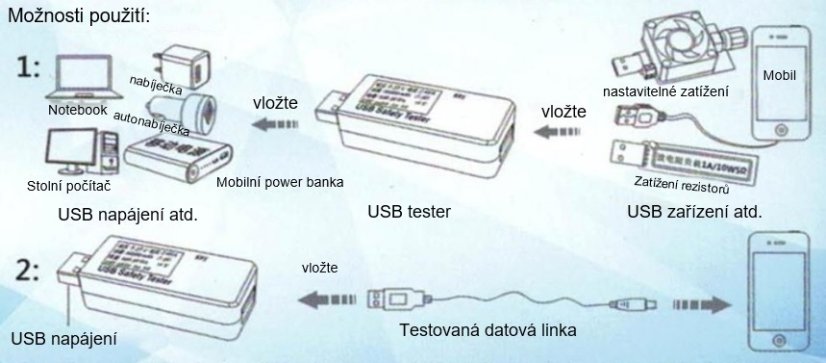

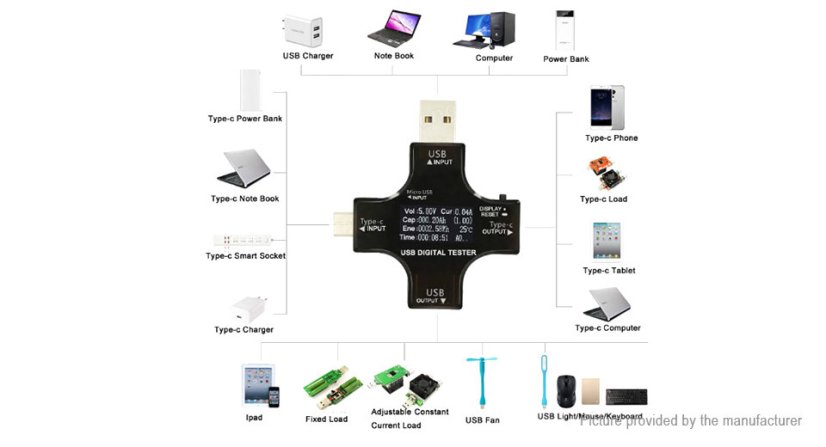

This device can monitor voltage, current, capacity, amount of electric energy, power, load impedance, D+/D- voltage, charging time, and other USB data. It supports Qualcomm QC3.0, compatible with QC2.0, Bc1.2, and Apple 2.4A as well as other fast charging protocols of various voltages, including OTG functionality.

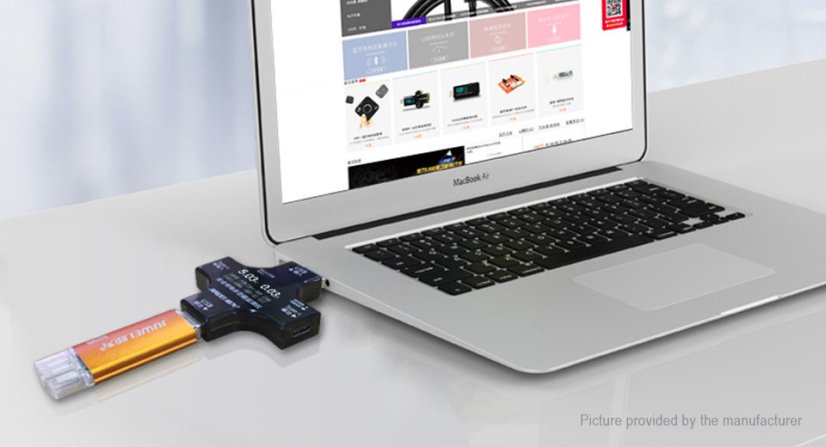

This USB tester is compatible with the 45W USB-C fast charging protocol, the iPhone 87W smart charger PD, and other chargers such as Qualcomm QC2.0 (5V / 9V / 12V / 20V) and QC3.0 (3.8 ~ 12V +/- 0.2 step). It can also be compatible with USB flash drive readers and applications for measuring voltage and current.

Technical enhancements include:

1. USB-C male connector replacing the copper input pin for more reliable data transmission.
2. 180-degree display rotation function for better visibility.
3. Optimized PD protocol to support Apple chargers.

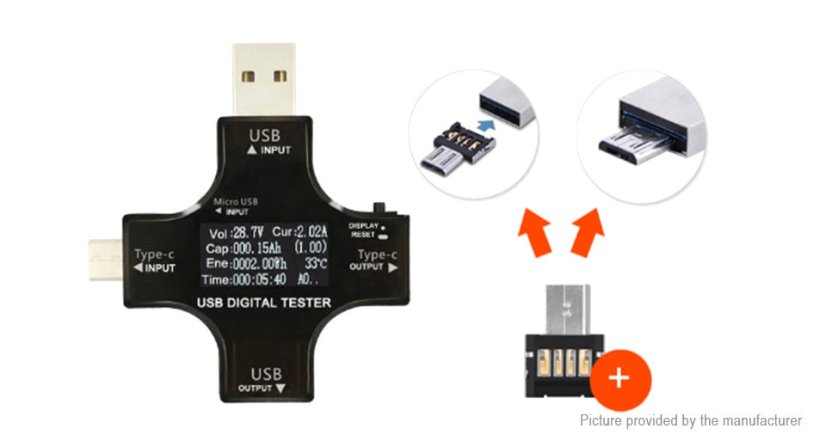

4. OTG functionality for expanding digital connectivity.
5. Ability to set various parameters such as overvoltage and undervoltage.
6. Resistance reduction for effective fast charging.
7. Improved calibration for accurate low current measurement.
8. Built-in PD protocol for easier performance testing.
9. Support for fast charging for modern Apple devices.
10. Memory enhancement for data retention during power outages.

Specifications:

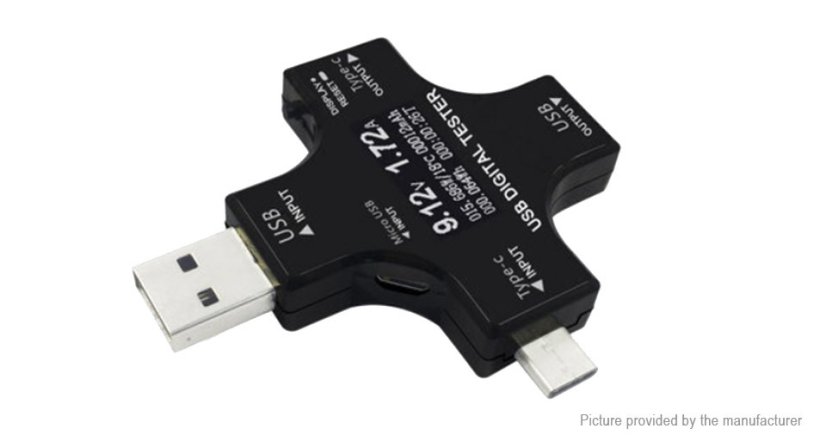

• Model: ATORCH/JUWEI-J7-c
• Voltage measurement range: 3.30V~30.0V, accuracy: 0.01V
• Current measurement range: 0.00~5.10A, accuracy: 0.01A
• Cumulative capacity range: 0~99999mAh, accuracy: 0.001Ah
• Cumulative power range: 0~999999mWh, accuracy: 0.001Wh
• Power measurement range: 000.00~150.00W, accuracy: 0.01W
• Impedance measurement range: 1~999.9ohm, accuracy: 0.1ohm
• Temperature measurement range: 0~80°C, accuracy: 1°C
• Maximum duration: 999 hours 59 minutes 59 seconds, accuracy: 1s
• Timer: 24-hour countdown, adjustable to any value
• Dimensions: 60mm x 60mm x 11mm
• Max. current: < 0.02A
• Operating temperature: -10~+60°C
• Operating humidity: 10~80%

Note: The tester has no communication functions and the BT module is not included in the package.

Package includes: 1 x color TFT PD USB Type-C tester.

A detailed user manual is included with the product.
