N1241 Industrial Mini PC Barebone Fanless N100
N1241 N100 Industrial Mini PC, Barebone, Fanless

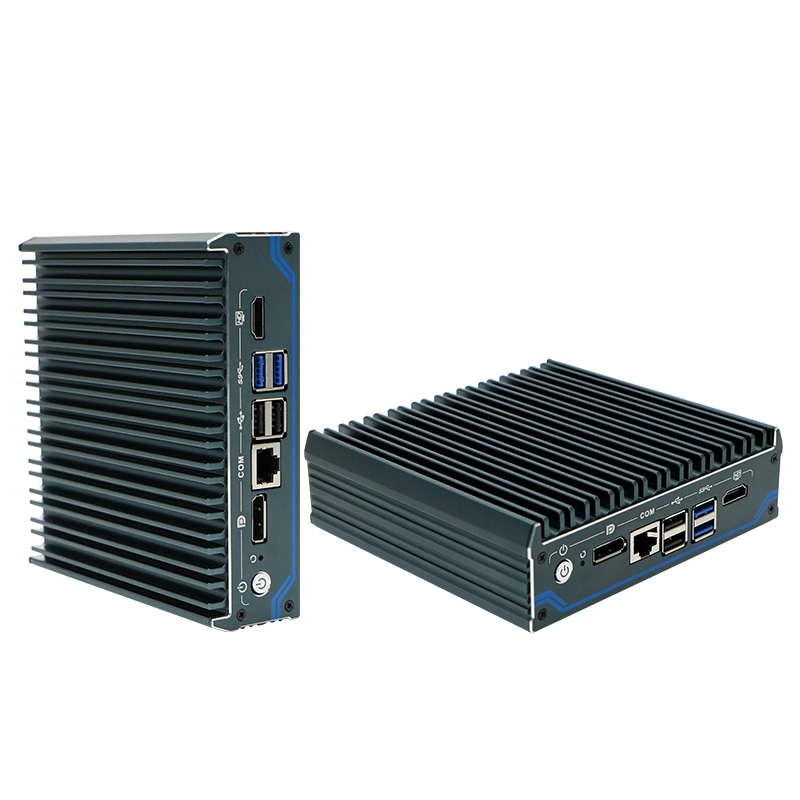

Fanless Industrial PC with Intel N100, 4× LAN, and VESA Mount
This fanless industrial PC powered by Intel N100 is designed for reliable operation in demanding environments. Its aluminum body ensures passive cooling and silent operation without moving parts, significantly improving durability and longevity. Four LAN ports provide extensive networking capabilities, making it ideal for firewall applications, software routing, industrial automation, and edge computing. VESA mounting allows easy attachment to the back of a monitor or other equipment.
Key Use Cases:
✅ Industrial automation – managing manufacturing processes
✅ Digital signage – advertising and information panels
✅ Edge computing – decentralized data processing
✅ Network security – firewall, software router
✅ Smart kiosks – self-service payment terminals

Specifications:
- Model: N1241

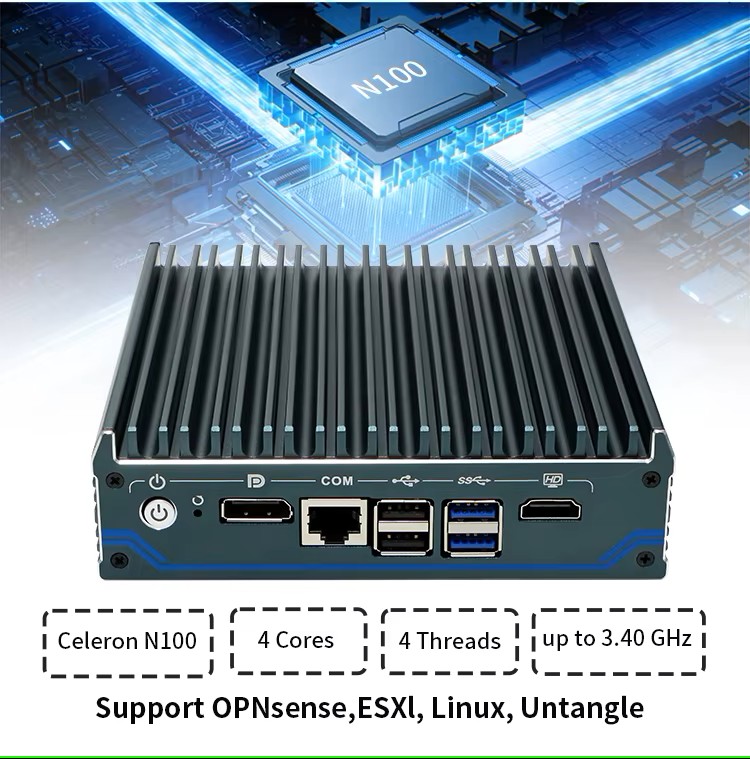

- CPU: Intel Alder Lake-N N100 (6MB L2 Cache, max 3.4GHz) with AES instructions
- Memory: 1x SODIMM 3200MHz DDR4 (16GB max), not included
- Storage: 1x M.2 SATA, 1x 2.5" HDD/SSD - not included
- Integrated graphics: Intel® UHD Graphics
- BIOS: AMI UEFI BIOS (lagcy mode, CSM)

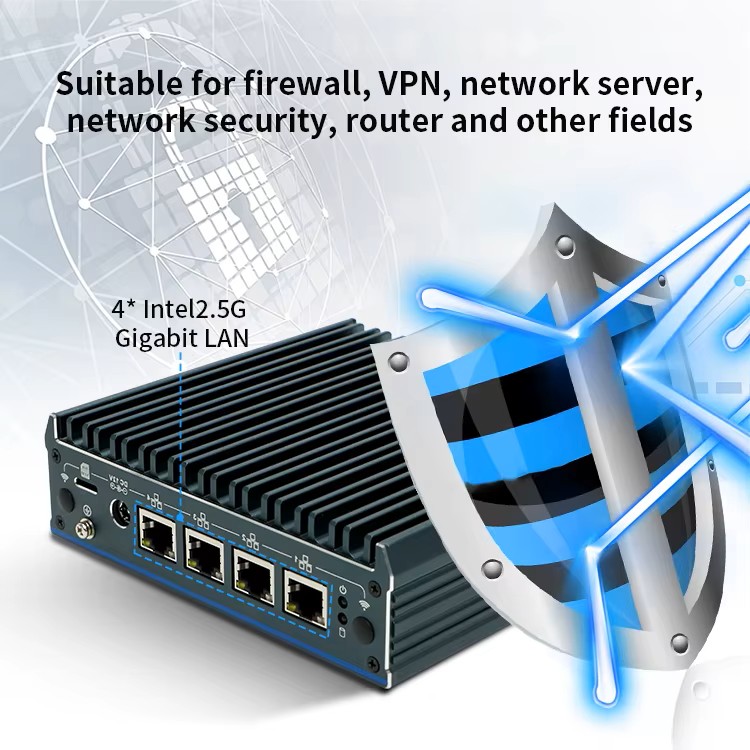

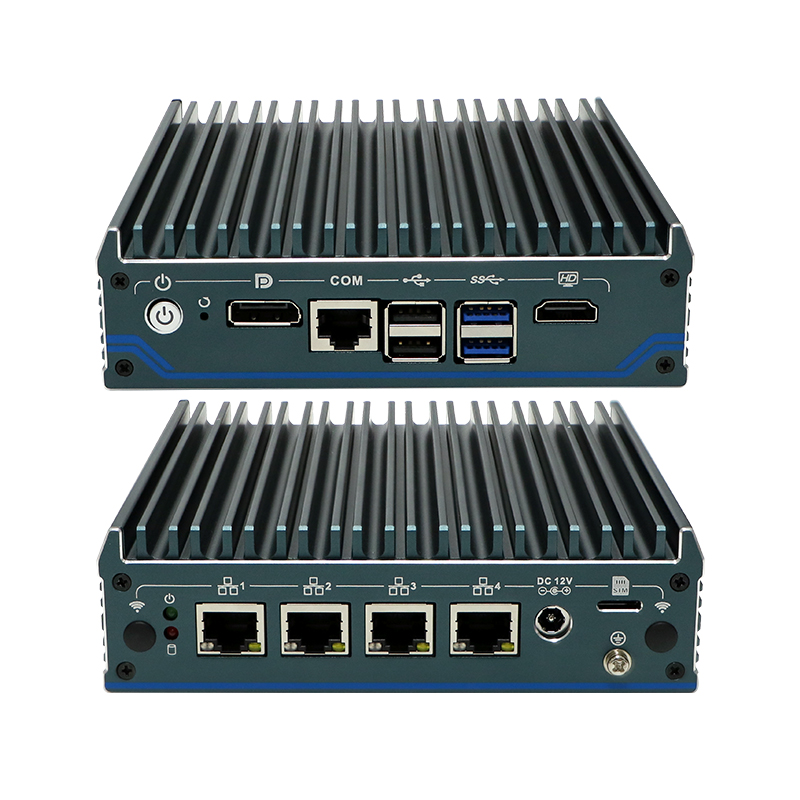

- 4x Intel i226-V/ i225-V 2.5G LAN
- 1x USB port 3.0, 3x USB port 2.0
- Wireless connectivity: no
- Bluetooth: no
- Speaker
- 1x HDMI
- 1x DP
- 1x RJ47 COM
- OS: without OS, supports Windows 8/10, Linux, Pfsense
- Power: 12V/3A external adapter, output 15W
- Operating temperature: 0℃~ +40℃ s with regular HDD, -20℃~ +50℃ with SSD disk
- Dimensions: 144 * 136.7 * 42 mm
Package includes:
- 1x N1241 Computer
- 1x 12V/2A Power Supply
