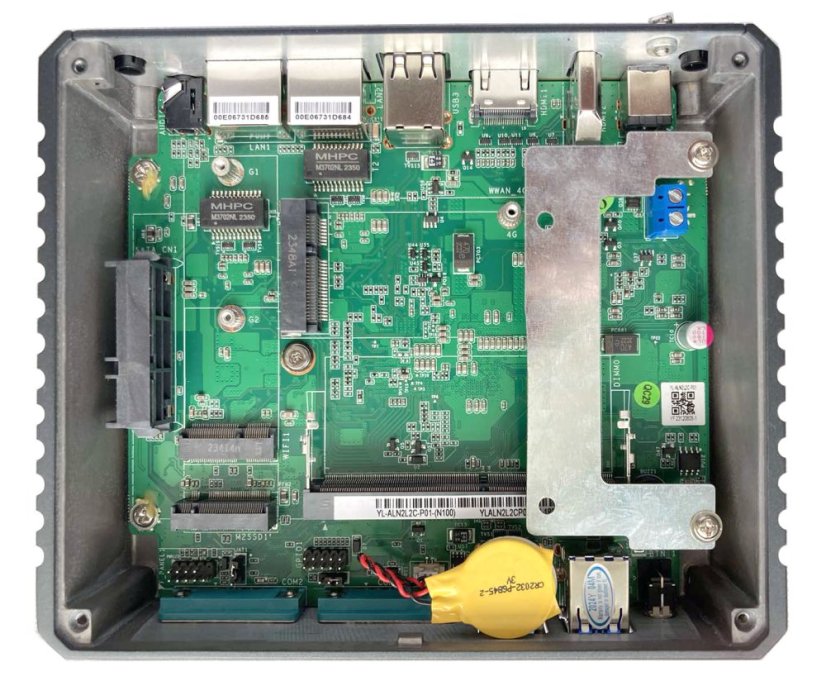

N1321 N100 Industrial Mini PC Fanless Barebone

N1321 N100 Industrial Mini PC Fanless Barebone

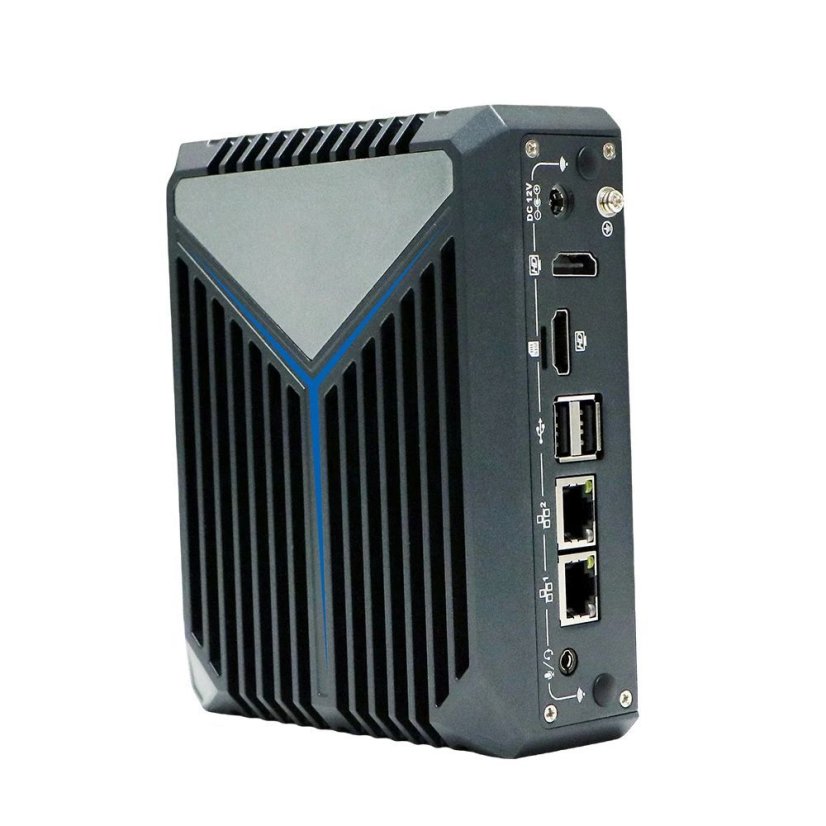

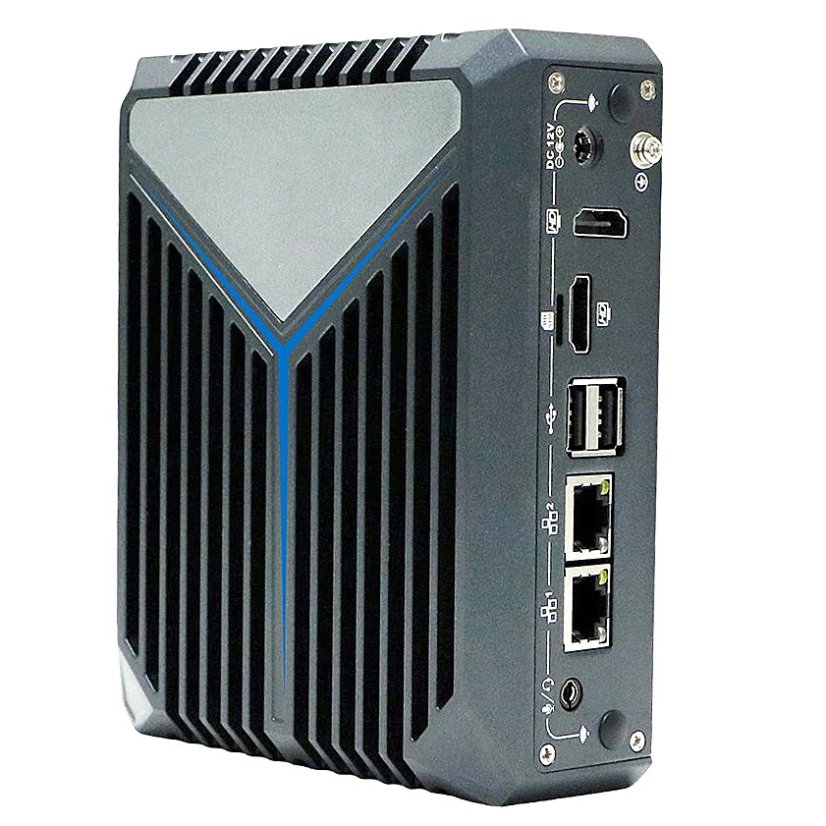

The N1321 is equipped with an Intel Celeron N100 CPU (6MB L2 Cache, 3.4GHz). This very compact barebone PC is housed in a rugged aluminum case with no fans, ensuring quiet operation. It is compatible with VESA mounts and can be installed on most LCD panels or directly on the wall.

It is ideal for small computing systems such as routers, cash registers, displays, controllers, data collectors, etc.

• Has no moving parts and operates at temperatures between 0°C and 60°C (32°F to 140°F).
• Minimum power consumption: 12V, 0.8 - 2A (max 15W).
• Specifically designed dimensions for VESA mounting on LCD panels.
• Compatible with Linux and Windows operating systems.

Specifications:

• Model: N1321
• CPU: Intel Alder Lake-N N100 (6MB L2 Cache, up to 3.4GHz)
• Memory: 1x SODIMM 3200MHz DDR4 (max 16GB), not included
• Integrated VGA Intel® UHD Graphics
• BIOS: AMI UEFI BIOS

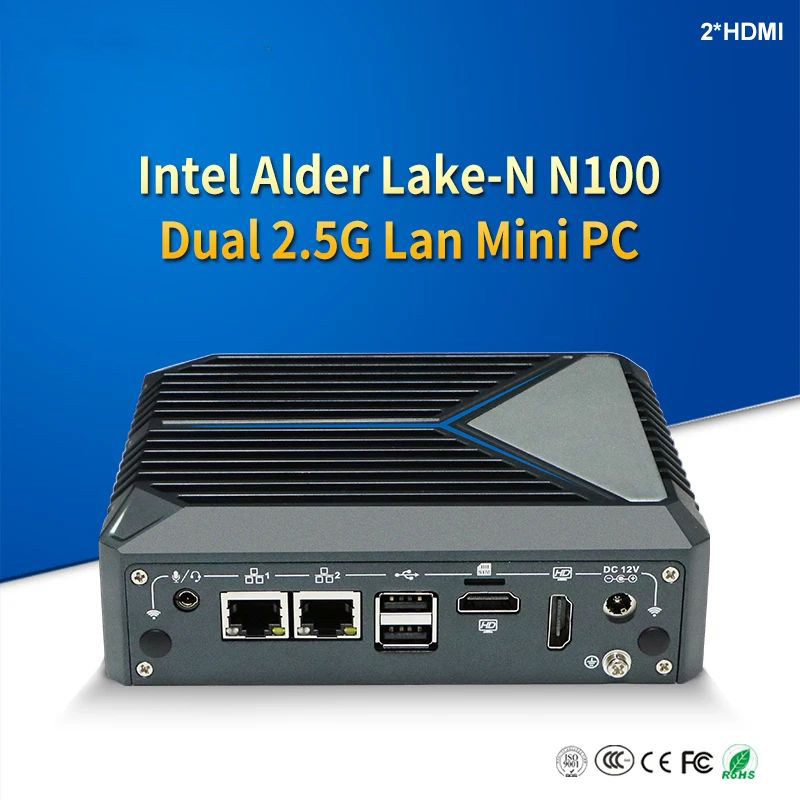

• 2x Intel i225-V 2.5G LAN
• 3x USB 3.1, 1x USB 2.0
• Expansion slots: 1x M.2 2280 M-key (supports SATA & PCIe 3.0 x1 NVMe), 1x M.2 2230, 1x Mini PCIe slot (USB2.0 signal, optional: 3G/4G), external SIM card slot
• Storage: 1x M.2 2280, onboard 1x 2.5" HDD/SSD, not included
• Wireless connectivity: no
• Bluetooth: no
• Speaker
• 2x HDMI 4K (supports simultaneous/asynchronous dual display, resolution: 4096x2160@60Hz)

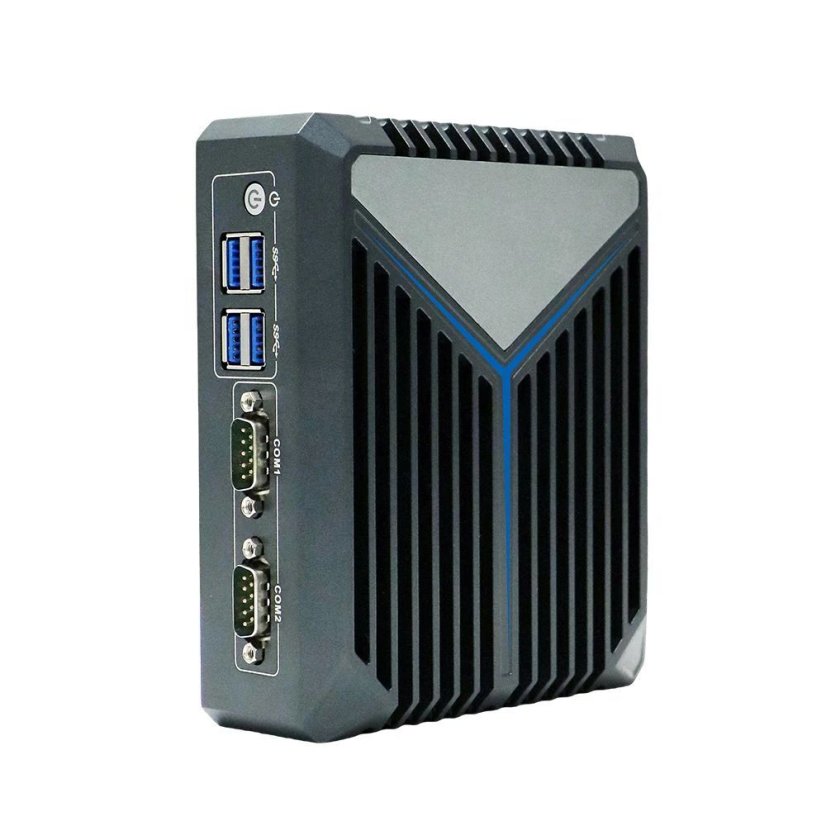

• 2x RS232 COM
• OS: no OS, supports Windows 8/10, Linux, Pfsense
• Power supply 12V/3A external adapter, consumption 15W
• Operating temperature: -0° to 40°C (32°F to 104°F) standard HDD, -0° to 60°C (32°F to 140°F) industrial SSD, 0% to 95% humidity (non-condensing) environment

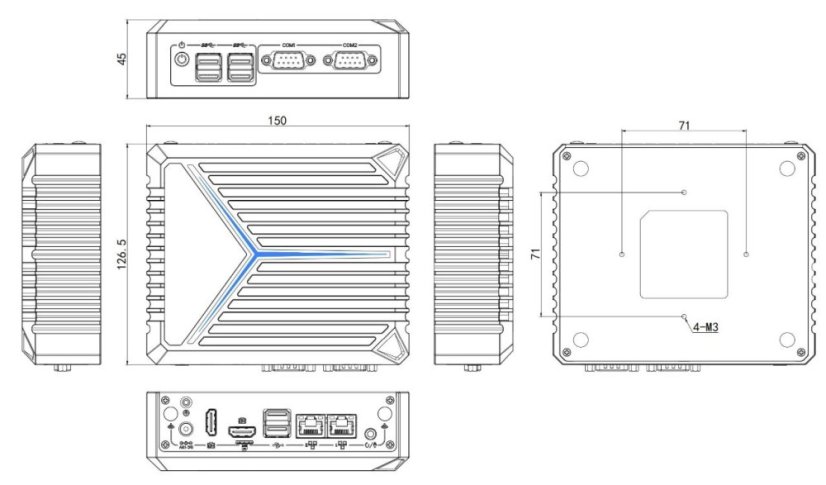

• Dimensions: 150 x 126.5 x 45 mm (5.91 x 4.98 x 1.77 inches)
• Weight: 0.84kg (1.85 lbs)

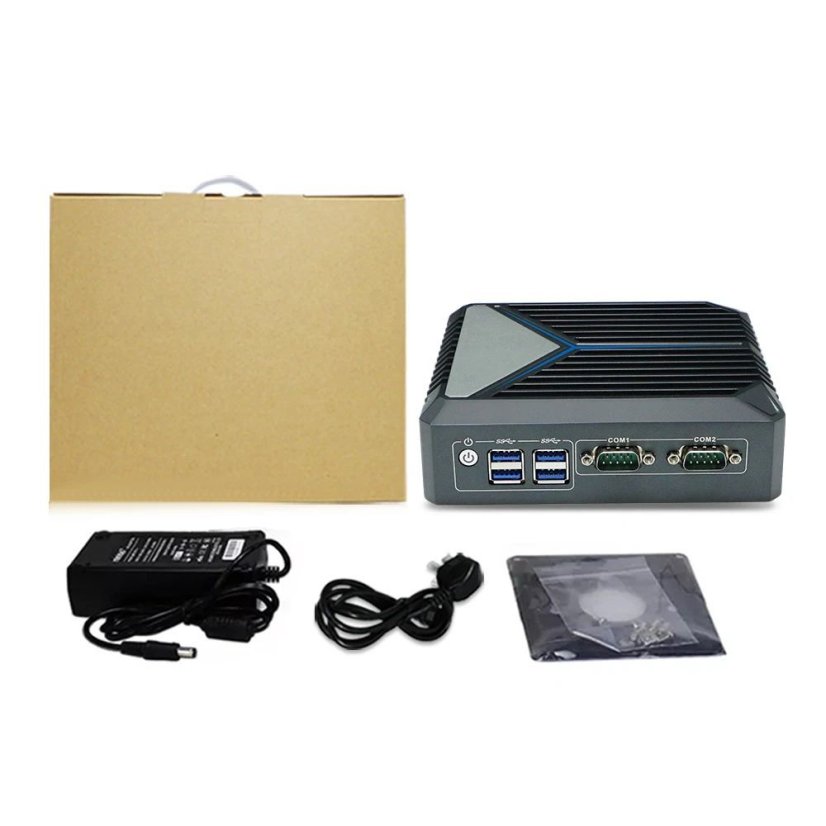

Package includes:

1x N1321 Computer

1x Power supply 12V/2A

1x VESA mount
