NanoPi R5S Router 4GB RAM, 32GB Storage

NanoPi R5S

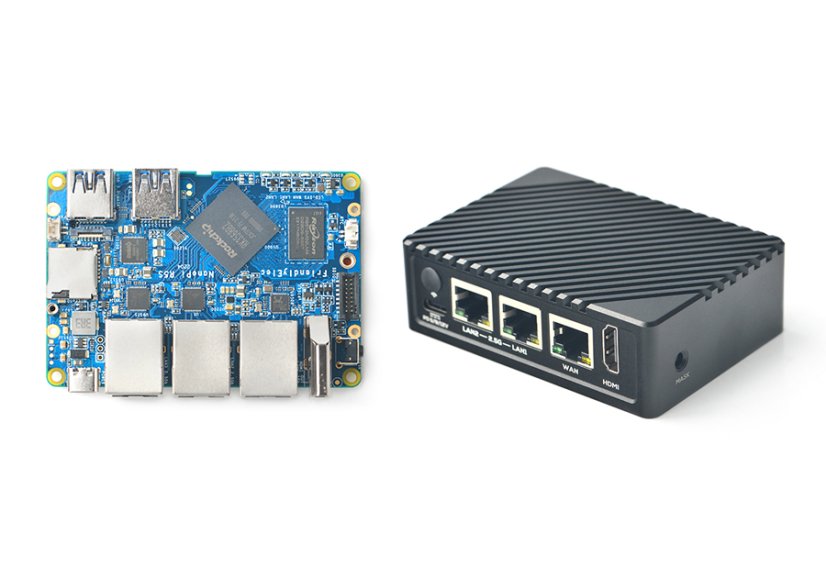

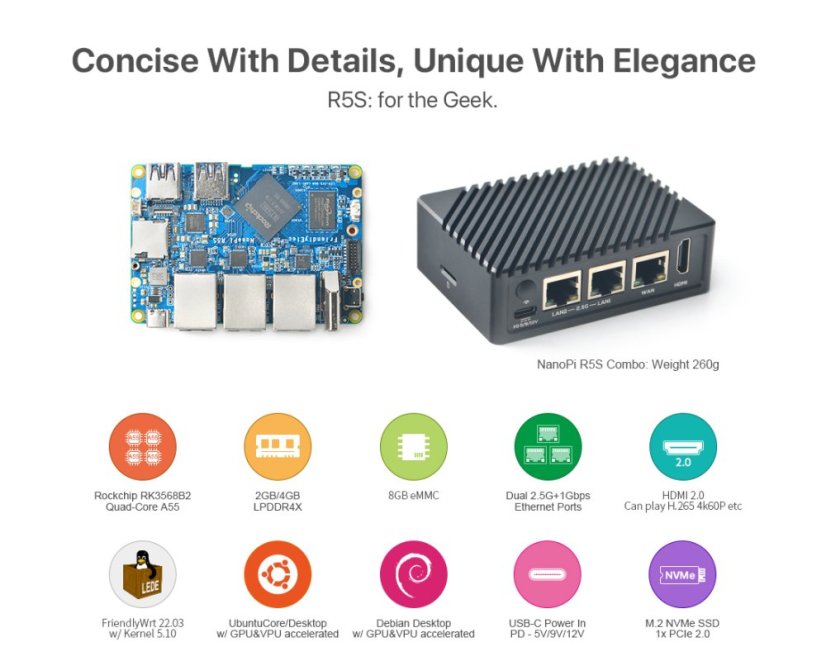

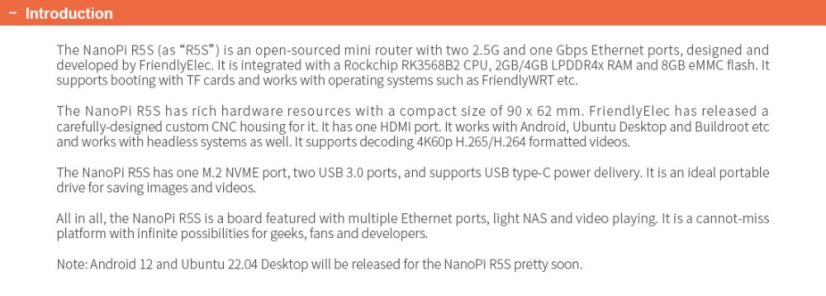

The NanoPi R5S is a top-of-the-line mini-router from FriendlyElec that features edge computing and supports 2.5Gbps Ethernet ports. The device dimensions are 68x94.5x30mm, powered via PD or USB Type C. It is compatible with operating systems such as FriendlyWrt, Ubuntu, and Armbian.

The NanoPi R5S is driven by a high-performance RK3568B2 SoC Rockchip with a frequency of up to 2.0 GHz. The device comes with 4GB LPDDR4X RAM and internal storage options of 32GB eMMC. There are two USB 3.0 ports available for connecting external hard drives, 4G modules, USB HD cameras, and USB Wi-Fi modules.

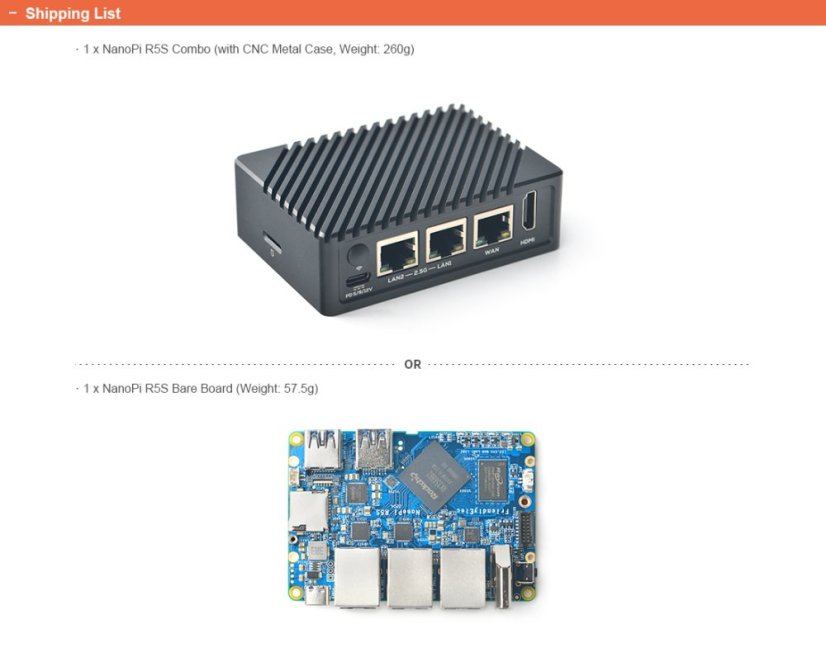

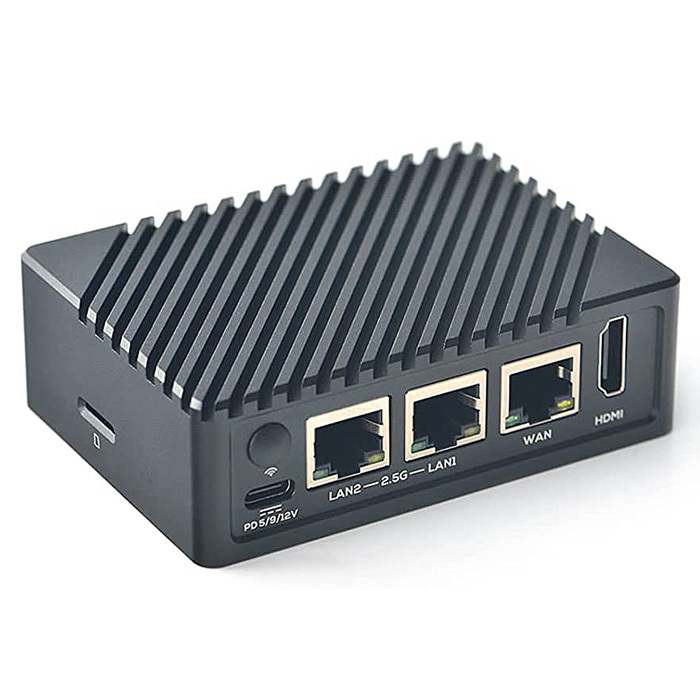

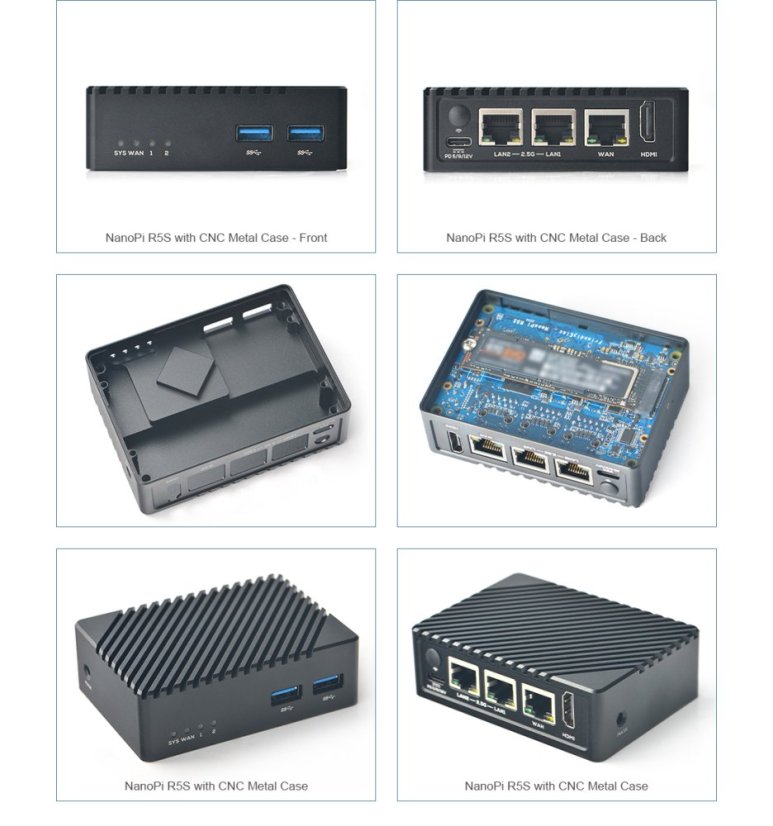

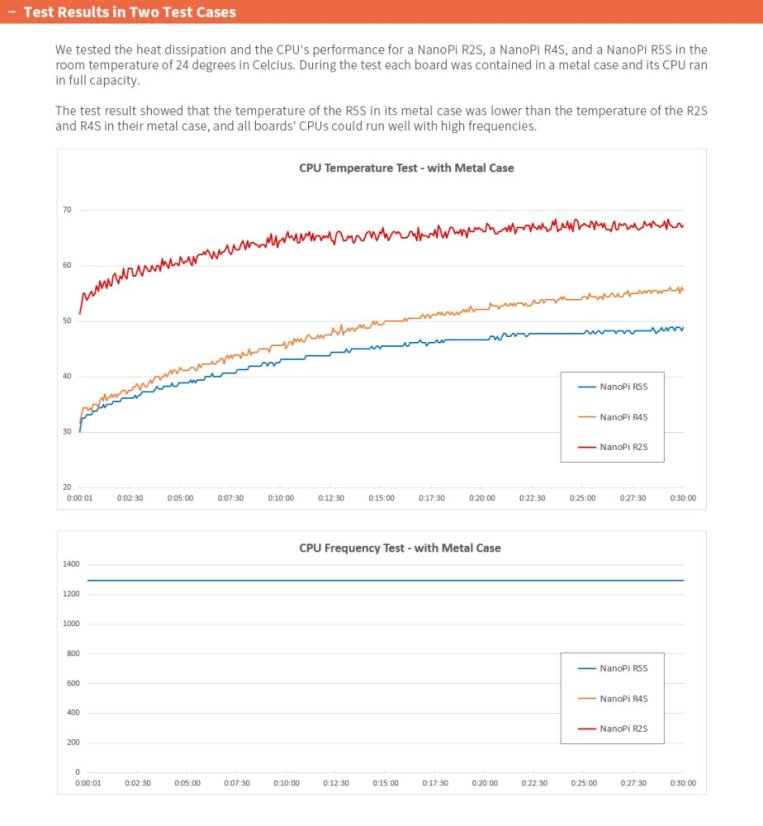

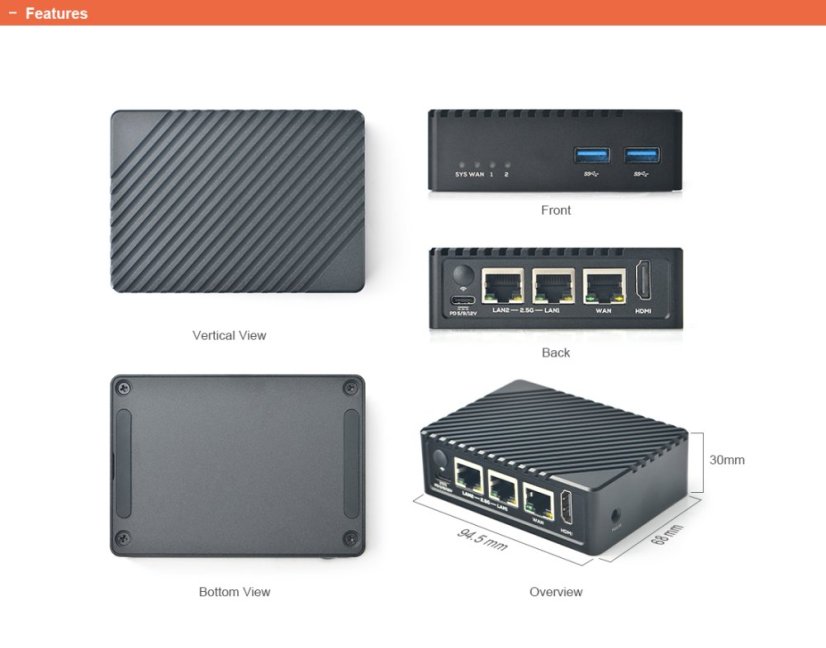

FriendlyElec has also released a special CNC metal case for the NanoPi R5S, which ensures excellent heat dissipation. During testing with this case, the device operated smoothly at full frequency.

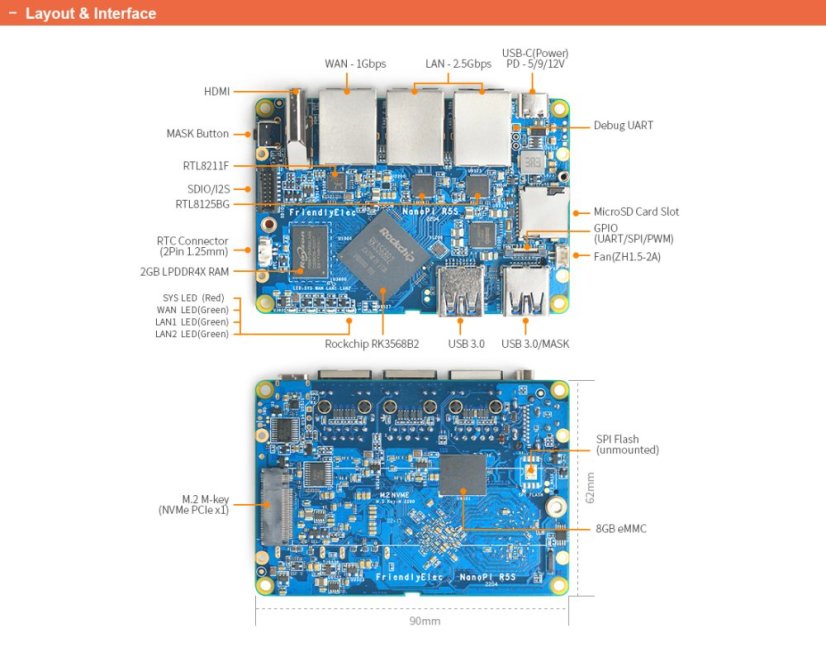

Specifications:

• Model: R5S
• SoC: Rockchip RK3568B2
  • CPU: RK3568B2 Quad-core ARM Cortex-A55, frequency 2 GHz
  • GPU: Mali-G52 1-Core-2EE, supports OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0 Full Profile
  • VPU: 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder
  • NPU: Support 0.8T
• RAM: 4GB LPDDR4X
• Flash: 32GB eMMC

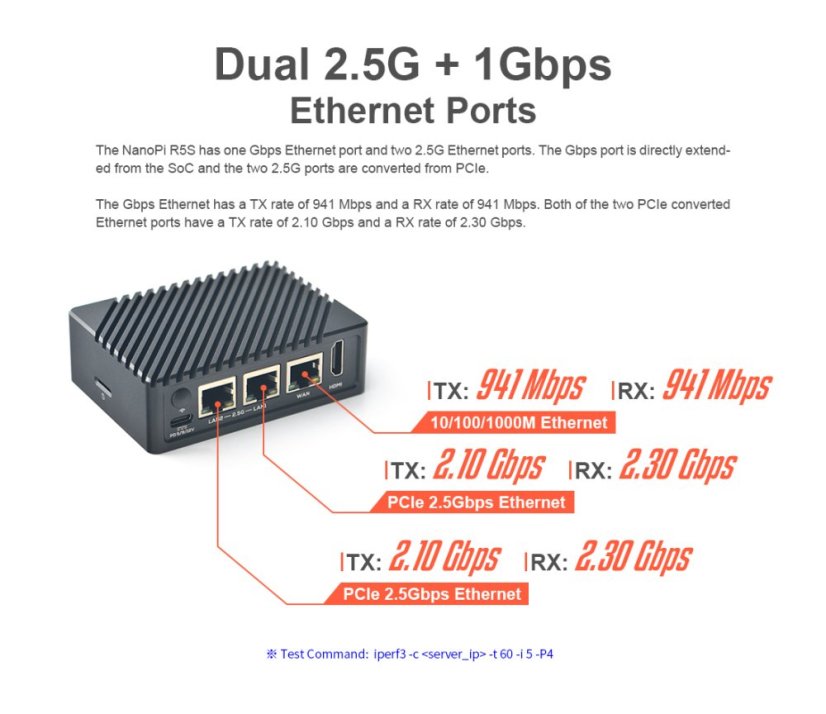

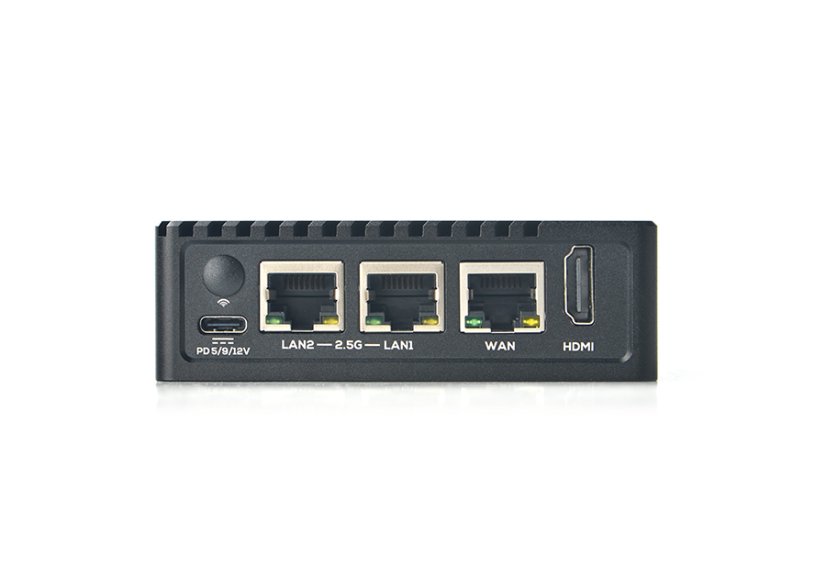

• Ethernet: 3x 2.5 Gigabit Ethernet, 1x RTL8211F-CG chip + 2x RTL8125BG chip PCIe
• Wi-Fi/BT: No
• Video Input: No
• Video output: HDMI, supporting HDMI1.4 and HDMI2.0
• Audio Out: No
• Audio In: No
• USB:
• 2x USB 3.0 Host Type A
• 1x USB 2.0 Host 2.54mm 4pin-header
• 1x USB Type-C: power only
• microSD Slot x 1 (max. 128GB), LAN1 LED (green), LAN2 LED (green)
• 12-pin 0.5mm FPC connector, up to 1x SPI, up to 3x UARTs, up to 4x PWMs, up to 8x GPIOs
• Debug: one Debug UART, 4 Pin 2.54mm header, 3V level, 1500000bps

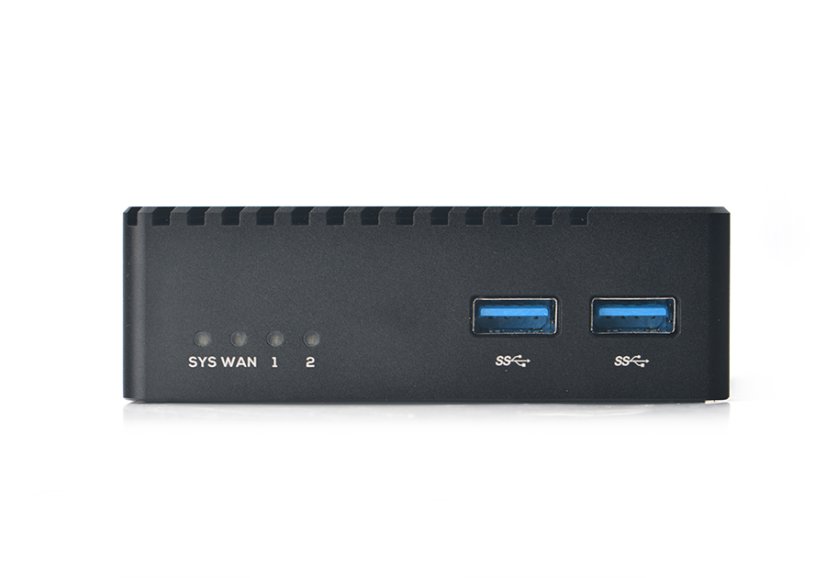

• LED: SYS LED (red), WAN/LAN LED (green) x3
• RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector
• Power: USB-C 5V/3A
• Operating Temperature: 0℃ to 70℃

• Dimensions: 68x94.5x30 mm (with case)

• Weight: 260g (with case)

Supported OS: FriendlyWrt 21.02, FriendlyWrt 22.03, Android 12 Tablet, Android 12 TV, FriendlyCore Lite 20.04, Debian 10 Desktop, Debian 11 Desktop Buildroot
