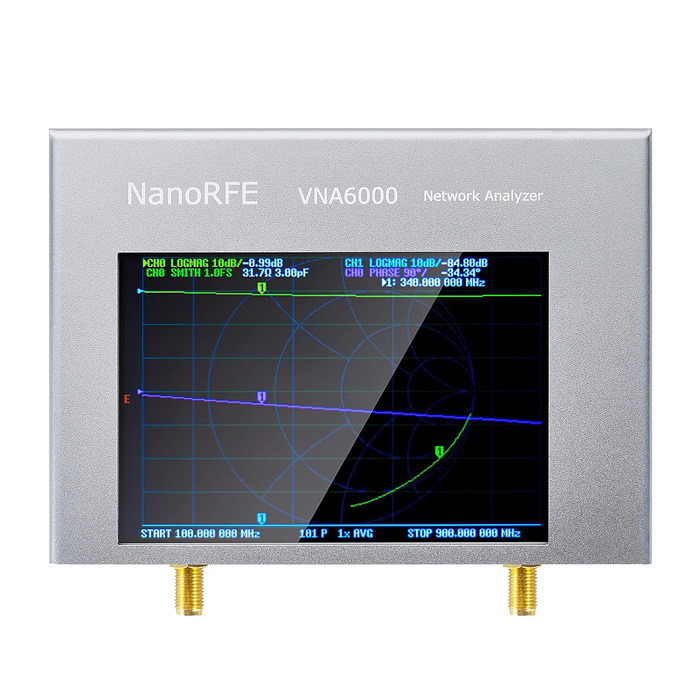

NanoRFE VNA6000 6GHz Portable Vector Network Analyzer

NanoRFE Original VNA6000 Third Generation 6GHz Portable Vector Network Analyzer

The VNA6000 (formerly NanoVNA V3) is a series of two-port 6GHz vector network analyzers developed by NanoRFE/HCXQS. These analyzers deliver performance comparable to professional-grade equipment in a small and portable form factor.

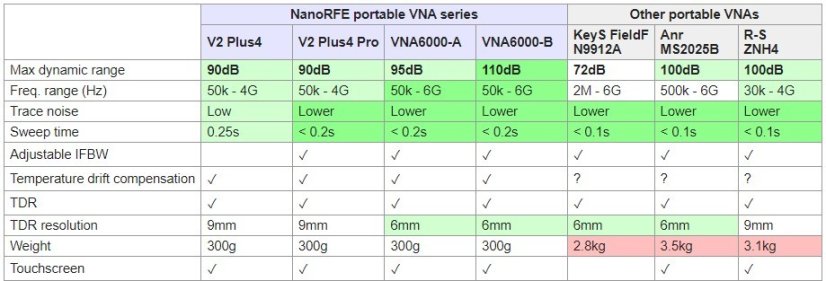

Existing portable VNAs weigh over 2.5 kg (heavier than a laptop). The VNA6000 weighs only 300 g, making it the first professional-grade VNA in a lightweight and compact design. It is ideal for engineers on the go and for working from home. It can be used to characterize antennas, filters, duplexers, amplifiers, and other components.

Improved measurement repeatability and low trace noise in the VNA6000 allow field technicians to perform most laboratory tasks without the logistics, minimizing productivity losses.

Specifications:

• Model: VNA6000
• Manufacturer: HCXQS/NanoRFE China
• 50kHz - 6GHz frequency range
• Low drift:
  • Built-in temperature compensation minimizes drift

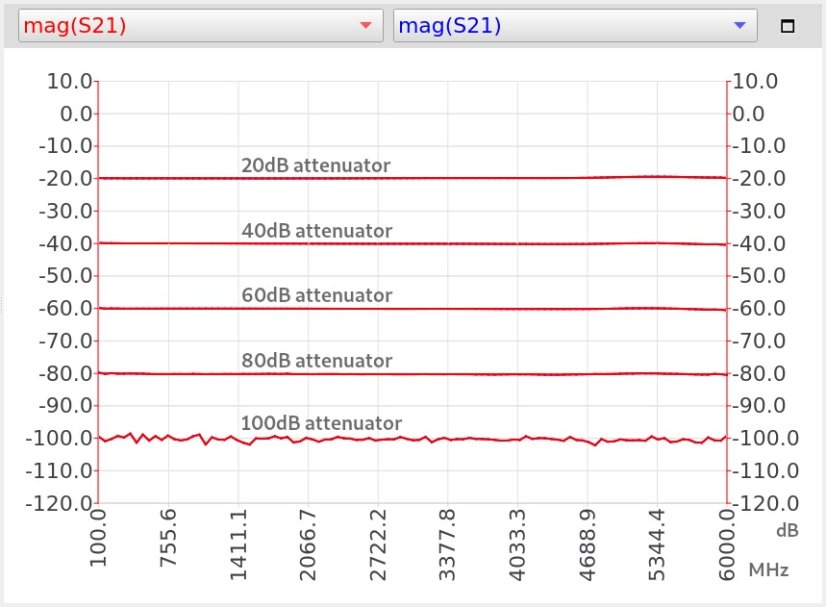

• High linearity
• Improved measurement repeatability
  • <0.1dB typically

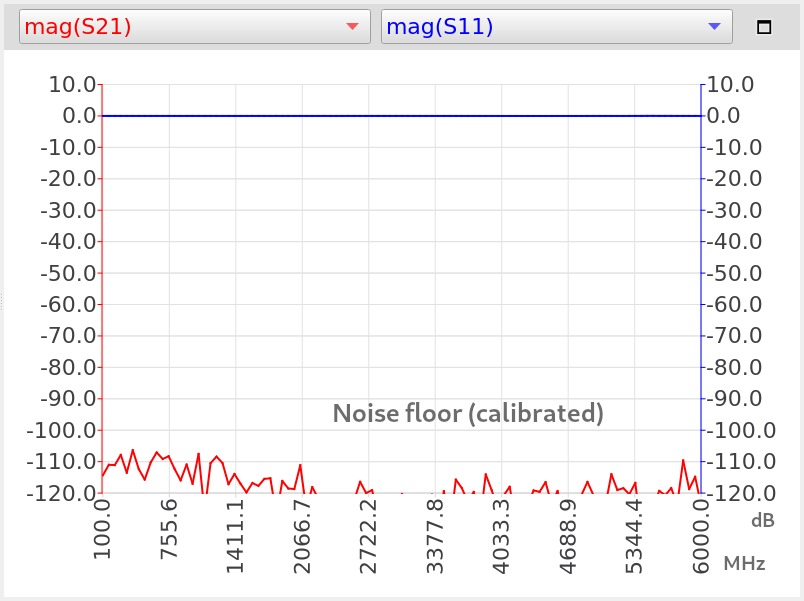

• High dynamic range
  • 95dB @ 5.8GHz (VNA6000-A)
  • 110dB @ 5.8GHz (VNA6000-B)
• Adjustable IFBW
  • Enables optimal trade-off between measurement speed and noise

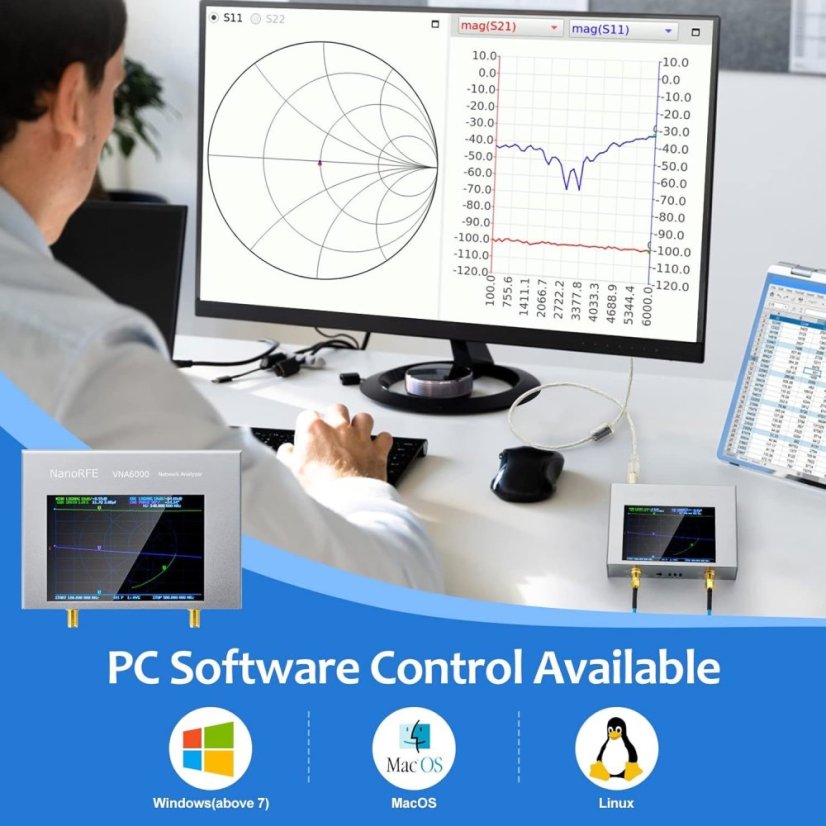

• PC connectivity (NanoVNA-QT software)
• Lightweight and easily portable
  • Lower weight (300g) compared to other portable VNAs
• TDR with millimeter resolution

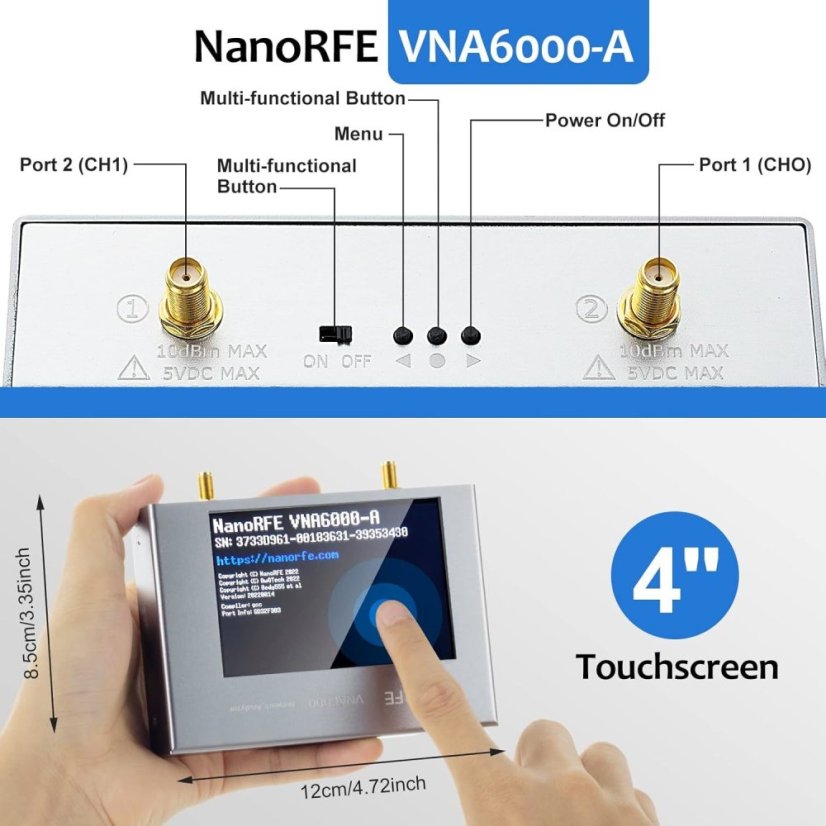

• 4-inch touchscreen display
• API for integration with testing environment
