NanoVNA Demo Kit - RF Test Board

Demo Kit PCB and RF Test Board for Assembly for VNA and NanoVNA

This NanoVNA RF demonstration kit includes an assembly PCB for testing or demonstrating RF integrated circuit (DIP) and SMT (SMD) components.

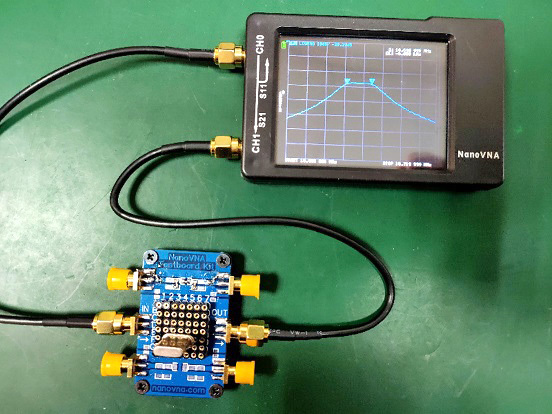

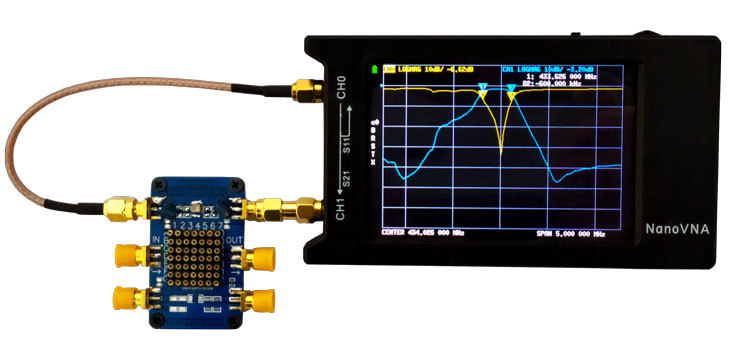

It is tailored for use with the Vector Network Analyzer (VNA) antenna and NanoVNA-H or NanoVNA-F for measurements ranging from 50 KHz to 1500 MHz.

This test board set allows VNA users to quickly test DIP or SMD components for RF circuits and assess their performance.

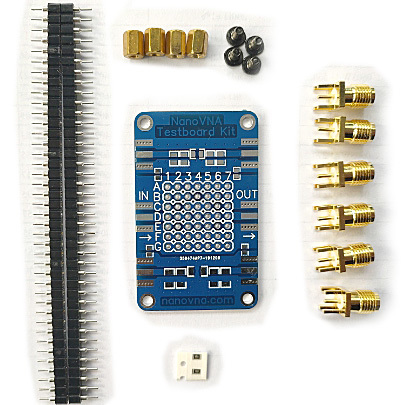

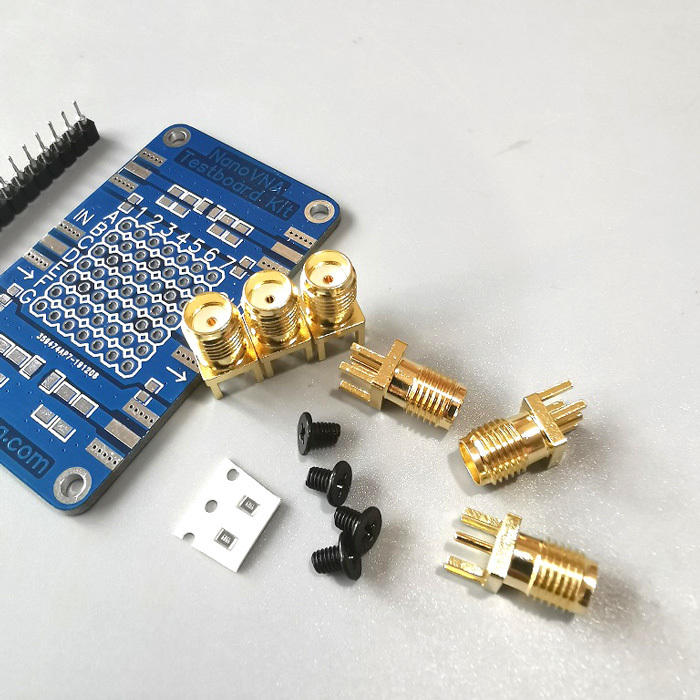

Package Contents:

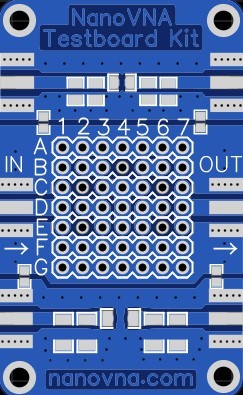

• 1x RF test board PCB (30x60mm),
• 6x SMA PCB connectors (female),
• 4x M2.5 screws,
• 2x 40-pin header,
• 2x calibration resistors 0805 and 49R9
