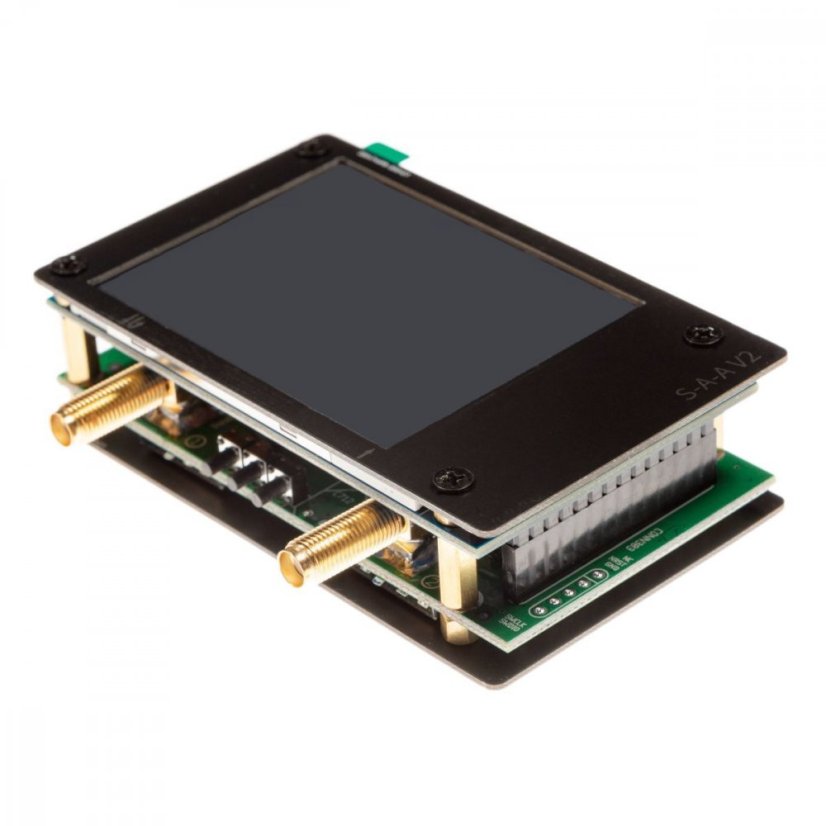

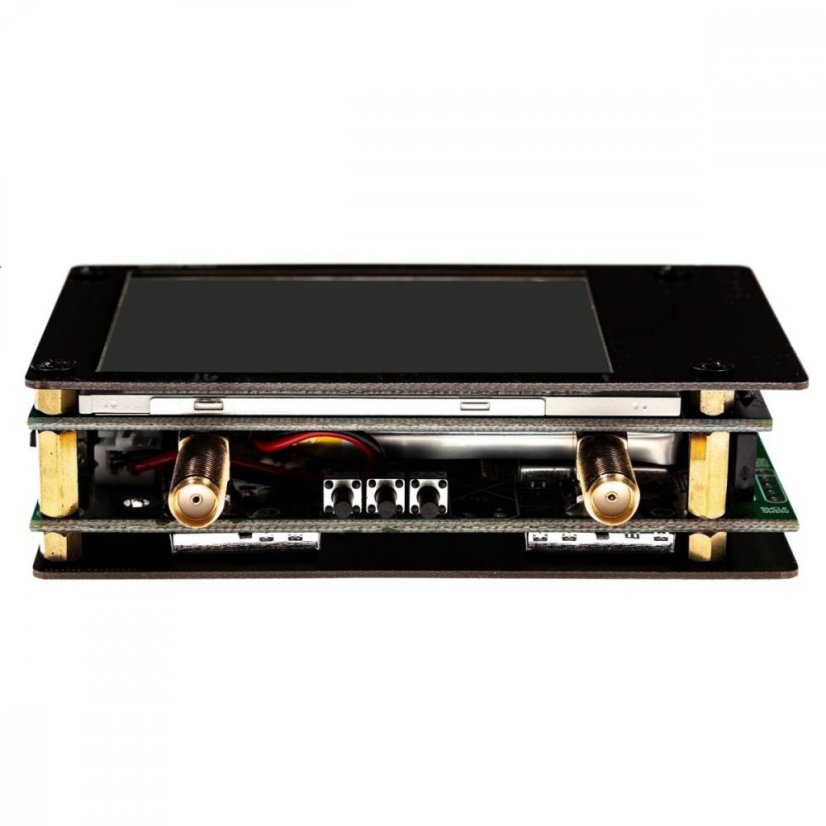

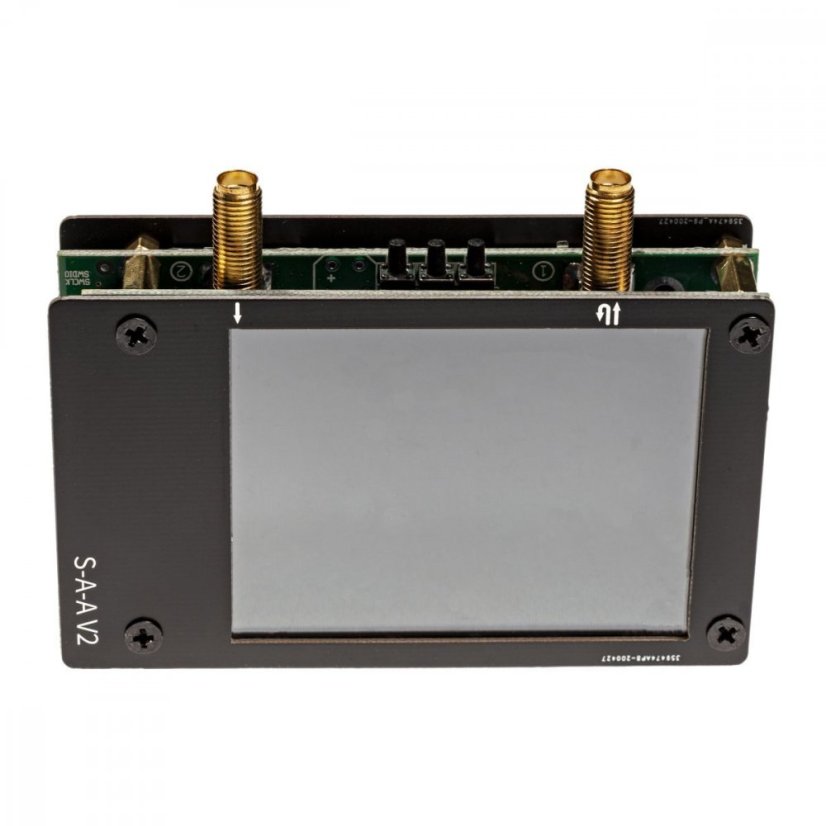

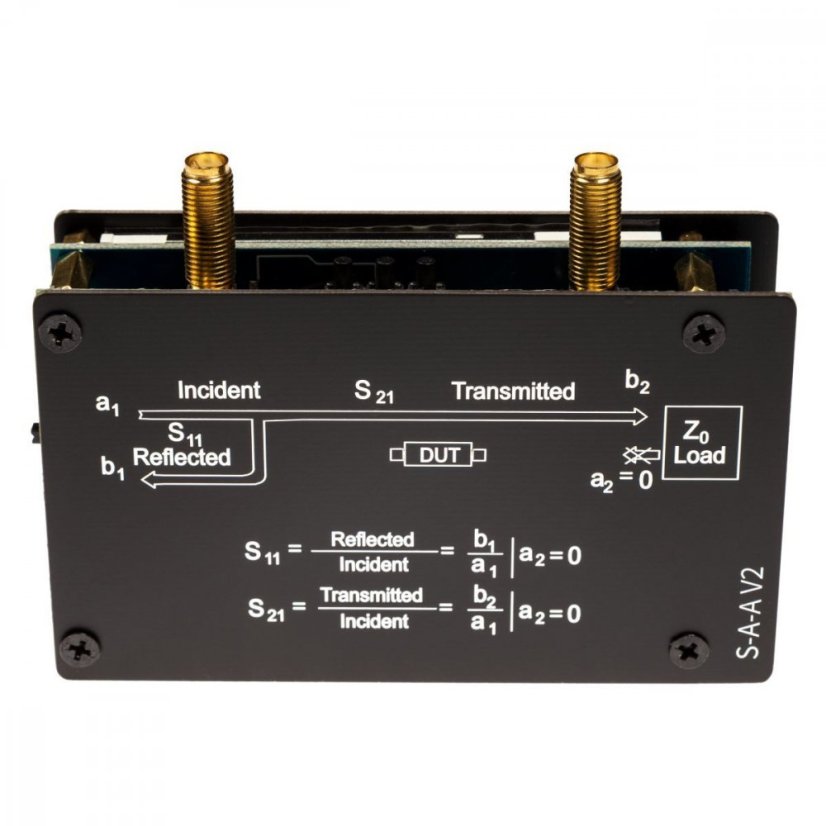

NanoVNA v2 S-A-A-2: Portable Vector Network Analyzer 50kHz-3000MHz with 2.8" LCD and SOLT Calibration Kit

The NanoVNA V2+ S-A-A-2 is a high-quality vector network analyzer at an affordable price, used for antenna tuning, filtering, and measuring cable losses. It offers a frequency range from 50 kHz to 3 GHz and a dynamic range of 70 dB (< 1.5 GHz) / 60 dB (> 3 GHz). Power is supplied via micro USB, and it can also be operated with a Li-Ion battery (not included). Compatible with VNA-QT PC software.

Specifications:

• Material: PCB + acrylic
• Color: Black
• Frequency range: 50 KHz - 3 GHz
• Dynamic range (calibrated): 70 dB (up to 1.5 GHz), 60 dB (up to 3 GHz)
• S11 Level (calibrated): -50 dB (up to 1.5 GHz), -40 dB (up to 3 GHz)
• Sampling Rate: 100 points/s
• Display: 2.8", 320 x 240
• USB Interface: micro USB
• Power Supply: USB, maximum charging current - 1 A
• Battery: 1 x 1950mAh lithium battery (included)
• Battery Connector: JST-XH 2.54 mm
• Maximum Sampling Points (on device): 201
• Maximum Sampling Points (USB): 1024
• Port 2 Return Loss (1.5 GHz): 20 dB typical
• Port 2 Return Loss (3 GHz): 13 dB minimum
• Packaging Dimensions: 170 x 100 x 35 mm (6.7 x 3.9 x 1.4 inches)
• Packaging Weight: 225 g / 7.9 oz

Note:
1. Download VNA-QT Software: https://github.com/nanovna/NanoVNA-QT/releases
2. nanovna-saver: https://github.com/zarath/nanovna-saver/tree/feature/nanovna-v2
3. User Manual: https://github.com/nanovna/NanoVNA-QT/raw/master/ug1101.pdf

Package Contents:
1 * S-A-A-2 host (with 1950mAh battery)
1 * Micro USB data cable
2 * 300mm SS405RF SMA male/male cables
1 * SMA male calibration kit - OPEN
1 * SMA male calibration kit - SHORT
1 * SMA male calibration kit - LOAD
1 * SMA female/female connector
1 * Accessory kit
