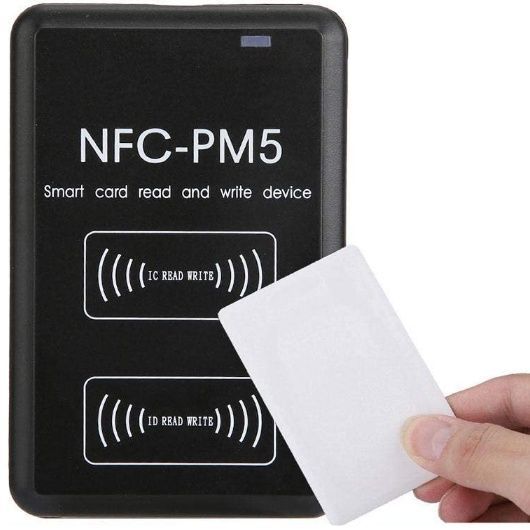

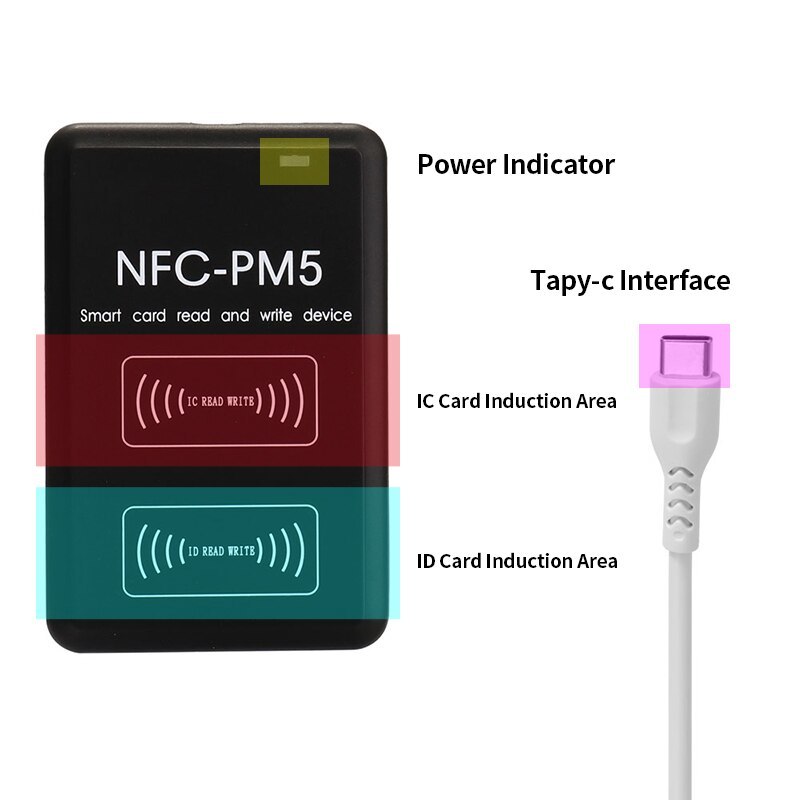

NFC-PM5 USB 13.56 MHz Card Reader and Writer

NFC-PM5 USB 13.56 MHz Card Reader and Writer

The PM5 is capable of complete decoding of IC/RFID 13.56 MHz cards and cloning of ID/125 KHz cards. No drivers are required, and it comes with user-friendly software. Once connected to a computer, the device appears as an external drive from which software can be easily installed.

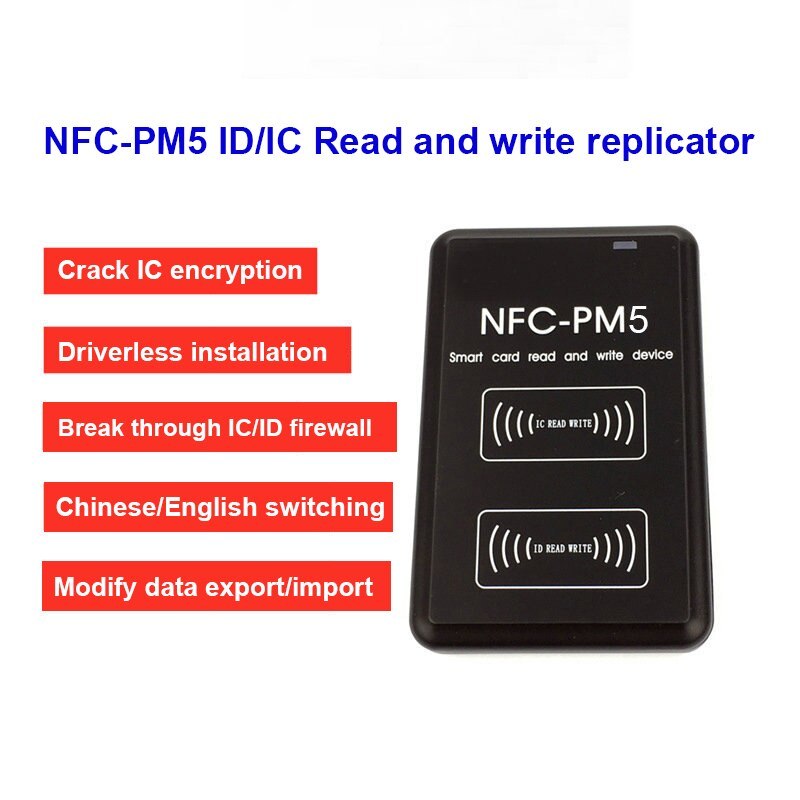

NFC-PM5 Features:

• Ability to modify sector data.
• Applicable to IC/ID cards.
• Supported reading and writing frequencies: 125 KHz, 250 KHz, 500 KHz, 375 KHz, 625 KHz, 750 KHz, 875 KHz, 1000 KHz, 13.56 MHz (ISO1443A/B).
• Supported writable cards: T5577, EM4305, Mifare UI-D.
• Compact, portable design with contactless technology.
• Ability to break most card encryption.
• NFC support for mobile devices.

Specifications:

• NFC-PM5
• Keyboard mode: no
• Material: ABS
• Color: Black
• NFC-PM5: IC+ID
• Reading and Writing Frequencies:
• NFC-PM5: 125 KHz, 250 KHz, 500 KHz, 375 KHz, 625 KHz, 750 KHz, 875 KHz, 1000 KHz, 13.56 MHz (ISO1443A/B)
• Supported Writable Cards:
• NFC-PM5: T5577, EM4305, Mifare UI-D
• Supported Operating Systems: Win 7, Win 10, Win 11, Linux, Mac 10.5/10.6, Win CE 5.0
• Product Dimensions: 3.74 x 2.36 x 0.55 in (95 x 60 x 14 mm)
• Product Weight: 1.31 oz (37 g)

Package Contents:

• 1 * Card Reader/Writer
• 1 * USB Cable

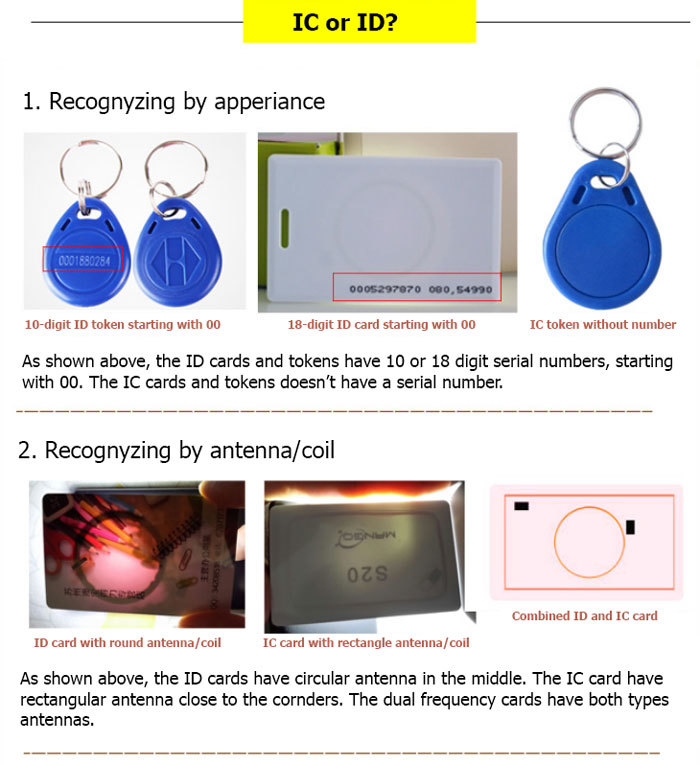

How to Differentiate Cards/Chips

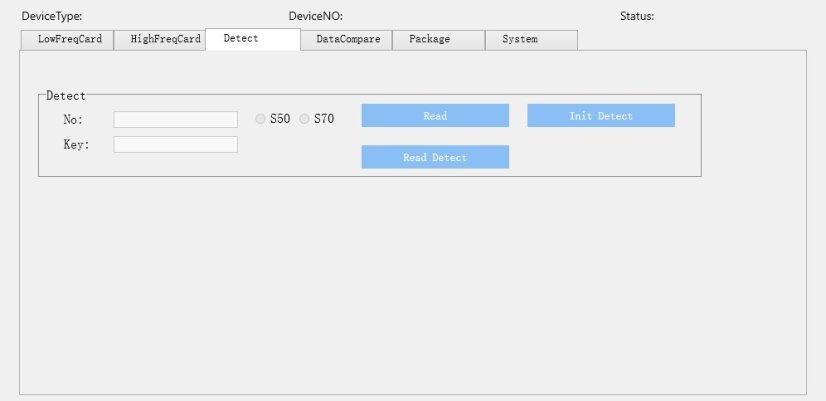

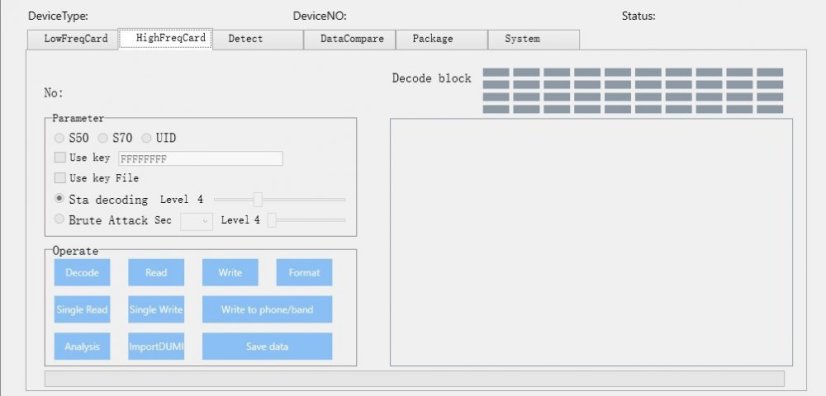

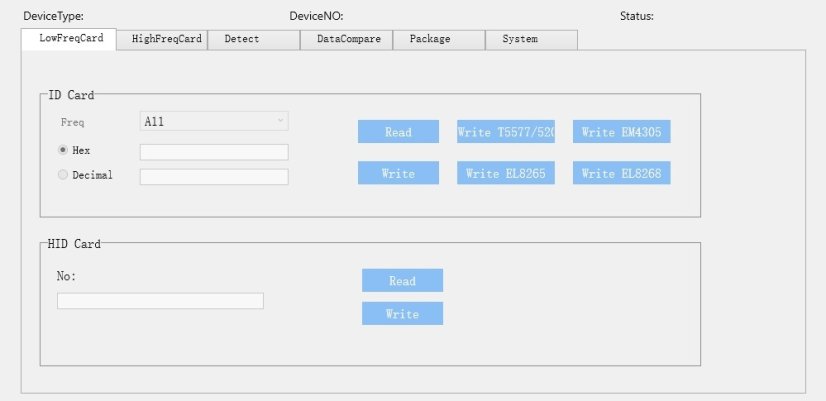

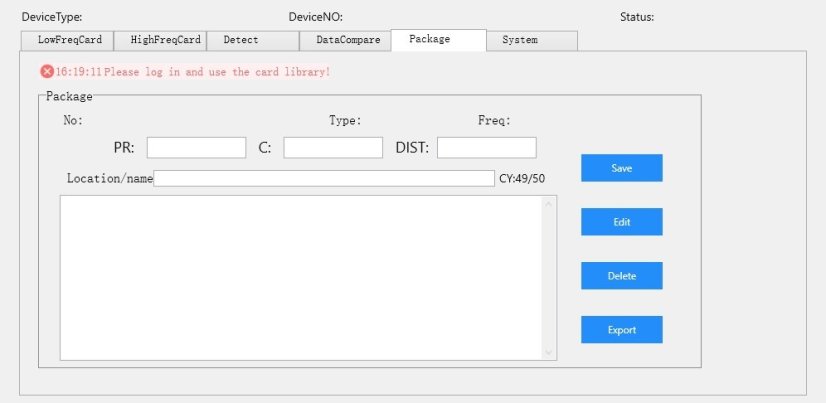

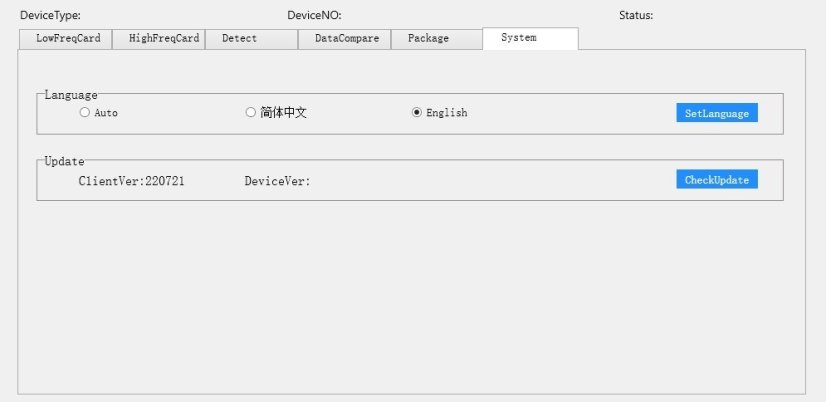

Software Features
