Nooelec NESDR SMArt v5 SDR RTL Receiver Kit

Nooelec NESDR SMArt v5 Premium RTL-SDR features an aluminum enclosure, 0.5PPM TCXO, SMA input, and comes with 3 antennas. It is based on the RTL2832U and R820T2.

This premium RTL-SDR is designed developed and manufactured by Nooelec in the USA and Canada for a wide range of desired elements.

SDR Enhancements:

• The NESDR SMArt includes the same ultra-low phase noise 0.5PPM TCXO used in our much smaller Nano 2+, ensuring perfect tuning stability in almost any environment.
• To reduce noise, the voltage source section has been redesigned with an RF-friendly voltage regulator with noise levels below 10 µVRMS.
• A quality shielded inductor has been used in the power supply to improve EMI resilience.
• Polished aluminum enclosure ensures that EMI stays away from sensitive RF circuit systems.
• Lower board temperatures further improve the noise level in SDR.

Thermal Enhancements:

• Custom-designed heatsink is connected to the primary PCB to dissipate heat away from the circuit board.
• 2 pieces of silicone thermal pads dissipate the remaining heat away from the sensitive areas of the device.
• Power consumption has been reduced to an average of 10mA, producing less heat compared to other designs.
• These changes were first simulated and then tested with Flir E8.

Form Factor Enhancements:

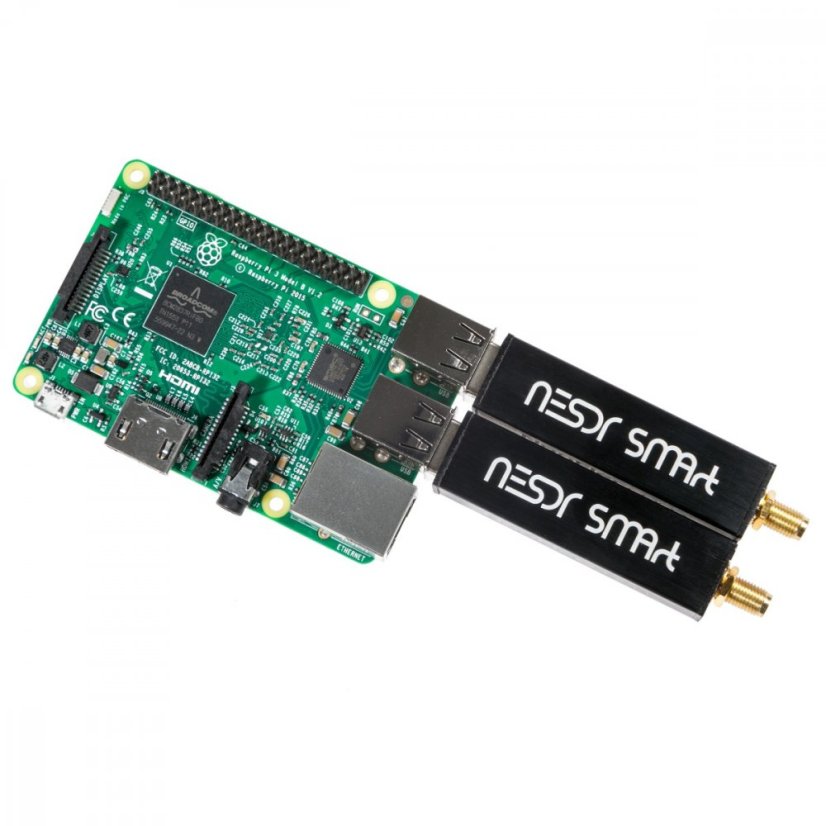

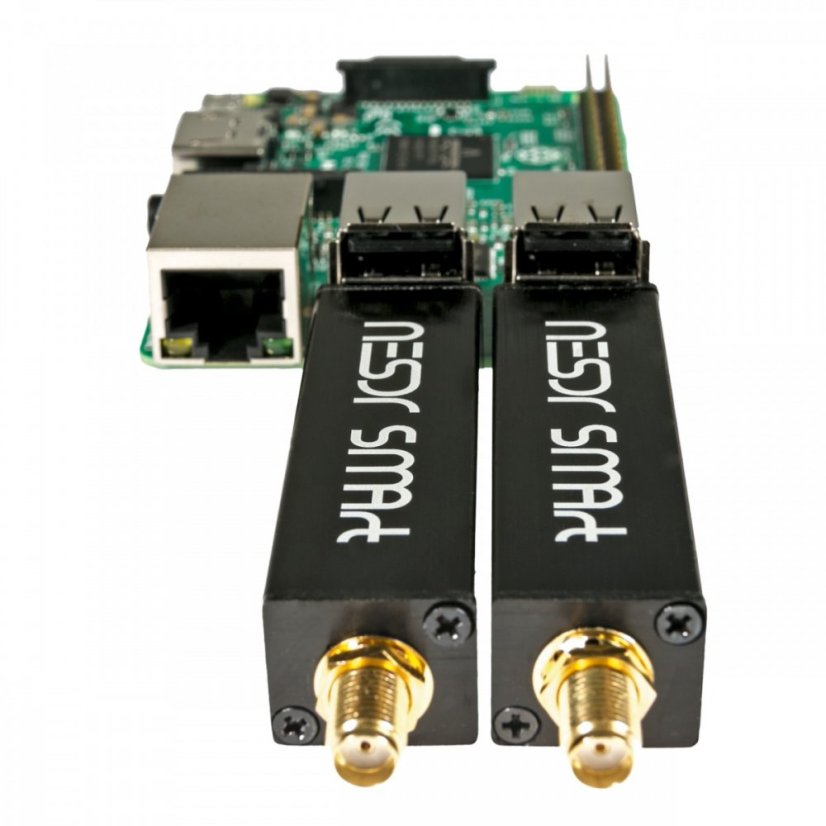

• The NESDR SMArt has been designed to minimize USB port occlusion. The SDR has been completely redesigned to ensure side-by-side compatibility with any USB-supporting devices.
• The revamped design allows for a more versatile SMA antenna input.

Antenna Enhancements:

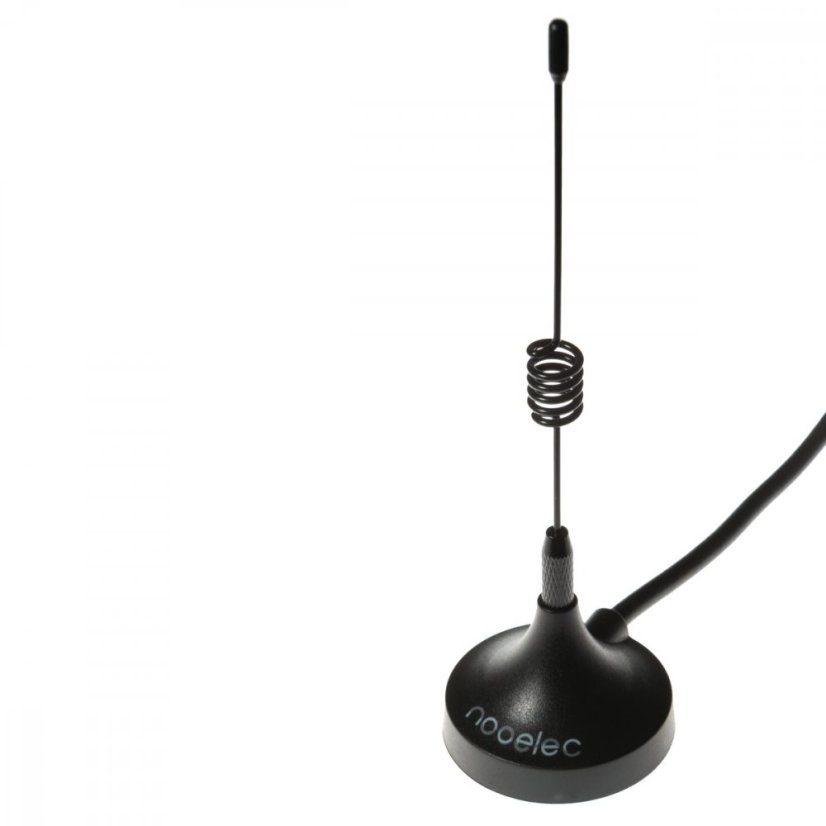

• The antenna is mounted on a wider base to ensure physical stability.
• Stronger magnet in the antenna base allows for a wide range of mounting options.
• Power cable RG58 low loss replaces higher loss cables.
• Power cable extended to 2m for easy installation.
• External SMA connector on the antenna cable ensures easy connection to NESDR SMArt.

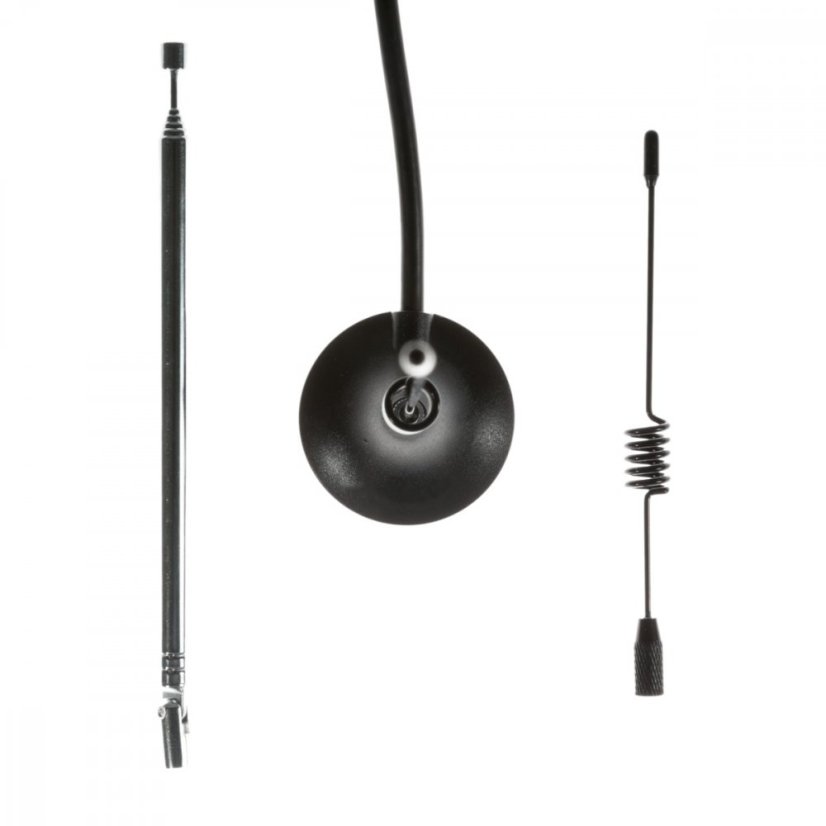

• Includes three antenna masts: telescoping mast, 433MHz, and UHF.

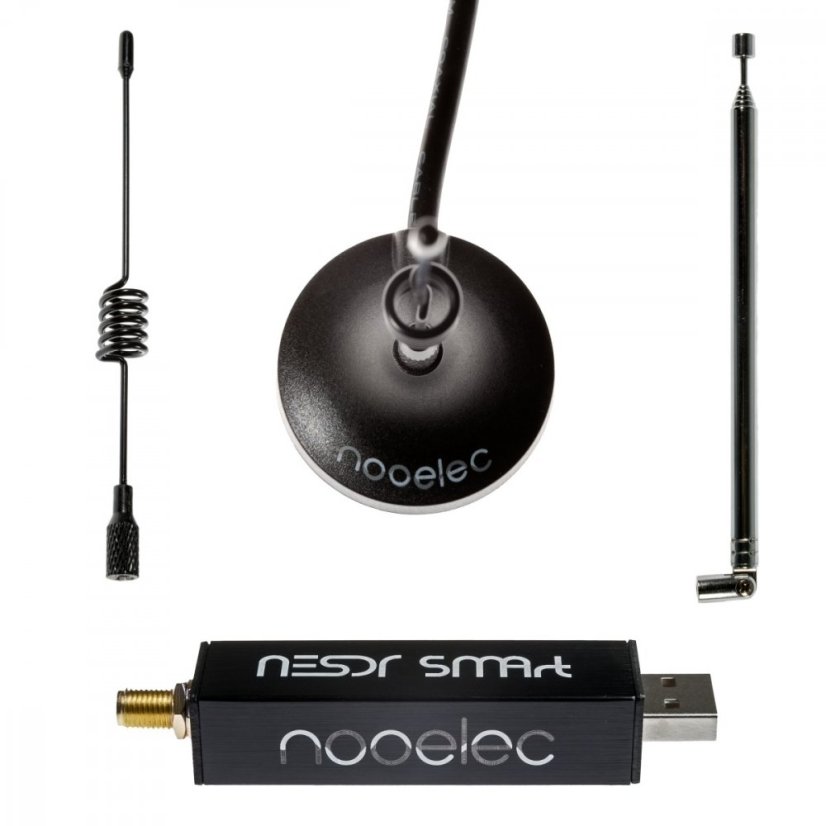

Contents:

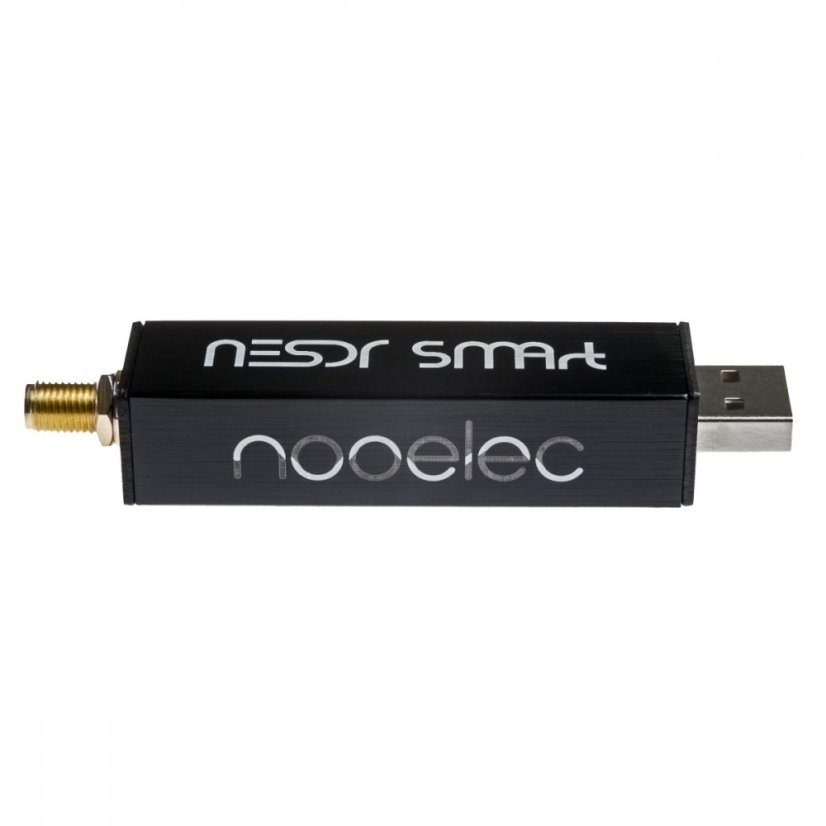

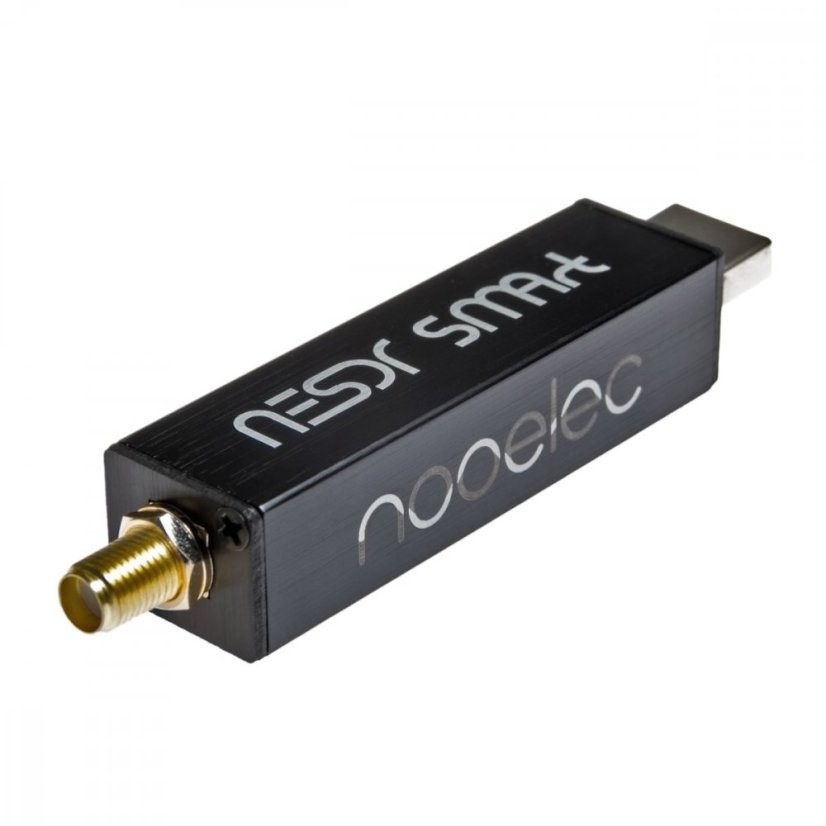

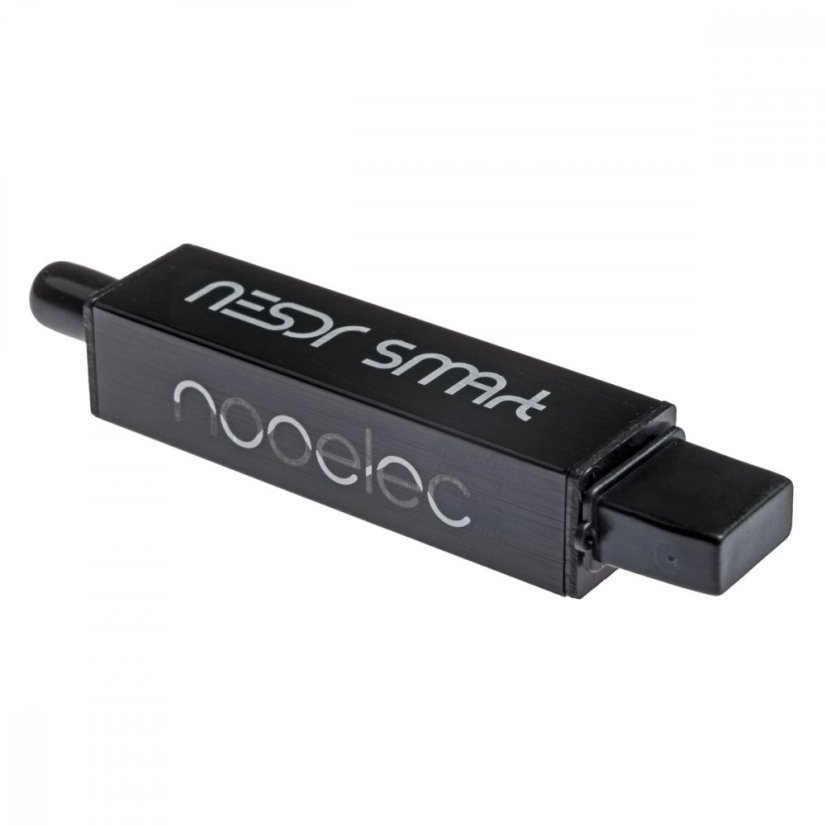

• NESDR SMArt SDR with polished aluminum enclosure
• Antenna base with 2m RG58 cable

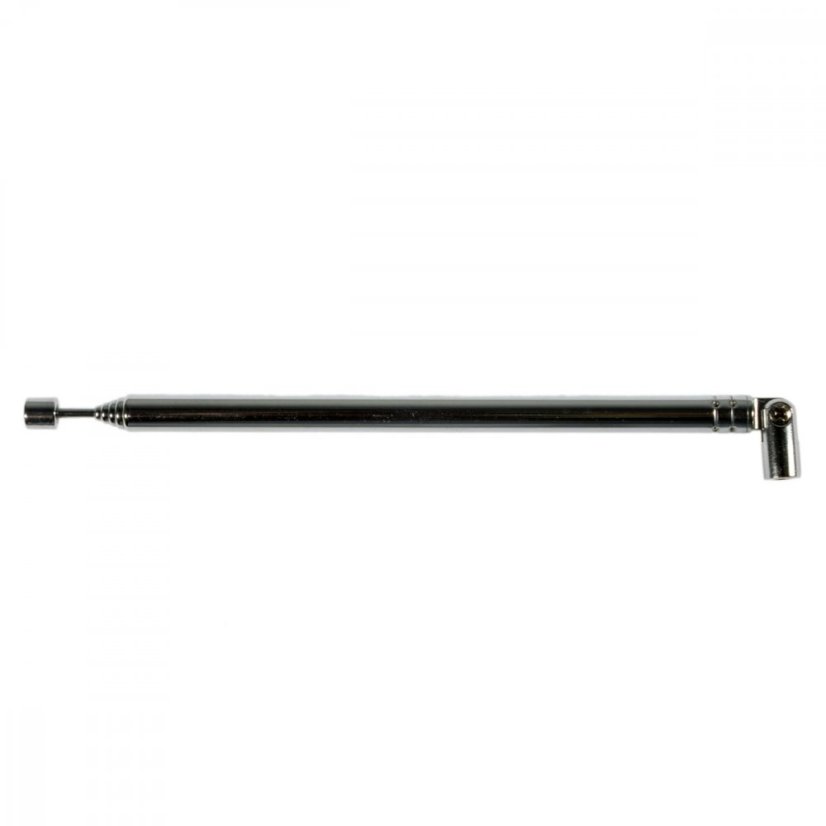

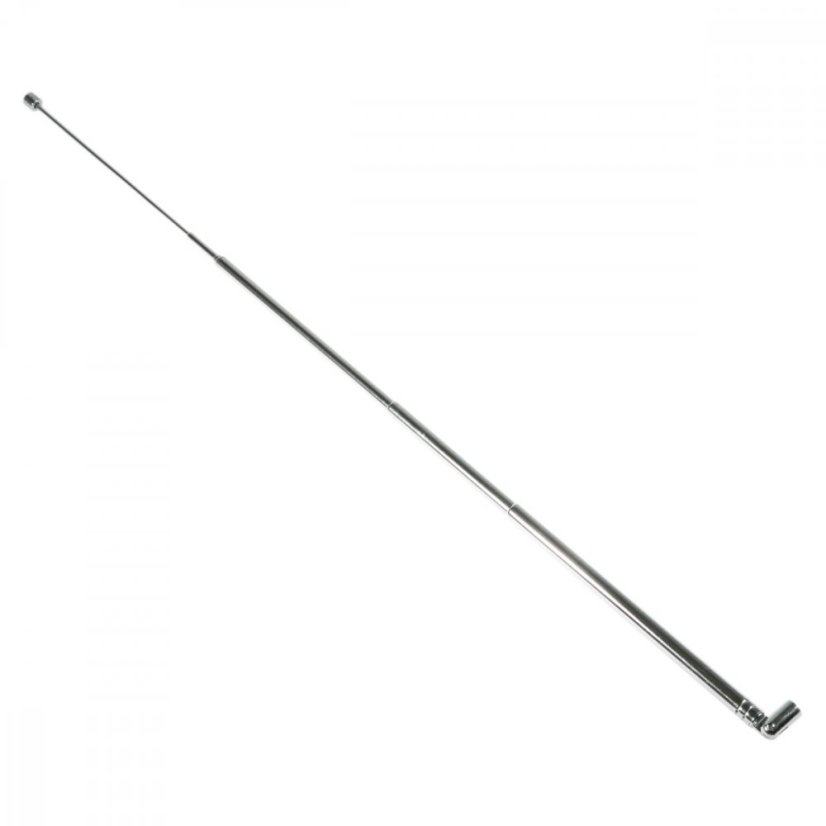

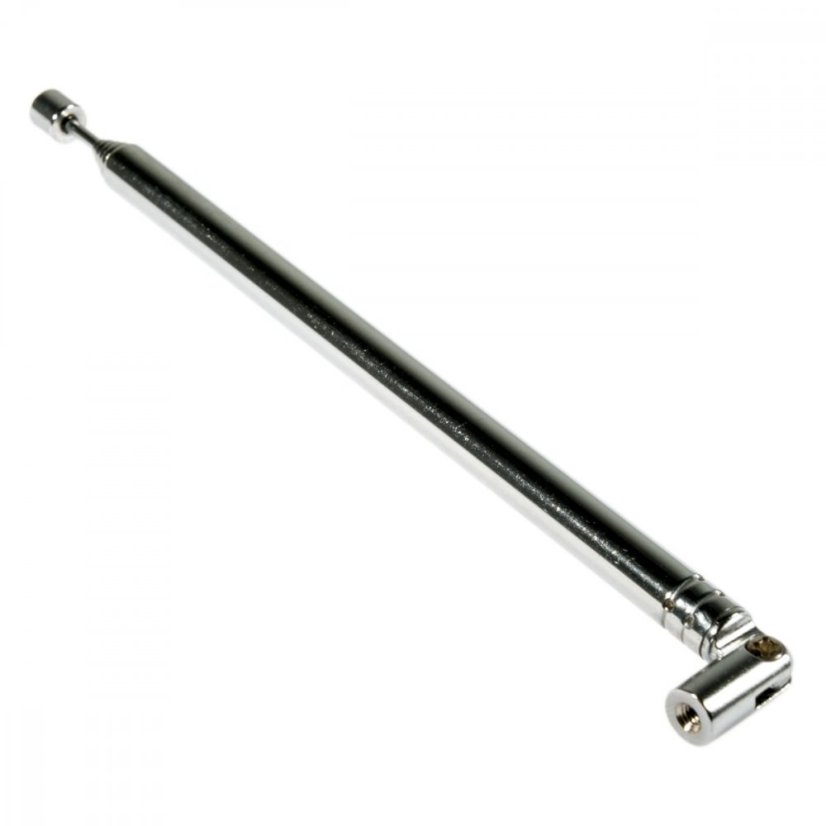

• Telescoping antenna mast

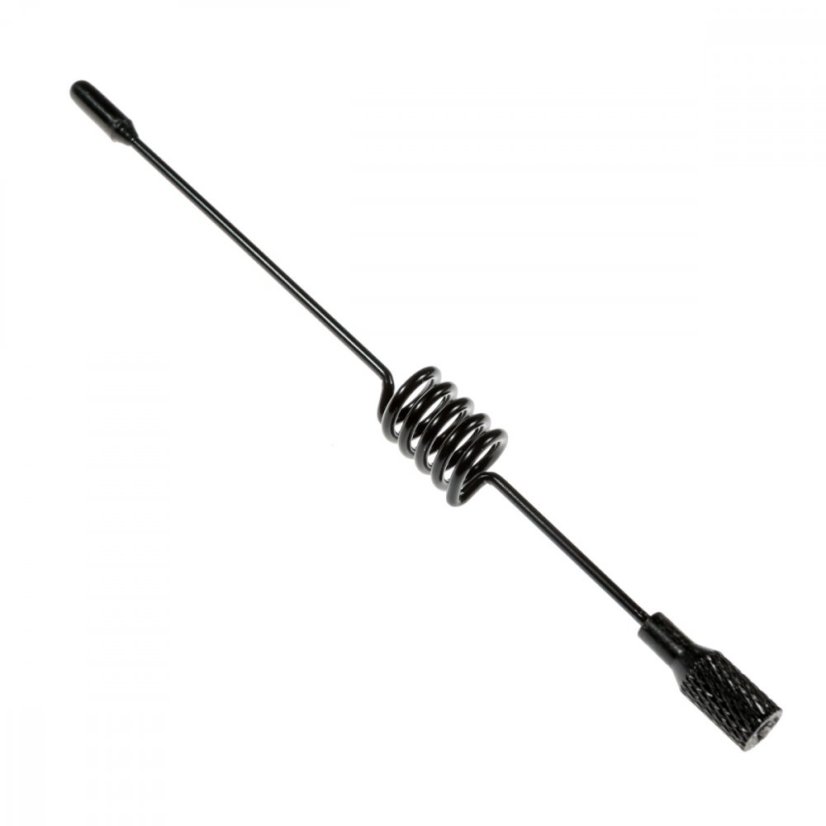

• 433MHz (ISM) mast

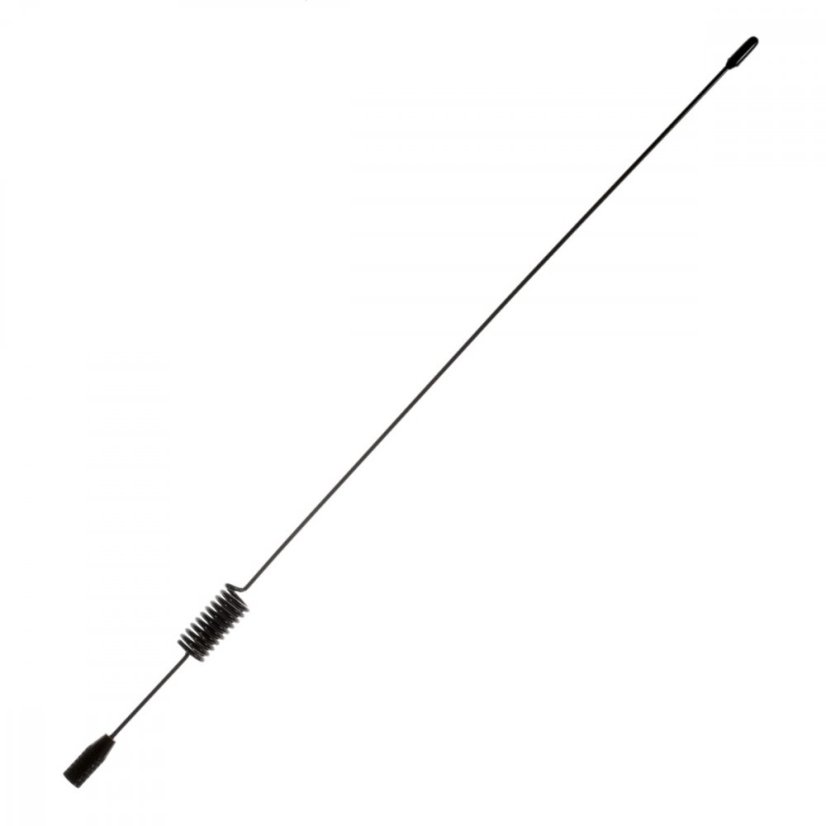

• UHF mast

SDR Specifications:

• RTL2832U demodulator/USB interface IC
• Frequency Range (approximate)    0.1MHz - 1750MHz
• R820T2 tuner IC
• 0.5PPM, ultra-low phase noise TCXO
• RF voltage regulator
• Shielded primary inductor
• Internal SMA antenna input
• High-quality polished aluminum enclosure
• Direct sampling pads on PCB

Antenna Specifications:

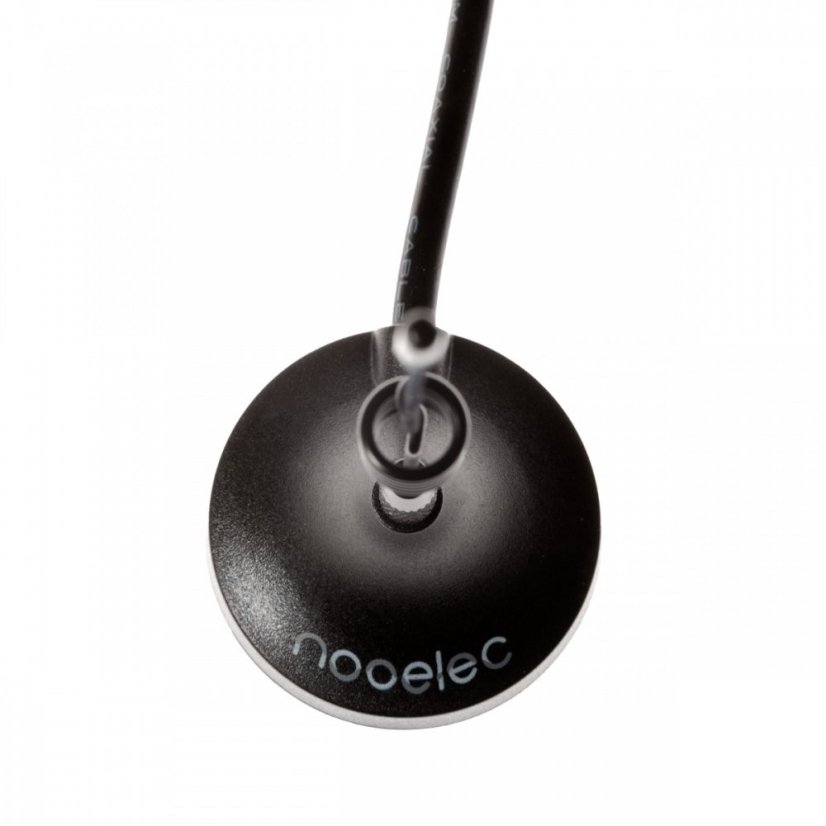

• Wide base with strong magnet for easy mounting
• 2m long RG58 cable
• Cooling internal SMA connector for direct connection

Documentation in English: http://start.nesdr.com
