Omega2 Breadboard Dock

Onion Omega2/+ BREADBOARD DOCK

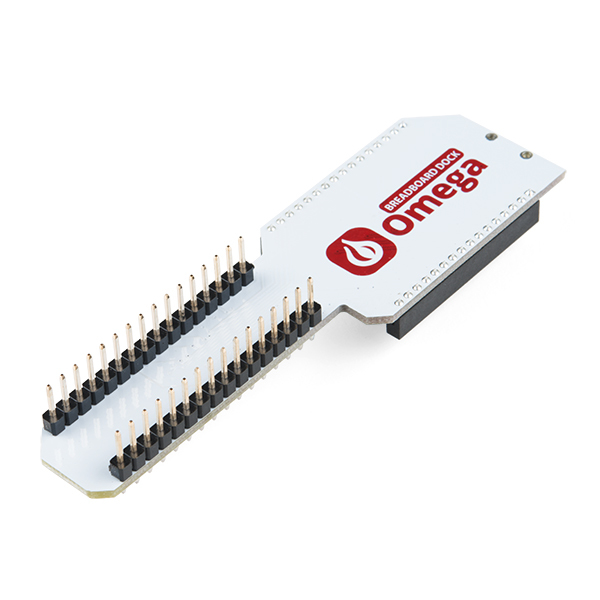

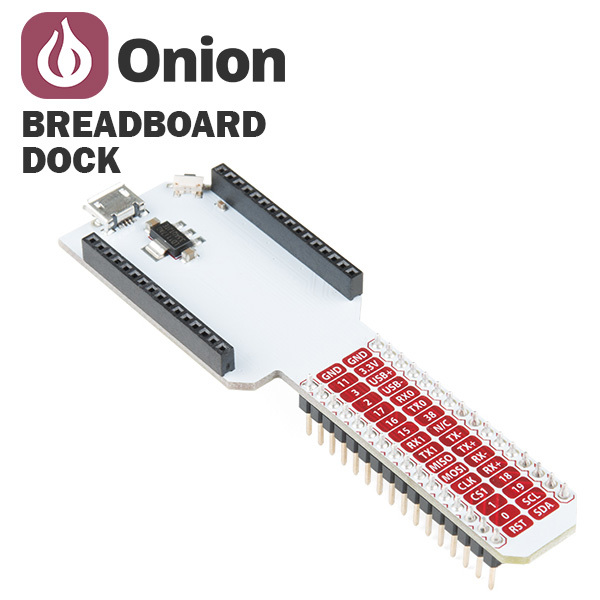

The breadboard dock brings compatibility with the breadboard for Omega! Power the dock and your Omega with any Micro USB cable and connect it directly to a standard breadboard. The Omega pins are mapped 1:1 to the breadboard, allowing access to all I/O on your breadboard.

Do you love working with breadboards? To make the Omega more breadboard-friendly, we bring you the breadboard dock. It’s our simplest dock yet! We recommend getting a dock for your Omega to achieve the best experience, performance, functionality, and stability of your device.

!

Breadboard Friendly!

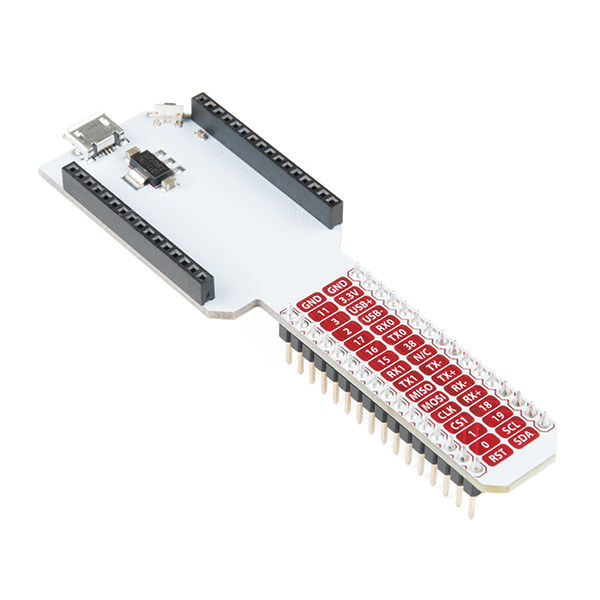

Connect your Omega to the dock, and then connect the dock directly to the breadboard! The Omega pins are mapped 1:1 to the headers on the breadboard, making it feel almost like you’re connecting the Omega directly to the breadboard.

Convenience

Power the Omega and dock with any Micro USB cable. The dock includes a regulation circuit that ensures that the Omega always receives a stable 3.3V necessary for optimal operation. A reset button is also included; press it to restart your Omega, hold for 10 seconds to restore factory settings.

Technical Details

• 1x Micro USB Port – Power
• 1x Reset Button

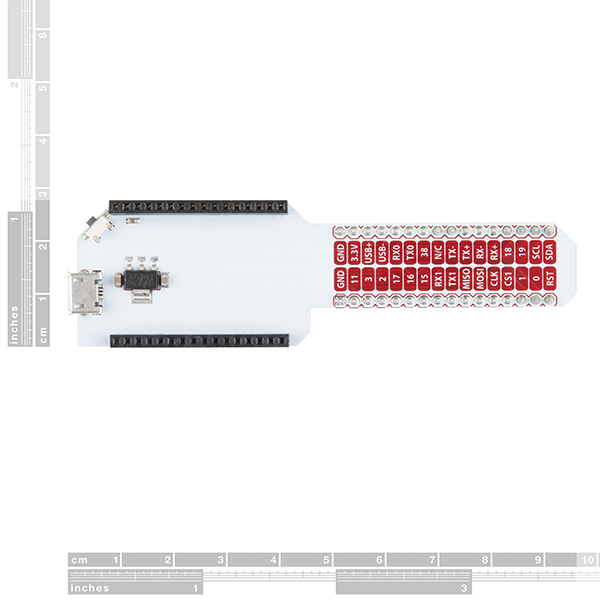

• 2x 16-pin headers compatible with breadboard
