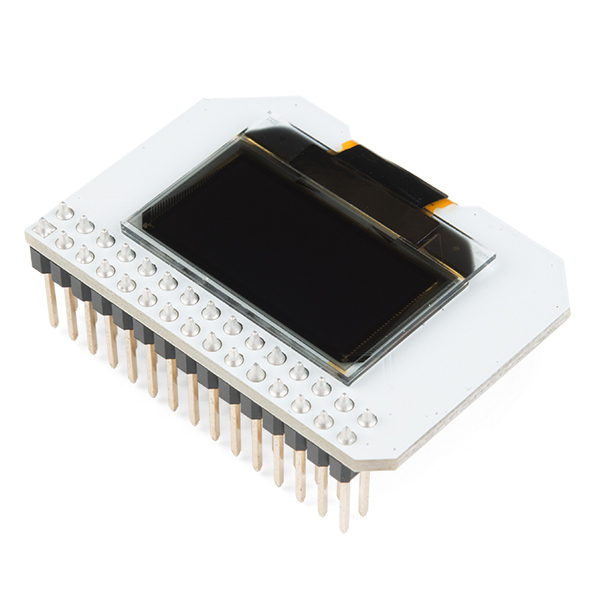

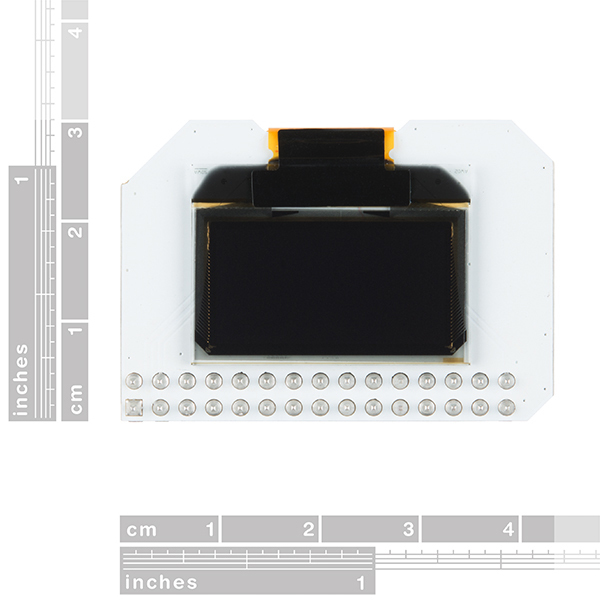

Omega2 OLED Expansion Board

Onion Omega2/+ OLED Expansion Board

Add a low-energy 0.96″ monochrome display to your Omega2. With a resolution of 128×64, you can display text, images, and even animations. This is very useful for showing status information, web data, and small logos.

If you're interested in text writing, 21 characters fit on each line, totaling 7 lines. This display does not have a backlight, as each pixel is a white OLED that can be turned on and off individually. Additionally, you can adjust the brightness level of all pixels on the display, resulting in very efficient energy consumption.

With one command, built-in scrolling animations can be enabled, allowing the entire display content to scroll left, right, or diagonally.

Note: This expansion board requires a docking station with an expansion connector, such as Expansion Dock, Power Dock, or Arduino Dock R2.

Technical Details:

• Screen Size: 0.96″
• Resolution: 128×64
• Display Technology: OLED (Organic Light Emitting Diode)
• Characters per line: 21
• Number of character lines: 7

Links:

• Overview of OLED Expansion Hardware
• How to Use OLED Expansion
• Technical Drawing
