OrangePi 3B - Memory: 2GB
Variants3
| Memory | Availability | Price incl. VAT | Quantity (ks) | |||
|---|---|---|---|---|---|---|
 |
2GB | in stock | 47,20 EUR | |||
|
4GB | Out of Stock Watch availability | 57,30 EUR | Demand | ||
|
8GB | Out of Stock Watch availability | 65,80 EUR | Demand |

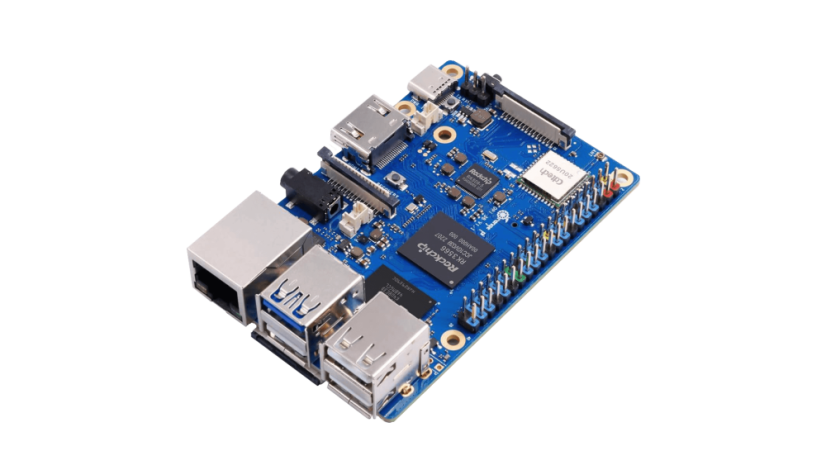

OrangePi 3B with Rockchip RK3566 Processor

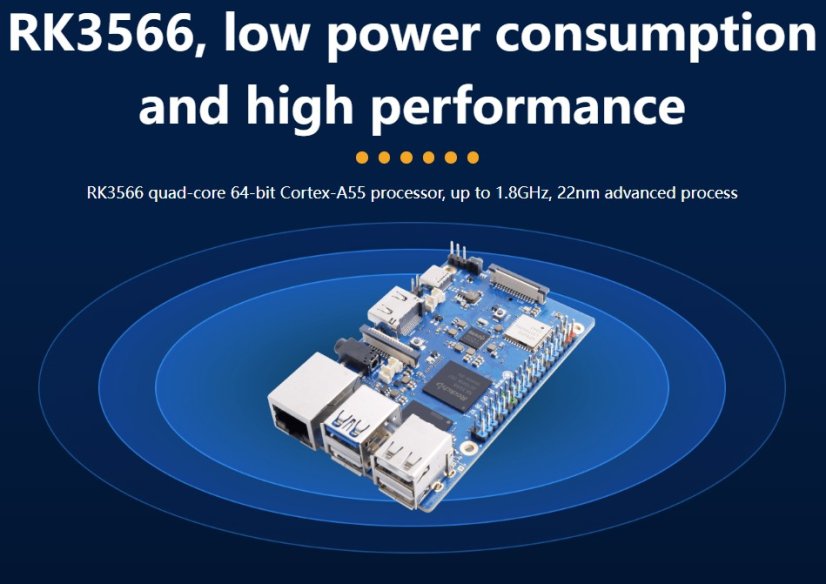

The Orange Pi 3B is powered by a quad-core 64-bit Rockchip RK3566 processor built on an advanced 22nm manufacturing process, reaching maximum frequencies of up to 1.8 GHz. It includes an integrated ARM Mali G52 2EE graphic processor, supporting OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, and features a high-performance embedded 2D acceleration module. Additionally, it has a built-in NPU AI accelerator with computing power of 0.8 TOPS.
The VPU allows for 4K@60fps video decoding (H.265/H.264/VP9) and 1080P@100fps encoding (H.265) or 1080P@60fps (H.264). It supports an 8M ISP and HDR. Variants are available with 2GB/4GB/8GB LPDDR4/4X RAM, and expandable with an eMMC module of 16GB/32GB/64GB/128GB/256GB, along with 16MB/32MB SPI Flash. The device is equipped with Wi-Fi 5 and Bluetooth 5.0 with BLE support.
The Orange Pi 3B offers a wide range of interfaces, including HDMI output, optional M.2 M-KEY slot, Micro SD slot, gigabit LAN port, USB 2.0, USB 3.0, 3.5mm audio jack, MIPI DSI port, eDP port, MIPI CSI port for cameras, and a multifunctional 40-pin expansion connector. It can be utilized in TV boxes, high-end tablets, edge computing, facial recognition, smart security, smart homes, and other AI and IoT applications.
The Orange Pi 3B supports various operating systems including Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch), Orange Pi OS (OH) based on OpenHarmony, and more.
Specifications:

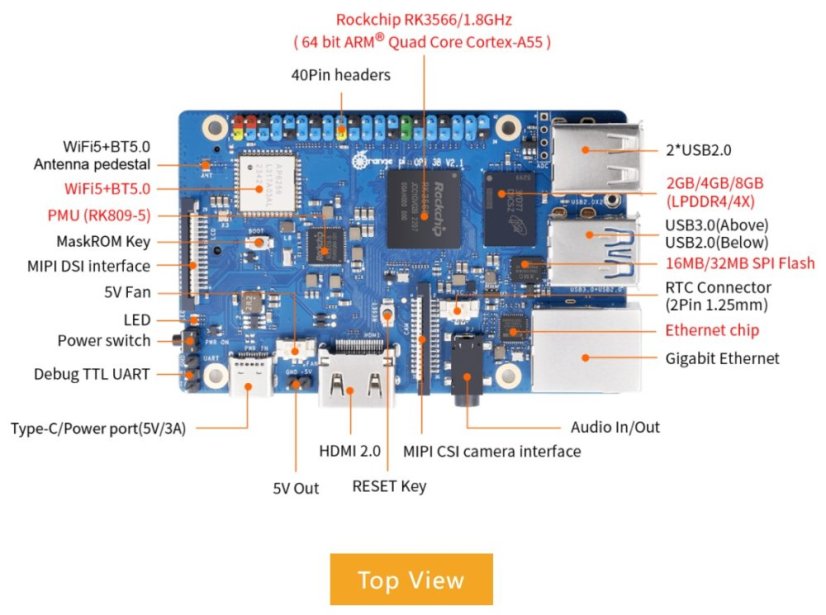

| Model | OrangePi 3B |
| SoC | Rockchip RK3566 |
| CPU | Quad-core 64-bit Cortex-A55 processor, 22nm advanced process, up to 1.8GHz |
| GPU | • ARM Mali G52 2EE graphics processor • Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 • Embedded high-performance 2D acceleration hardware |
| NPU | • Integrated RKNN NPU AI accelerator with 0.8 Tops@INT8 performance • Support one-click conversion of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet architecture models |
| VPU | • 4K@60fps H.265/H.264/VP9 video decoding • 1080P@100fps H.265 video encoding • 1080P@60fps H.264 video encoding |
| PMU | RockChip RK809-5 |
| RAM | 2GB/4GB/8GB (LPDDR4/4X) |

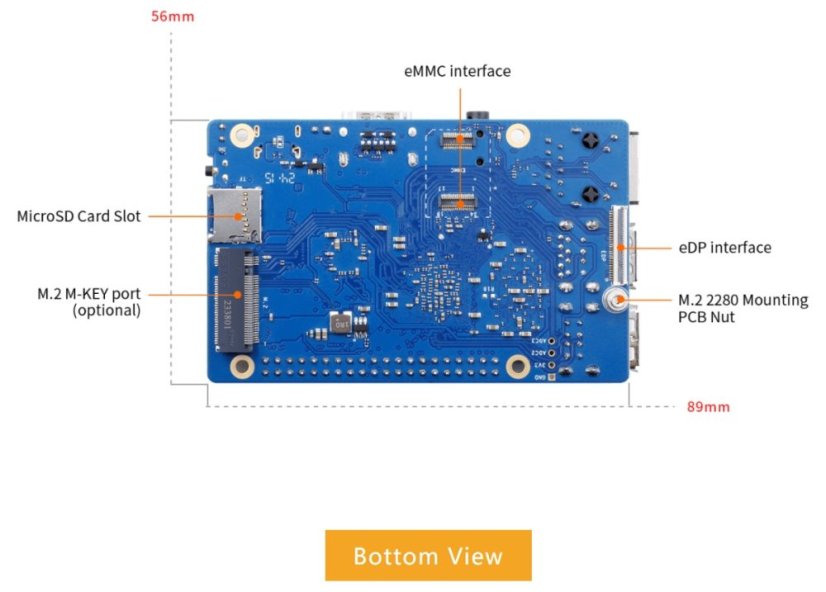

| Memory | • Support eMMC module: 16GB/32GB/64GB/128GB/256GB • SPI Flash: 16MB/32MB • M.2 M-KEY slot (optional): SATA3 or PCIe2.0 NVME SSDs • Micro SD slot |
| Wi-Fi+BT | Wi-Fi 5+BT 5.0, BLE (AP6256) |
| Ethernet | 10/100/1000Mbps Ethernet (On-board PHY chip: YT8531C-CA) |
| Video Output | • 1* HDMI TX 2.0, up to 4K@60fps • 1*MIPI DSI 2 lane • eDP1.3 |
| Camera | 1*MIPI CSI 2 lane camera interface |
| USB | • 1*USB 2.0 support Device or HOST mode • 1*USB 3.0 HOST • 2*USB 2.0 HOST |
| Audio | 3.5mm headphone jack audio in/out |
| Button | 1* MaskROM key, 1* RESET key, 1* POWER key |
| FAN | 2Pin 1.25mm size 5V fan connector |
| RTC | 2Pin 1.25mm size battery backup connector |

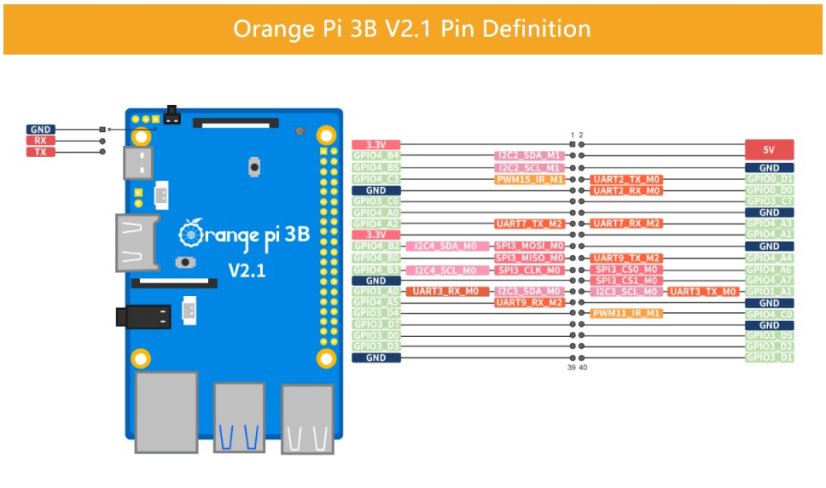

| 40Pin | 40Pin functional expansion interface, supporting the following interface types: GPIO, UART, I2C, SPI, PWM |
| Power Source | Type-C 5V3A |
| Supported OS | Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch), Orange Pi OS (OH) based on OpenHarmony and other operating systems. |
| PCB Dimension | 56*89mm |
| Weight | 52g |
