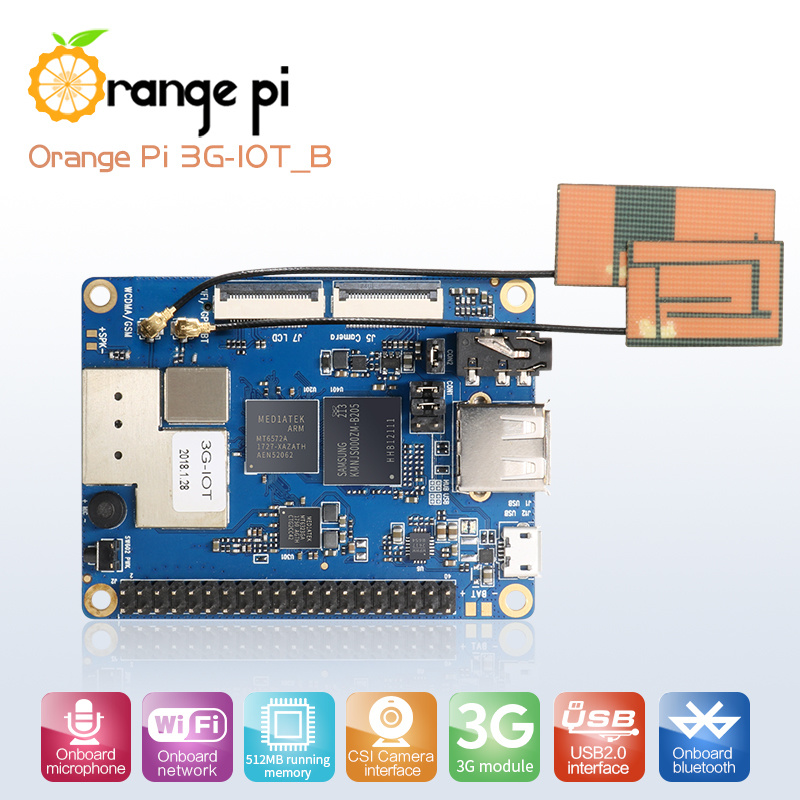

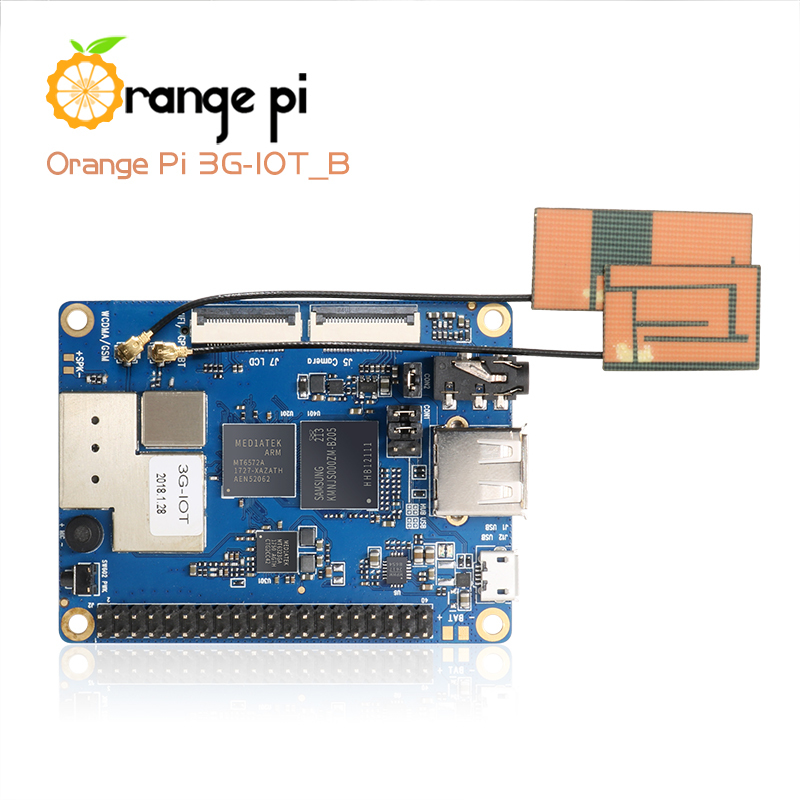

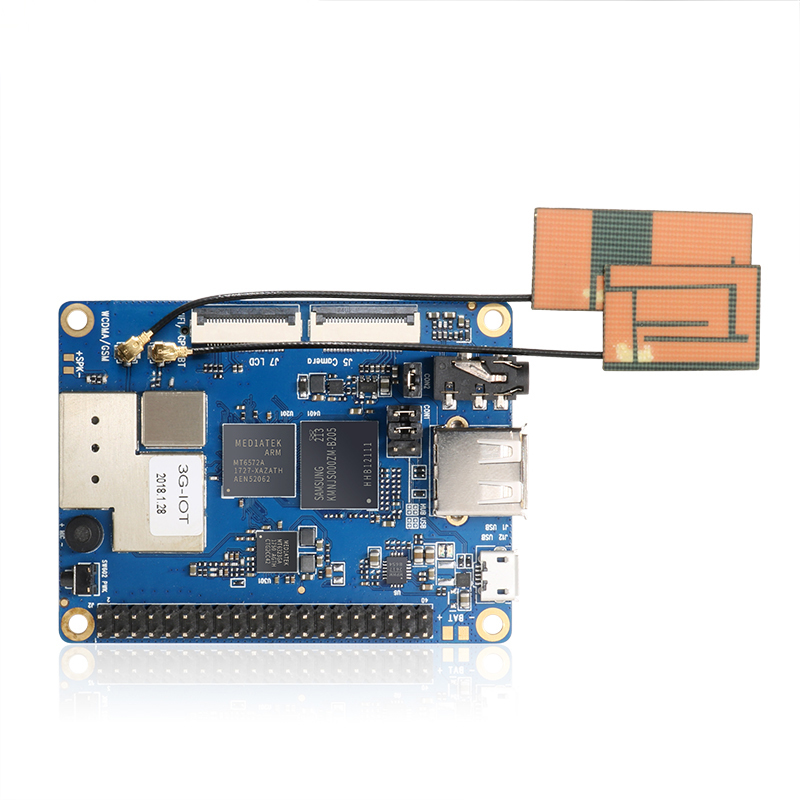

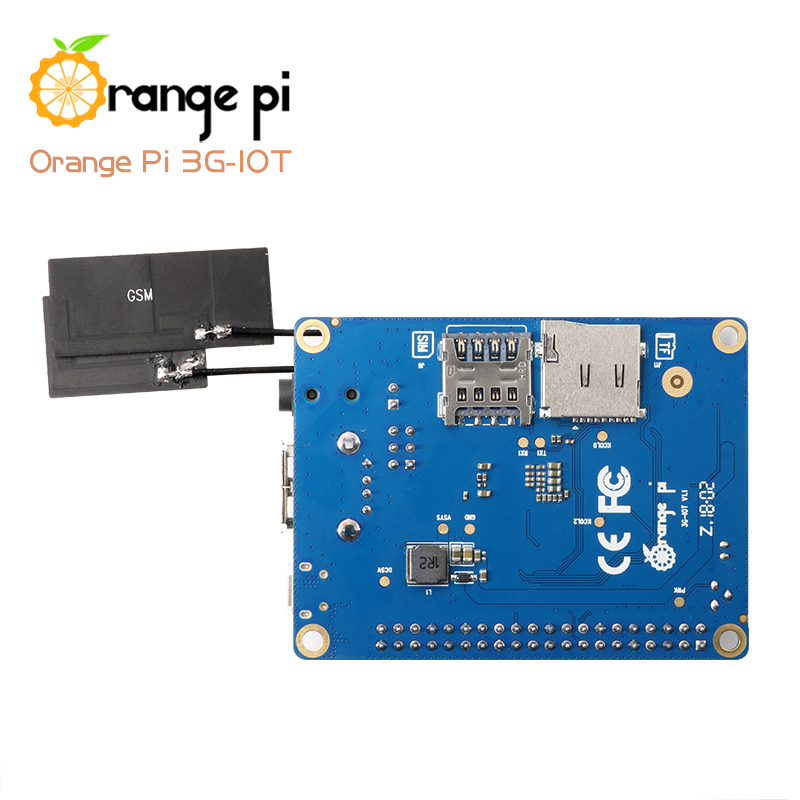

Orange Pi 3G-IOT-B 512MB MTK MT6572 SoC

Hardware Specifications

Processor

MT6572

CPU

Dual-core ARM® Cortex-A7, main frequency up to 1.2 GHz

GPU

• ARM Mali-400MP1 GPU

Memory

512MB DDR2

eMMC

4GB eMMC Flash

Wireless

WIFI / BT / FM / GPS four-in-one

Radio Frequency

GSM: 850/900/1800/1900
WCDMA: B1/B2/B5/B8
TD-CDMA
CDMA2000

Display

FWVGA (FPC ZIF connector)

Touch

Capacitive support (FPC ZIF connector)

Camera

MIPI connector

SIM Card

mini single SIM card

TF Card

Supports hot swapping

Audio

Headphone: for audio input/output
Microphone: for audio input

USB

One USB host, one Micro USB

LED

Red for power indication, green for status indication

Button

Power button (SW602)

Peripherals

40-pin expansion connectors: GPIO 1.8V, SPI × 2, I2C × 3, UART × 2

Power

Micro USB (5V/2A), Battery (optional)

OS

Android 4.4

Programming Support

C, C++, Kotlin, Java, Shell, Python, etc.

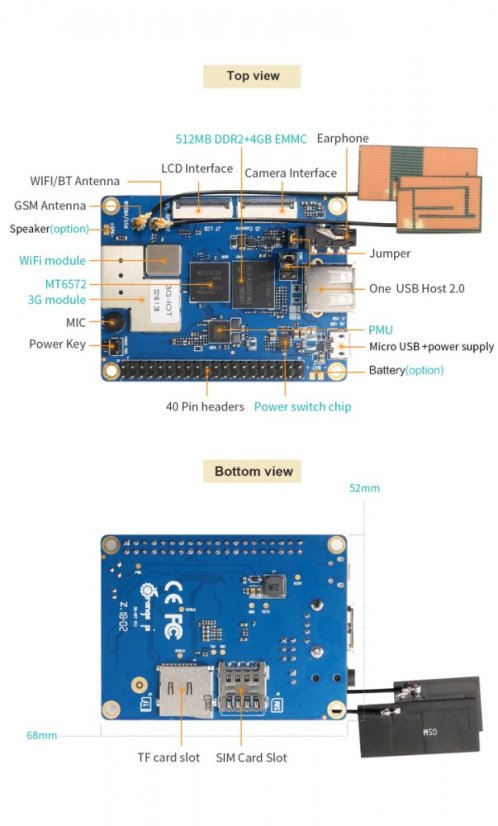

Interface Definitions

Size

52mm × 68mm

Weight

25.5g
