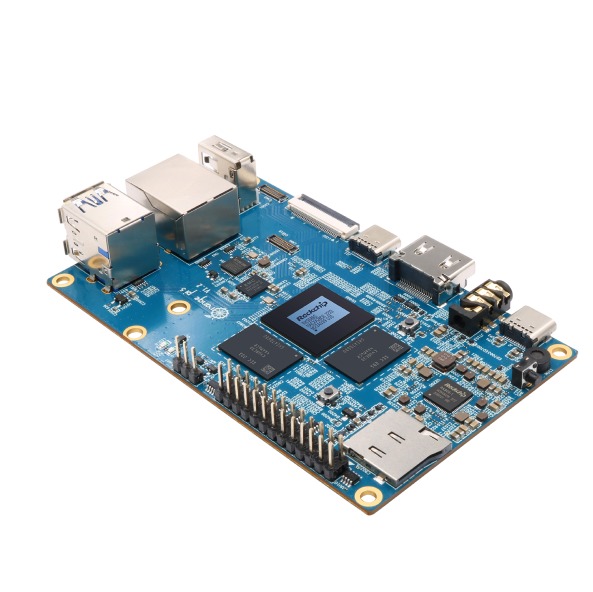

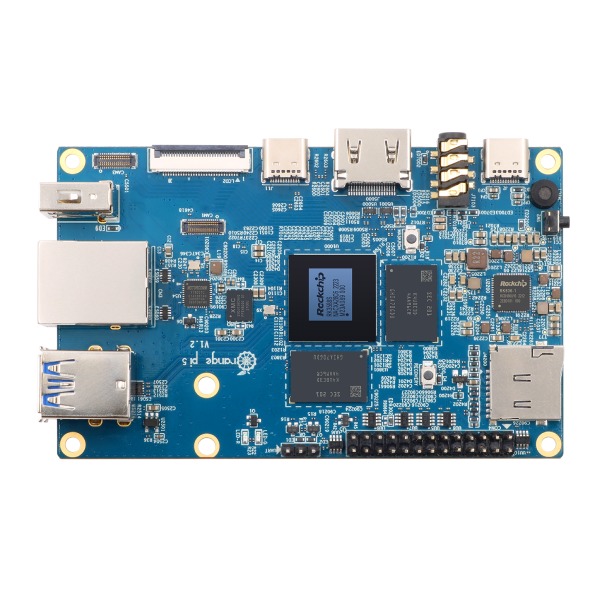

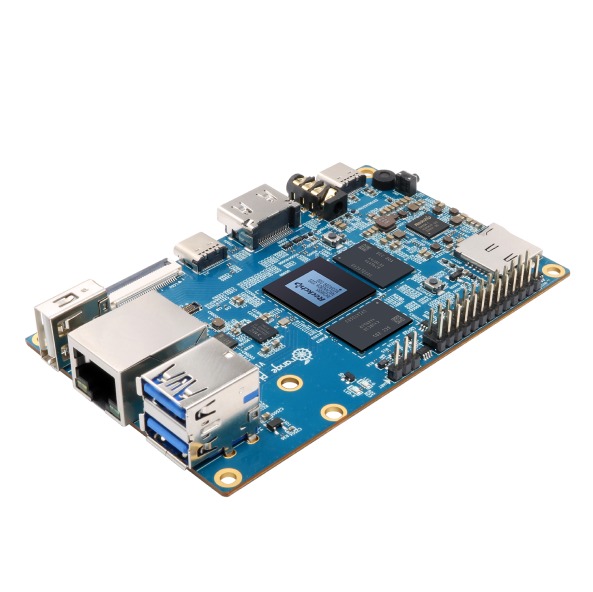

Orange Pi 5
Orange Pi 5
The Orange Pi 5 is an open-source single-board computer with Gigabit Ethernet and options of 2/4/8GB DDR4 RAM, compact in size at 62x100mm. More
from
147,10 EUR
incl. VAT
The Orange Pi 5 is an open-source single-board computer with Gigabit Ethernet and options of 2/4/8GB DDR4 RAM, compact in size at 62x100mm. More
Variants3
| RAM size | Availability | Price incl. VAT | Quantity (ks) | |||
|---|---|---|---|---|---|---|
 |
4GB | Out of Stock Watch availability | 147,10 EUR | Demand | ||
|
8GB | in stock | 193,50 EUR | |||
|
16GB | in stock | 324,10 EUR |
Orange Pi 5 |
 |

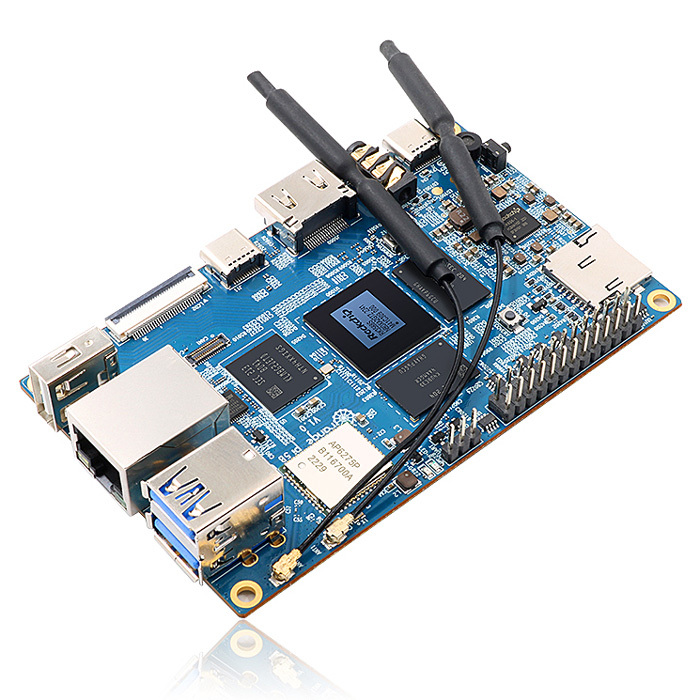

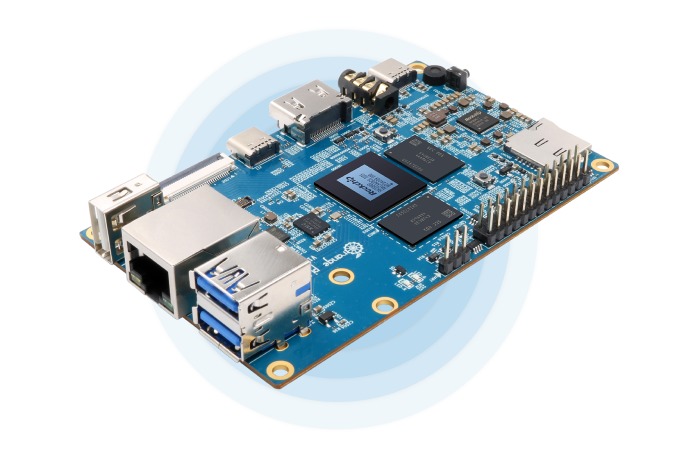

Orange Pi 5 is an open-source single-board computer with Gigabit Ethernet and options of 2/4/8GB DDR4 RAM. With dimensions of 62x100mm, it is very compact. |
|
About the Board

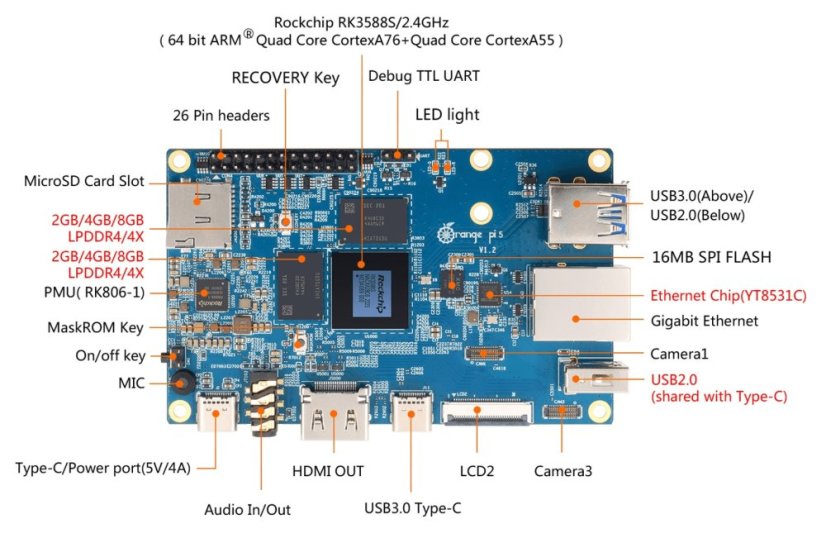

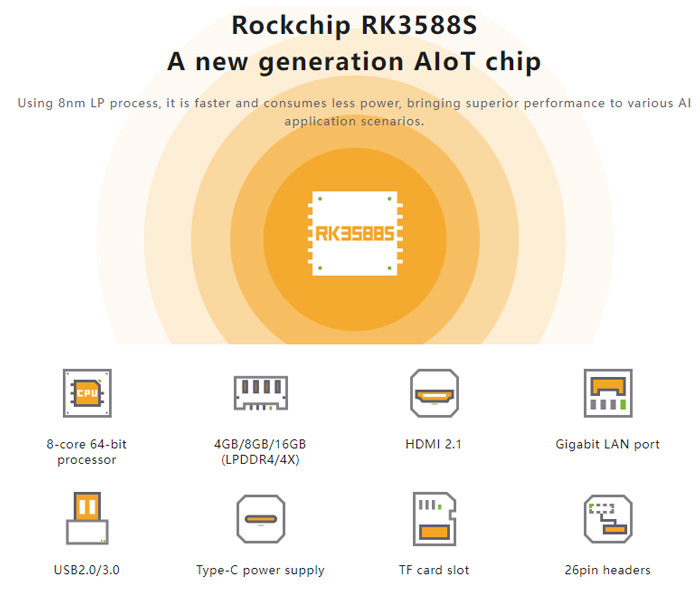

Orange Pi 5B uses the Rockchip RK3588S SoC and comes with options of 4/8/16GB LPDDR4 SDRAM, 16MB SPI FLASH memory. It can run on Android, Ubuntu, and Debian. Orange Pi 5 offers a range of different ports, including HDMI output, 26-pin headers, a 1 Gbps Ethernet port, 1 USB-C, 1 USB 3.0, and 2 USB 2.0 ports, etc. It is powered through Type-C. This is the ideal choice for applications that require strong network performance.
Orange Pi 5 is suitable for anyone who wants to start creating with technology—not just consuming it! It's a simple, fun, and useful tool to help you begin controlling the world around you.
Specifications:
| CPU | • Rockchip RK3588S (28nm HKMG process) • 8-core ARM® 64-bit processor, main frequency speeds up to 2.4GHz • Quad-core Cortex-A76 (large core) + Quad-core Cortex-A55 (small core) |
| GPU | • Mali-G610 GPU • Supports OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan 1.2 |
| NPU | • 6 TOPS NPU 3.0 (Neural Processing Unit) |
| Memory+ISP | 4/8/16GB LPDDR4 + 16MB ISP FLASH |
| Network | 10/100/1000Mbps Ethernet (YT8531C) |
| Audio | • Output: 3.5mm Jack and HDMI 2.0a • Input: MIC |
| Video Outputs | • 1 x HDMI 2.0 (Type-A), Supports 4K@60fps output • Supports Dual MIPI-DSI (4 lines per channel) |
| Camera | 2 x MIPI-CSI (MIPI_RX0, MIPI_TX1/RX1) |
| USB | 2 x USB2.0 HOST, 1 x USB3.0, 1 Type-C |
| RTC | Support RTC, on-board battery backup interface |
| Debug UART | 3-pin Debug UART |

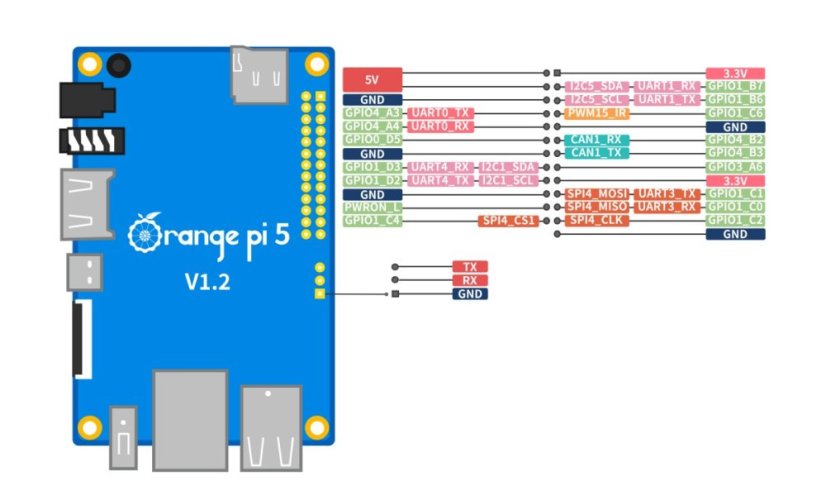

| GPIO | • GPIO1 40 pins (1 x I2S, 2 x I2C, 1 x SPI/UART, 8 x GPIO) |
| Key | Upgrade Key & Reset Key |
| Power Source | DC 5V/3A, TYPE-C 5V/3A |
| LED | Power led & Status led |
| OS Support | Android, Ubuntu, Debian |
| PCB | 8 Layer |
| CE | no |

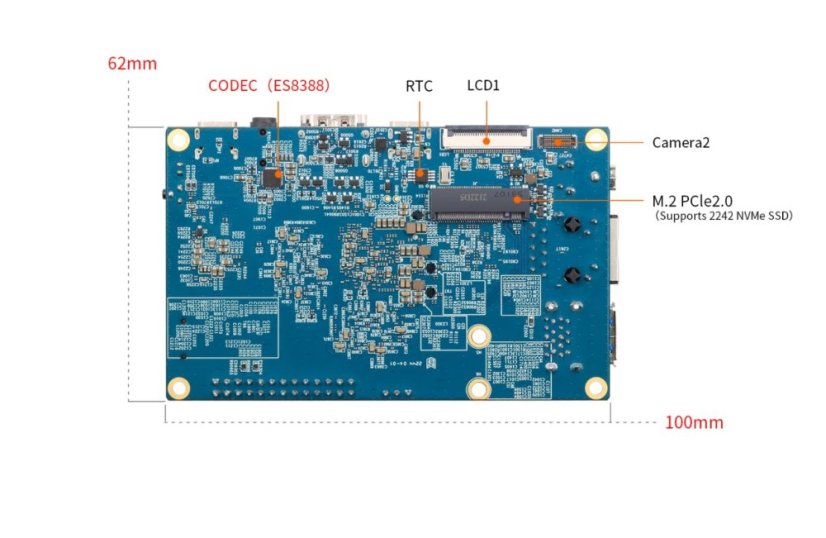

| Dimension | 62mm x 100mm |
