Orange Pi 800 Mini Computer with Keyboard

Orange Pi 800 Mini Computer with Keyboard

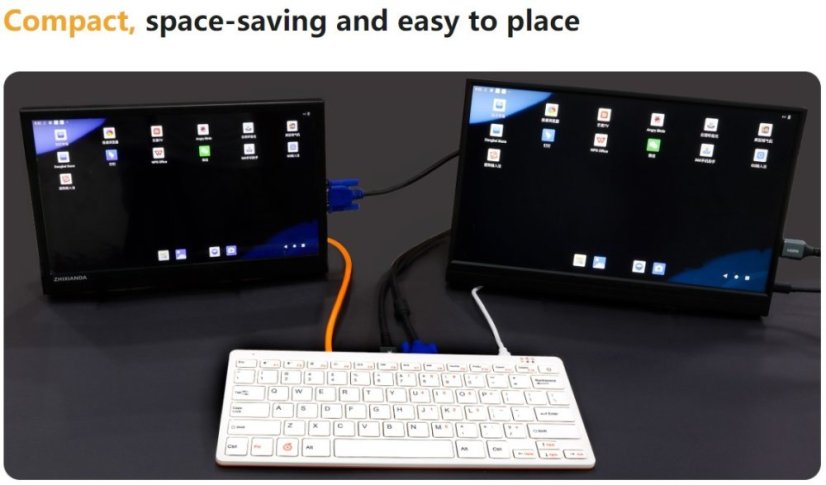

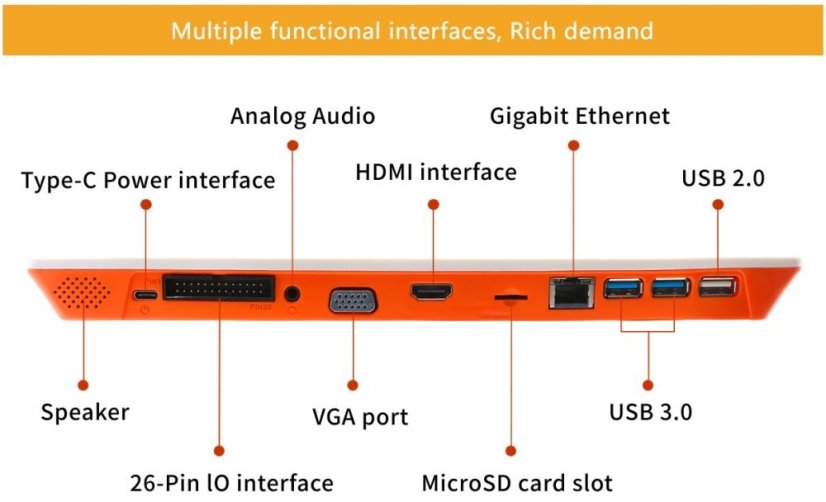

The Orange Pi 800 is a powerful, easy-to-use mini computer that comes with an integrated keyboard. It is powered by a Rockchip RK3399 SoC and features a 6-core ARM® 64-bit processor, 4GB LPDDR4 RAM, dual-band WiFi (2.4 GHz and 5.0 GHz), Bluetooth 5.0, Gigabit Ethernet, 4K HD video output, 2x USB 3.0, and 1x USB 2.0 ports. The Orange Pi 800 offers a wide range of ports and can boot from a TF card, while providing display outputs and an integrated speaker. The 26-pin interface on the back is perfect for implementing various experimental projects.

The Orange Pi 800 delivers excellent performance for development and can be used as an educational tool for students of all ages.

Specifications:

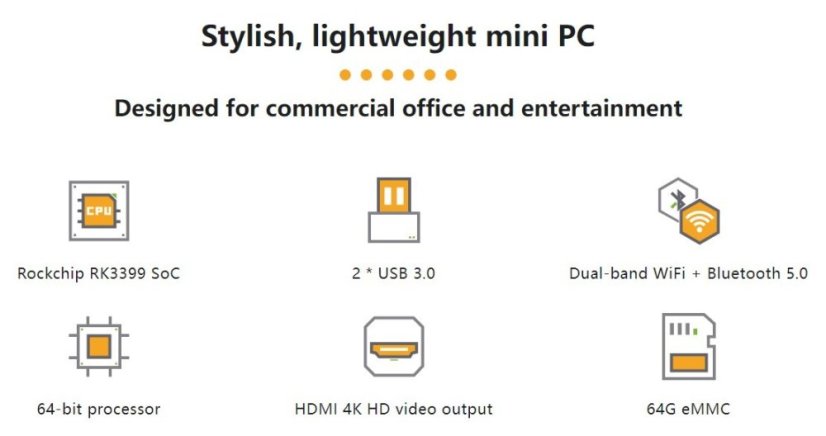

• CPU:
• Rockchip RK3399 (28nm HKM G process)
• 6-core ARM® 64-bit processor
• Dual-core Cortex-A72 up to 1.8GHz (big core) + Quad-core Cortex-A53 up to 1.4GHz (small core)
• GPU: ARM Mali-T860MP4
• RAM: 4GB (LPDDR4)
• Storage: EMMC 64GB
• Ethernet: Gigabit Ethernet
• WiFi: Dual-band (2.4GHz and 5.0GHz) IEEE 802.11a/b/g/n/ac
• Bluetooth: Bluetooth 5.0, BLE
• Video: 1x HDMI 2.0, supports 4K@60fps, 1x VGA
• Audio: Output: 3.5mm Jack, HDMI 2.0, Input: MIC

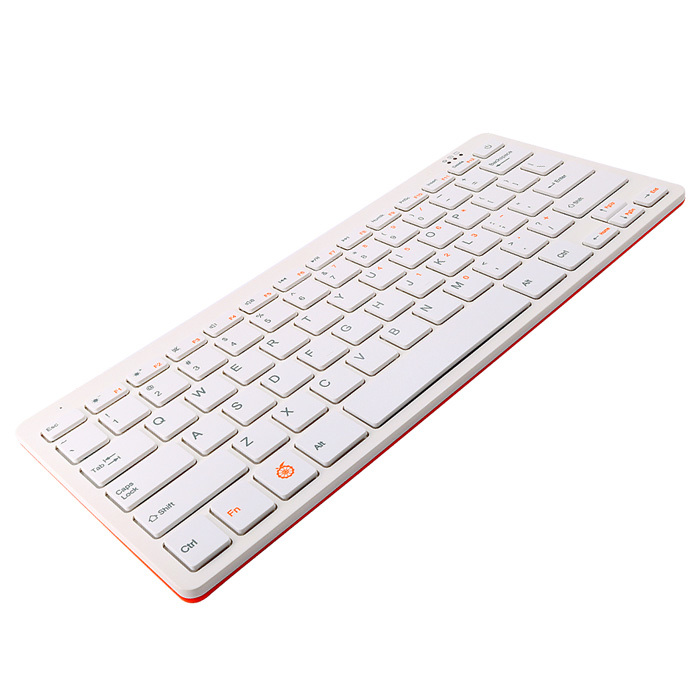

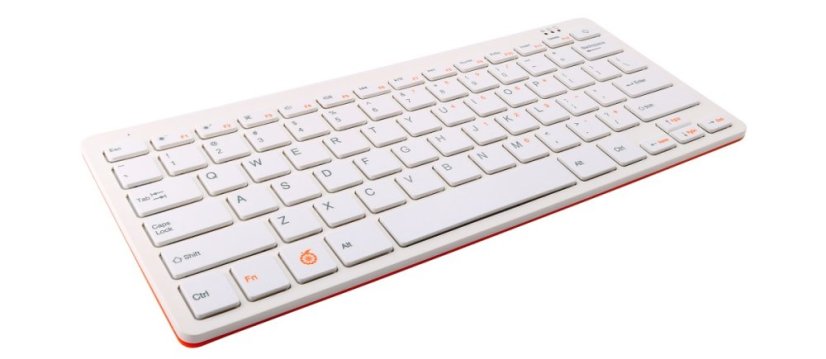

• Keyboard: 78-key QWERTY keyboard
• USB Ports: 1x USB 2.0, 2x USB 3.0
• Power: Type-C
• GPIO: 26 PIN
• Supported OS: Orange Pi OS, Manjaro, Ubuntu 22.04, Debian 11
