OrangePi CM4 Base Board

OrangePi CM4 Base Board

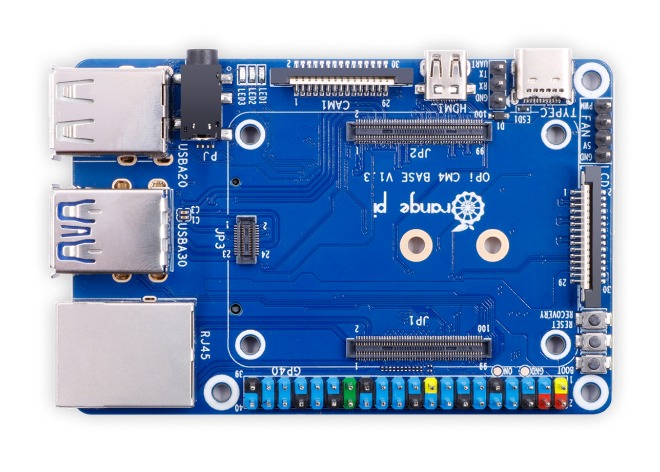

The OrangePi CM4 Base Board is the official base board designed for use with the Orange Pi Compute Module 4. It features a 40-pin GPIO interface and a standard CM4 connector. It can be utilized as a development system or as an embedded board in a final product, providing top-notch connectivity and compatibility.

• Memory:
  • M.2 M-KEY slot: for SATA3 or PCIe2.0 NVME SSD drives
  • TF card slot
• Ethernet Interface: 10/100/1000Mbps RJ45 connector
• Video Output:
  • 1* HDMI TX 2.0, up to 4K@60fps
  • 1* MIPI DSI 2 lanes
  • eDP 1.3
• Camera: 2* MIPI CSI 2 lanes
• USB:
  • 1* USB 2.0 (Device/HOST mode)
  • 1* USB 3.0 (HOST)
  • 2* USB 2.0 (HOST)
• Audio: 3.5mm headphone jack (audio in/out)
• Buttons: 1* MaskROM, 1* RECOVERY, 1* RESET
• 4Pin 2.54mm FAN connector for 5V fan
• Expansion Interface: 40Pin functional expansion interface, voltage 1.8V/3.3V, supports GPIO, UART, I2C, SPI, PWM
• Power Supply: Type-C 5V 3A
• Supported OS: Android 11, Ubuntu 22.04/20.04, Debian 11/12, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch), Orange Pi OS (OH), and more.
• PCB Dimensions: 85x56mm
• Weight: 46g

For more information: Orange Pi Wiki

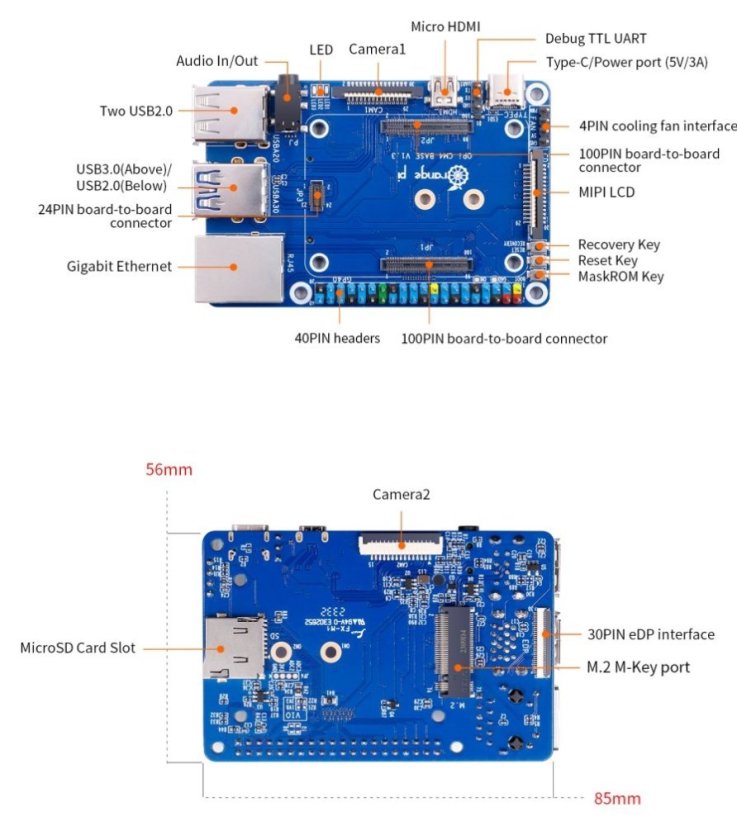

Equipped with CSI/DSI/FAN/HDMI/USB/RJ45 Gigabit LAN port/TF card/M.2 M-Key and other interfaces.
