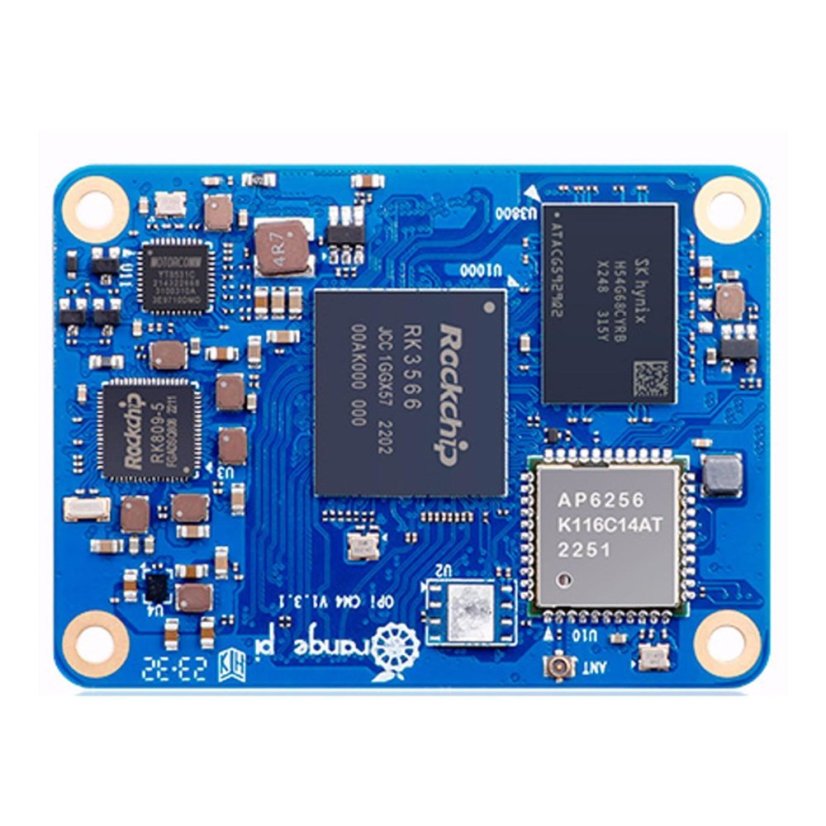

The Orange Pi Compute Module 4 is compact and powerful enough for deep embedded applications. It is powered by the Rockchip RK3566 processor, a quad-core 64-bit Cortex-A55 with a frequency of up to 1.8 GHz; it features an integrated ARM Mali G52 2EE graphics processor, which supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, and built-in hardware for high-performance 2D acceleration. It also includes an RKNN NPU AI accelerator with a performance of 0.8 Tops@INT8, supporting one-click model conversion for Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet. The module provides a rich interface, various eMMC flash memory specifications, and wireless modules, making it a versatile tool in the field of industrial IoT.

Specifications:

• Model: CM4
• SoC: RockChip RK3566
• CPU: Quad-core 64-bit Cortex-A55 processor, 22nm advanced process, up to 1.8 GHz main frequency
• GPU
• ARM Mali G52 2EE graphics processor
• Supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
• Built-in high-performance 2D acceleration hardware
• NPU
• Integrated RKNN NPU AI acceleration, performance 0.8 Tops@INT8
• Supports Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet
• VPU
• 4K@60fps video decoding H.265/H.264/VP9
• 1080P@100fps video encoding H.265
• 1080P@60fps video encoding H.264

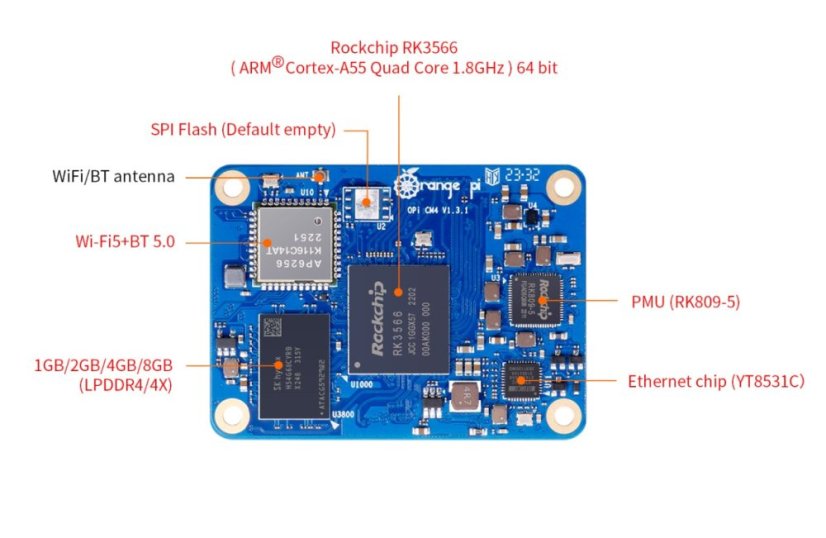

• PMU: RockChip RK809-5
• RAM: 1GB/2GB/4GB/8GB (LPDDR4/4x)
• Memory: integrated eMMC: 8GB/32GB/64GB/128GB
• SPI Flash: default blank contribution
• Wi-Fi + Bluetooth: Wi-Fi 5 + BT 5.0, BLE (20U5622)
• Ethernet transceivers: 10/100/1000Mbps Ethernet (integrated PHY chip: YT8531C)
• Interface

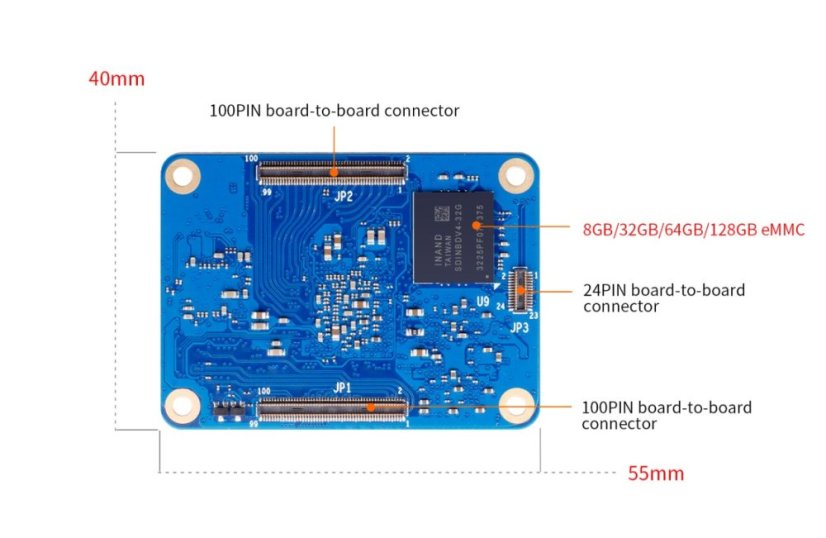

• 100Pin*2, 24Pin*1, includes the following signals:
• 10/100/1000 Mbps Ethernet MDI signals
• 1* HDMI 2.0 interface up to 4K@60fps
• 1* 2-lane MIPI DSI display interface
• 1* 4-lane MIPI DSI display interface
• Embedded Display Port (eDP)
• 1* 4-lane MIPI CSI camera interface
• SATA3 or PCIe
• USB 3.0*1 + USB 2.0*3
• RESET, MASKROM, RECOVERY
• Headphone connector Input and output audio signals
• DC 5V power input, DC 3.3V and 1.8V power output
• Supported OS: Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch), and Orange Pi OS (OH) based on OpenHarmony and other operating systems.

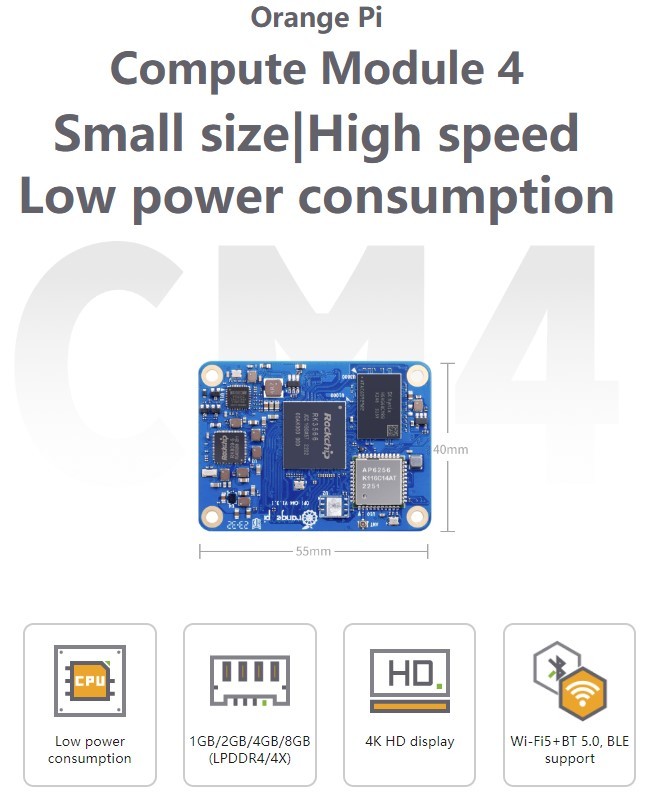

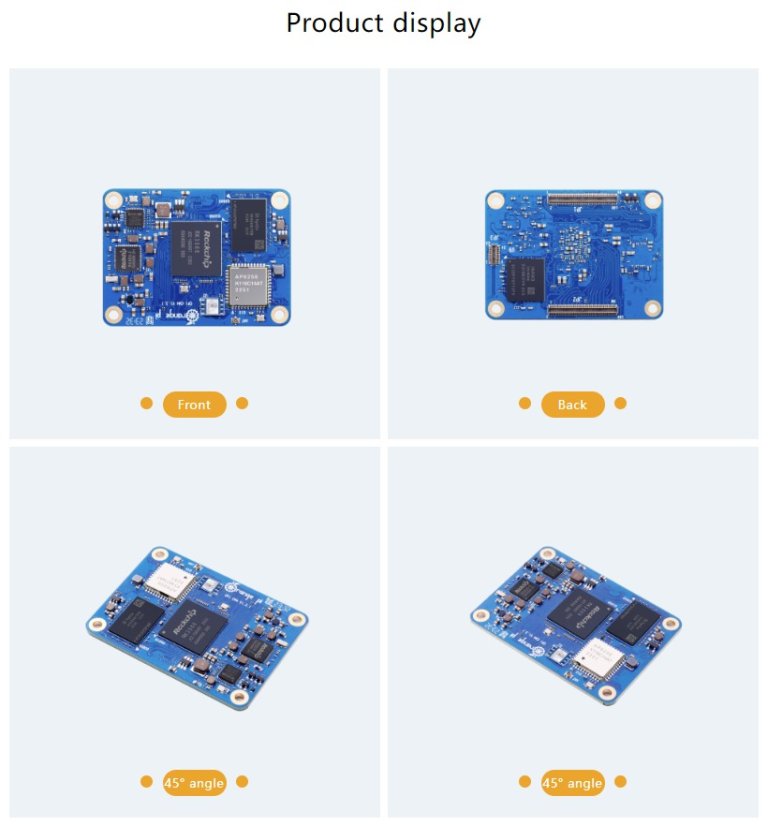

• PCB: 55x40mm
• Weight: 12g
