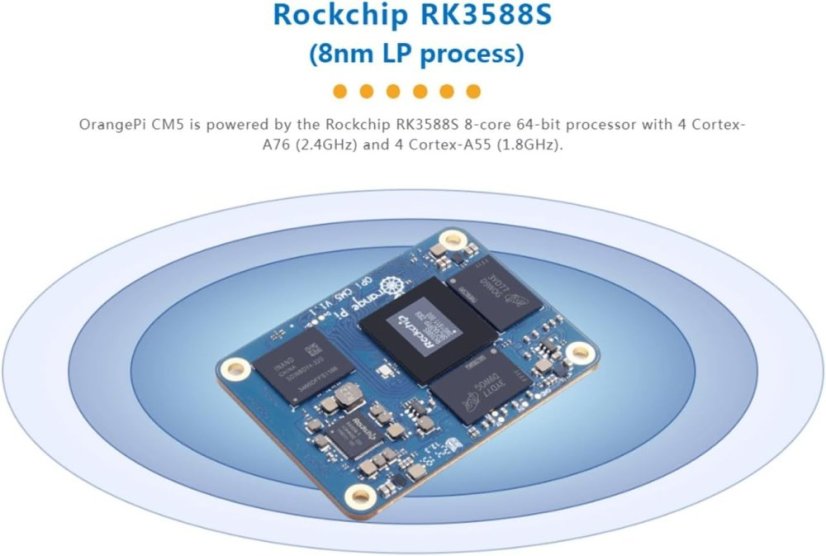

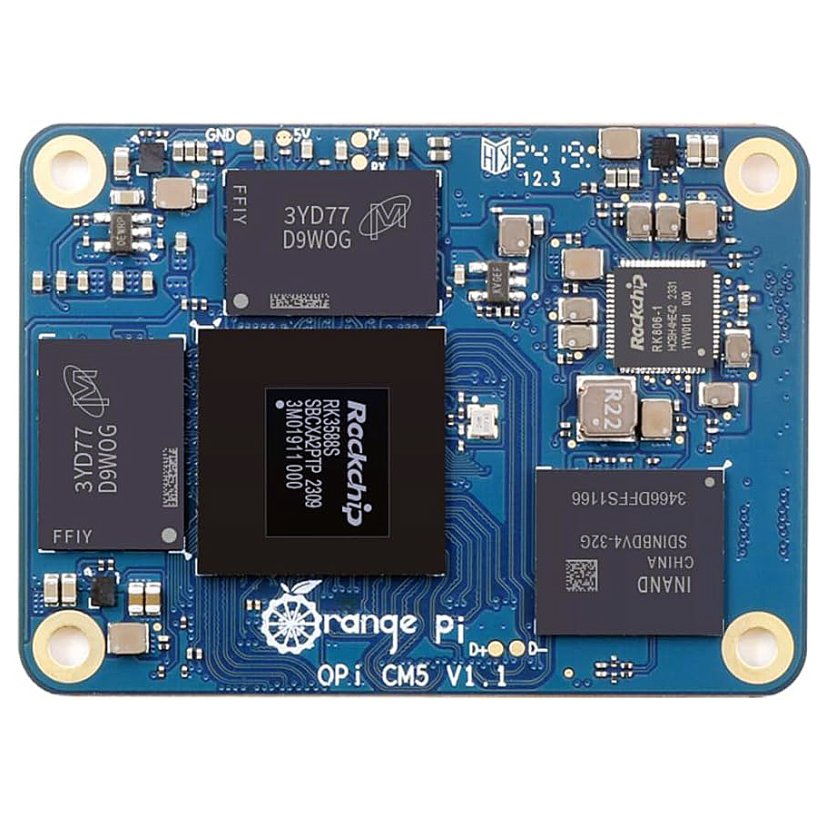

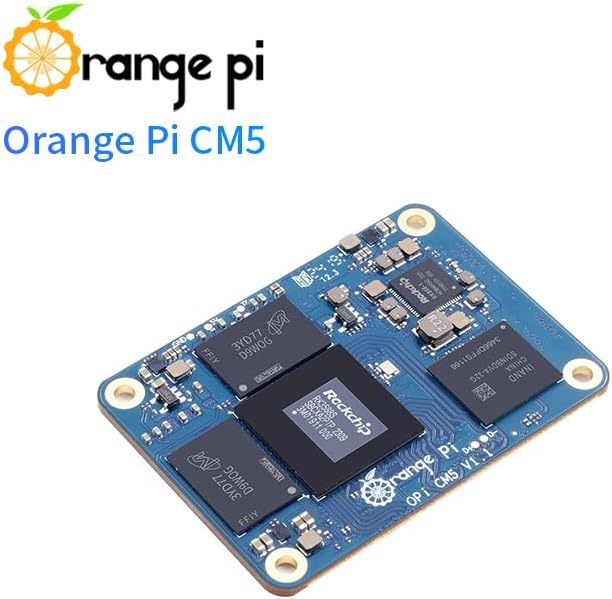

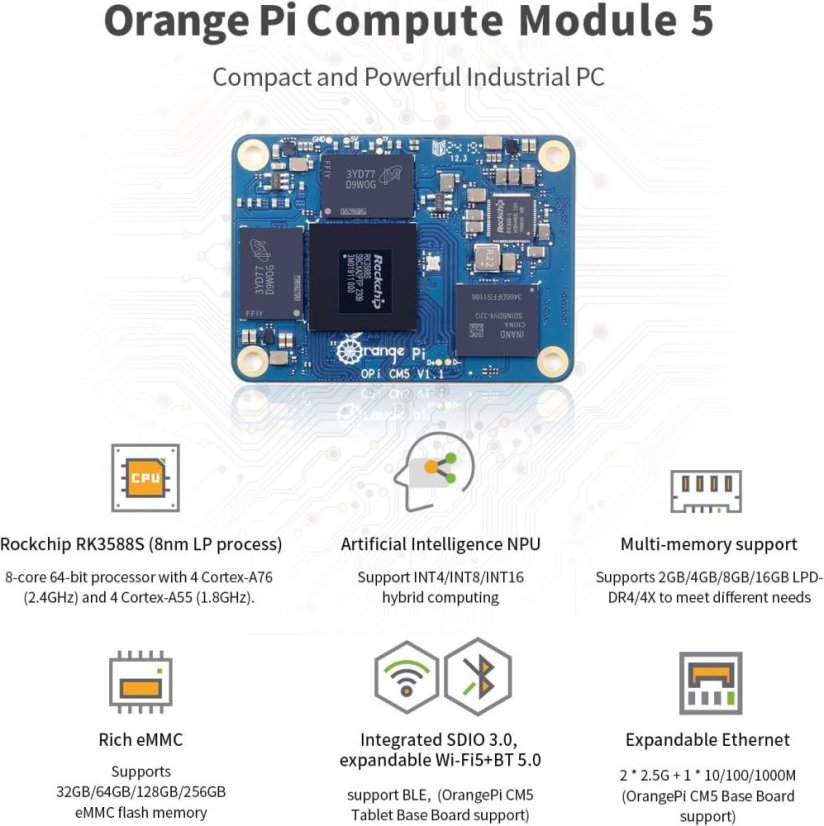

The OrangePi Compute Module 5 is a compact and powerful module designed for deeply embedded applications. The OrangePi CM5 is powered by an 8-core 64-bit Rockchip RK3588S processor, which includes 4 Cortex-A76 cores (2.4 GHz) and 4 Cortex-A55 cores (1.8 GHz), built on an advanced 8nm process. It features a built-in ARM Mali-G610 graphics processor, an integrated 3D GPU compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2, and Vulkan 1.2; a built-in AI accelerator NPU with computing power up to 6 TOPS, supporting hybrid computing INT4/INT8/INT16. It offers a rich interface and supports various capacities of eMMC flash memory, making it versatile for industrial IoT applications.

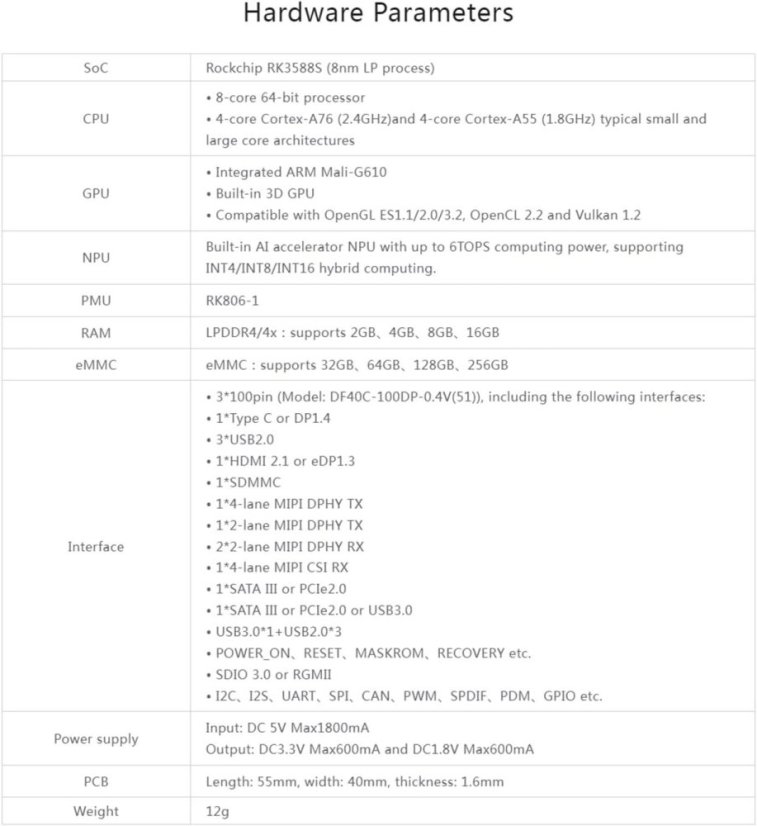

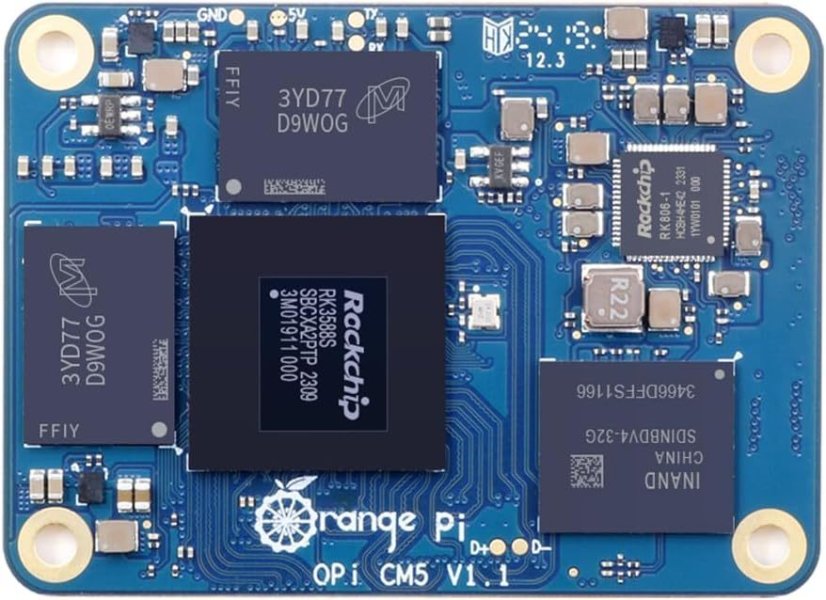

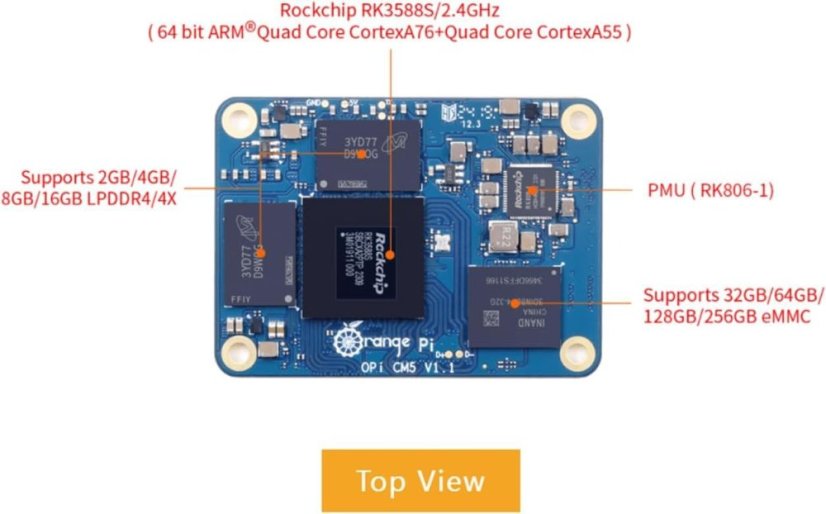

Specifications:

• Model: CM5
• SoC: Rockchip RK3588S (8nm LP process)
• CPU:
• 8-core 64-bit processor
• 4 Cortex-A76 cores (2.4 GHz) and 4 Cortex-A55 cores (1.8 GHz) typical big.LITTLE architecture
• GPU:
• Integrated ARM Mali-G610
• Built-in 3D GPU
• Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
• NPU:
• Built-in AI accelerator NPU with computing power up to 6 TOPS, supporting hybrid computing INT4/INT8/INT16.
• PMU: RK806-1
• RAM: LPDDR4/4x: supports 2 GB, 4 GB, 8 GB, 16 GB
• eMMC: supports 32 GB, 64 GB, 128 GB, 256 GB
• Interface:
• 3*100pin (Model: DF40C-100DP-0.4V(51)), including the following interfaces:
• 1*Type C or DP1.4
• 3*USB2.0
• 1*HDMI 2.1 or eDP1.3
• 1*SDMMC
• 1*4-lane MIPI DPHY TX
• 1*2-lane MIPI DPHY TX

• 2*2-lane MIPI DPHY RX
• 1*4-lane MIPI CSI RX

• 1*SATA III or PCIe2.0
• 1*SATA III or PCIe2.0 or USB3.0

• USB3.0*1 + USB2.0*3
• POWER_ON, RESET, MASKROM, RECOVERY, etc.
• SDIO 3.0 or RGMII
• I2C, I2S, UART, SPI, CAN, PWM, SPDIF, PDM, GPIO, etc.
• Power:
• Input: DC 5V Max 1800mA
• Output: DC 3.3V Max 600mA and DC 1.8V Max 600mA

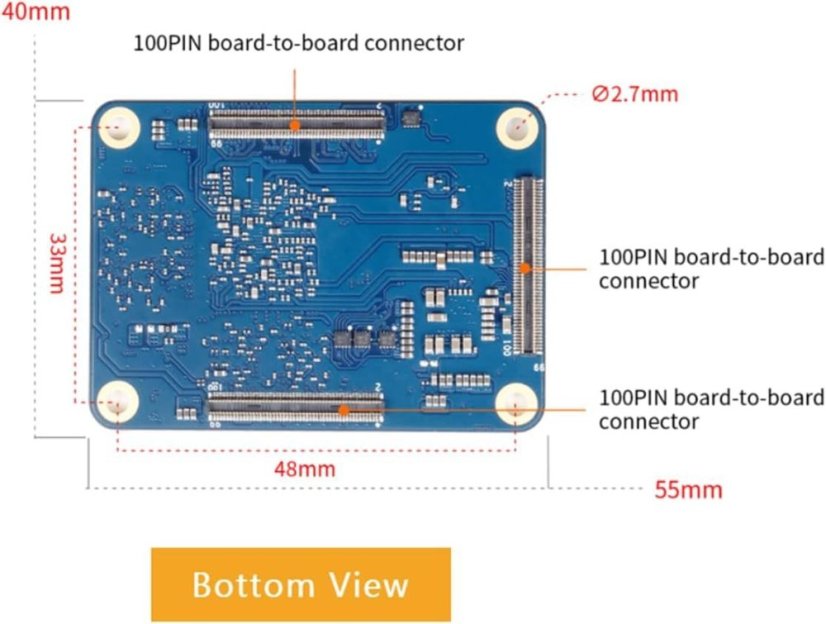

• PCB: Length: 55 mm (2.17 in), Width: 40 mm (1.57 in), Thickness: 1.6 mm (0.063 in)
• Weight: 12 g (0.42 oz)
