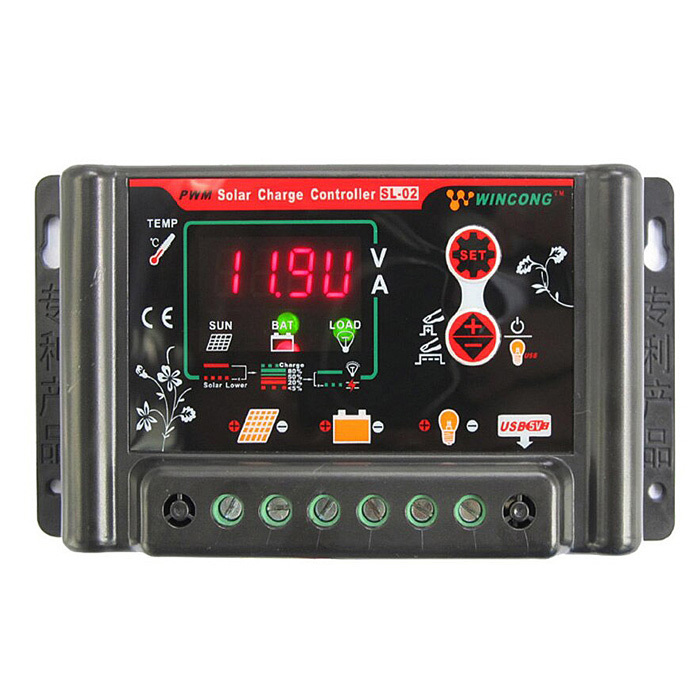

Original WINCONG SL02B 12V/24V Solar PWM Regulator

Original WINCONG Solar PWM Regulator SL02B 12/24V. Suitable for charging Li-Ion and LiFePO4 batteries!

PWM solar regulator designed for small off-grid solar systems with 12V solar panels for charging 12V batteries, or 24V solar panels for charging 24V batteries with a maximum charging current of up to 10A. The advantage is very simple and effortless installation and reliable operation.

• Solar charge regulator, suitable for charging Li-Ion and LiFePO4 batteries!
• Output control: programmable button on the front panel, dusk, timer, and ON/OFF
• Intelligent system control
• Highly efficient PWM charging with temperature compensation
• MOSFET electronic output switch without mechanical switch
• Day-night detection using a PV module
• Charging and battery status LED indicators
• Electronic protection: overcharge, discharge, overload, and short circuit

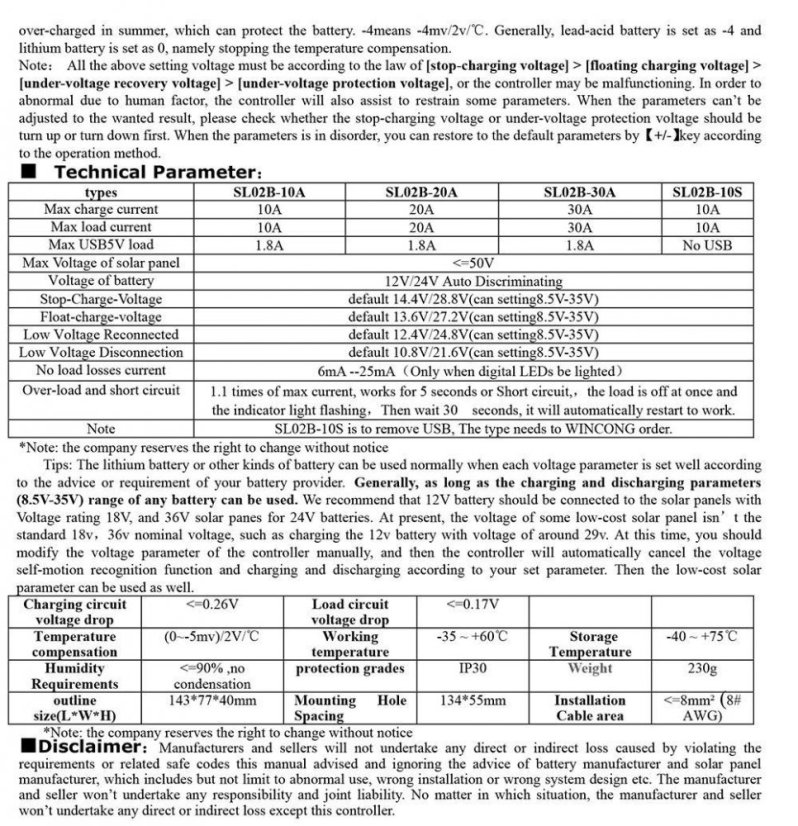

Specifications:

• Model: SL02B
• Compatible with batteries: Li-Ion and LiFePO4
• System voltage: 12V, 24V (auto-detection)
• Rated load current: 10A, 20A or 30A
• Operating temperature range: -35°C to +55°C
• Permissible humidity: 10% to 90%
• Dimensions: 133x70x33 mm
• Waterproof rating: IP32
• Weight: 0.200kg
• Manufacturer: WINCONG China

APPLICATION

• Ideal for off-grid systems, lighting systems that require a dusk switch and timer
• Solar lighting system
• Solar garden systems
• Solar advertising boards
• Solar detection for nighttime operation
• Instructions in English

Package contents:

1x Solar PWM regulator

1x Manual in English

Datasheet: http://www.pvsolarchina.com/wp-content/uploads/2012/09/10A-Wincong-SL02A-10A-intelligence-Solar-Charge-Controller.pdf
