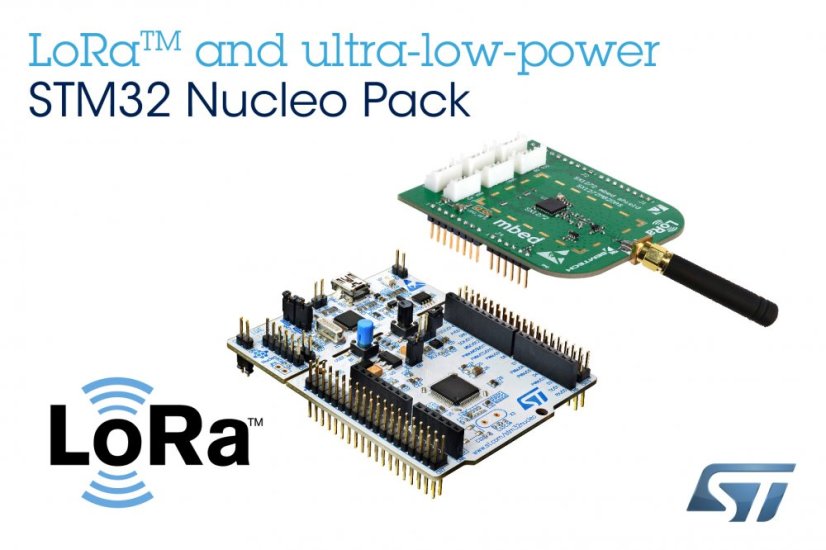

P-NUCLEO-LRWAN1 Nucleo-L073RZ Development Board and LoRa Expansion Kit

The STM32 Nucleo set for LoRa® technology and high-performance FSK/OOK RF transceiver modem (P-NUCLEO-LRWAN1) serves as a development tool for learning and creating solutions based on LoRa® and FSK/OOK technologies.

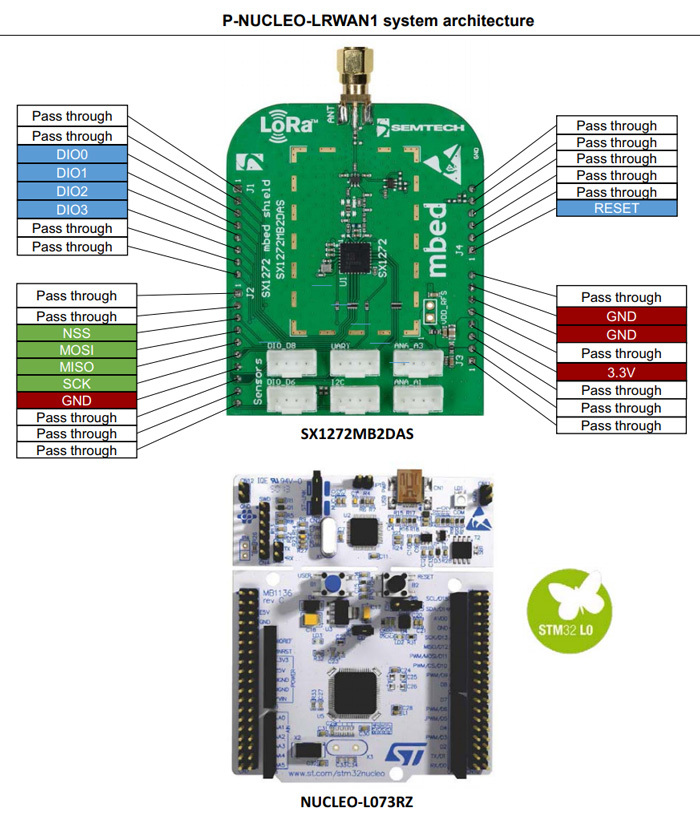

This tool, in conjunction with a certified embedded software solution (I-CUBE-LRWAN), provides the means to set up a complete LoRaWAN™ Class A node based on the Semtech SX1272MB2xAS LoRa® expansion board. For controlling the LoRa® expansion board, the kit includes the NUCLEO-L073RZ board which is based on the 32-bit STM32L0 microcontroller with ultra-low power consumption employing the ARM® Cortex®-M0 architecture. The I-CUBE-LRWAN has been certified for LoRaWAN™ Class A.

This package is perfectly suited for all countries with a frequency range of 868 MHz or 915 ISM.

Features:

• STM32L0 series MCU with extremely low power, based on ARM® Cortex® -M0+ with 192 kB Flash memory, 20 kB RAM, 6 kB EEPROM, LCD, USB without crystals, T-RNG, PCROP
• Maximum link budget of 157 dB
• +20 dBm, 100 mW constant RF output versus Vsupply
• +14 dBm highly efficient PA
• Programmable data rate up to 300 kbps
• High sensitivity: up to -137 dBm
• Bulletproof front end: IIP3 = -12.5 dBm
• 89 dB blocking immunity
• Low RX current 10 mA, 200 nA register retention
• Fully integrated synthesizer with resolution of 61 Hz
• Modulation types: FSK, GFSK, MSK, GMSK, LoRa® and OOK
• Built-in bit synchronizer for clock recovery
• Synchronize word recognition
• Header detection
• Dynamic RSSI range of 127 dB+
• Built-in temperature sensor and low battery indication Power 1.65 V to 3.6 V

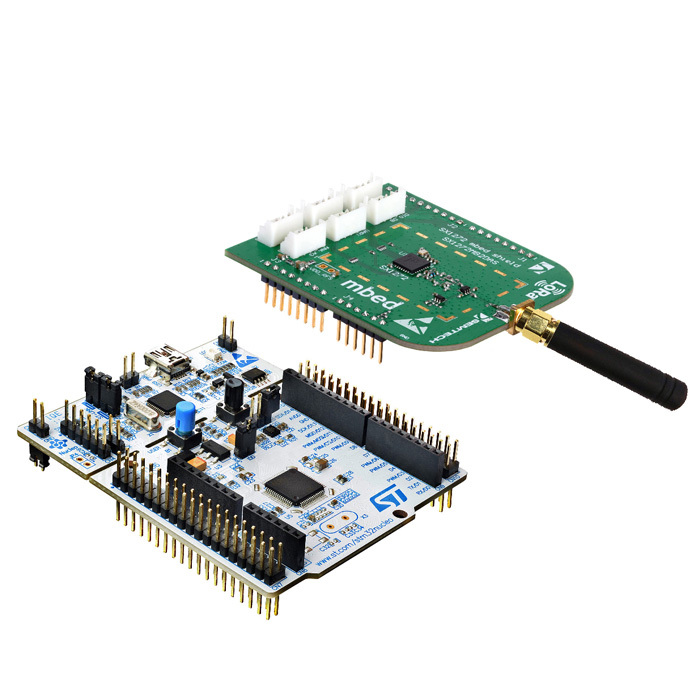

The package includes:

1x Nucleo-L073RZ development board

1x LoRa expansion board

1x Antenna

Drivers, software, and datasheet: http://www.st.com/en/evaluation-tools/p-nucleo-lrwan1.html
