PB-DIY01 DIY Power Bank – assembly kit (without batteries, with LED)

PB-DIY01 DIY Power Bank, LED, Without Springs

Are you looking for a high-capacity quality power bank? Do you want to ensure that your power bank is equipped with quality cells? Or do you want to choose the batteries yourself? Having trouble with a single power bank? Introducing the PB-DIY01, a DIY power bank!

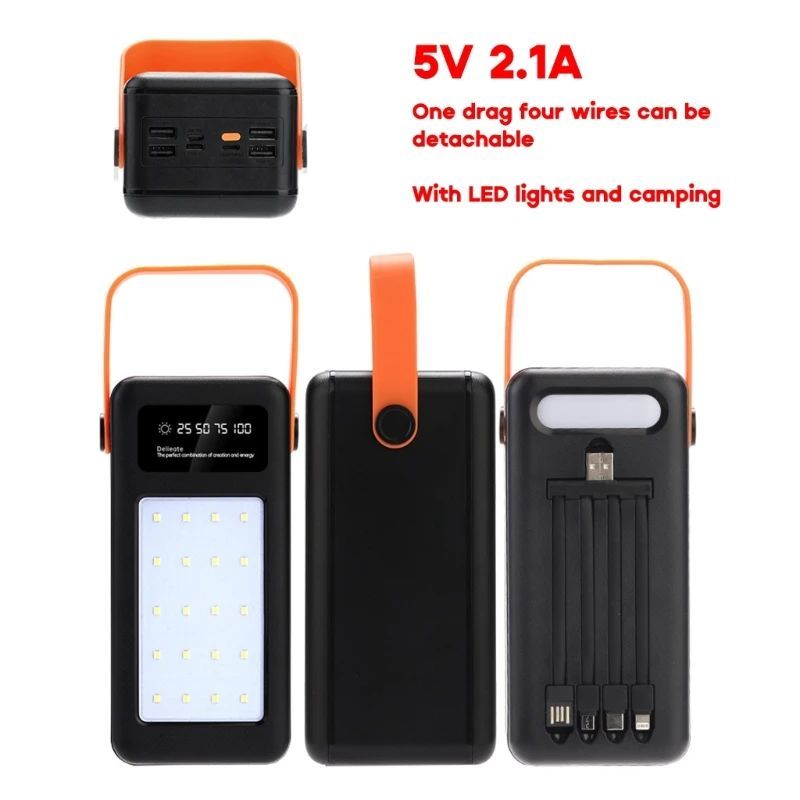

The PB-DIY01 is a battery case/box with an LCD display, front and rear LED lighting. No springs, batteries need to be welded.

PB-DIY01 is a DIY kit for assembling a power bank. This is not a fully finished product – the package includes an empty case with electronics and LED. For full functionality, the power bank must first be assembled and fitted with your own batteries (not included in the package).

Specifications:

• Model: PB-DIY01
• Available sizes and capacities:
• 30000 - 8x 18650 or 3x 9373129 polymer batteries, dimensions: 7.0 x 3.2 x 1.5 inches (178 x 82 x 39 mm)
• 40000 - 16x 18650 or 4x 9373129 polymer batteries, dimensions: 7.0 x 3.2 x 1.9 inches (178 x 82 x 49 mm)
• 50000 - 16x 18650 or 12x 21700 or 4x 9373129 polymer batteries, dimensions: 7.0 x 3.2 x 2.3 inches (178 x 82 x 59 mm)
• 60000 - 21x 18650 or 12x 21700 or 6x 9373129 polymer batteries, dimensions: 7.0 x 3.2 x 2.8 inches (178 x 82 x 70 mm)
• 80000 - 28x 18650 or 18x 21700 or 8x 9373129 polymer batteries, dimensions: 7.0 x 3.2 x 3.4 inches (178 x 82 x 87 mm)
• 100000 - 35x 18650 or 24x 21700 or 10x 9373129 polymer batteries, dimensions: 7.0 x 3.2 x 4.1 inches (178 x 82 x 105 mm)
• 120000 - 42x 18650 or 30x 21700 or 12x 9373129 polymer batteries, dimensions: 7.0 x 3.2 x 4.9 inches (178 x 82 x 124 mm)
• Battery type: 18650/21700 Li-ion with flat anode or 9373129 polymer batteries (not included)
• Output: 5V/2.1A
• Input: 5V/2.1A
• Ports:
• 1x micro USB - for charging/input
• 1x Lightning - for charging/input
• 1x Type-C - for charging/input
• 4x USB A - output

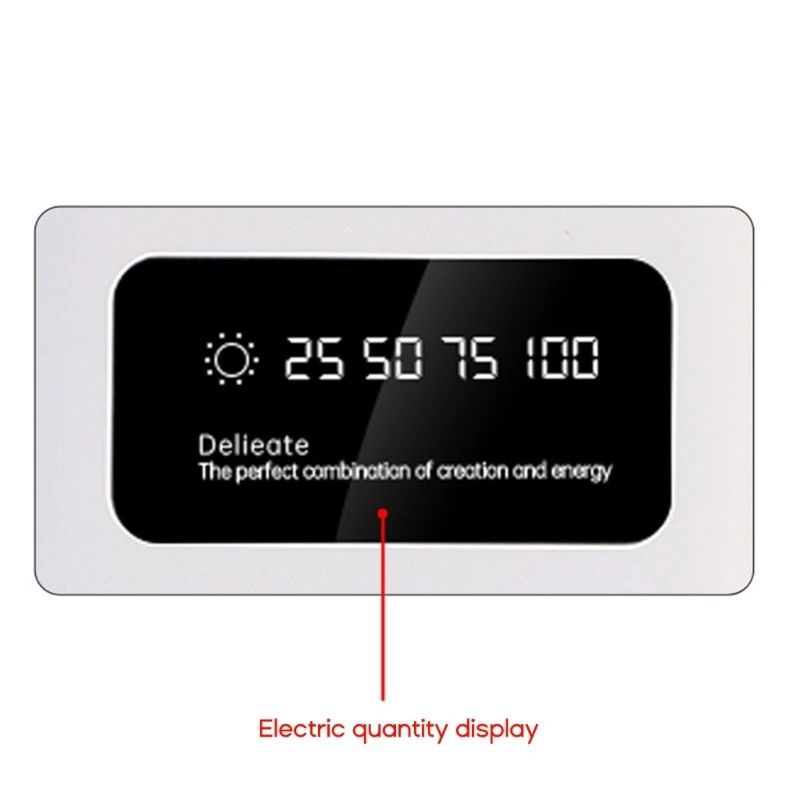

• Display: 25-50-75-100%

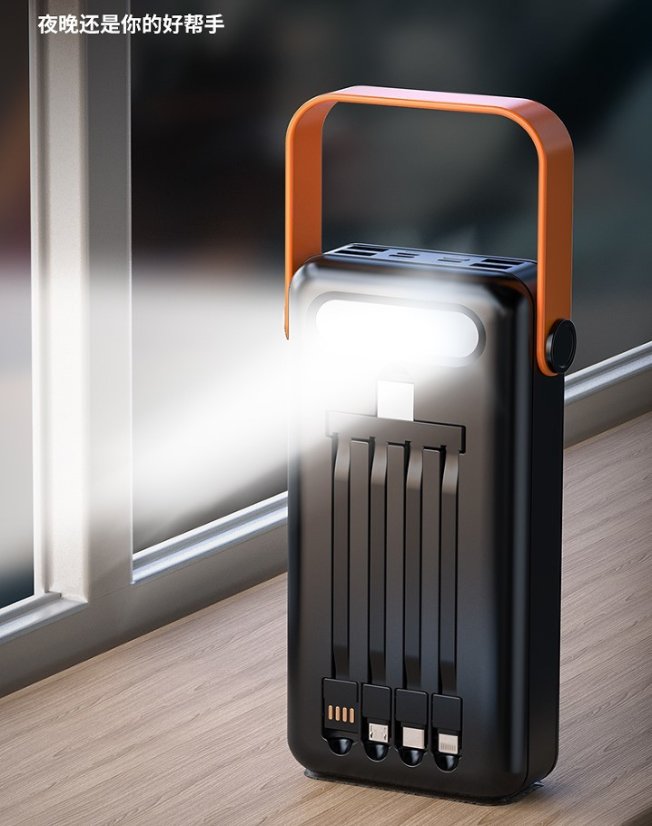

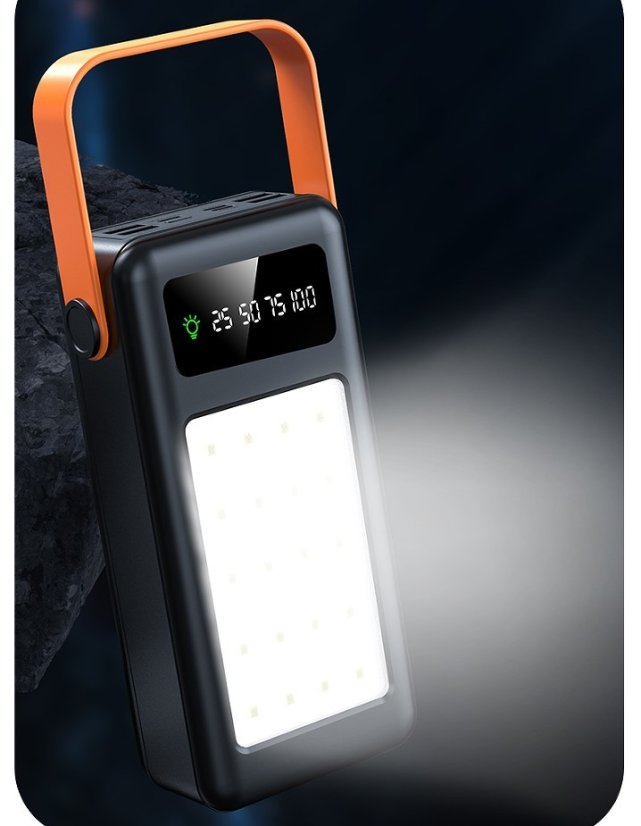

• Flashlight: front and rear
• Operating temperature: -40 to 140 °F (-40 to 60 °C)

Package contents:

• PB-DIY01 Power bank case (without batteries)
• USB/micro USB cable
• 4x steel strip
• 2x wires
• screwdriver

Note: Batteries are not included.

+
