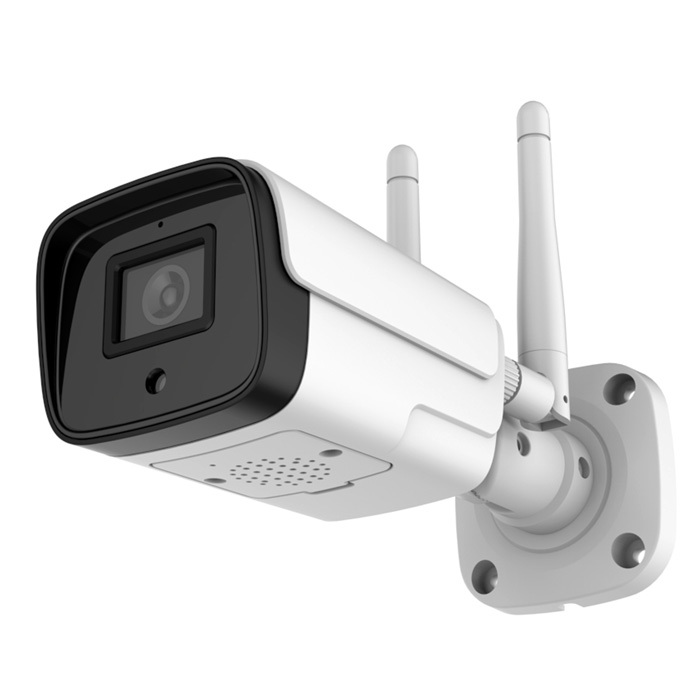

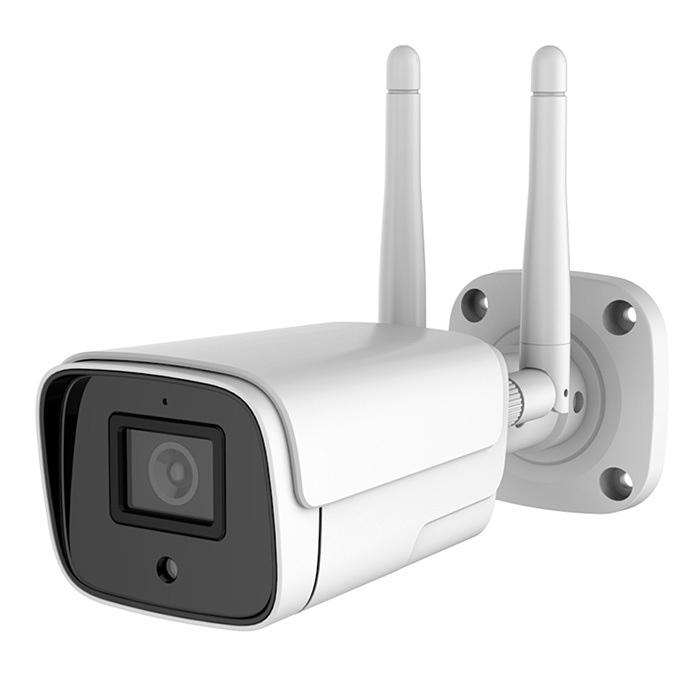

PB3902P 2MP HD WiFi IP P2P Outdoor Bullet Camera with Micro SD
PB3902P 2MP HD WiFi IP P2P Outdoor Bullet Camera with Micro SD
PB3902P 1080P 2MP HD WiFi IP P2P Outdoor Bullet Camera with Micro SD
The RGB.vision PB3902P Cloud IP camera is a wireless network camera with a megapixel resolution (2MP 1080P) designed for outdoor surveillance and detailed remote monitoring. The camera offers easy setup and instant remote viewing using a website or a free app for iOS, Android, or Windows devices.
This model features:
- XMeye IP camera software solution:
- Integrated GUI camera (ActiveX-based web interface)
- App for iOS or Android
- Software for Windows PC and MAC CMS
- Reset button
- Integrated SD card (max 128GB)
- Wired or WiFi connection
- Built-in microphone
- 24 LED lights
- Waterproof outdoor metal housing
This model is capable of:
- Recording on the internal SD card in a loop or upon motion detection
- Recording on an NVR recorder or HDD in a loop or upon motion detection
- Recording on PC/MAC from CMS software (no motion detection)
- Privacy masking
- Sending an alarm upon motion detection
- "Push" notifications with screenshot sent to the iCSee app
- Email notifications without attachments/images
- Uploading photos to an FTP server
- Triggering audio alarms in CMS PC/MAC software
- Recording to CMS PC/MAC software
NOTE on Power Supply:
This camera is designed for outdoor installation, and therefore is supplied without a power supply. THERE IS NO POWER SUPPLY IN THE BOX. The camera can be powered using a 12V/2A DC power source with a 5.5mm plug/socket.
WARNING: The camera comes with a free "Cloud" service provided by Hangzhou XiongMai Technology Co. Ltd. The "Cloud" service does not provide any disk space (free or paid), it only provides access to your camera from the internet, PC, mobile devices, or the web.
Specifications:
| Model | PB3902P | ||
| CPU | 30WX (XM530 / IPC530) | ||
| Sensor | SOI JX-F37 1/3" 2.1MP Full HD Progressive Scan CMOS, color 0.1Lux@F1.2, black/white 0.01Lux@F1.2 | ||
| Max Resolution | Main stream: 1920*1080@15fps / 1280*720@25fps; Sub stream: 704*576@25fps | ||
| Low illumination | Color: 0.1Lux D/N: 0.01Lux |
||
| Lens | Default: 3.6mm/F 1.2 Optional: 6mm / 8mm / 12mm | ||
| D/N mode | IR-CUT | ||
| Logo setting | Privacy Masking | ||
| IR LED | 24 pcs | ||
| IR distance | 30M | ||
| D/N switch | Manual / Timing / Automatic | ||
| WDR | No | ||
| Timer | 1/5~1/50,000 sec. | ||
| Digital Noise | Supported | ||
| Video Encoding | H.264 | ||
| Bitrate | 32Kbps~4Mbps | ||
| Multiple Streams | 1080p+D1 | ||
| Microphone | Yes | ||
| OSD | Supports channel name, date, and time | ||
| Image Settings | Backlight, compensation, brightness, contrast, saturation, auto gain, multiple streams, frame rate adjustable from IE or client | ||
| Intelligent Alarm | Motion detection, I/O alarm if network interruption occurs | ||
| Network Protocol | HTTP, DHCP, UDP, RTP/RTSP, NTP, FTP | ||
| Compatible Protocol | ONVIF 2.0, GB/T 28181 | ||
| P2P | Supported - XMeye.net | ||
| General Usage | No flickering, multiple streams, user password, OSD | ||
| Communication Connector | One RJ45 10M / 100M | ||
| WiFi | Built-in 2.4G WiFi | ||
| Storage | Integrated micro SD card (max. 128GB) | ||
| Operating Environment | -10℃~50℃, 0%~85%RH | ||
| Power Supply | DC12V 2A | ||
| Consumption | ≤ 8W | ||
| Installation | Outdoor (Wall Mount) | ||
| Material | Metal | ||
| Protection Level | IP66 | ||
| Size / Weight | 28*14*10CM & 0.5KG | ||
