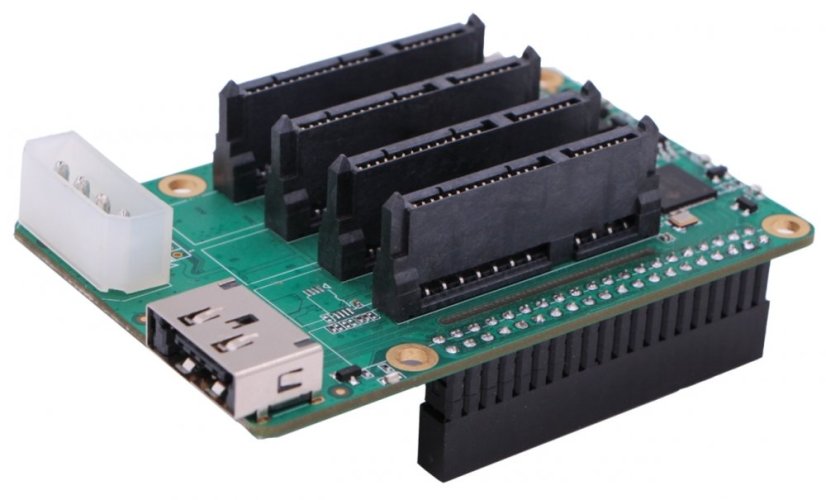

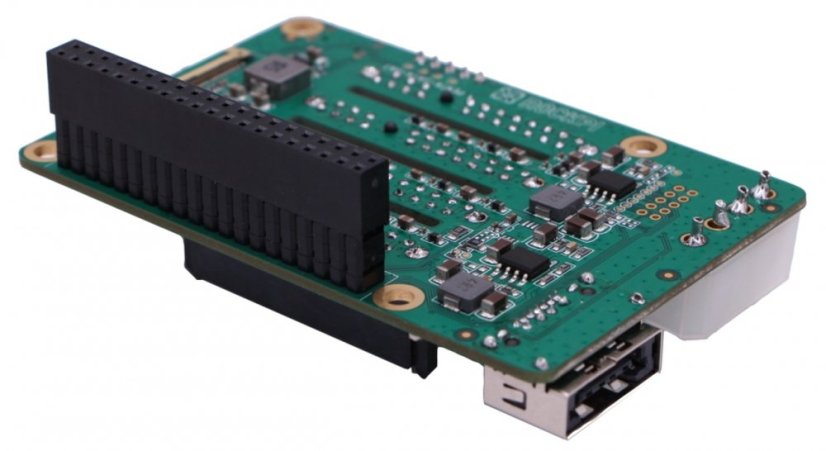

Penta SATA HAT

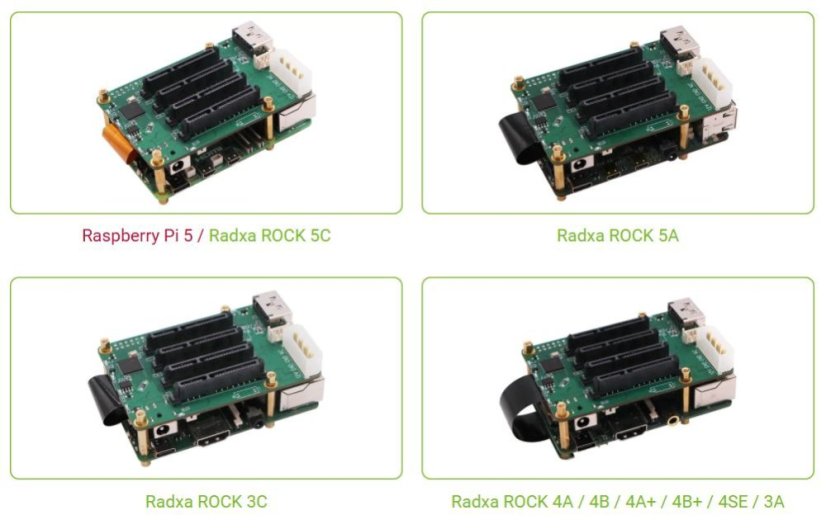

• Raspberry Pi 5 / Radxa ROCK 5C
• Radxa ROCK 5A
• Radxa ROCK 3C
• Radxa ROCK 4A / 4B / 4A+ / 4B+ / 4SE / 3A

Features

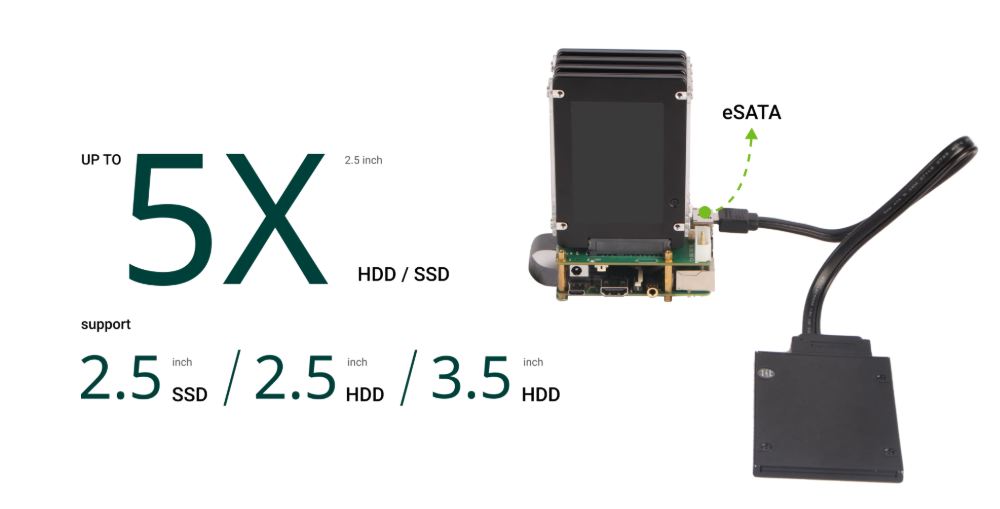

• Up to 5x HDD, support for 2.5" or 3.5" HDD, up to 100TB storage

• 4x SATA + 1x eSATA with power

• Uses PCIe bus on SBC

• Support for external standard ATX power supply for HDD and SBC

• 12V DC input for powering 2.5/3.5 HDD and SBC

• Support for HDD sleep mode

• Support for software RAID 0 / RAID 1 / RAID 5

• Optional PWM-controlled fan for HDD cooling

• Optional OLED display for IP/storage display

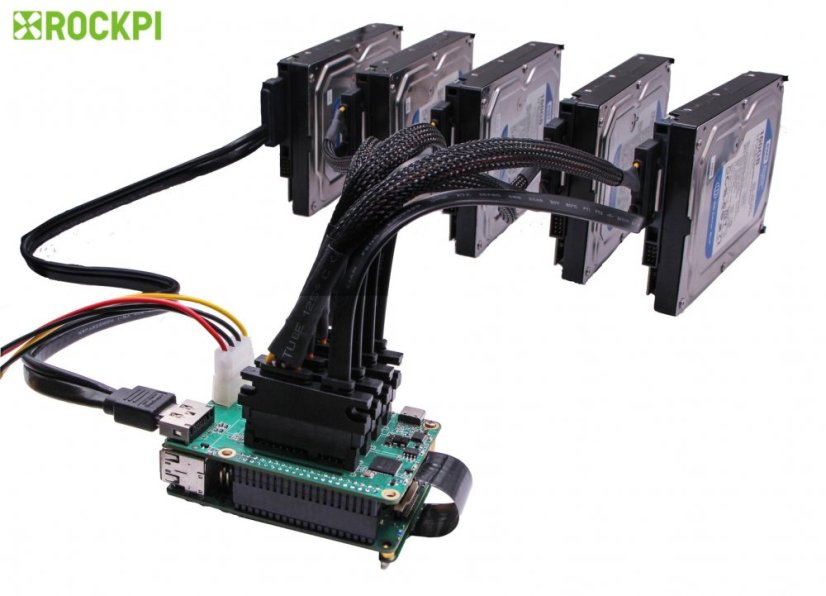

Perfect NAS server solution

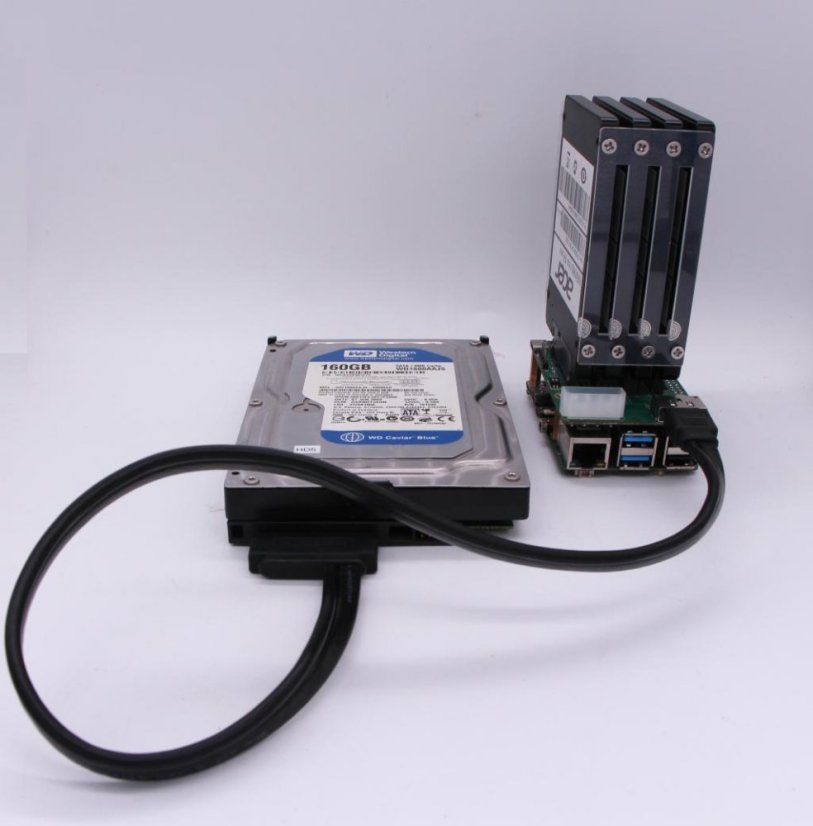

4 SATA + 1 eSATA interface

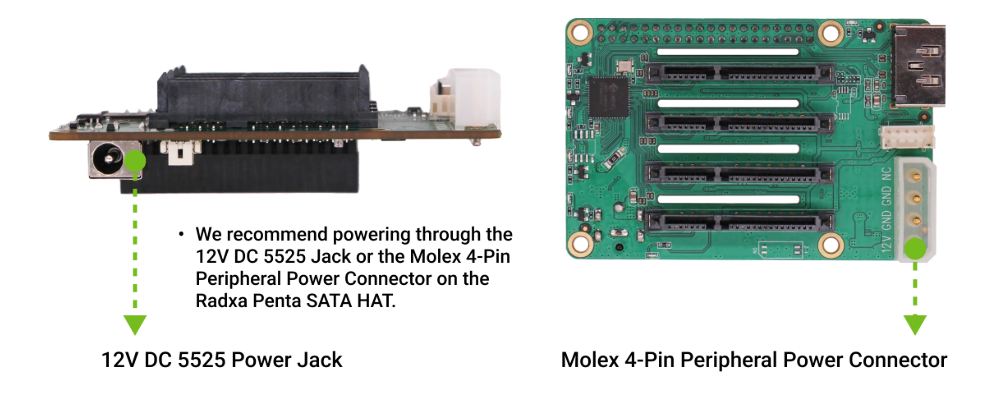

Flexible power options

12V DC 5525 power connector or Molex 4-pin peripheral power connector

Note: Once the Radxa Penta SATA HAT is powered, it powers the SBC via the 40-pin connector, so there is no need to power the SBC separately.

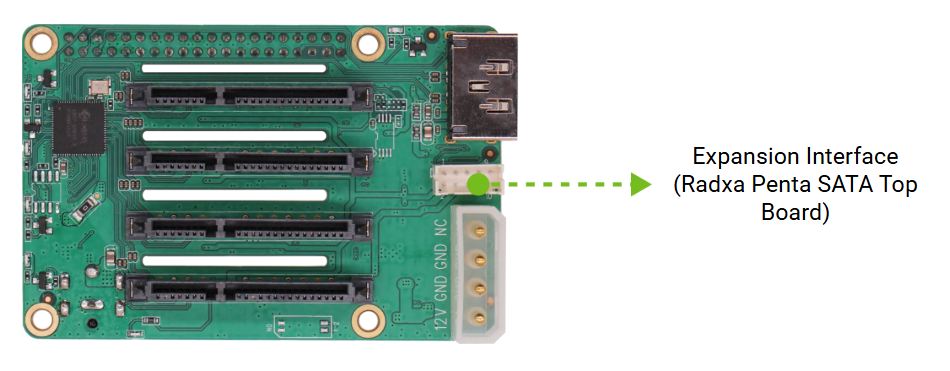

Interface for further expansion

Designed to support OLED display and fan

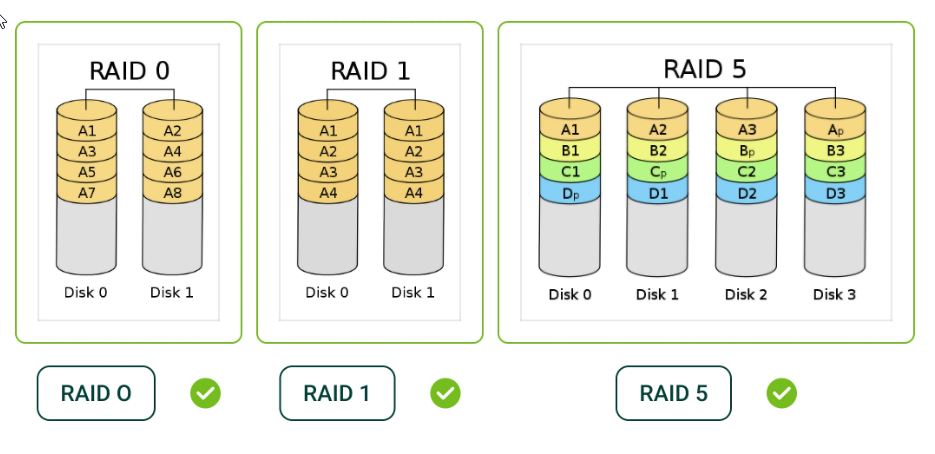

Software configuration RAID 0 / RAID 1 / RAID 5

Performance and security within reach

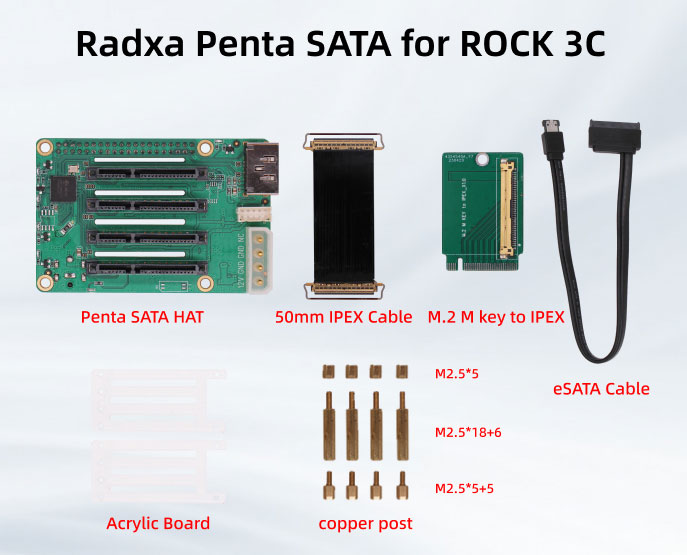

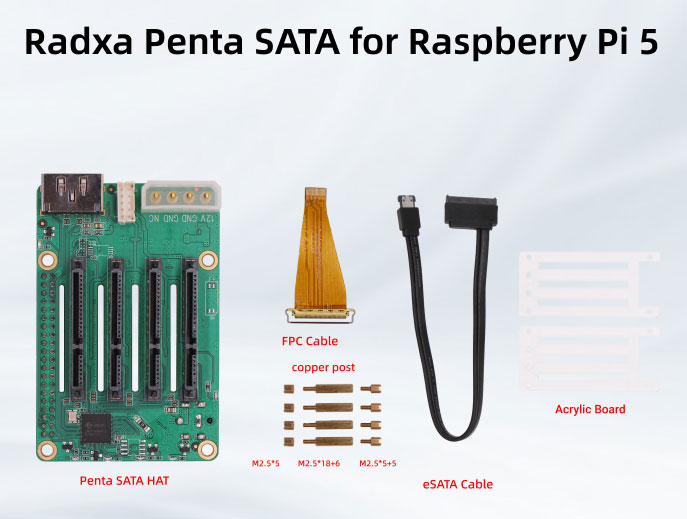

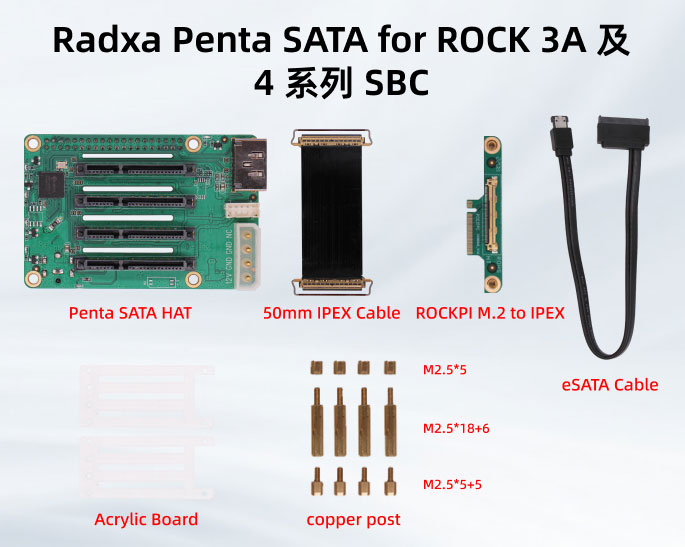

Product contents
