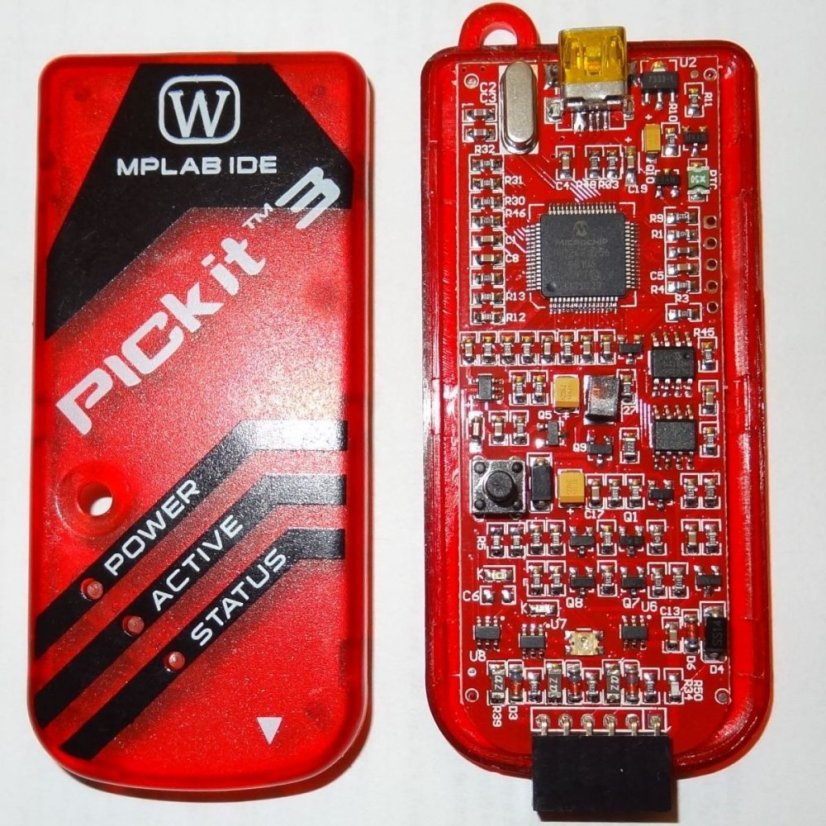

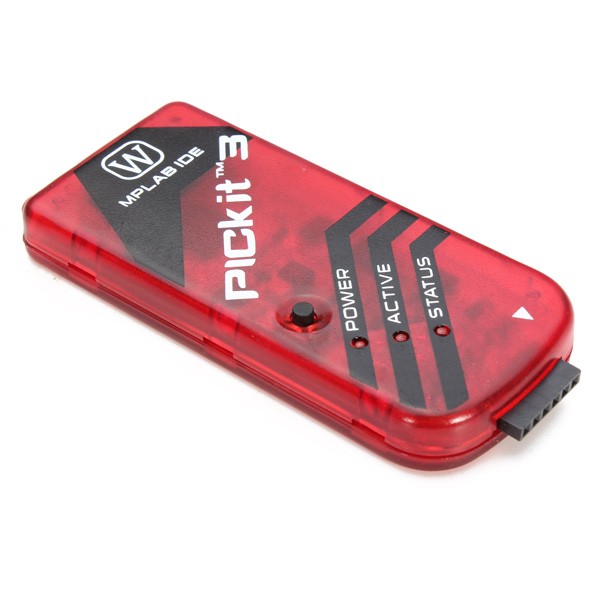

PICkit 3 - Microchip PIC Programmer Kit with Adapter

Mini PICKIT 3 - Clone Development Programmer

The PIC KIT 3 programmer clone is not an original Microchip product but a functionally identical clone.

The PICkit 3 is a programmer with a simple interface for programming a range of Microchip processors. It works with the latest version of MPLAB.

PICkit 3 Programmer Specifications:

• Model: PICkit 3
• USB (full speed 12 Mbits/s interface to host PC)
• Real-time command execution
• Compatible with MPLAB IDE
• Built-in overload/short-circuit monitor
• Firmware update capability from PC/web download
• Supports low voltage to 2.0 volts (range 2.0v to 6.0v)
• Diagnostic LEDs (power, load, error)
• Reading/writing program and data memory of microcontrollers
• Program memory erase with verification
• Pause peripherals at breakpoints
• Programming up to 512K byte flash with Programmer-to-Go
• Manufacturer: OEM/clone/non-original
• Version: 3.5+
• Dimensions: 87×40×12 mm

Specifications for the PIC ICD2 PICKit 3 Adapter/Dock:

• PIC16/18XX 40PIN devices (except 16F59)
• PIC16/18XX 28PIN devices (except 16F57)
• PIC16/18XX 18PIN devices
• PIC family devices 8PIN/14PIN/20PIN (except 10FXX)

WARNING: This is a DIY programmer intended for advanced users who know how to use it. It is supplied WITHOUT programming software. It is the user’s responsibility to find, install, and set up programming software. There are several free programming applications compatible with this programmer. Below are links to some of them. Links are provided in good faith, WITHOUT warranty and support.

Download software for PICkit 3:

http://ww1.microchip.com/downloads/en/DeviceDoc/PICkit3%20Programmer%20Application%20v3.10.zip

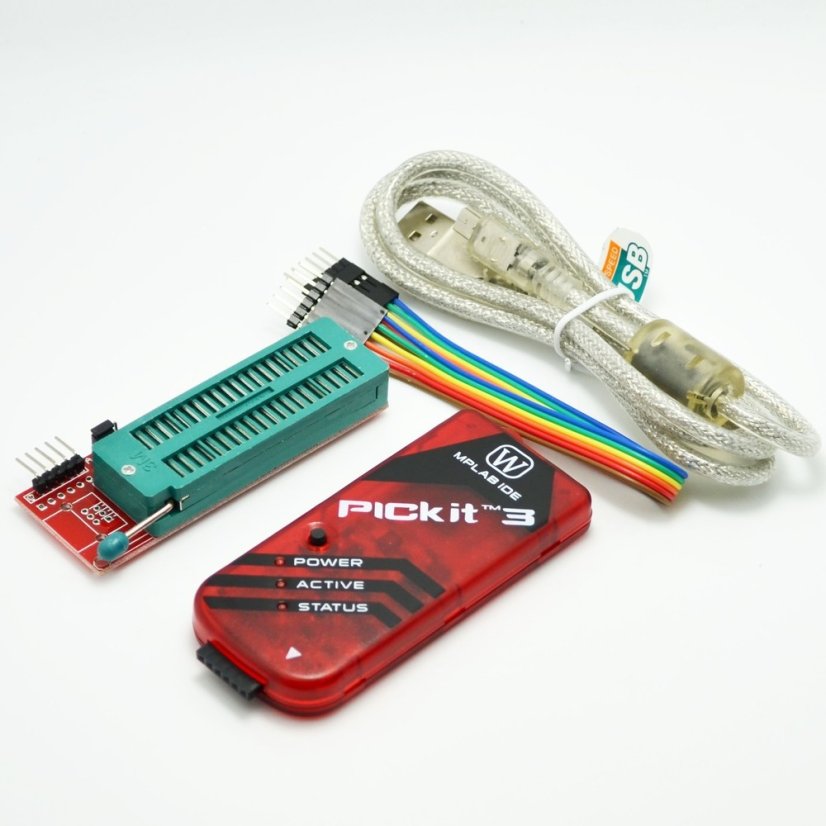

Package includes:

1 x Programmer

1 x PIC ICD2 PICKit 2 PICKIT 3 Programming Adapter/Dock
1 x 6-pin flat cable

1 x USB cable
