Pixhawk 6C mini Ver A, PM02 V3 + M10 GPS set

Pixhawk 6C Mini Ver A Set with PM02 V3 & M10 GPS

Professional Flight Controller Bundle

The Pixhawk 6C Mini Ver A flight controller set combines high-performance autonomous control with compact dimensions, making it ideal for professional multirotors, fixed-wing platforms, VTOL aircraft, and robotic systems. This complete bundle includes the Pixhawk 6C Mini Ver A, the reliable PM02 V3 power module, and a high-precision M10 GNSS GPS module with integrated compass, ensuring stable, accurate, and safe flight operations.

Built around a powerful STM32H7 series processor and advanced IMU sensors, the Pixhawk 6C Mini offers fast response, excellent noise resistance, and precise navigation. The modular form factor, flexible I/O, and compatibility with ArduPilot and PX4 make it suitable for hobby, research, industrial, and mapping applications.

The included PM02 V3 provides accurate voltage and current measurements to ensure reliable power delivery, while the M10 GPS provides multi-band GNSS performance for fast locking, centimeter-grade precision (RTK-ready), and stable heading.

Specification

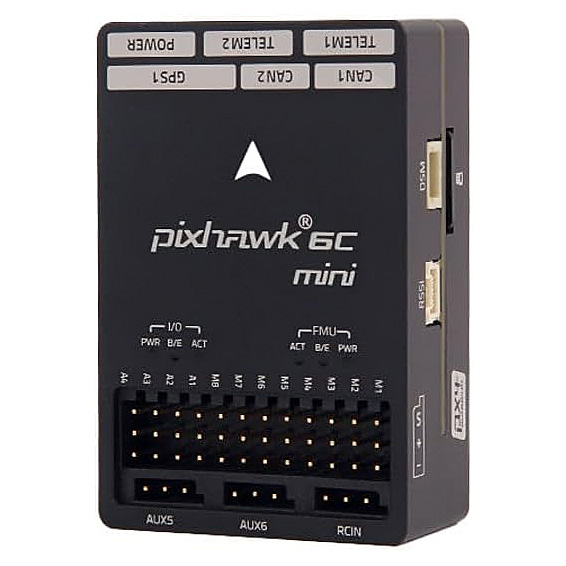

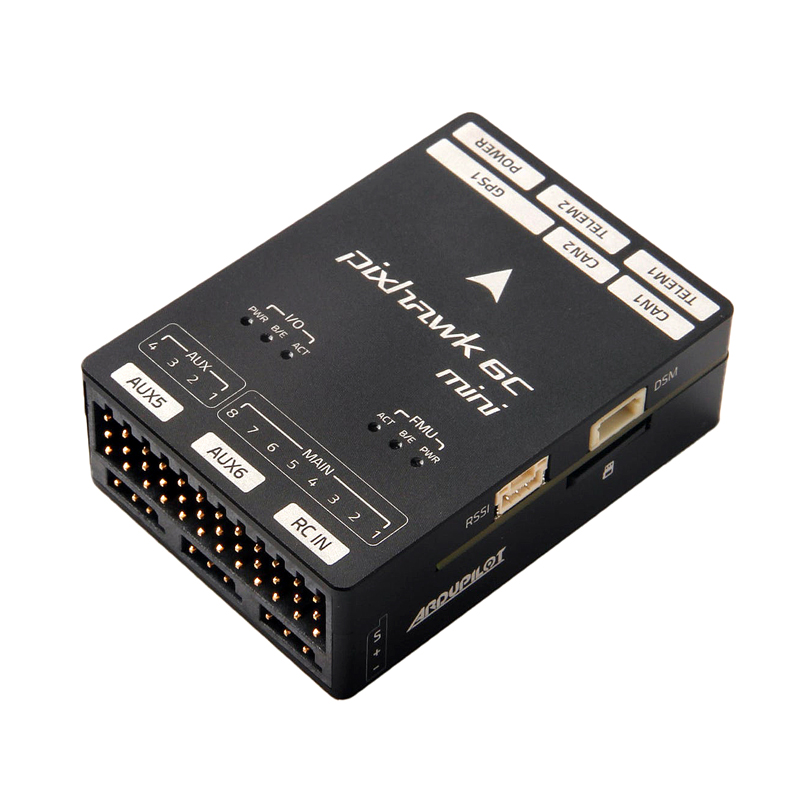

Pixhawk 6C Mini Ver A

• Processor: STM32H7 high-performance MCU

• Sensors (Triple IMU):

  • 2× Accelerometer/Gyroscope

  • 1× Magnetometer

  • High-precision Barometer

• Internal Damping: Built-in vibration isolation

• Connectivity:

  • Multiple UARTs

  • I²C, CAN, SPI

  • USB Type-C

  • PWM outputs for motors

• Storage: SD card slot for logging

• Power Input: 4.75–5.5 V

• Compatibility: ArduPilot, PX4

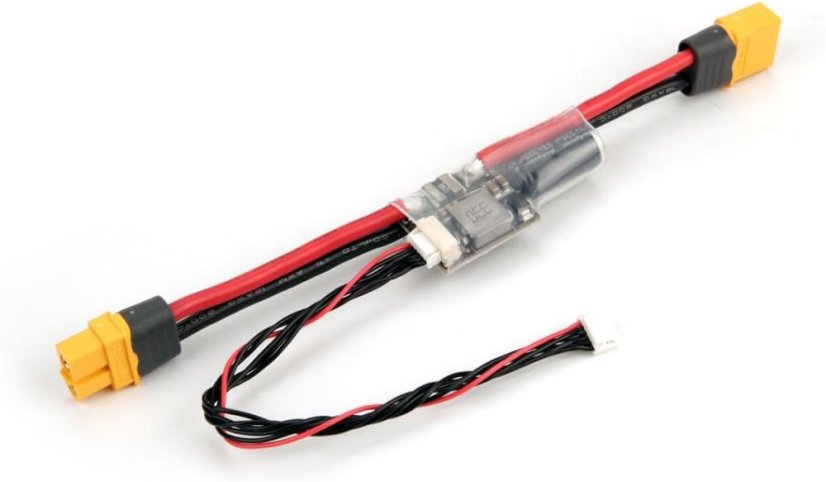

PM02 V3 Power Module

• Input Voltage: 4S–8S LiPo

• Maximum Current: 60 A

• Power Output: 5.35 V / 3 A

• Current/Voltage Sensing: Integrated precision sensor

• Connector: XT60

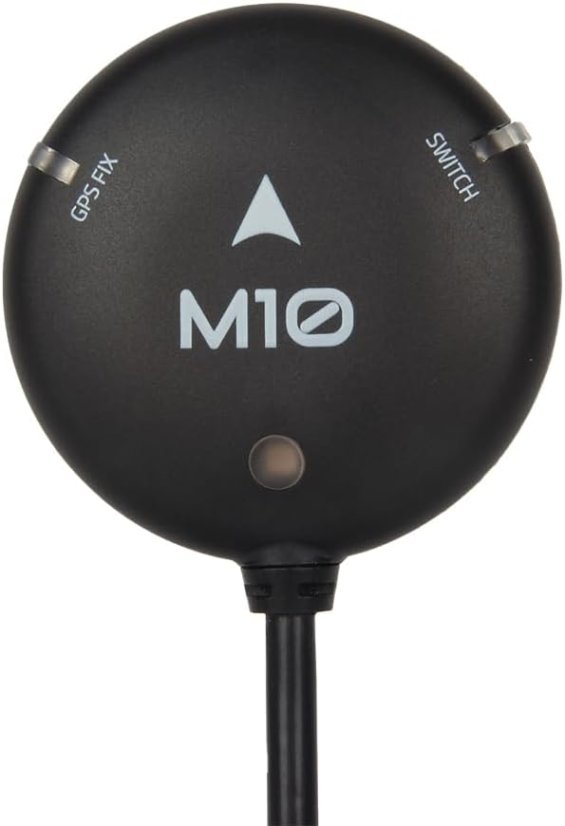

M10 GNSS GPS Module

• GNSS Systems: GPS, GLONASS, Galileo, BeiDou

• Precision: High-accuracy multi-band GNSS

• Features:

  • Integrated electronic compass

  • Fast satellite lock

  • RTK-compatible

• Interface: UART / I²C

Applications

• Multirotor drones

• Fixed-wing UAVs

• VTOL aircraft

• Robotics and autonomous systems

• Surveying & mapping

• Research, industrial & agricultural UAVs

Documentation: https://docs.holybro.com/autopilot/pixhawk-6c-mini

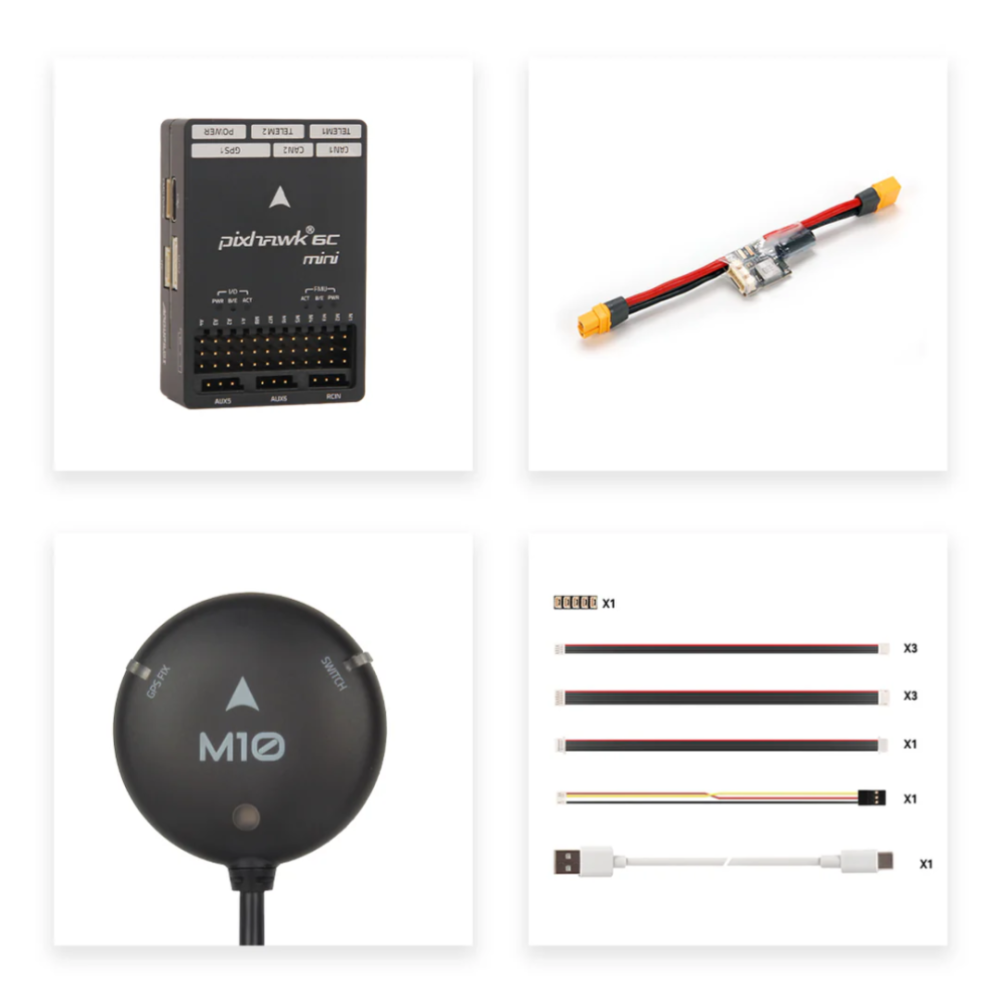

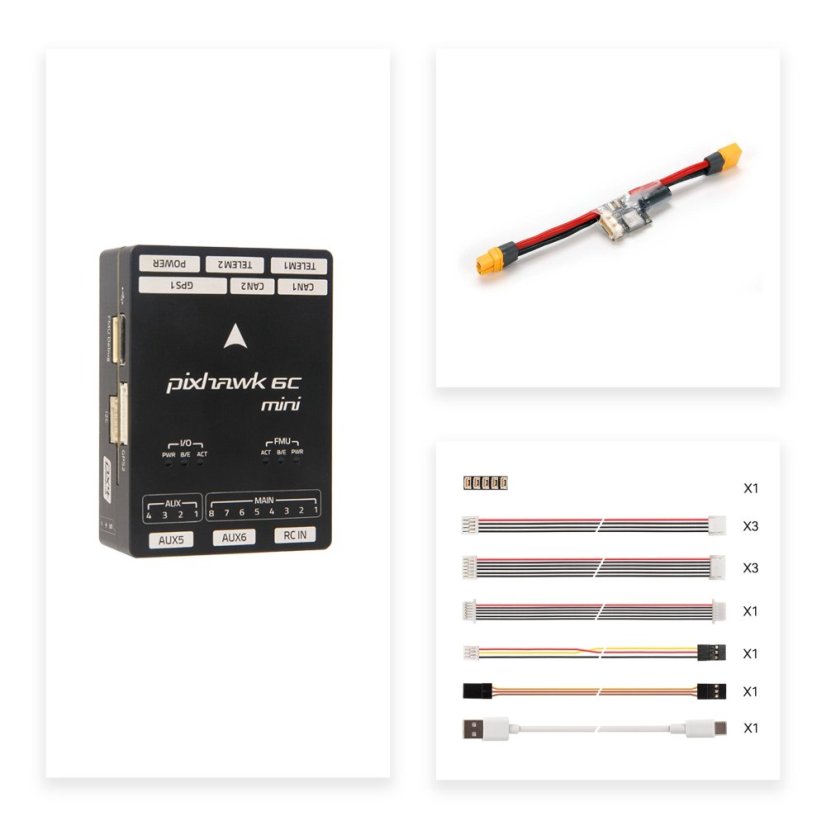

The set includes:
