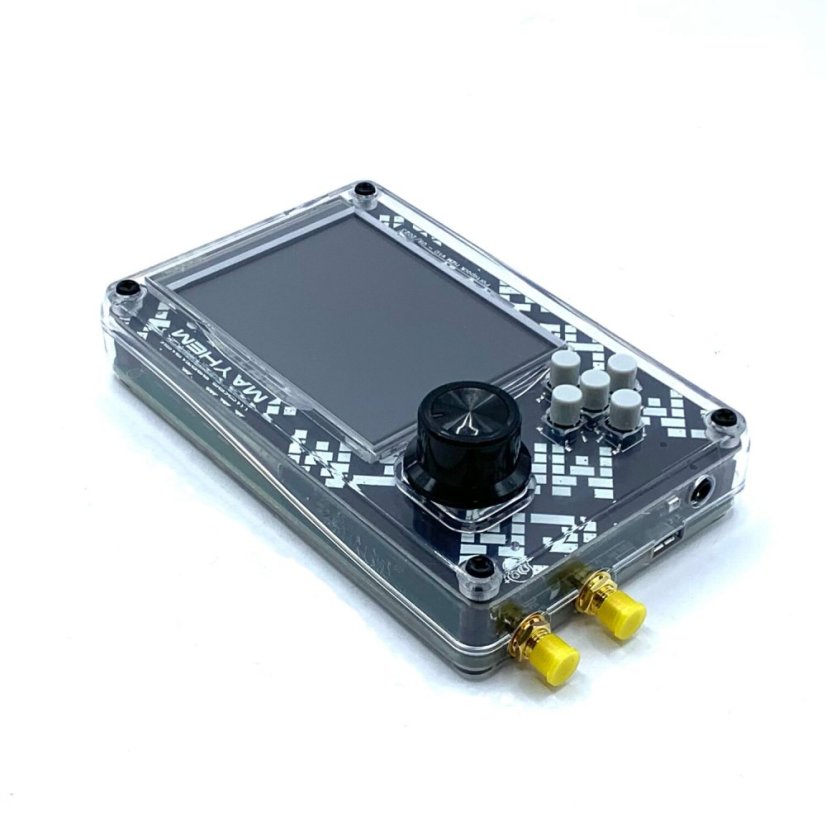

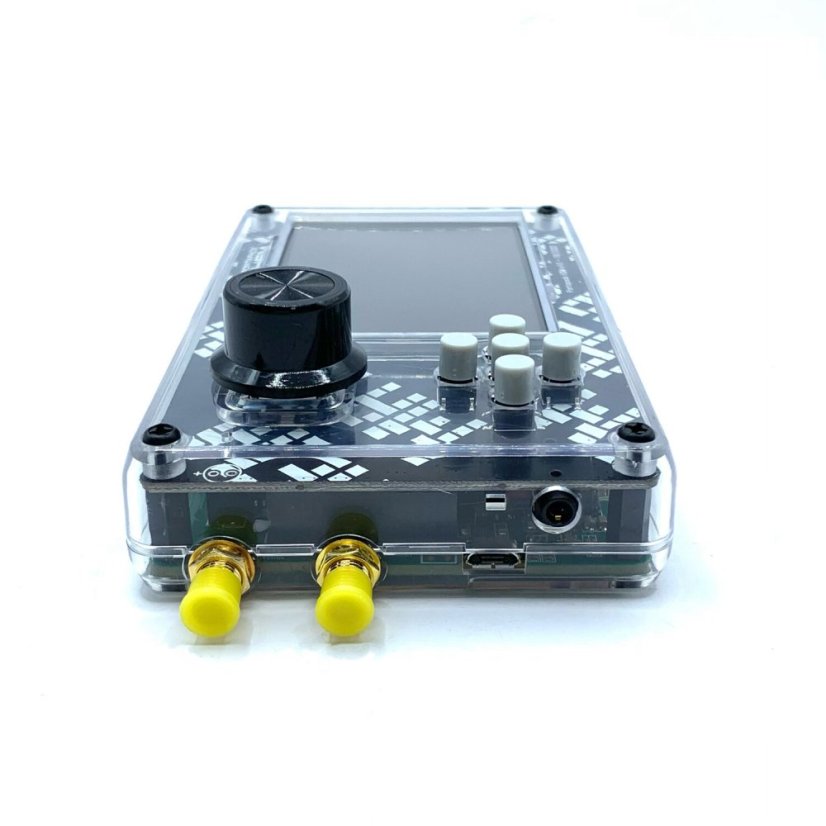

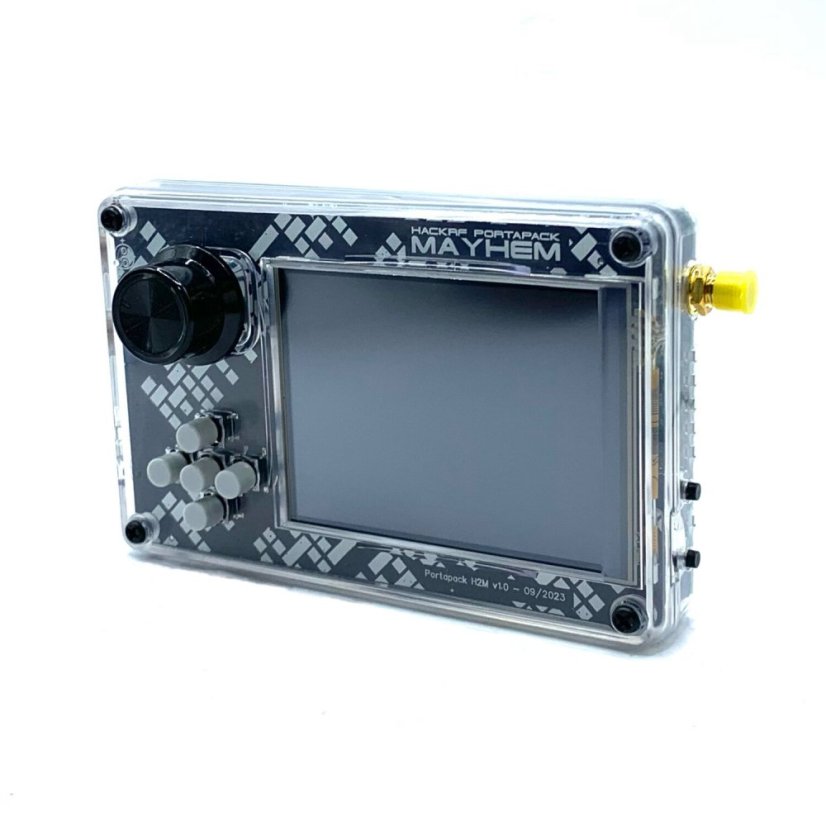

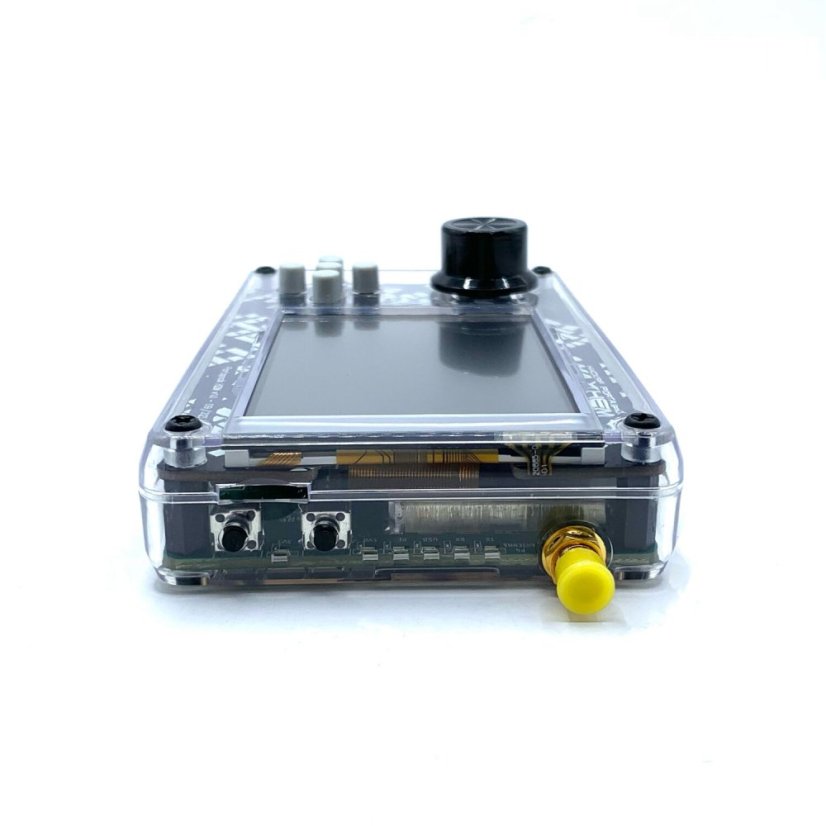

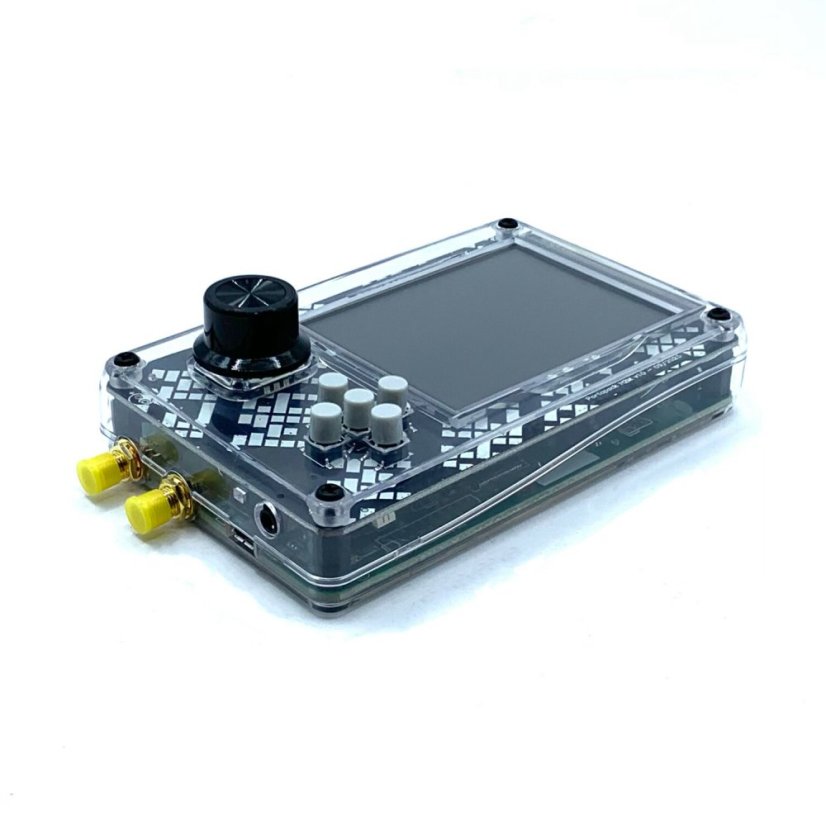

Portapack H2M + HackRF – Set with 5 Antennas

HackRF One Specifications:

• Frequency Range: 1 MHz – 6 GHz

• Half-duplex transceiver

• Sample rate: up to 20 MSPS

• 8-bit I/Q quadrature sampling

• Compatible with GNU Radio, SDR#, etc.

• Software-controlled RX/TX gain and filters

• Antenna port power: 50 mA @ 3.3 V

• SMA connectors for antenna, clock in/out

• USB 2.0 High-Speed powered

• Open-source design

PortaPack H2M Features:

• 3.2" 240x320 resistive touch LCD

• Illuminated arrow keys + jog dial + select button

• 2000 mAh lithium battery

• Real-time clock with coin cell backup

• 10 MHz TCXO (FOX 5070)

• MicroSD slot for logging and firmware

• Audio output & speaker amplifier

• GPS simulation support

Characteristics:

• Your HackRF will continue to work with computer SDR software when you set the PortaPack to "HackRF" mode.
• The PortaPack is compatible only with HackRF Uno. It is not compatible with the first design of HackRF Jawbreaker. If your HackRF has an RF shield installed, the PortaPack should be fine. Compatibility with HackRF Blu is experimental. One Blu owner reported good results with less interference between the PortaPack's audio capacitors and the mechanical header tape. If your HackRF Blu does not have a header tape installed, you should not have mechanical issues.
• The PortaPack requires an external battery. Any battery connected via USB should work, although their quality varies significantly and poorly designed batteries may introduce noise from the voltage regulator into the radio.
• The PortaPack and HackRF Uno cannot replace your handheld amateur radio receiver. Sensitivity varies by band but will not match that of a true amateur radio receiver.

Note:

• The product is assembled.
• The HackRF is included in the package.
• The battery is included in the package.

The seller is not responsible for improper use of the device. Professional testing and learning are recommended.

Exercise caution with this device and signal transmissions. Ensure you strictly comply with the laws of the EU and the Czech Republic when working with the device.

Read before ordering: This board is sold as-is, without documentation and support. All information, software, and firmware are available online. Order ONLY if you know how to use the board!

More information and firmware: https://github.com/portapack-mayhem/mayhem-firmware

Comparison of different PortaPack versions: https://github-wiki-see.page/m/portapack-mayhem/mayhem-firmware/wiki/PortaPack-Versions

Package Contents:

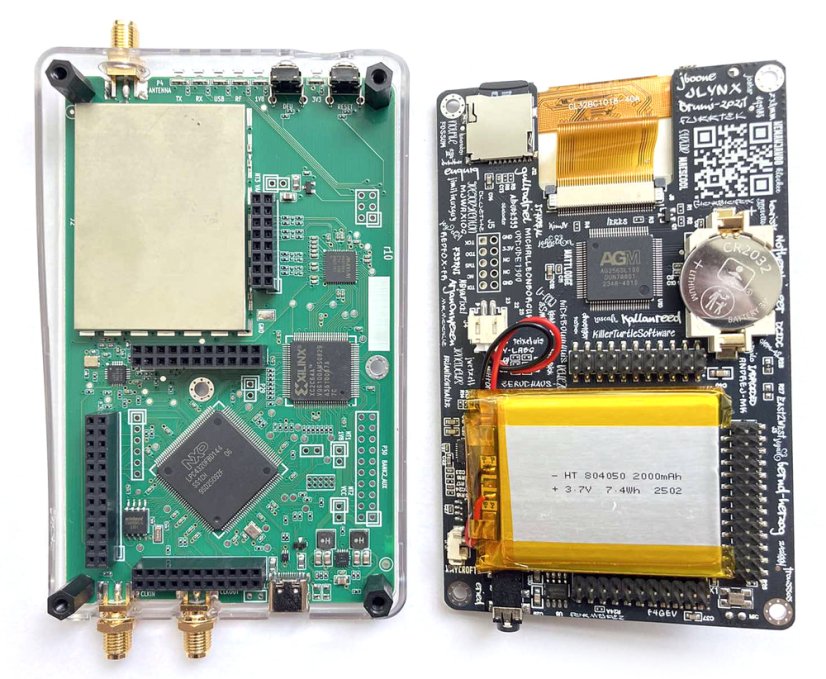

• 1 x SRD Radio (PortaPack H2M + HackRF One R10)
• 1 x Data Cable
• 5 x Antennas (2.4/5/5.8GHz, 35dBi GSM/3G/4G, 40MHz–6GHz Telescopic, 40MHz–860GHz, 700MHz–2700MHz)
