Potentiometer WH148 B20K - 20K Ohm Linear

WH148 Linear Potentiometer

Add to favourites Add to compare list

WH148 Linear Potentiometer

Linear potentiometer for precise control. More
Manufacturer: NEVEN Product code: P10505 Shipping and payment
0,80 EUR incl. VAT
Variant does not exist
Linear potentiometer for precise control. More
Manufacturer: NEVEN Product code: P10505 Shipping and payment

Variants2

Resistance Availability Price incl. VAT Quantity (ks)
WH148 Linear Potentiometer 20kΩ in stock 0,80 EUR Add to Cart
WH148 Linear Potentiometer 1kΩ in stock 0,80 EUR Add to Cart

Linear Mono Potentiometer

  • Power Loss P = 0.125W
  • Tolerance = 20%
  • Switch = No

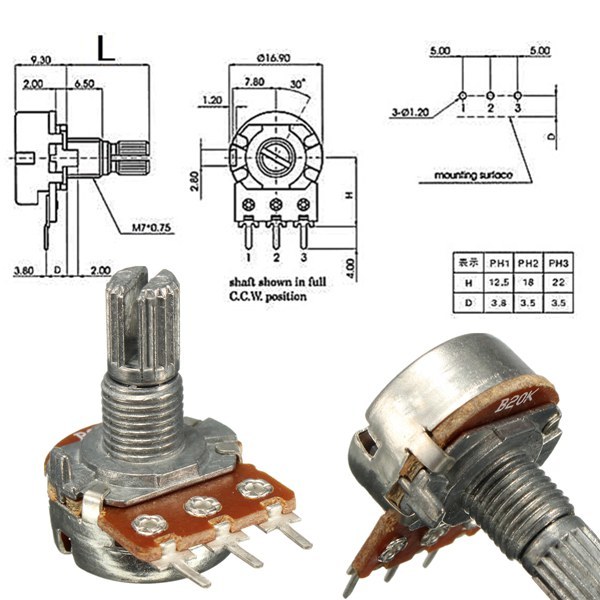

  • Mechanical Design: Shaft Diameter = 6 mm
  • Mon. Hole Diameter = 7 mm
  • Shaft Length (+thread) = 8(8) mm
  • Shaft Design = Grooved mm
  • PCB Design = Yes
  • Lead Design = Vertical
  • Mechanical Rotation Angle = 300°
  • Electrical Rotation Angle = 270°
  • Manufactured in China
