Winbond W25Q Series NOR Flash spiFlash

The Winbond W25Q Series NOR Flash spiFlash is a versatile memory solution with multiple interface options and high-speed performance. More

Manufacturer: WINBOND Product code: P11857 Shipping and payment

from 1,50 EUR incl. VAT

The Winbond W25Q Series NOR Flash spiFlash is a versatile memory solution with multiple interface options and high-speed performance. More

Manufacturer: WINBOND Product code: P11857 Shipping and payment

Variants6

Packaging – Flash components	Model – Flash components	Availability	Price incl. VAT

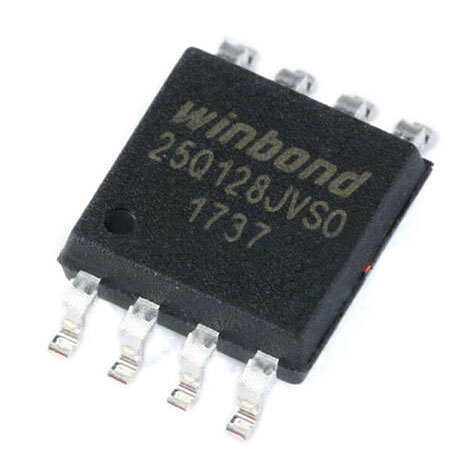

SOP-8	W25Q16JVSSIM	in stock	1,50 EUR
SOP-8	W25Q32JVSSIQS	in stock	2,10 EUR
SOP-8	W25Q64JVSSIM	Out of Stock Watch availability	2,50 EUR	Demand
SOP-8	W25Q128JVSIM	in stock	3,40 EUR
SOP-8	W25Q16JVSNIM	in stock	1,50 EUR

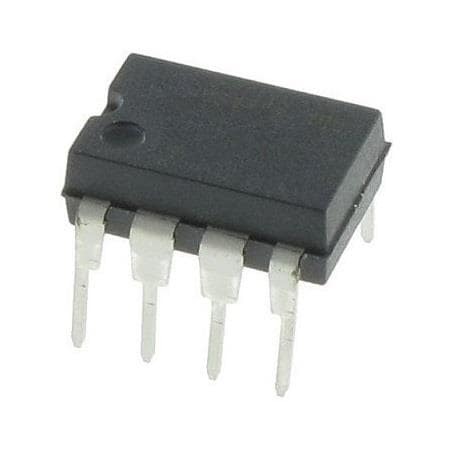

PDIP-8	W25Q32JVDAIQ	in stock	1,90 EUR

Model: W25Q Series

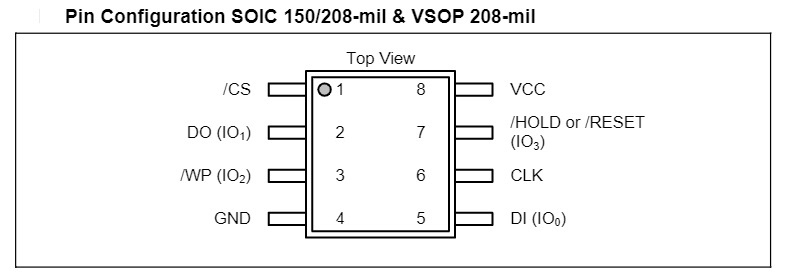

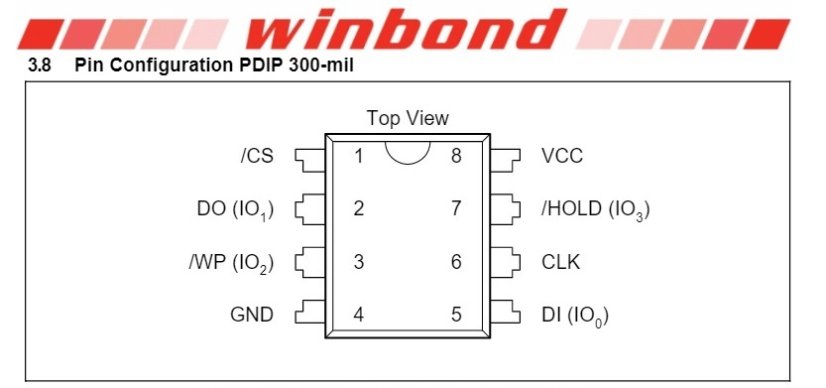

Package: SOP-8/PDIP-8
Features: Single/Dual/Quad SPI and QPI operation
Uniform 4KB erasable sectors and 32KB/64KB erasable blocks
65,536 pages (256 bytes), page programming in 0.7mS (typical)
Continuous reading with 8/16/32/64 Byte Wrap
Quad Peripheral Interface (QPI) reduces command overhead
Frequency up to 104MHz (208/416MHz equivalent with Dual/Quad I/O reads)
Power supply from 2.7 to 3.6V
4mA active read current, 1µA in sleep mode
Temperature range -40° to +85°C
Program/erase suspend/resume, suspend status bit
Factory programmed unique ID
Electronic ID with Dual/Quad I/O and hardware/software write protection for upper or lower blocks
Volatile and non-volatile status registers
Lock-Down and OTP protection
Parameters for Serial Flash Discoverable Parameters (SFDP)
3x256-byte security registers with OTP locks
Field protection bit for enhancement
Individual block/sector write protection
Software reset and configurable hardware/RESET pin
Programmable output driver strength
