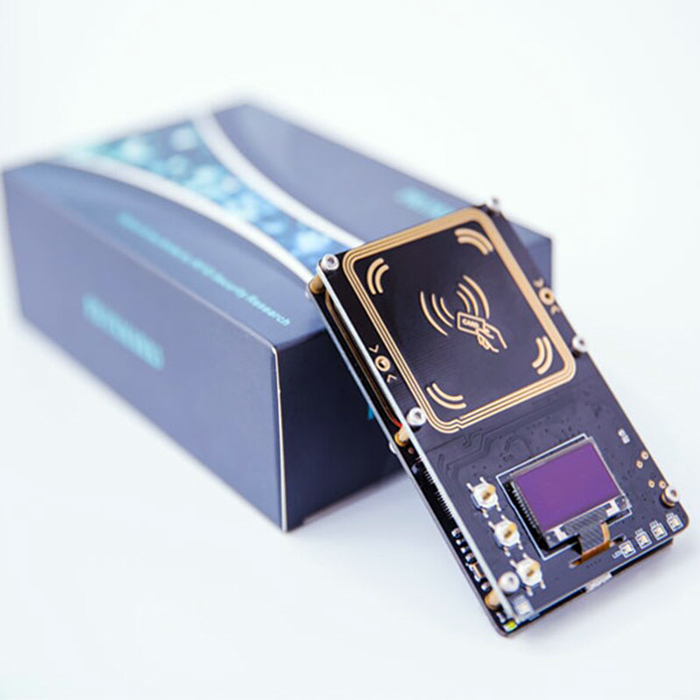

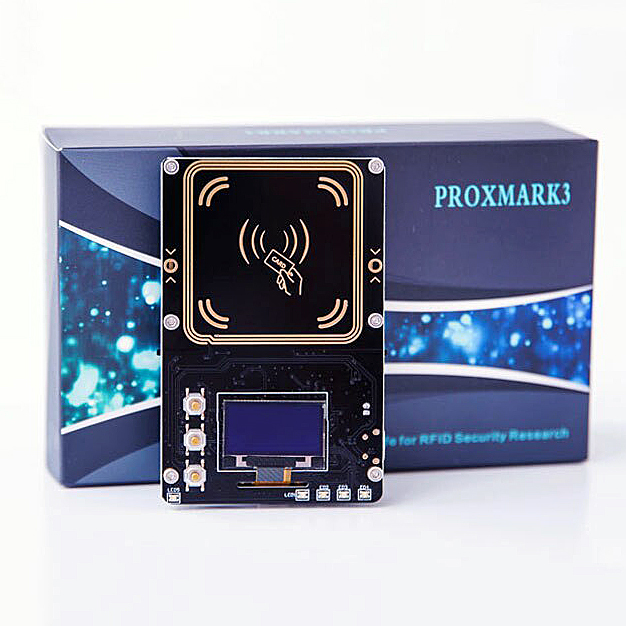

Proxmark3 PM3 Ultimate Edition - RFID Reader & Emulator

Proxmark3 PM3 Ultimate Edition

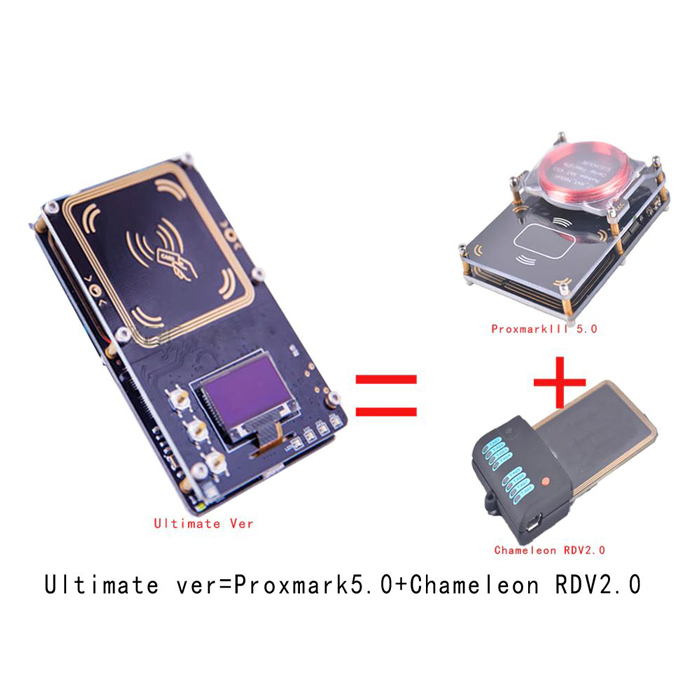

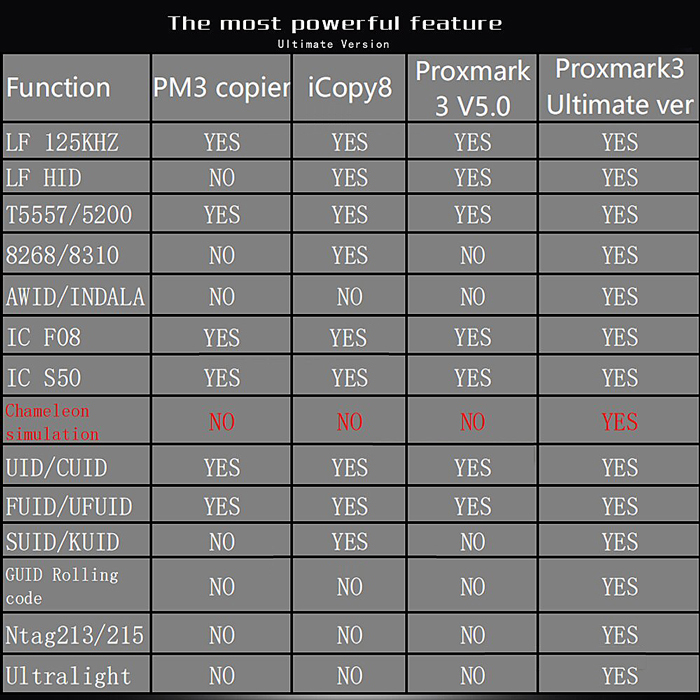

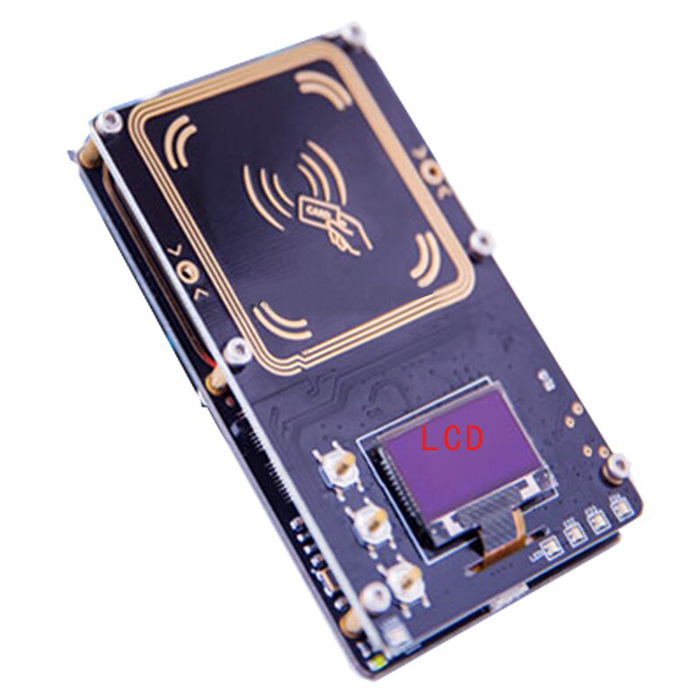

The Proxmark3 PM3 Ultimate Edition is an enhanced version of the PM3, featuring an LCD display and supporting/emulating Chameleon. It provides comprehensive reading and writing functions for RFID cards and data customization options on the market. It is compatible with a wide range of protocols and card types including 14443A (S50/S70/Ultralight/Ultralight CUL-C/UL/Desfire/NTAG203/NTAG213/NTAG215/NTAG216, etc.), 15693 ICODE SLIX, ICODE2, ICODE SLI-S, H-ID, EM4100, EM4305, T5577, INDALA, AWID, 1443B, and others.

Specifications

• Model: PM3 Ultimate Edition
• Built-in lithium battery 500mAh
• LF antenna: 30.41 V @ 125.00 kHz
• LF antenna: 22.01 V @ 134.00 kHz
• HF antenna: 28.43 V @ 13.56 MHz
• tbd

⚠ Warning: This device requires users to have knowledge of its operation. Most customers use Linux OpenSource software available online. If you plan to use the device on Windows, please contact us – we will provide the software and an activation code.

Drivers: https://github.com/Proxmark/proxmark3/wiki/Windows

SW: https://github.com/wh201906/Proxmark3GUI/releases

https://github.com/burma69/PM3UniversalGUI

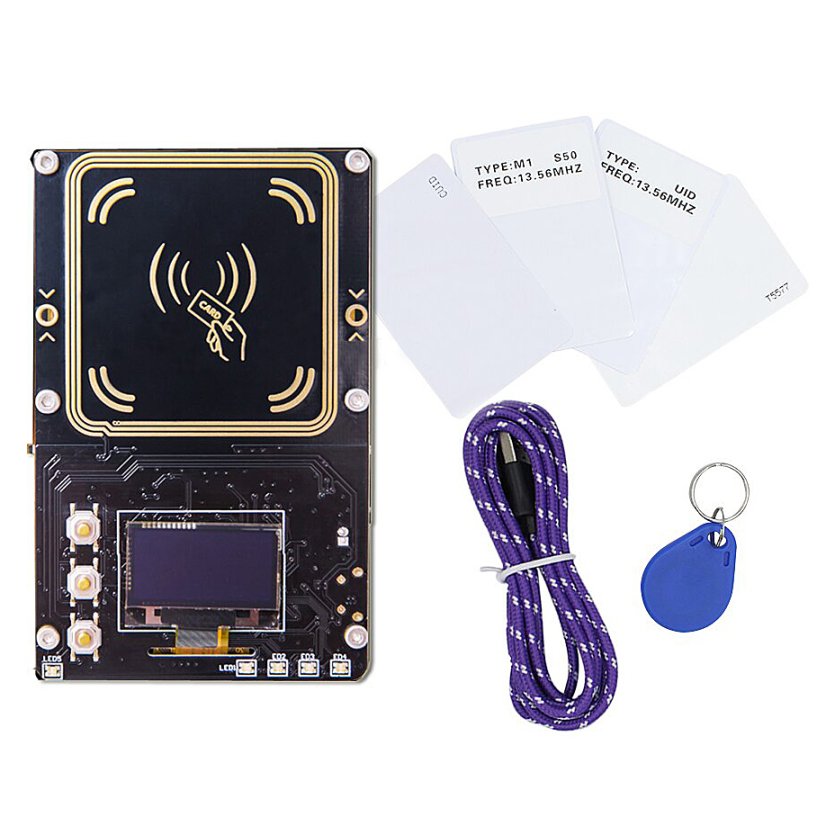

Package Contents:
