Proxmark 3 RDV4 antena

Proxmark 3 RDV4 antena set

The Proxmark 3 RDV4 has a modular antenna system, allowing for antennas to be hot-swapped depending on your assignment requirements.

The Long Range HF/LF External Antenna Pack containts two high performance, pre-tuned for antennas the Proxmark 3 RDV4, providing the highest read/write/sniff performance possible on an un-amplified external antenna

Specification:

• Compatibility: Proxmark 3 RDV4.01
• Frequency:

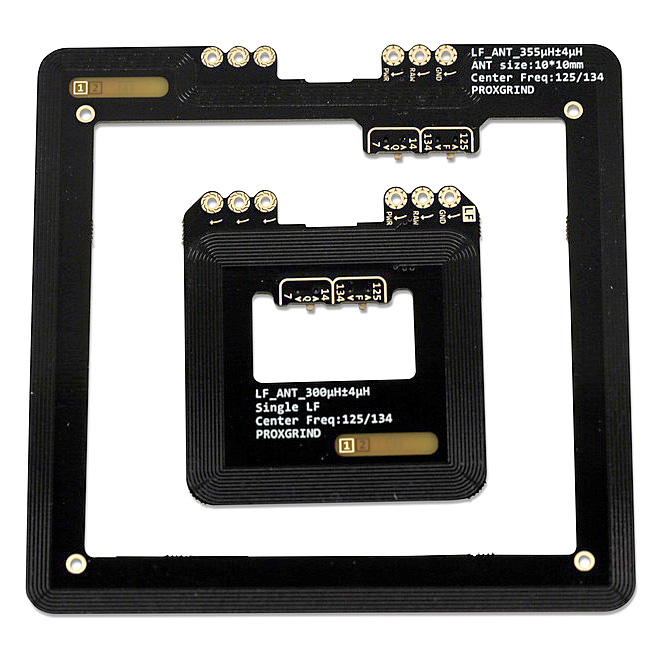

  • 125 / 134 MHz LF

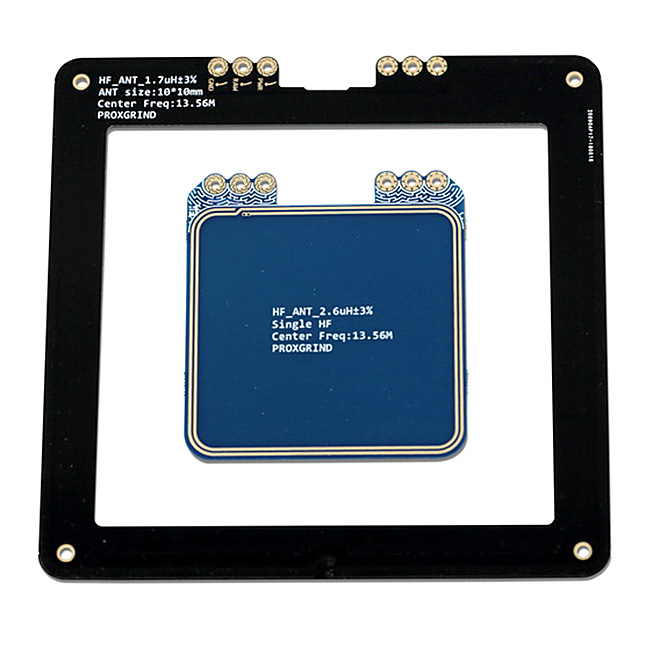

  • 13,56 MHz HF
• Reading range:
  • HF built-in antenna: 66–72 mm
  • LF medium antenna: 90 mm
  • LF long-range antenna: 110–133 mm
  • HF built-in antenna: 40–85 mm
  • HF medium antenna: 90 mm
  • HF long-range antenna: 100–120 mm

The package contains:
1x Long Range Antenna
1x Medium Range Antenna

LF

HF
