Push Button Switch 3A, IP66 - Durable and High Quality
Push Button Switch 3A, IP66 - Durable and High Quality
This Push Button Switch is rated at 3A and features an IP66 protection rating, making it durable and suitable for various applications. More
from
2,90 EUR
incl. VAT
This Push Button Switch is rated at 3A and features an IP66 protection rating, making it durable and suitable for various applications. More
Variants10
| LED push button – Latching | LED push button – Thread diameter | LED push button – Surfaces | Availability | Price incl. VAT | Quantity (ks) | |||
|---|---|---|---|---|---|---|---|---|
 |
without latching | 16mm | Raised | Out of Stock Watch availability | 2,90 EUR | Demand | ||
|
without latching | 19mm | Flat | >= 5 pieces in Stock | 3,30 EUR | |||
|
without latching | 19mm | Raised | < 5 pieces in Stock | 3,20 EUR | |||
|
without latching | 22mm | Flat | < 5 pieces in Stock | 3,80 EUR | |||
|
without latching | 22mm | Raised | < 5 pieces in Stock | 3,80 EUR | |||
|
with latching | 16mm | Raised | >= 5 pieces in Stock | 3,20 EUR | |||
|
with latching | 19mm | Flat | >= 5 pieces in Stock | 3,60 EUR | |||
| Next | ||||||||
Push Button Switch 3A, IP66
Specifications:

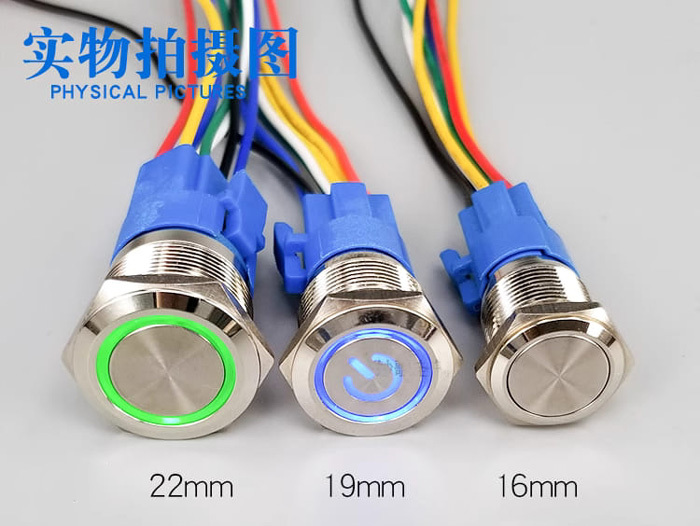

- Thread diameter: 16mm/19mm or 22mm
- Function (switch/button): with locking / without locking
- Contact configuration: NO, NC
- Printing (design): I/O
- Switching voltage: 3~220V AC
- Switching current: 3A
- Contact resistance: < 50Ω
- Insulation resistance: > 1000MΩ
- Protection degree IP: IP66, IK09
- Mounting type: Panel mount
- Material: nickel-plated brass
- Operating temperature range: -30 ~ +50°C

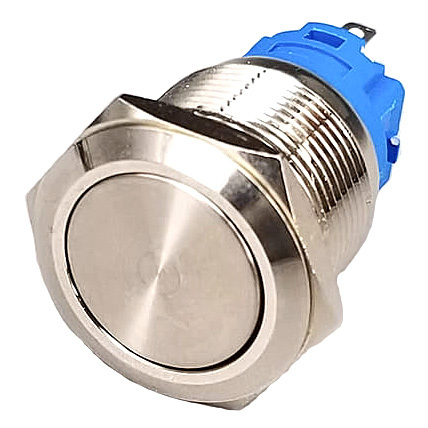

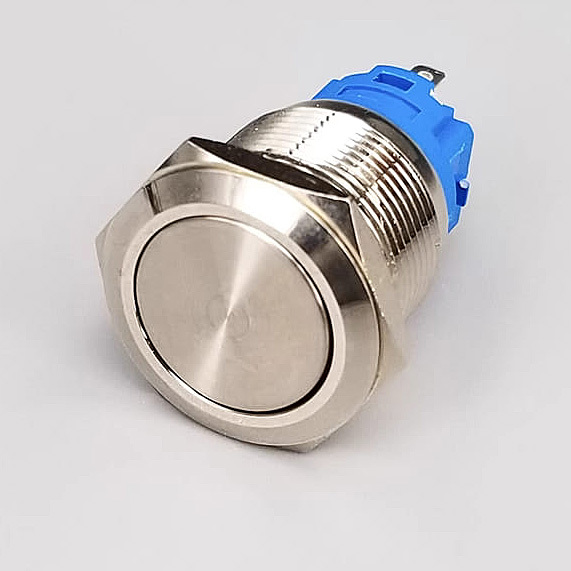

FLAT Variant - the button appears flat and sinks down inside when pressed.

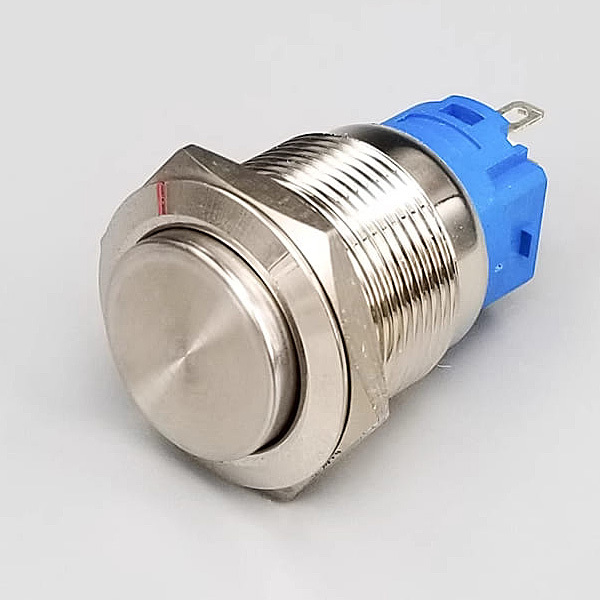

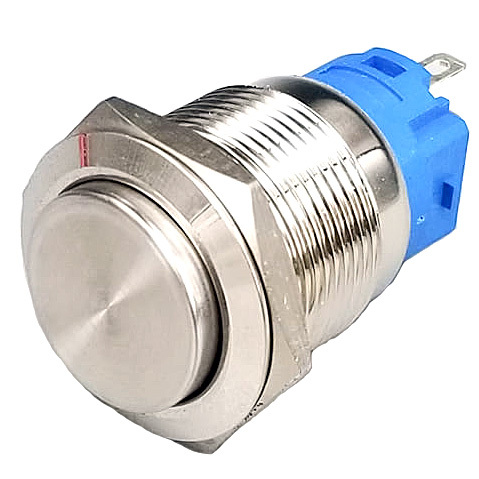

HIGH Variant - the button protrudes outwards and flattens upon pressing.
HIGH Variant FLAT Variant
Contents of the package:
1x waterproof switch 16mm
1x connector with wires
