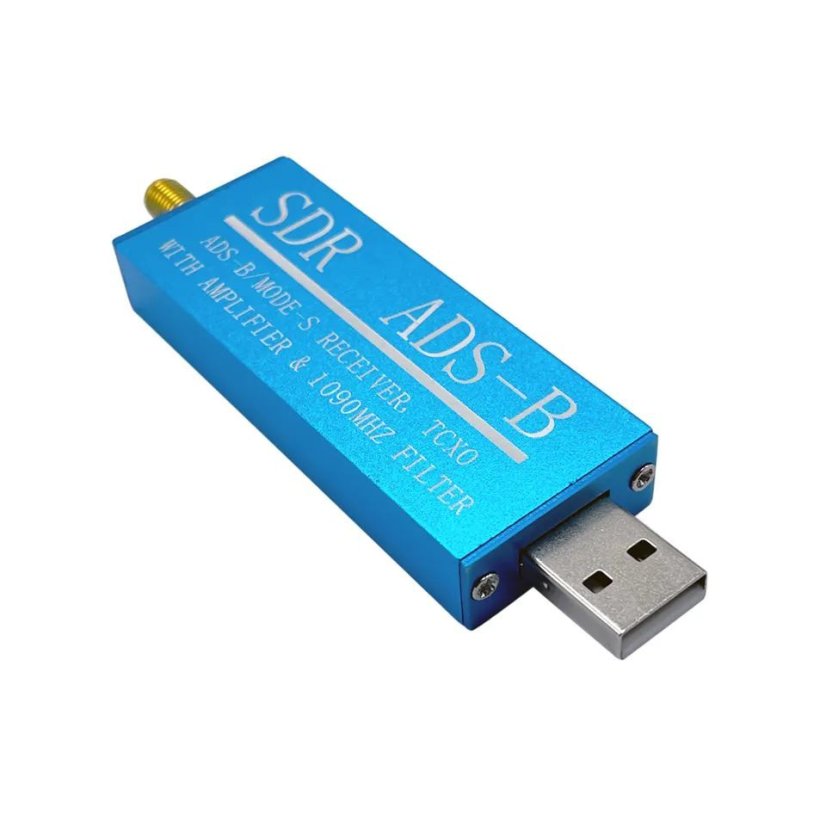

QS9010 ADS-B USB RTL-SDR 1090MHz Aircraft Signal Receiver

This is a new generation of software-defined radio receiver RTL-SDR featuring an RTL2832 ADC chip, 1-2 PPM TCXO, SMA female connector, and aluminum housing with passive cooling.

With a bandwidth from 100 MHz to 1700 MHz, it is perfect for use as a radio scanner with free computer-based software such as SDR, HDSDR, SDR-Radio, Linrad, GQRX, or SDR Tap on Android.

It works on Windows, MacOS, Linux, Android, and even on computers with built-in Linux like the Raspberry Pi.

It’s excellent for applications such as general radio scanning, air traffic monitoring, public safety radio, ADS-B aircraft radar, AIS marine radar, ACARS, voice radios, P25/MotoTRBO digital voice, POCSAG, weather balloons, APRS, NOAA weather satellites APT, Meteor M2 satellites, radio astronomy, meteor scatter monitoring, DAB, or as a low-cost pan-adapter for traditional amateur radios.

It requires a USB 2.0 port and works on USB 3.0 ports (please note that we cannot guarantee it will work on all USB 3.0 ports; ensure your PC has a built-in USB 2.0 port).

Specifications

• Model: Nsendato QS9010
• Interface IC: RTL2832U
• Tuner IC: Rafael Micro R860
• TCXO: 1-2PPM
• Filter: ADS-B 1075 MHz ~ 1105 MHz passband
• Amplifier: 19dB, LNB 0.4dB, OIP3+39dB
• Frequency Range: 0.1MHz-1.7GHz TCXO
• Antenna Input: SMA female
• Interface: USB 2.0
• Power: USB, 5V@300mA
• Dimensions (only SDR): 6.7cm*2.5cm*0.9cm

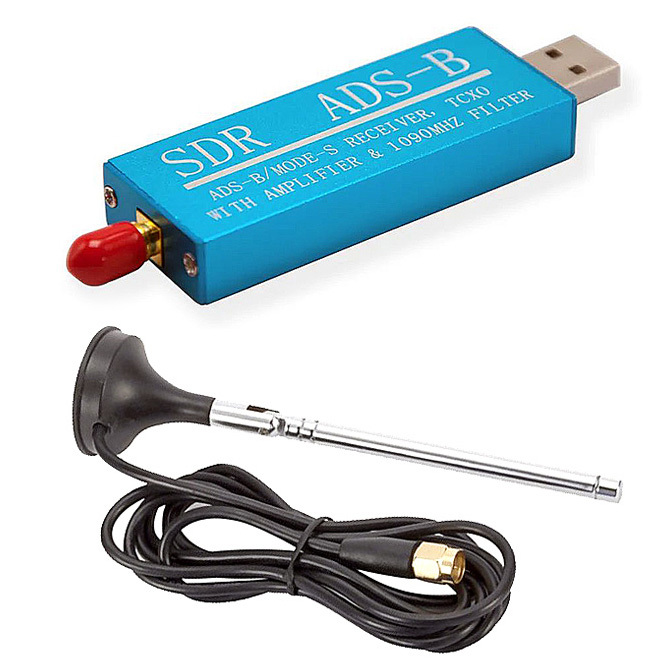

Package Contents:

1x SDR Receiver

1x USB Cable

1x Antenna
