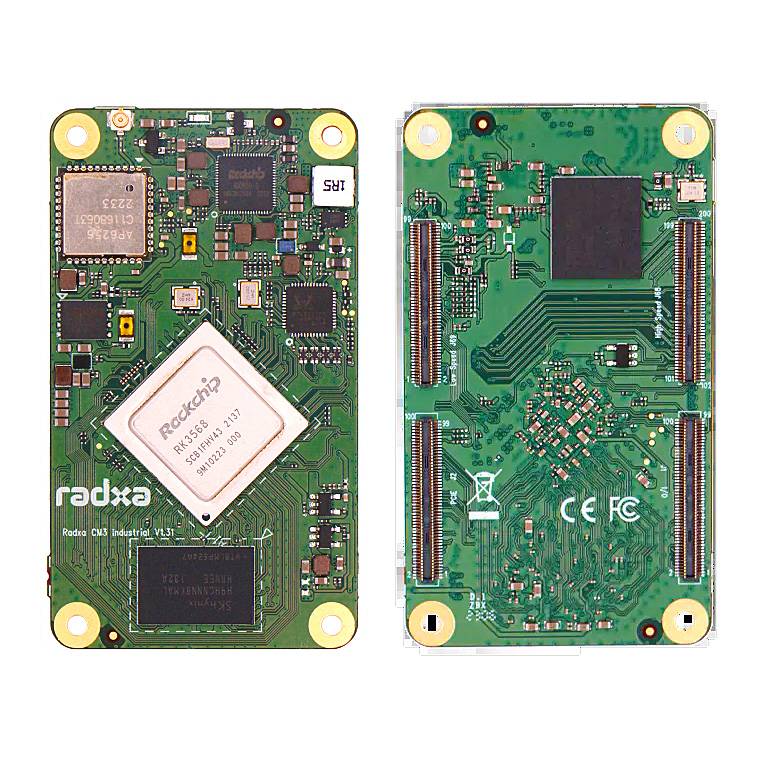

Radxa CM3I RK3568 Compute Module

Radxa CM3I RK3568 A Feature Rich Industrial Compute Module

The Radxa CM3I is a powerful ARM-based compute module featuring the Rockchip RK3568 quad-core processor. Designed for industrial and embedded applications, it combines performance, flexibility, and reliability. With up to 8GB LPDDR4 RAM, eMMC storage, and a CM4-compatible connector, it supports multiple I/O options, dual display, and various OS choices including Linux and Android. Ideal for industrial control, IoT gateways, HMI panels, and edge computing.

Specifications:

• Processor:

• Rockchip RK3568 (Quad-core ARM Cortex-A55, 2.0GHz) - standard ver

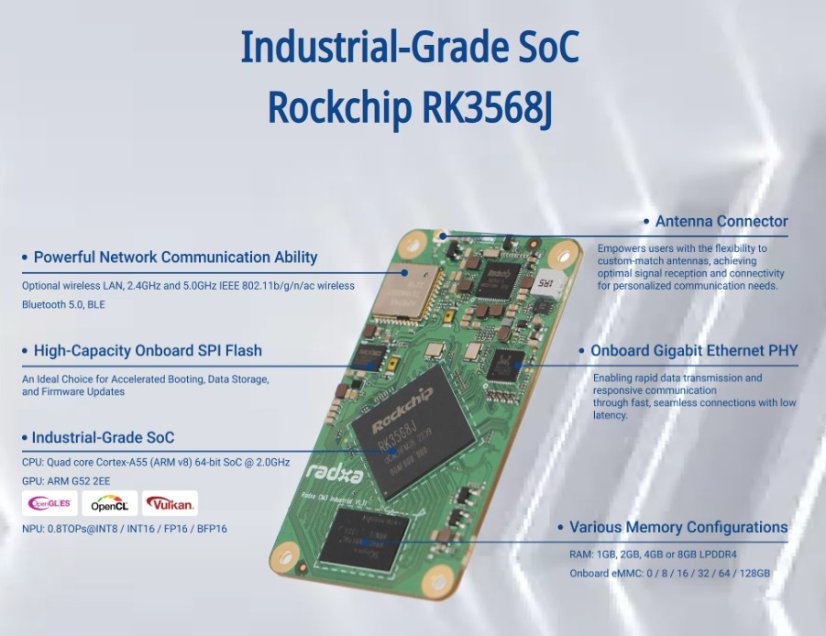

• Rockchip RK3568J (Quad-core ARM Cortex-A55, 2.0GHz) - industrial ver

• RAM: Up to 8GB LPDDR4

• Storage: eMMC (8GB / 16GB / 32GB / 64GB / 128GB options)

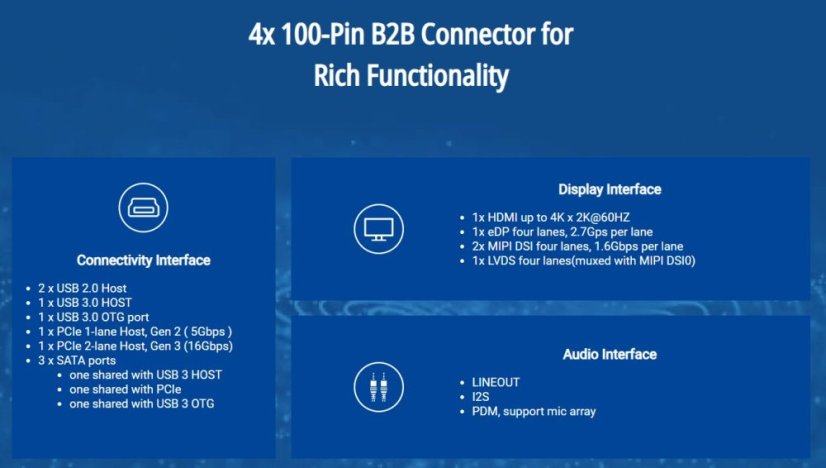

• Interfaces: PCIe, USB 3.0, Gigabit Ethernet, SDIO, SATA

• Display: Dual display support via HDMI, eDP, LVDS, MIPI DSI

• OS Support: Linux (Debian/Ubuntu), Android

• Form Factor: Compatible with Raspberry Pi CM4 IO boards

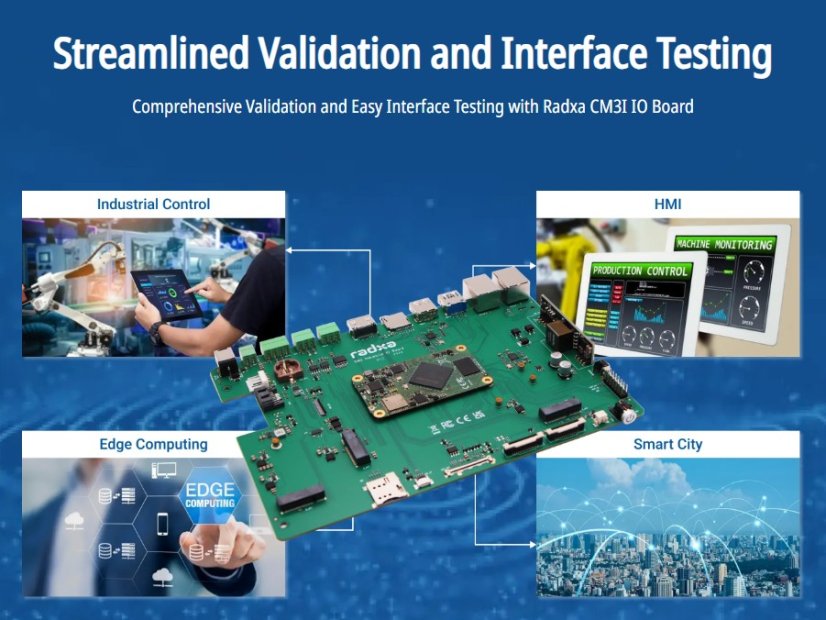

• Target Use: Industrial control, HMI, digital signage, edge computing

Datasheet and documentation: https://radxa.com/products/cm/cm3i/#product-details
