Radxa CM3J RK3538(J)

Radxa CM3J RK3568J Compute Module | Industrial ARM SOM

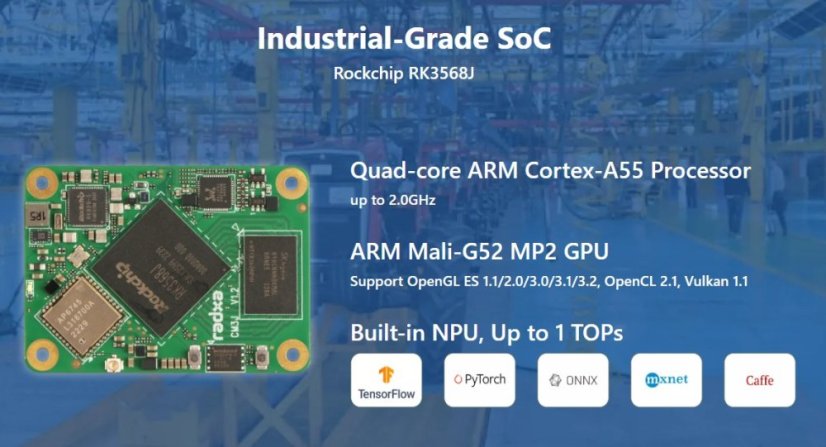

The Radxa CM3J is an industrial-grade System on Module (SoM) based on the Rockchip RK3568J quad-core processor. It is designed for embedded and automation solutions requiring long-term availability and high reliability. Offering up to 8GB LPDDR4 RAM, eMMC storage, and rich I/O including PCIe, USB 3.0, Ethernet, and dual-display support, the CM3J is compatible with Radxa’s carrier boards and supports Linux and Android OS.

Specifications:

• CPU: Rockchip RK3568J (Quad-core Cortex-A55, up to 2.0GHz)

• RAM: Up to 8GB LPDDR4

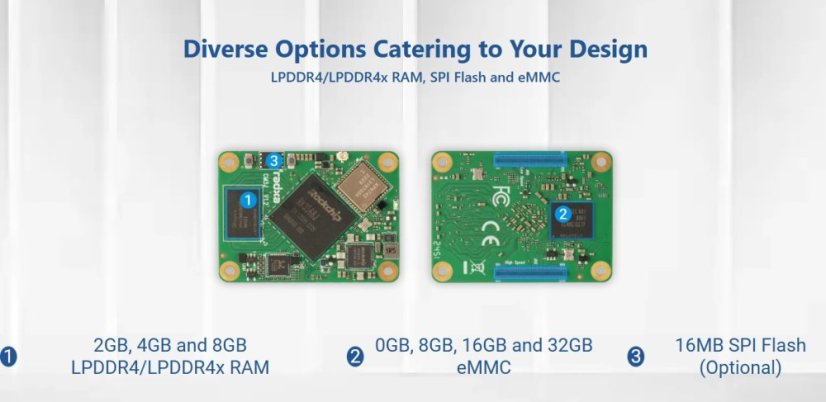

• Storage: eMMC (8GB/16GB/32GB/64GB/128GB)

• I/O: PCIe, USB 3.0, Gigabit Ethernet, SDIO, SATA

• Display: HDMI, MIPI DSI, eDP, LVDS (dual-display support)

• OS Support: Linux (Debian/Ubuntu), Android

• Form Factor: 200-pin SODIMM

• Target Use: Industrial control, HMI, digital signage, gateways

Datasheet and documentation: https://radxa.com/products/cm/cm3j/#product-details
