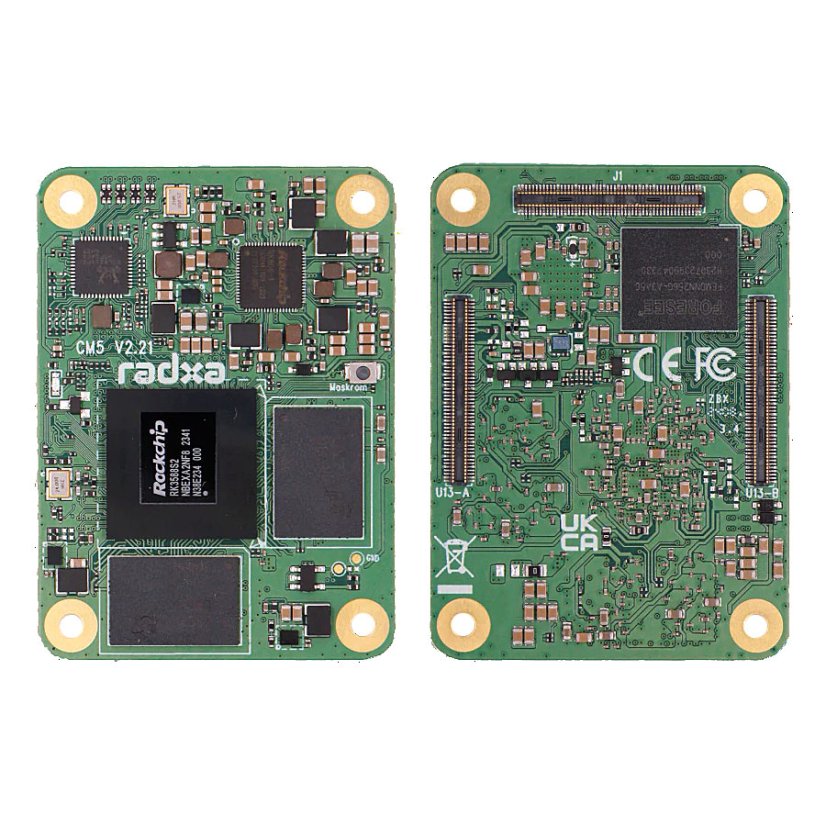

Radxa CM5

Radxa CM5 High Performance Embedded SoM with Rockchip RK3588S/RK3582

The Radxa CM5 is a high-performance system-on-module (SoM) designed for demanding embedded applications. It features the powerful Rockchip RK3588S/RK3582 processor, supports up to 32GB LPDDR4x RAM, and offers a wide range of interfaces including MIPI, USB 3.0, PCIe 3.0, and Gigabit Ethernet. Ideal for edge computing, AI processing, multimedia applications, and industrial deployments. Compact and power-efficient, it’s perfect for integration into custom carrier boards.

Specifications

• Processor:

  • Standard - Rockchip RK3588S (8 jader: 4×Cortex-A76 + 4×Cortex-A55)

  • Lite - Rockchip RK3588S (6 jader: 2×Cortex-A76 + 4×Cortex-A55)

• GPU:

  • Standard  - ARM Mali-G610 MP4

  • Standard  - N/A

• NPU: 5/6 TOPS AI acceleration

• Memory: Up to 32GB LPDDR4x

• Storage: eMMC (optional), microSD (via carrier)

• Video decode: 8K@60fps H.265/H.264

• Video encode: 8K@30fps (H.265/H.264) / 4K@60fps (H.265/H.264) - lite

• Display interfaces: 2x MIPI-DSI, HDMI 2.1

• Camera interfaces: 2x MIPI-CSI

• Connectivity: USB 2.0/3.0, PCIe 3.0, Gigabit Ethernet

• Power supply: 5V

• Operating temperature: 0°C to 80°C

• Form factor: Compatible with Radxa CM series baseboards

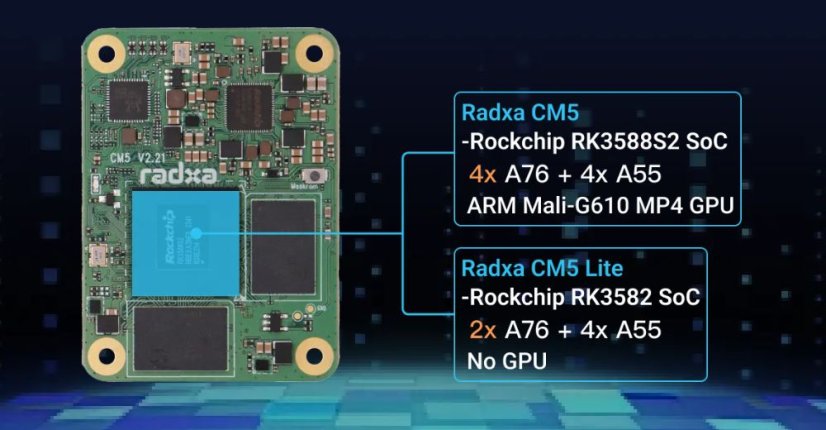

Rockchip RK3582 or Rockchip RK3588S2

Experience Outstanding Performance, Explore Endless Possibilities

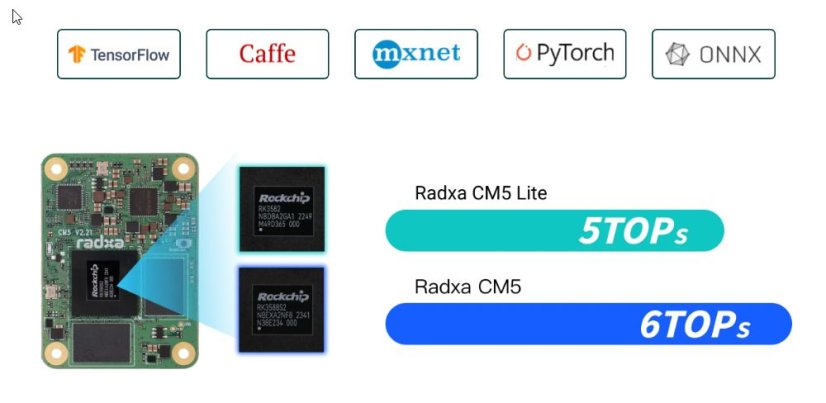

Neural Process Unit

Make AI Easy with Support for Popular Deep Learning Frameworks
TensorFlow, Caffe, Tflite, PyTorch, ONNX NN, Android NN, and More!

Multiple Memory and eMMC Combinations

Support for Multiple Displays

Fully Functional Type-C Supported

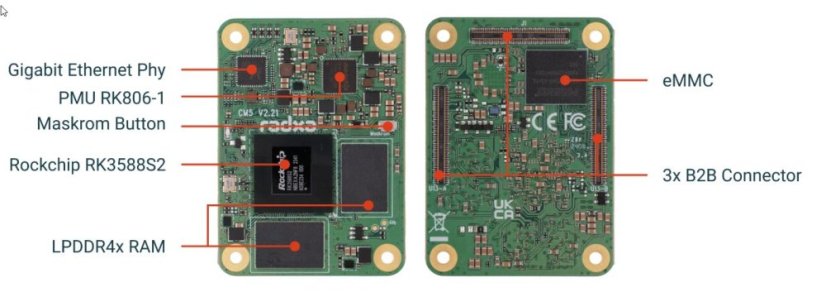

Durable and Reliable B2B Connectors

Radxa CM5 utilizes an industrial-grade B2B connector with 3x100 pins,
providing convenient disassembly and installation

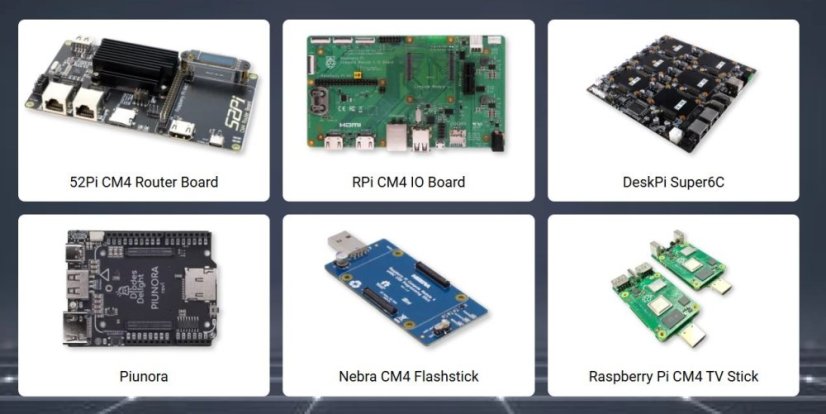

Compatible with Multiple IO Boards

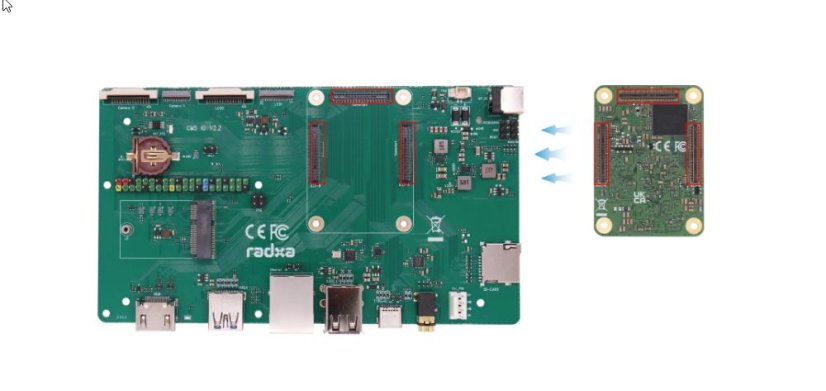

Quick Functional Verification with Radxa CM5 IO Board

Accelerate your testing process with the convenience of Radxa CM5 IO board, ensuring swift and efficient functional verification.

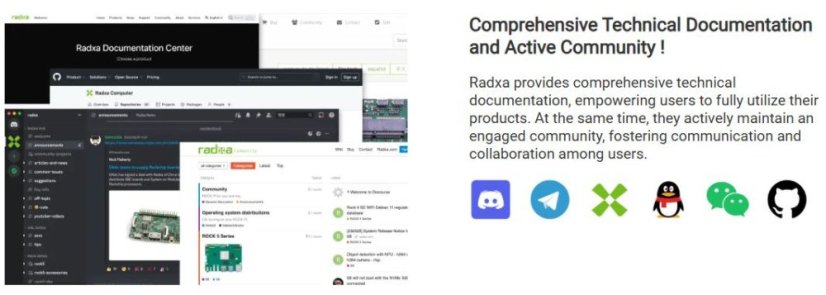

Comprehensive Technical Documentation and
Active Community
