Radxa E20C Mini Network PC with RK3528A

Radxa E20C Mini Network Computer with RK3528A CPU | Dual Gigabit Ethernet

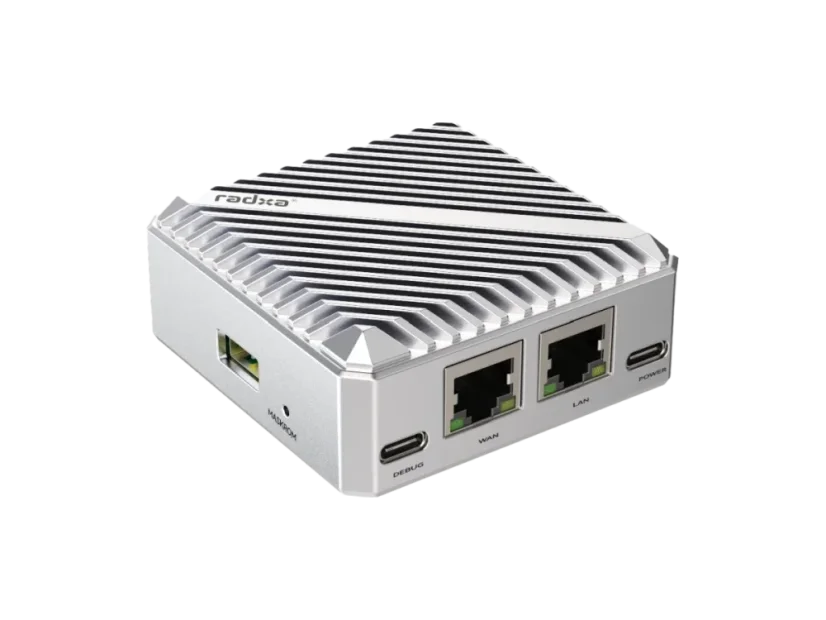

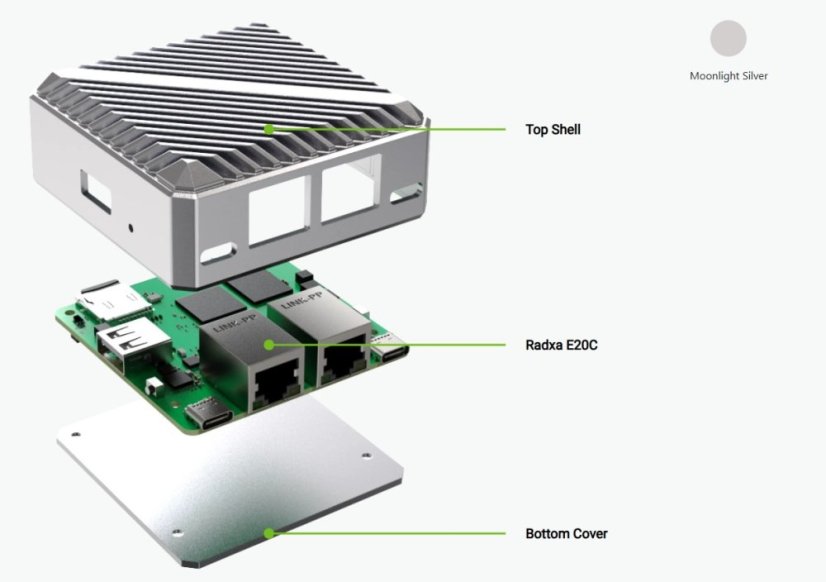

he Radxa E20C is a compact network computer powered by the Rockchip RK3528A quad-core Cortex-A53 processor. Featuring dual Gigabit Ethernet ports, up to 4GB LPDDR4 RAM, and onboard eMMC storage, it's designed for network applications, IoT projects, and home servers. Its aluminum alloy case ensures efficient heat dissipation, and it supports operating systems like Debian, OpenWrt, and iStoreOS.

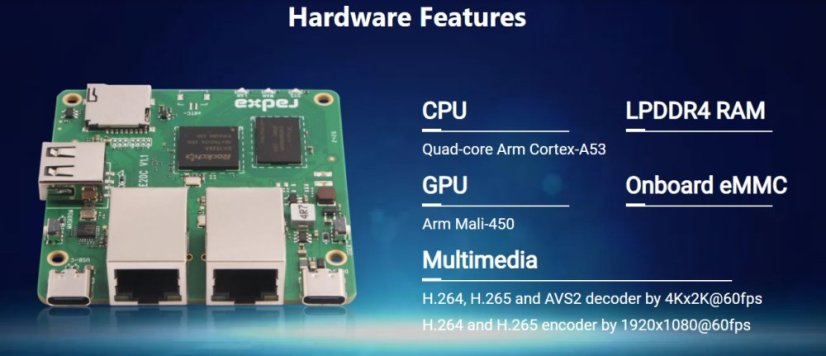

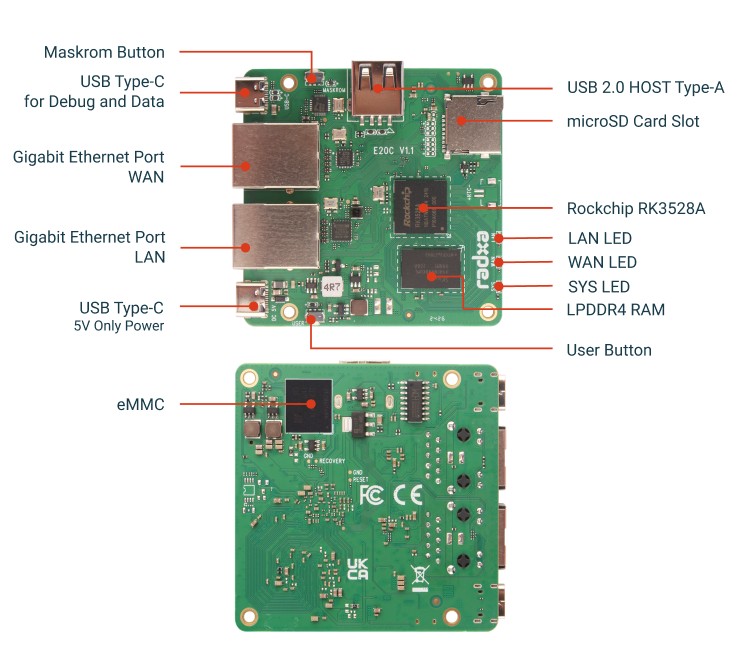

Specifications:

• CPU: Rockchip RK3528A, Quad-core Cortex-A53 @ 2.0GHz

• GPU: Arm Mali-G450, supports OpenGL ES1.1/2.0, OpenVG 1.1

• Memory:  4GB LPDDR4

• Storage: 32GB eMMC; microSD card slot

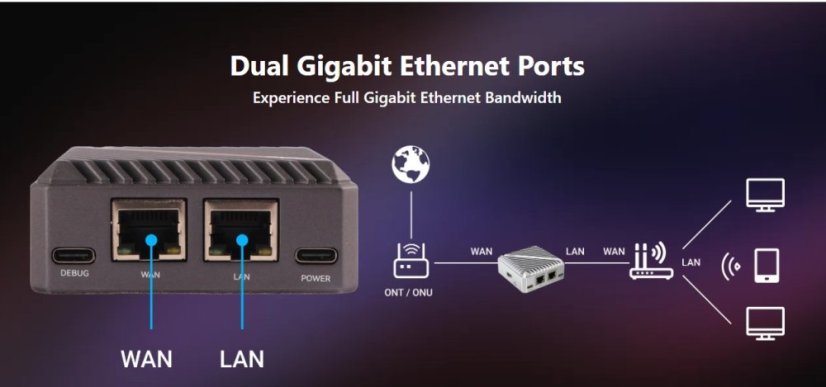

• Networking: 2x Gigabit Ethernet ports

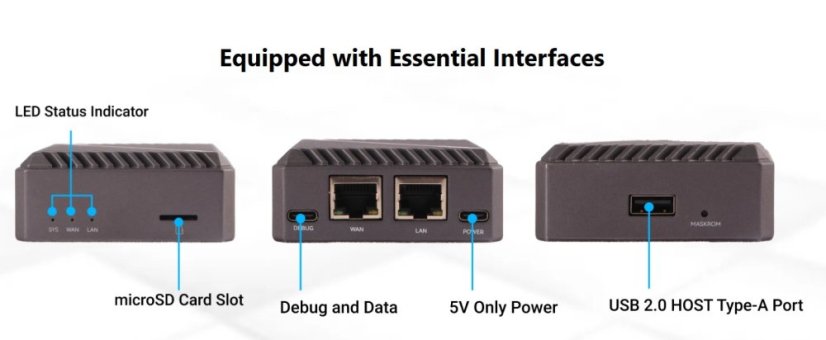

• USB Ports:

  • 1x USB 2.0 Type-A

  • 1x USB Type-C for debug/data

  • 1x USB Type-C for power

• Video Decoding: H.264, H.265, AVS2 up to 4K@60fps

• Video Encoding: H.264, H.265 up to 1080p@60fps

• Indicators: WAN, LAN, and System LEDs

• Buttons: Maskrom and User buttons

• Power Supply: 5V via USB Type-C

• Dimensions: 72 x 72 x 28.7 mm (with case)

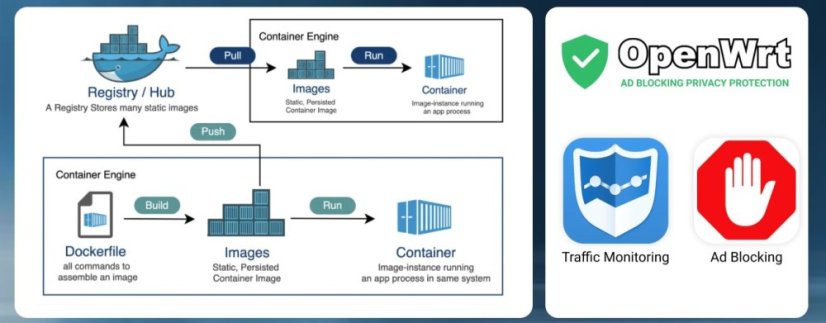

• Operating Systems: Debian, OpenWrt, iStoreOS

• Use Cases: Network gateway, IoT hub, personal server

Included:
1x E20C board
1x metal enclosure
