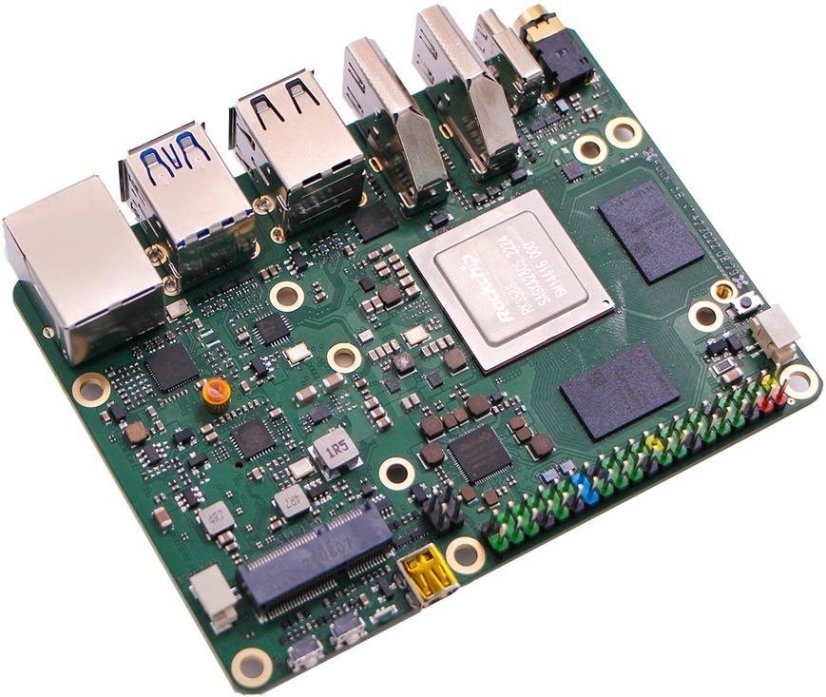

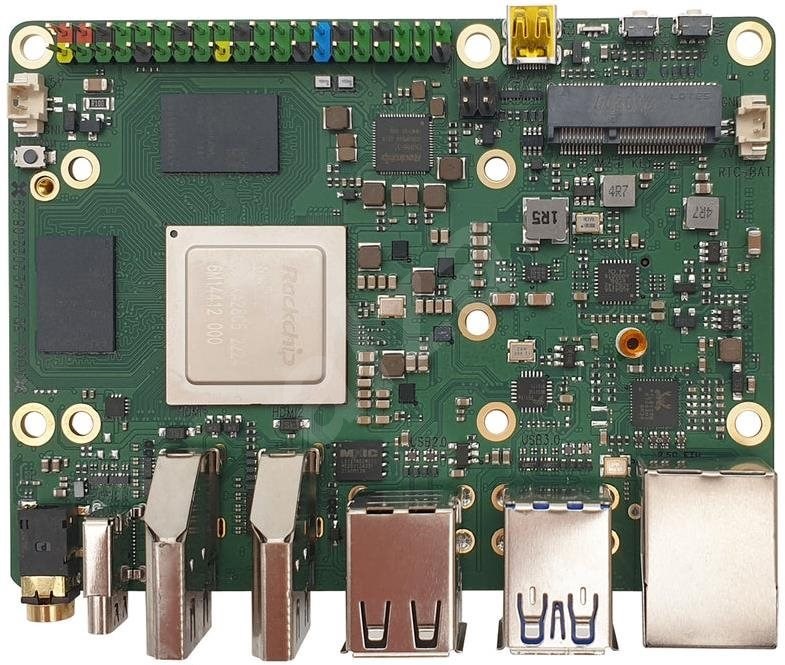

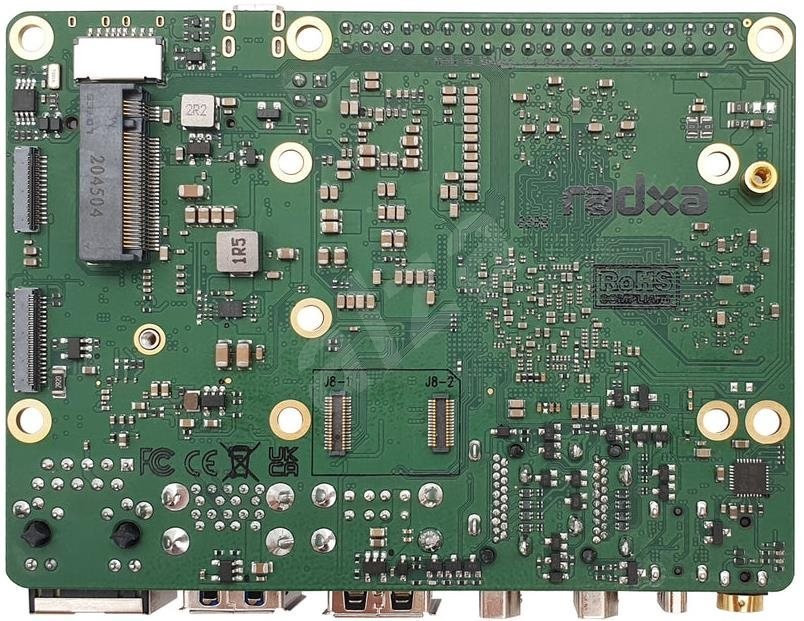

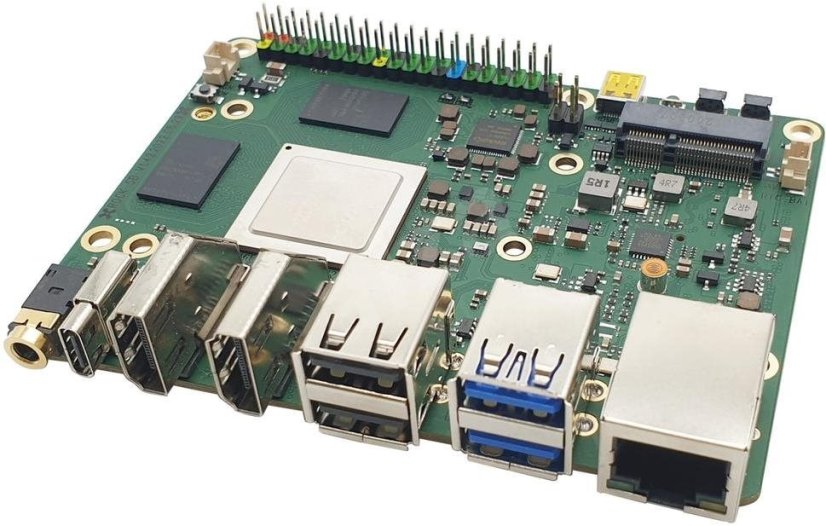

Single-Board Computer RADXA ROCK 5 Model B 8GB

RADXA ROCK 5 Model B 8GB

The latest generation 5 SBC RADXA based on Rockchip RK3588 in a new standard design. A small, portable, and highly powerful single-board computer Rock Pi 5B. With the Rockchip RK3588 64-bit processor, it achieves very high performance and surpasses most commonly available single-board computers from competitors.

The Rock Pi 5B can have eMMC memory from 16 to 128GB (not included). Additionally, the 5B includes 2x M.2 slots for SSD, Wi-Fi 802.11 b/g/n/ac, Bluetooth 5.0 connectivity, and 2.5GbE Ethernet.

There are also 4 USB ports - 2x USB 2.0 and 2x USB 3.0 with USB-A connectors. You can connect 2 displays with a resolution of up to 8k@60Hz each.

Supports Android, Ubuntu, and Debian as well as many others.

Specifications

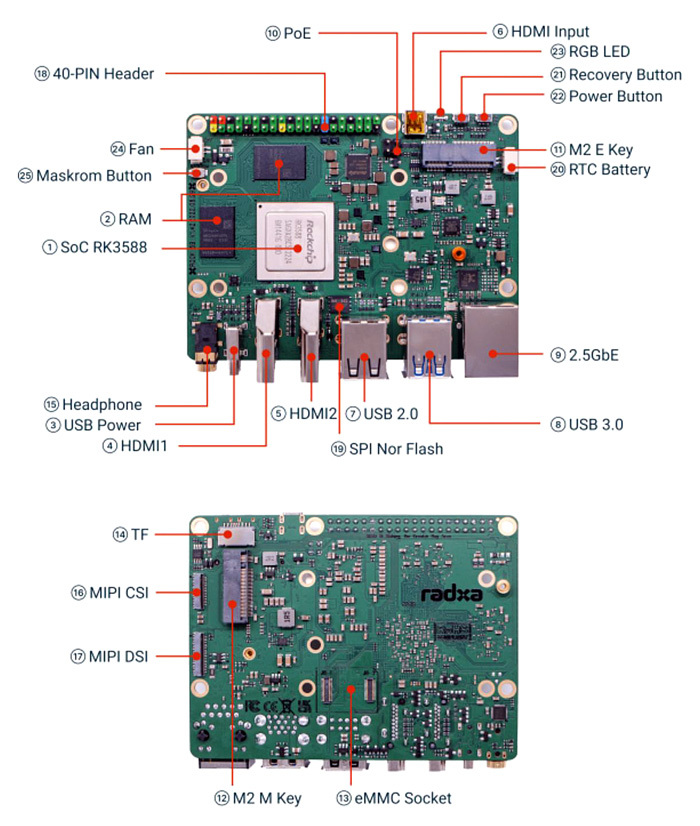

• Model: Rock 5 Model B 8GB RS119-D8P1
• SoC: Rockchip RK3588
• Processor: Arm DynamIQ (Quad Cortex – A76 at 2.2/2.4 GHz, Quad Cortex – A55 at 1.8 GHz)
• GPU: Arm Mali G610MC4 GPU, supports OpenGL® ES1.1, ES2.0 and ES3.2, OpenCL® 1.1, 1.2, and 2.2, Vulkan® 1.1 and 1.2, and integrated high-performance 2D image acceleration module
• Memory: 64-bit LPDDR4 RAM
• Power Requirements: USB Type‐CTM PD version 2.0 with voltage 9 V/2 A, 12 V/2 A, 15 V/2 A, and 20 V/2 A; power of 5 V on GPIO pin 2 and 4. The recommended power supply capacity is at least 24 W without M.2 SSD or 36 W with M.2 SSD.
• HDMI: Two HDMI ports supporting displays with resolutions up to 8 Kp60 and 4 Kp60; input Micro-HDMI port supporting resolutions up to 4 Kp60.
• USB: 2x USB2 HOST ports, 1x USB3 HOST port, 1x USB3 OTG/HOST port.
• MIPI: 1x 4-lane DSI, 1x 4-lane CSI.
• Storage: Micro SD / eMMC.
• UART: 2x UART.
• Power On/Off Switch: Yes.
• Software: Full implementation of the Arm Architecture v8 instruction set, support for Debian/Ubuntu Linux, support for Android 12, software stack RKNPU2 NPU, hardware access/control library for Linux/Android.
• Temperature: Operating temperature: 0∼50 °C / storage temperature: -20∼80 °C.

Wiki: https://wiki.radxa.com/Rock5/5B

Package includes:

1x ROCK 5 Model B 8GB board (without eMMC and power supply).
