Radxa ZERO 3W

Radxa Zero 3W – Compact SBC with RK3566, 4K HDMI, Wi-Fi, Bluetooth

Radxa Zero 3W is a powerful single-board computer (SBC) based on the Rockchip RK3566 quad-core ARM Cortex-A55 processor. Despite its ultra-compact size, it offers exceptional performance for multimedia, IoT, AI, and embedded projects. It features up to 8GB LPDDR4 RAM, eMMC storage, microSD slot, 4K HDMI output, USB 3.0, Wi-Fi 5, Bluetooth 5.0, and a GPIO header compatible with Raspberry Pi. Ideal for developers and makers looking for a powerful yet small SBC.

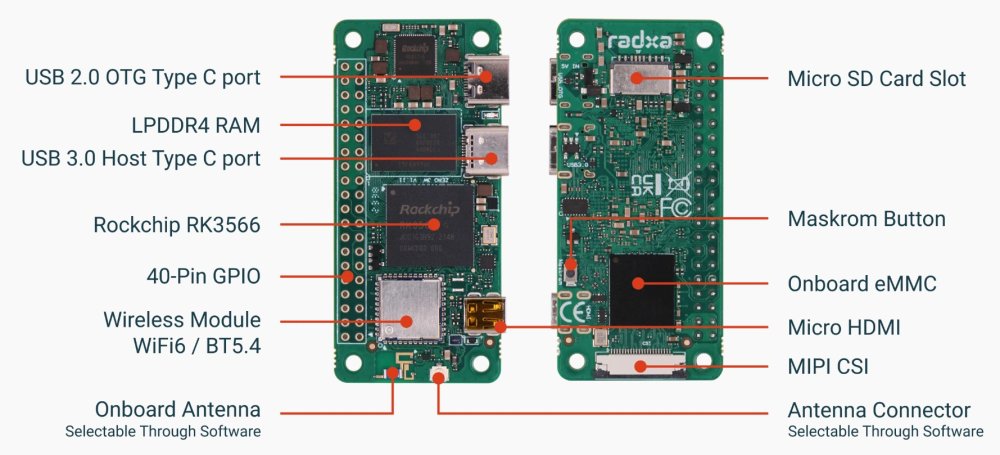

Specification

• Processor: Rockchip RK3566, Quad-core Cortex-A55 up to 1.8GHz

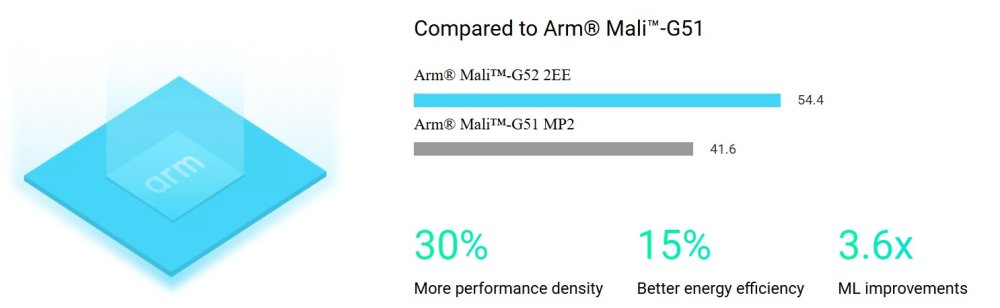

• GPU: Mali-G52 2EE

• RAM: 1GB / 2GB / 4GB / 8GB LPDDR4

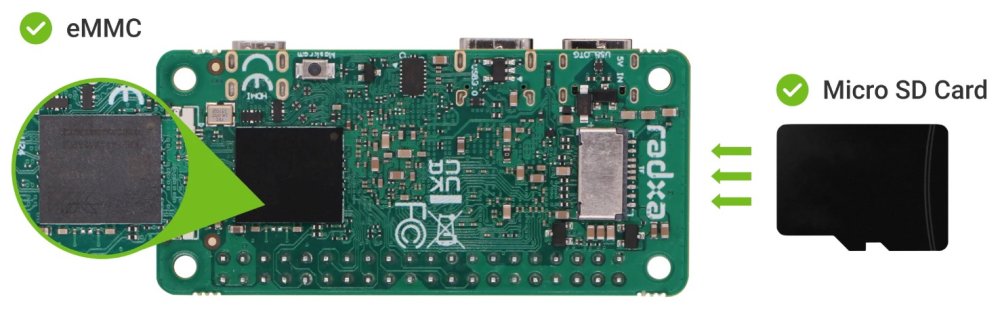

• Storage: Optional eMMC (up to 128GB), microSD card slot

• Video Output: 1x micro HDMI (4K@60Hz)

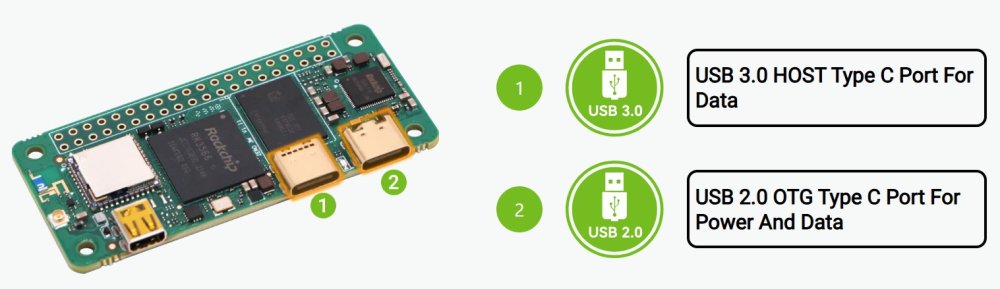

• USB Ports: 1x USB 3.0 Type-C, 1x USB 2.0 Type-C (OTG)

• Wireless: Wi-Fi 5 (802.11ac), Bluetooth 5.0

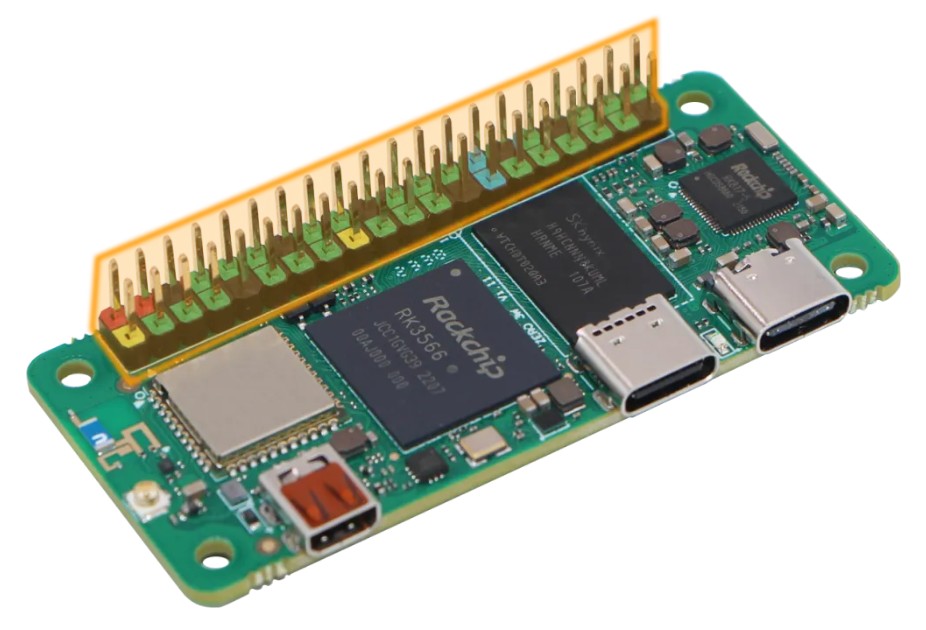

• GPIO: 40-pin header (Raspberry Pi compatible)

• Power Input: 5V via USB-C

• Dimensions: 65mm x 30mm

• OS Support: Android, Debian, Ubuntu, Buildroot
