Radxa Zero - Ultra Small SBC with 4K Display Support

Radxa Zero Ultra Small SBC Supports 4K Display

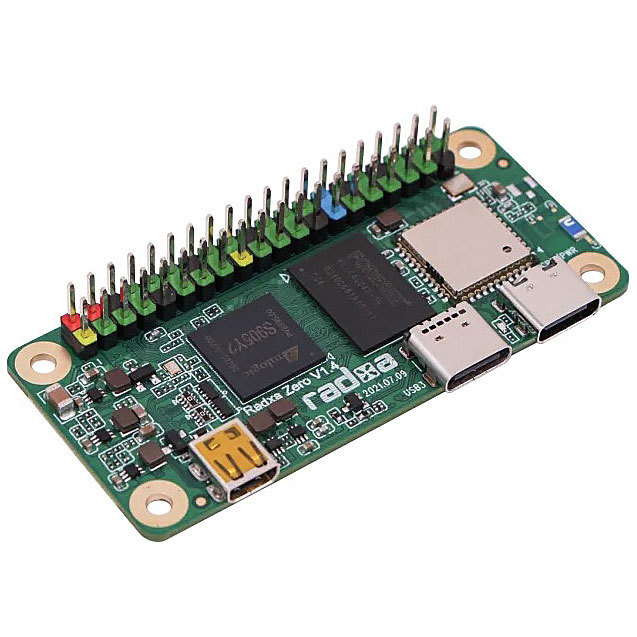

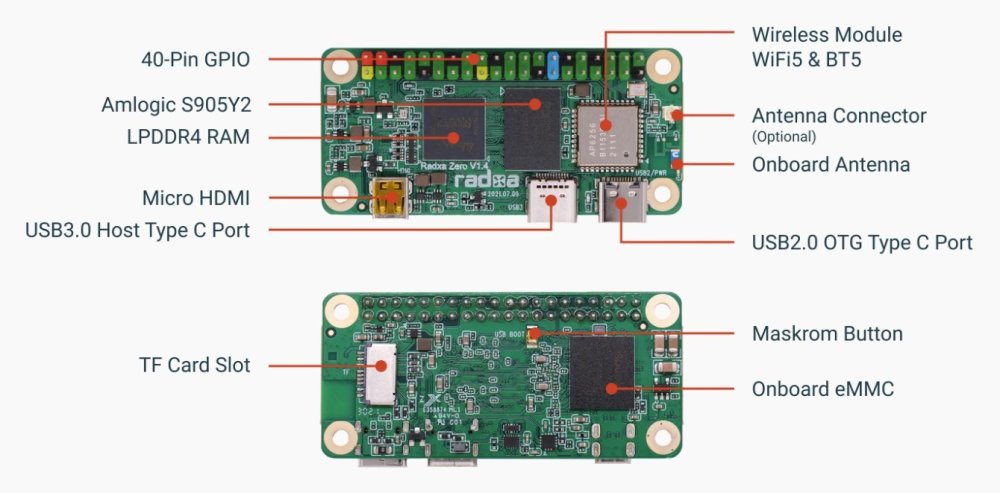

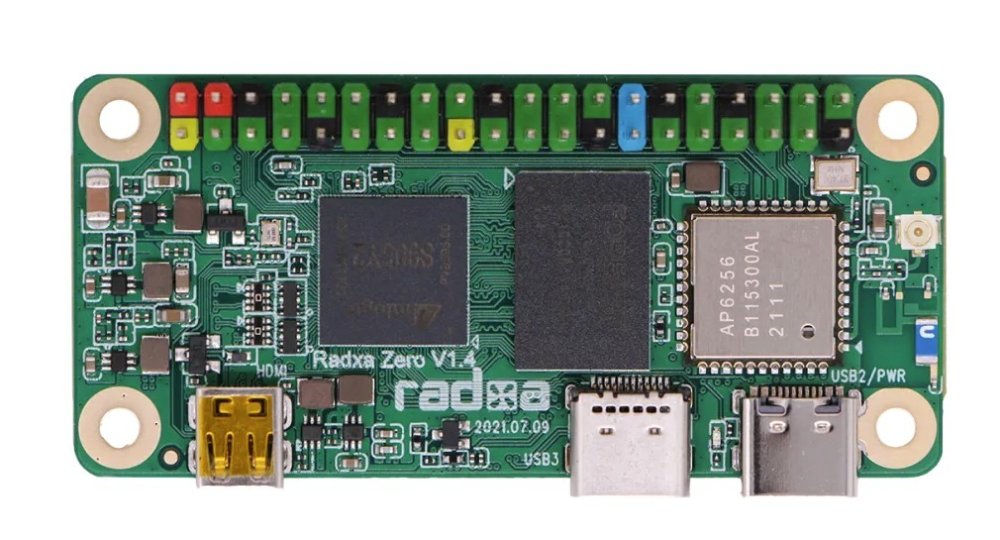

The Radxa Zero single board computer is the latest addition from Radxa to their portfolio of SBCs. Zero is based on the Amlogic S905Y2, which is a quad-core processor with a frequency of up to 1.8 GHz.

The RAM size in Zero ranges from 512 MB to 4 GB, and it is paired with eMMC memory directly on the board.

The Zero with 512 MB/1 GB has only a microSD card slot, while the Zero with 2 GB/4 GB includes either 8 GB eMMC (for the 2 GB RAM) or 16 GB to 128 GB RAM for the model with 4 GB RAM.

The Zero with 512 MB/1 GB features a Wi-Fi connectivity chip supporting 802.11 a/b/g/n and Bluetooth 4, whereas the larger RAM versions offer 802.11 b/g/n/ac and Bluetooth 5.

The Radxa Zero boasts an HDMI video output at 4K@60. Among the USB ports, there is 1x USB 2.0 and 1x USB 3.0 with a USB-C connector.

Supported operating systems include Android 9, Ubuntu, Debian, and more.

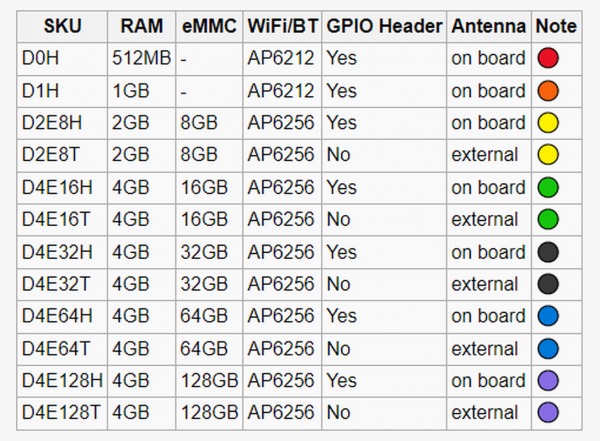

Variations of the Zero Model:

Specifications:

• CPU: Amlogic S905Y2 64bit quad-core processor

  • Quad Cortex-A53@1.8GHz, ARM G31 MP2 GPU, supporting OpenGL ES 3.2, Vulkan 1.0, and OpenCL 2.0.
• GPU
  • HDMI 2.0 up to 4K@60
• Memory LPDDR4 512MB/1GB/2GB/4GB
  • 32bit LPDDR4@3200Mb/s

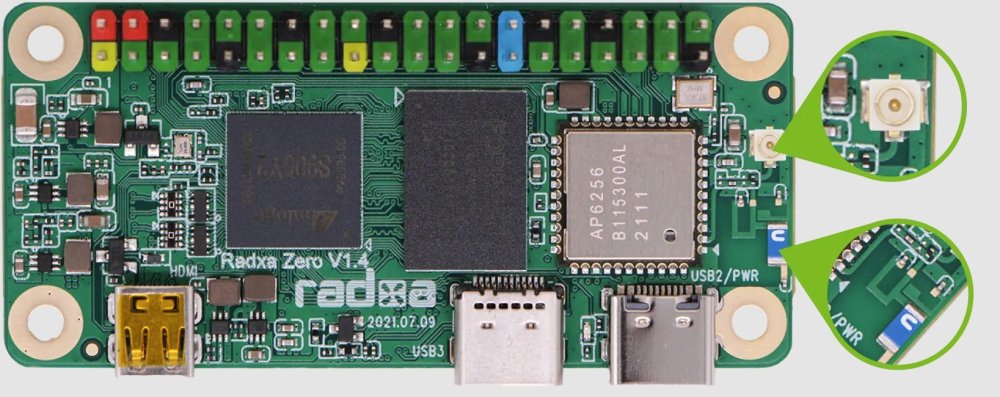

• Wifi/BT Antenna
  • 802.11 ac (WiFi 5), BT 5.0 with onboard antenna (optional external antenna)

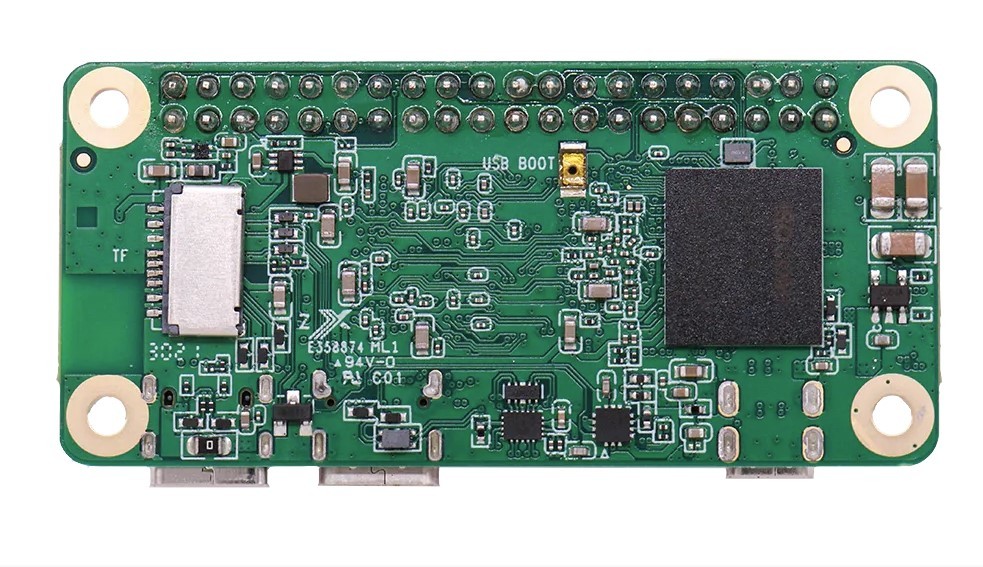

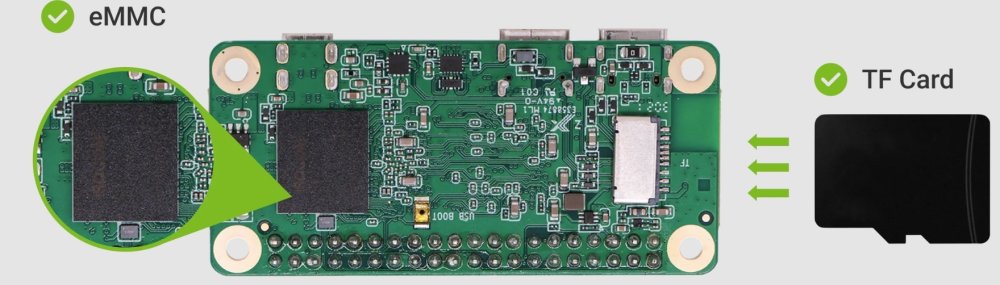

• Storage eMMC 5.1 - 8/16/32/64/128GB
  • soldered high-performance eMMC 5.1 with capacities of 16GB
• Micro SD card
  • uSD slot supports up to 128G uSD card
• Display Micro HDMI
  • HDMI 2.1, 4K@60 HDR
• Peripherals
  • HD codec H265/VP9 decode 4Kx2K@60
• USB 3.0 Type-C HOST x1
  • USB 3.0 HOST
  • dedicated USB3.0 channel
• USB 2.0 Type-C OTG x1
  • USB 2.0 OTG
• Network
  • Wireless 802.11 ac wifi 2.4/5GHz, Bluetooth 5.0
• IO 40-pin expansion header (depending on the model):
  • 2 x UART
  • 2 x SPI bus
  • 3 x I2C bus
  • 1 x PCM/I2S
  • 1 x SPDIF
  • 2 x PWM
  • 1 x ADC
  • 6 x GPIO
  • 2 x 5V DC power in
  • 2 x 3.3V DC power in
• Others
  • Crypto Engine
  • one button
  • Size: 66mm x 30mm (2.6" x 1.2")

Manufacturer's Page: https://radxa.com/zero

Package Contents:

• 1x Radxa Zero
