RAIN UHF RFID 915MHZ H3 ISO 18000-6C Tag
Variants6

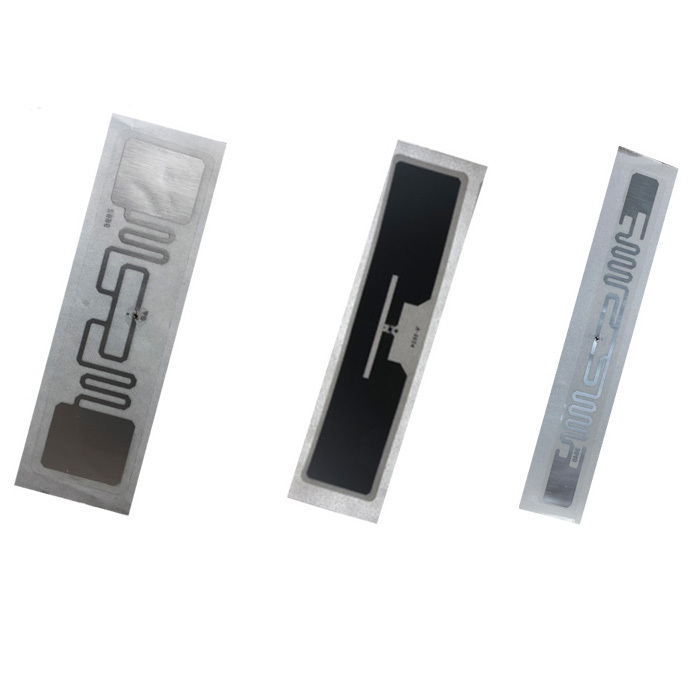

UHF RAIN RFID ISO 18000-6C Tag
Small and sustainable RAIN RFID tag designed for retail applications. It is white and can be printed on.
Alien H3 is ideal for inventory management, such as retail and fashion, providing excellent RF performance for various form factors. It allows for long read distances and quick inventory of dense populations of RFID tags.
Dimensions and materials

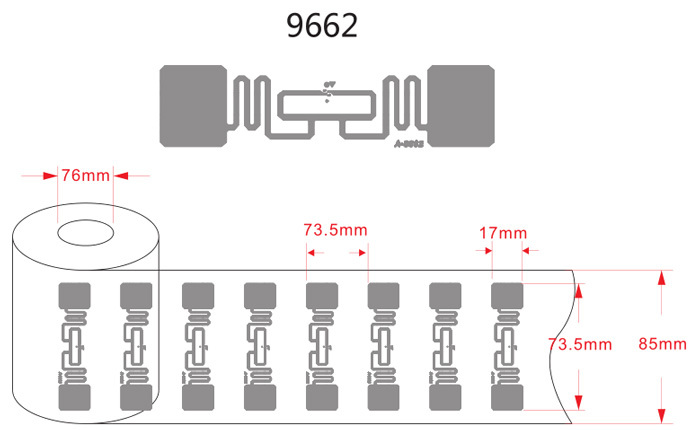

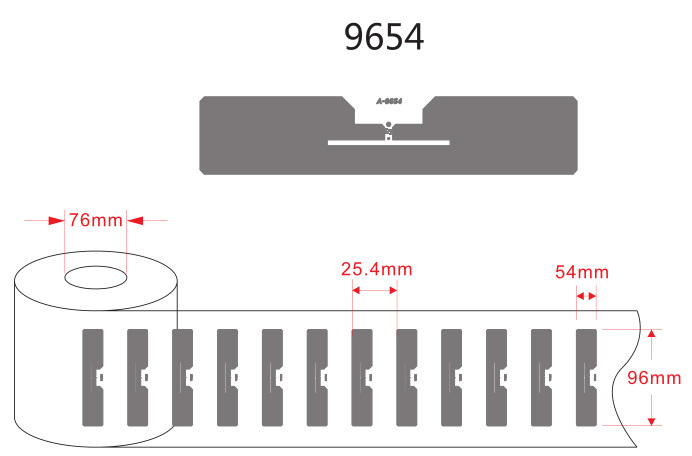

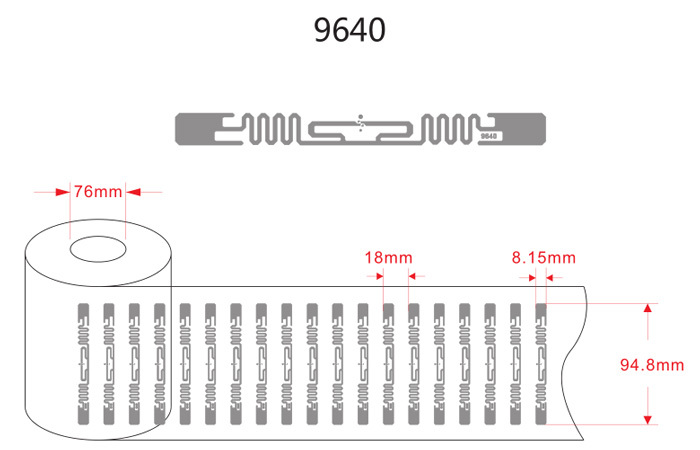

- Tag size: See drawings below
- Material of the inlay substrate
- dry inlay - plastic film without an adhesive backing
- wet inlay - plastic film with an adhesive backing
- coated paper - paper with an adhesive backing
Technical Specifications
- RAIN RFID chip: Alien H3
- Operating frequency: 860 - 960 MHz (EPC G2v2, ISO 18000-6C)
- Operating temperature: -20°C to 50°C
Specifications

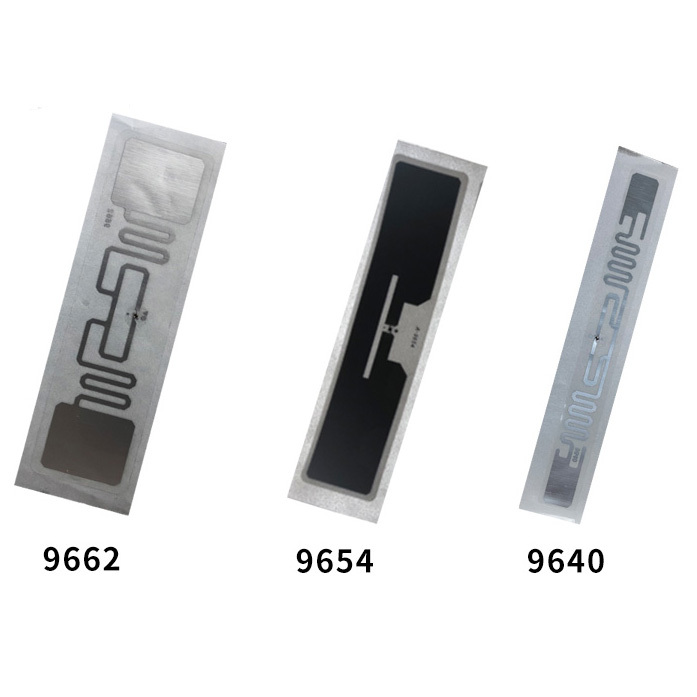

- Model: DJH9662/DJH9640
- RAIN Chip: Alien H3
- Frequency: 860-960MHz
- RFID Protocol: EPC Class1 Gen2 ISO 18000-6C
- Active: No
- Maximum Distance: 1-8m (depending on the reading device)
- Writable: Yes
- Storage Capacity: User 512bits / EPC 96 bits / TID 48 bits
- Data Retention: > 10 years
- Material: Coated paper/inlay
- Dimensions: See drawings below
- Color: Transparent/white
-
Inlay substrate material
dry inlay – plastic film without adhesive backing
wet inlay – plastic film with adhesive backing
coated paper – synthetic paper with adhesive backing
Datasheet: https://www.alientechnology.com/products/ic/higgs-3/
Minimum order 100 pcs!!!
