RDM6300 RFID Reader with UART Output - 125K EM4100

RDM6300 RFID Reader with UART Output - 125K EM4100


The RDM6300 is a 125KHz RFID reader module designed to read information from EM4100 RFID cards. More
Manufacturer: NEVEN Product code: 12142 Shipping and payment
4,80 EUR incl. VAT
in stock (50 ks)
The RDM6300 is a 125KHz RFID reader module designed to read information from EM4100 RFID cards. More
Manufacturer: NEVEN Product code: 12142 Shipping and payment

RDM6300 RFID Reader Module with UART Output - 125K EM4100 Token

The 125KHz RFID reader is a module used to read information from EM4100 RFID cards.

Specifications:

  • Model RDM3600 (HW-205 v4.2)
  • Frequency: 125kHz
  • Speed: 9600Bd
  • Interface: TTL, RS232, UART
  • Power Supply: 5V
  • Current Consumption: <50mA
  • Range: 20 to 50mm
  • Support: only for EM4100 compatible tokens

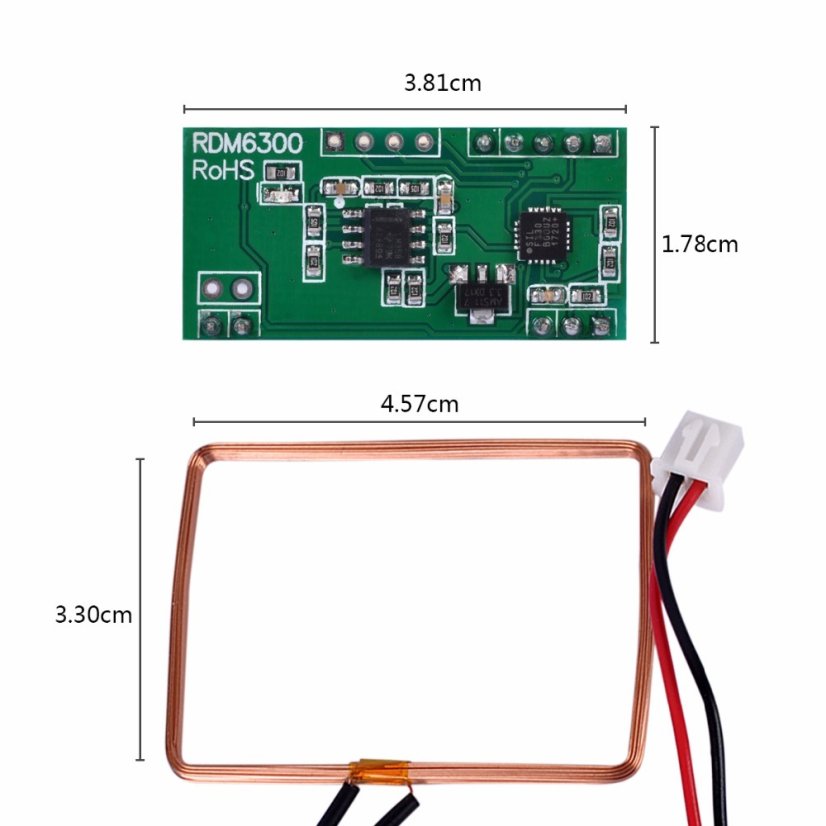

  • Coil Dimensions: 46x35x3 mm
  • Board Dimensions: 38.5x19x9 mm
  • Operating Temperature: -10°C to +70°C
  • Storage Temperature: -20°C to +80°C
  • Humidity: 0 to 95%

RDM6300 RFID Reader Module with UART Output - 125K EM4100 Token

RDM6300 RFID Reader Module with UART Output - 125K EM4100 Token

RDM6300 RFID Reader Module with UART Output - 125K EM4100 Token

The images below are for illustrative purposes only!

RDM6300 RFID Reader Module with UART Output - 125K EM4100 Token

RDM6300 RFID Reader Module with UART Output - 125K EM4100 Token
