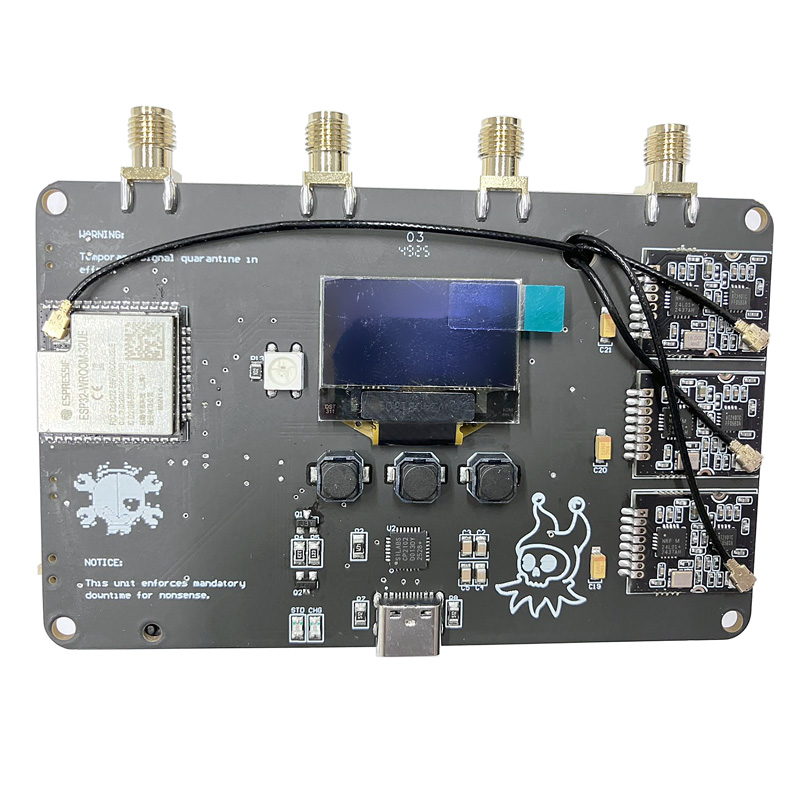

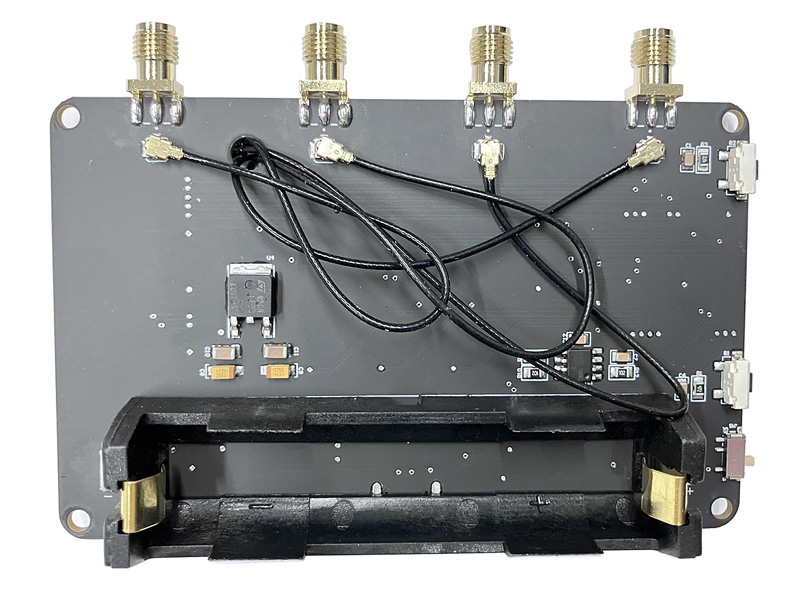

RF Clown v2

RF-Clown – Portable BLE/Bluetooth Jammer (Educational Open-Source Device)

RF-Clown is a compact, portable open-source device for jamming Bluetooth Low Energy (BLE) and Classic Bluetooth signals. Intended strictly for educational and research purposes – it demonstrates wireless communication vulnerabilities. The tool transmits constant carrier interference on selected channels, effectively disrupting connections of BLE devices (headphones, watches, trackers etc.) and Classic Bluetooth. Single-button mode switching, mode indicated by RGB LED. Fully open-source – schematics, PCB and firmware freely available on GitHub.

Specification:

• Model: RF Clown v2
• Microcontroller: ESP32
• RF modules: 2× nRF24L01+ (with RP-SMA connector)
• Mode indication: NeoPixel RGB LED (blue – BLE, green – Classic, red – combined)
• Control: 1× button for mode switching
• Power supply: Li-ion battery, TP4056 charger, LF33 regulator
• Programming: built-in CP2102 USB-UART
• Interface: VSPI + HSPI for dual nRF24L01
• Modes: BLE only / Classic Bluetooth only / Combined
• Software: Arduino IDE compatible firmware
• Intended use: strictly educational and research purposes – signal jamming is illegal in many countries outside controlled test environments

Package content:
1× assembled RF-Clown PCB
