RF Coaxial Load

RF Coaxial Load SMA, 50 Ohm, 2W–5W, DC–8GHz/13GHz/18GHz Stainless Steel

High-quality RF coaxial load with SMA connector and 50 Ohm impedance. Suitable for use as a dummy load or termination in RF applications. Made of stainless steel, it provides excellent durability and stable performance across a wide frequency range. Available in 2W, 3W, and 5W power ratings and frequency options up to 8GHz, 13GHz, or 18GHz. Ideal for RF testing, measurement, and antenna systems.

Specifications

• Connector type: SMA (Male, Female) / N (male)

• Impedance:

  • SMA - 50 Ohm

  • N - 50 Ohm (75 Ohm optional)

• Material: Stainless steel

• Power rating: 2W / 3W / 5W

• Frequency range:  DC–8 GHz (Optional: DC–13 GHz or DC–18 GHz)

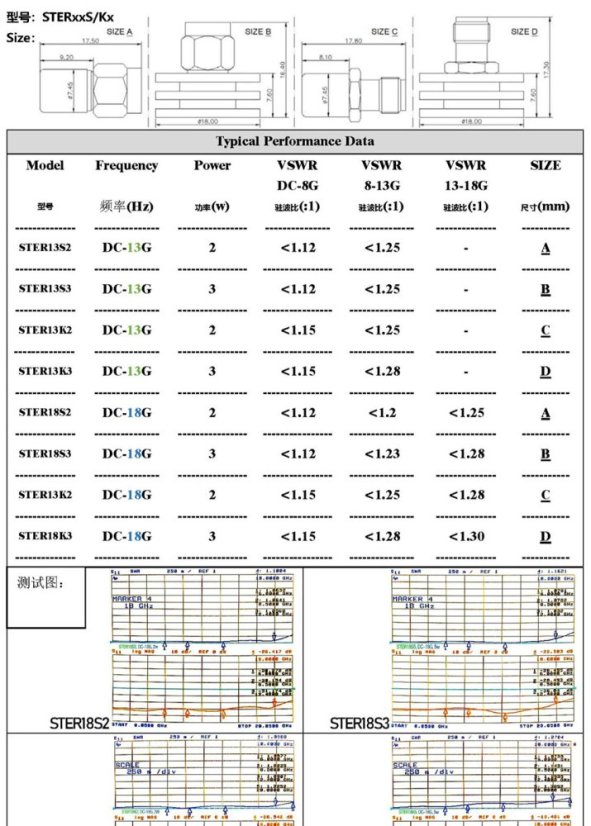

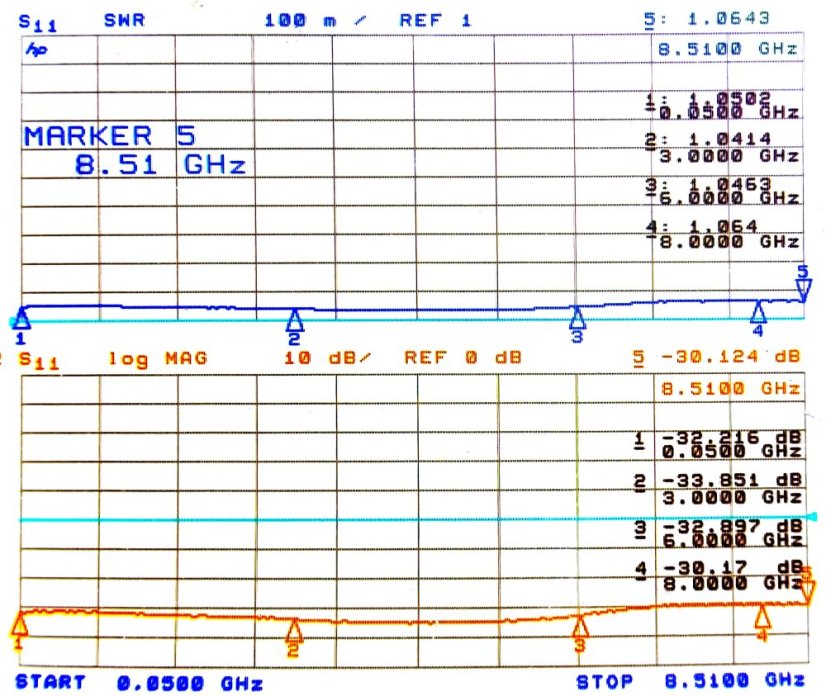

• VSWR:

  • SMA-J: <1.2@8GHz, <1.25@13GHz; <1.25@18GHz
  • SMA-K: <1.2@8GHz, <1.3@13GHz; <1.35@18GHz
  • N: 1.25 (max), 1.2 (typ.)

• Operating temperature: -55°C to +125°C

• Application: RF testing, dummy load, termination

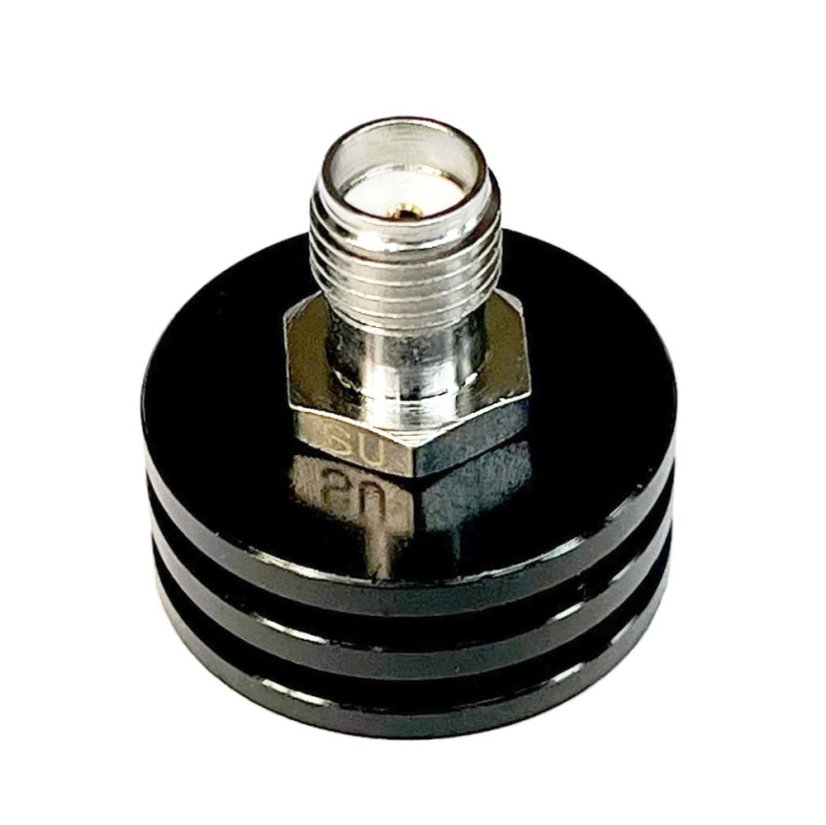

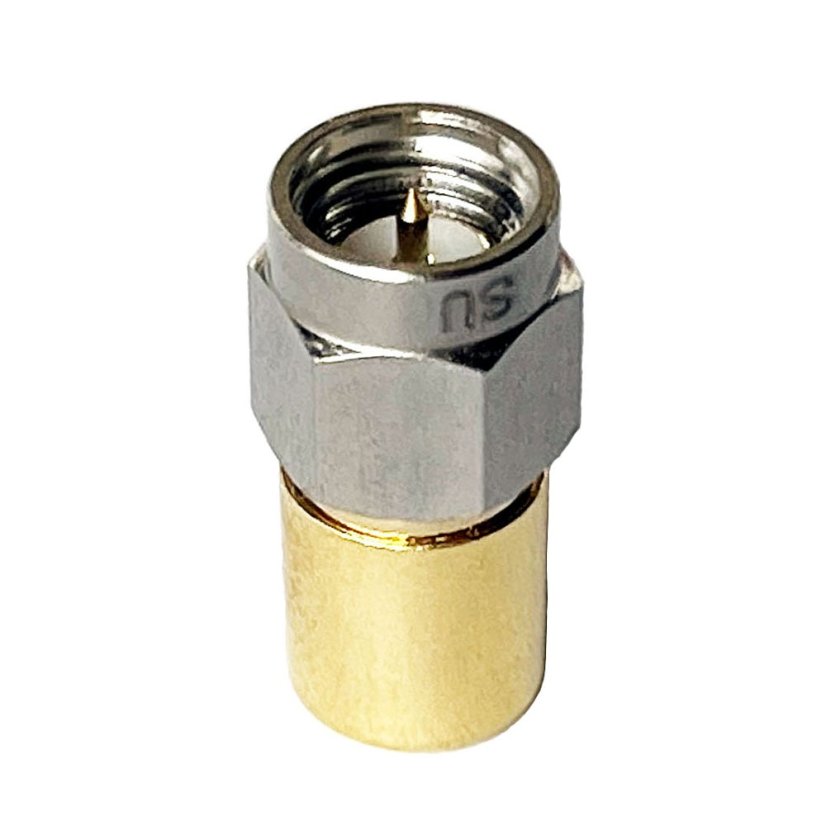

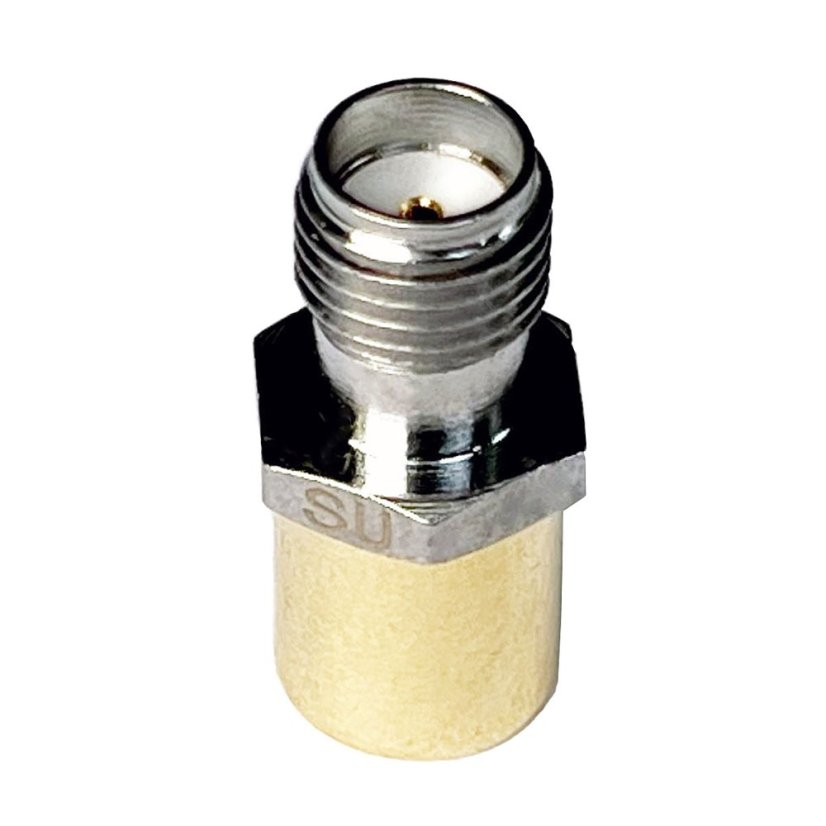

RF Coaxial Load SMA - 2W/3W

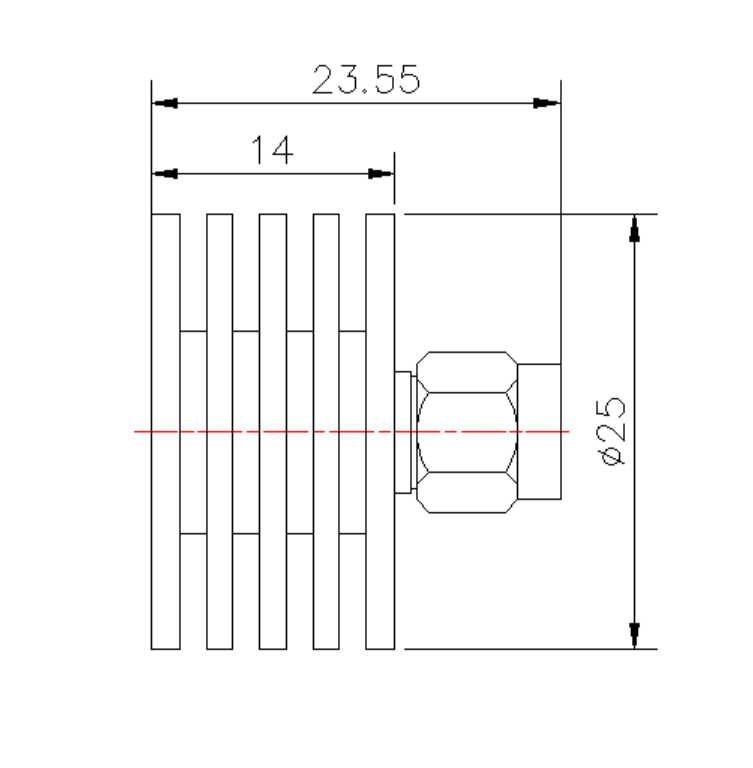

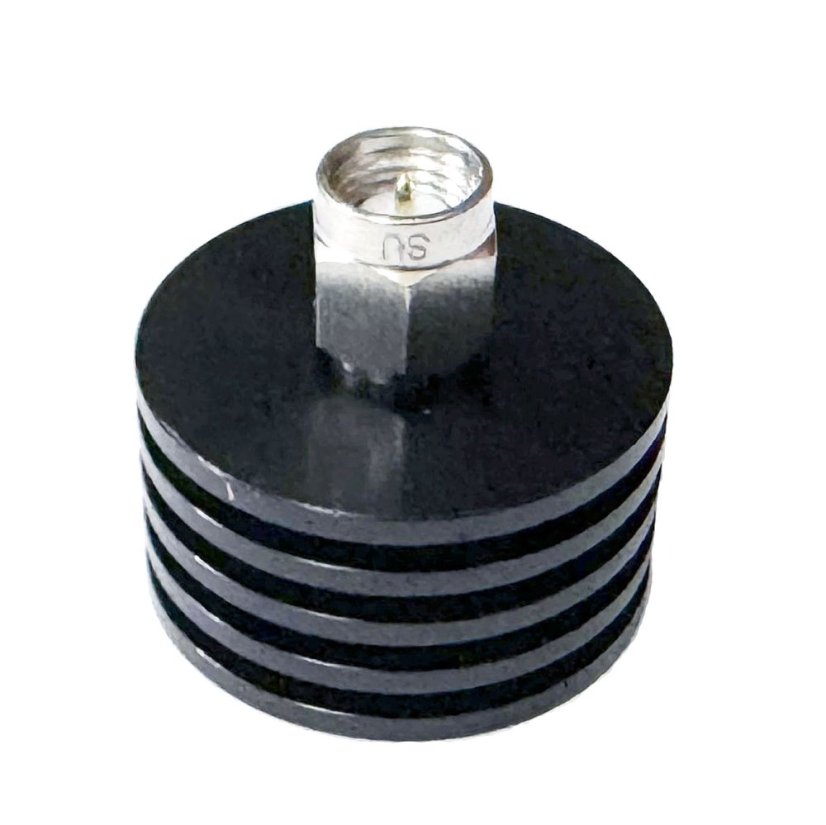

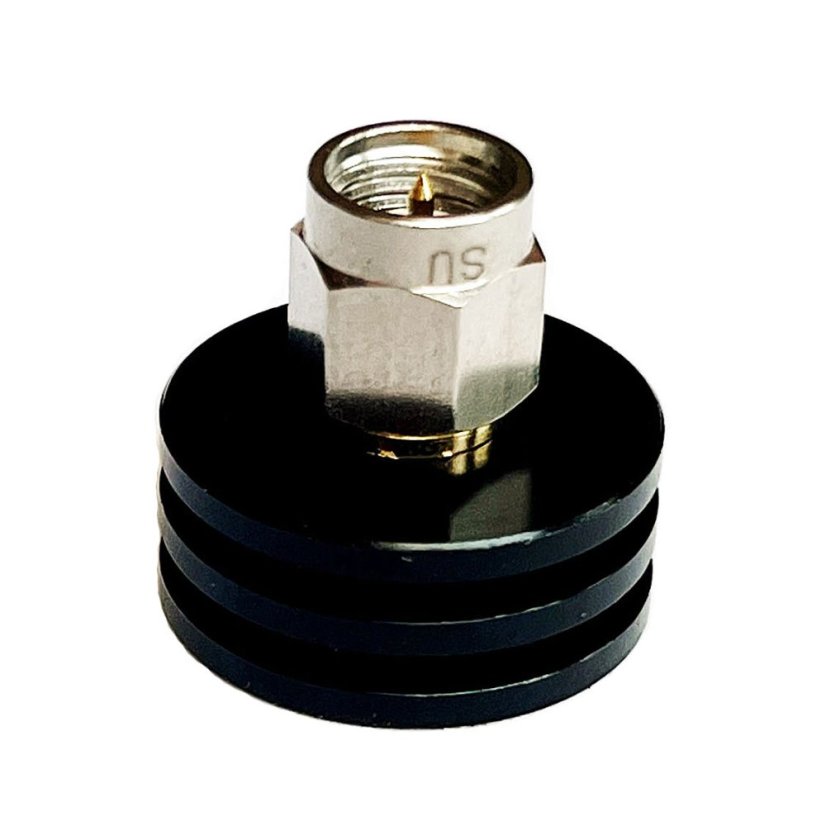

RF Coaxial Load SMA - 5W

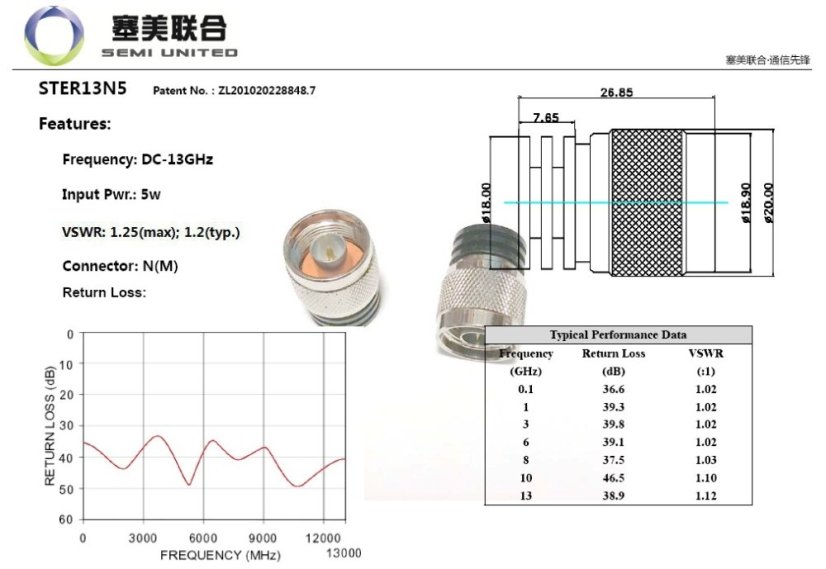

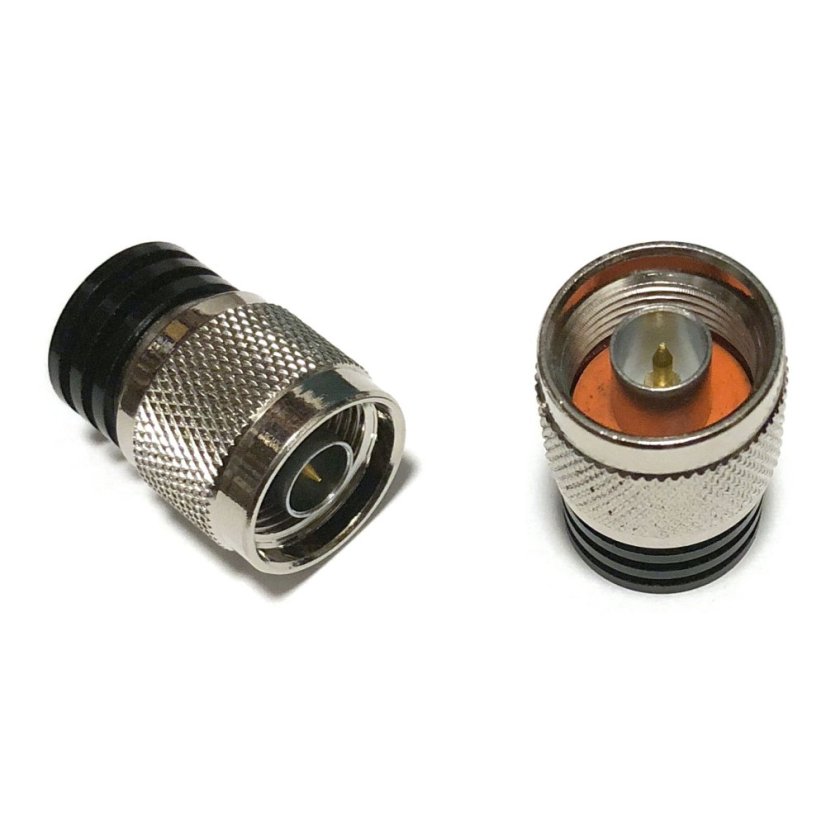

RF Coaxial Load N - 5W
