RF Demo Kit

RF Demo Kit for NanoVNA-F

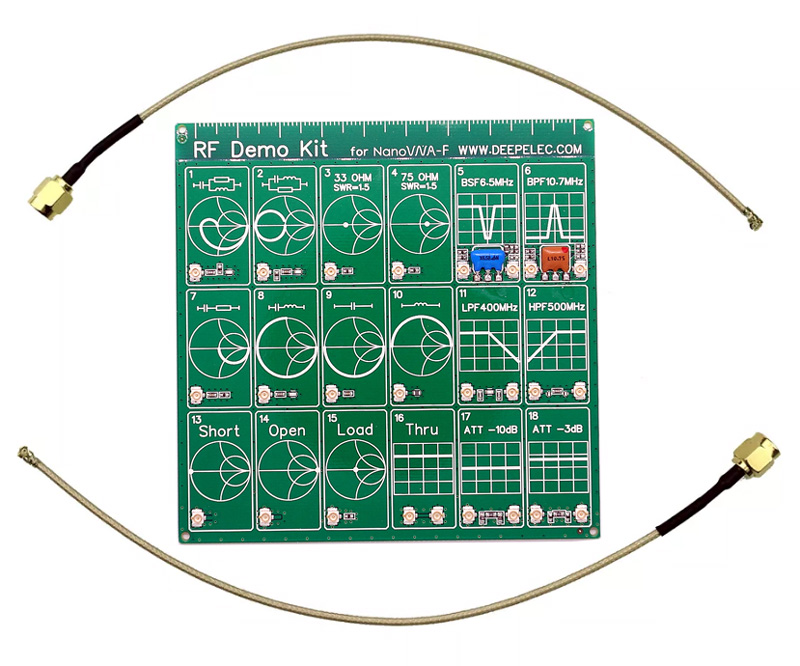

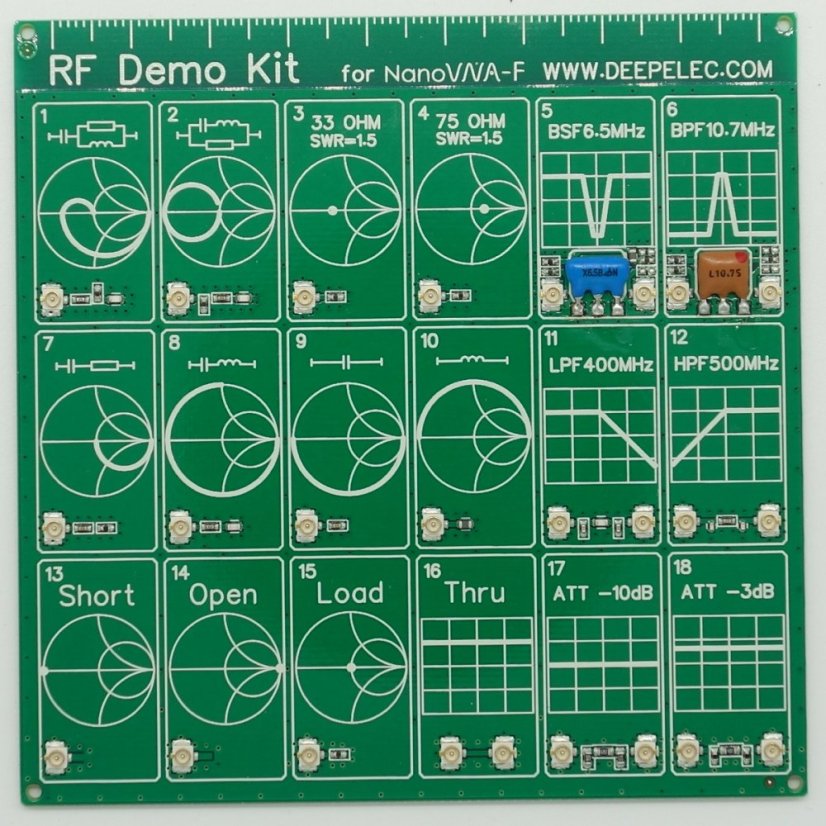

The RF Demo Kit with size of 10x 10cm is a NanoVNA RF test board, which can used to learn the use of a vector network analyzer.

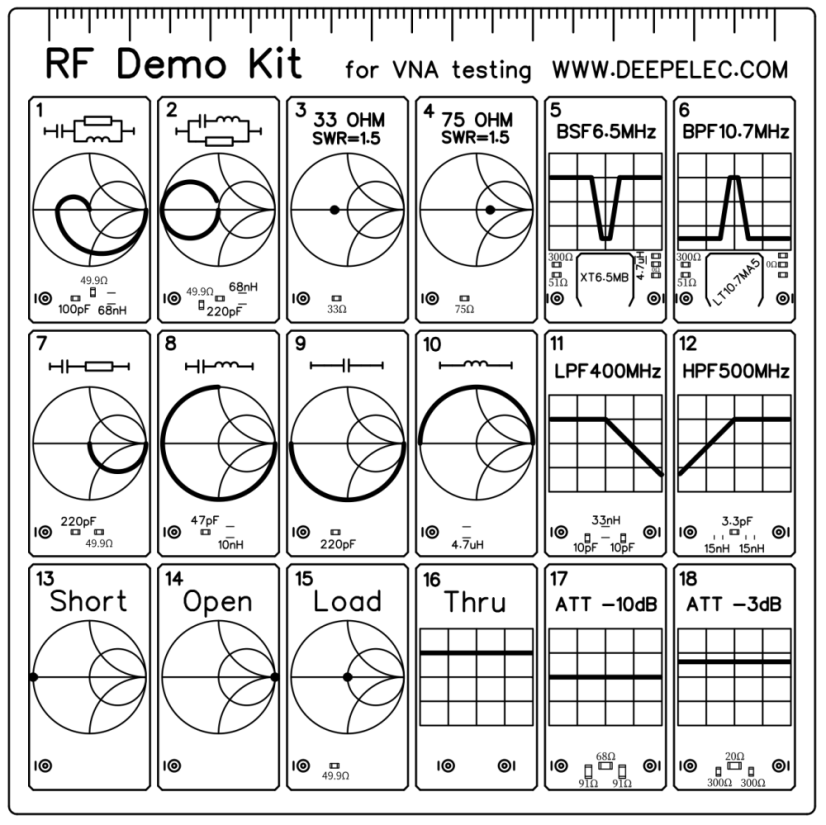

The Smith chart is printed on the back, which can be used to learn to read the Smith chart and learn the basic principles of impedance matching.

Two steps must be performed before testing:
Step 1. Connect the two 20CM SMA to IPEX adapter cables to the NanoVNA-F machine.
Step 2. Recalibrate the machine using the 13 Short, 14 Open, 15 Load, and 16 Thru circuits on the test board, and save the parameters to SAVE 0.

RF Demo Kit Quick Start Guide Download

RF Demo Kit Introduction: https://deepelec.com/rf-demo-kit/

The kit includes:
1x Demo board
2x coax cables
