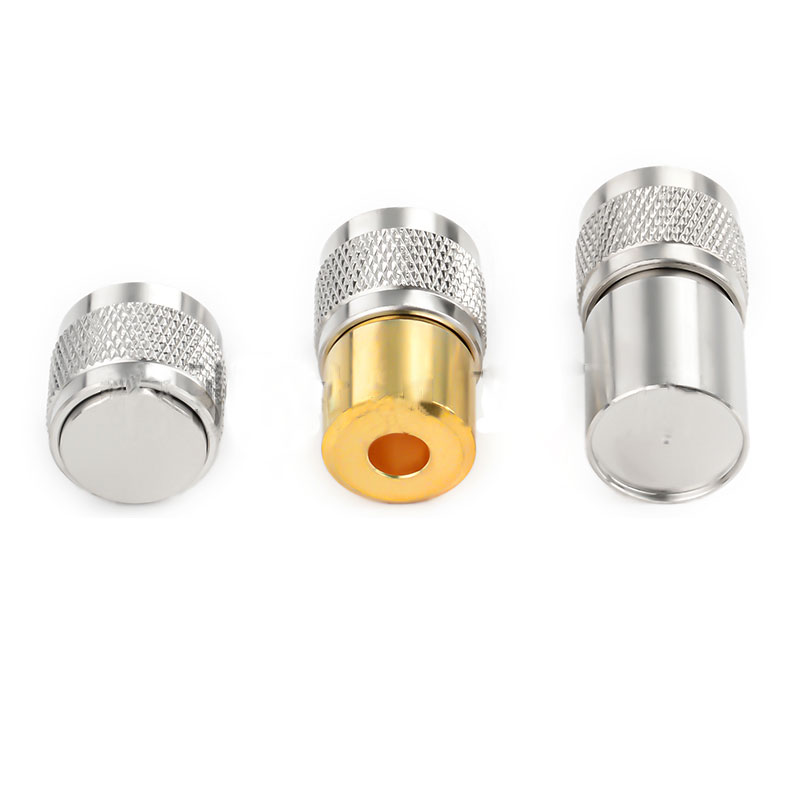

RF Type N Connector for Calibration

RF Type N Connector for Calibration

Spectrum / vector network analyzer (VNA) Type N open circuits are RF calibration components needed to conduct stable and error-corrected accurate measurements of a device under test (DUT).

Available either individually (Open, Short, or 50Ω Load) or as a complete 3-piece kit, these precision RF calibration terminations are designed for reliable and repeatable measurements. With a 5W power rating, they are ideal for use with spectrum analyzers, VNAs, and RF test setups in laboratory or field environments.

Specification:

• Model: RF Type N Calibration Terminations

• Connector Type: Type N

• Available Components:

  • Open circuit (Open)

  • Short circuit (Short)

  • 50Ω Load

  • Complete set of all three

• Power Rating: 5W

• Frequency Range: DC – 6 GHz (typical)

• Material: High-grade stainless steel body with precision machining

• Application: RF measurement calibration for VNAs, spectrum analyzers, and other RF test equipment
