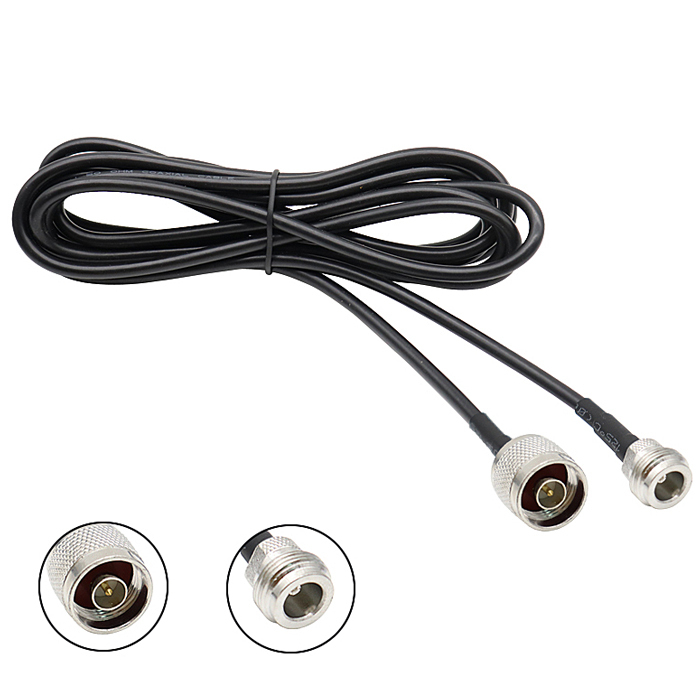

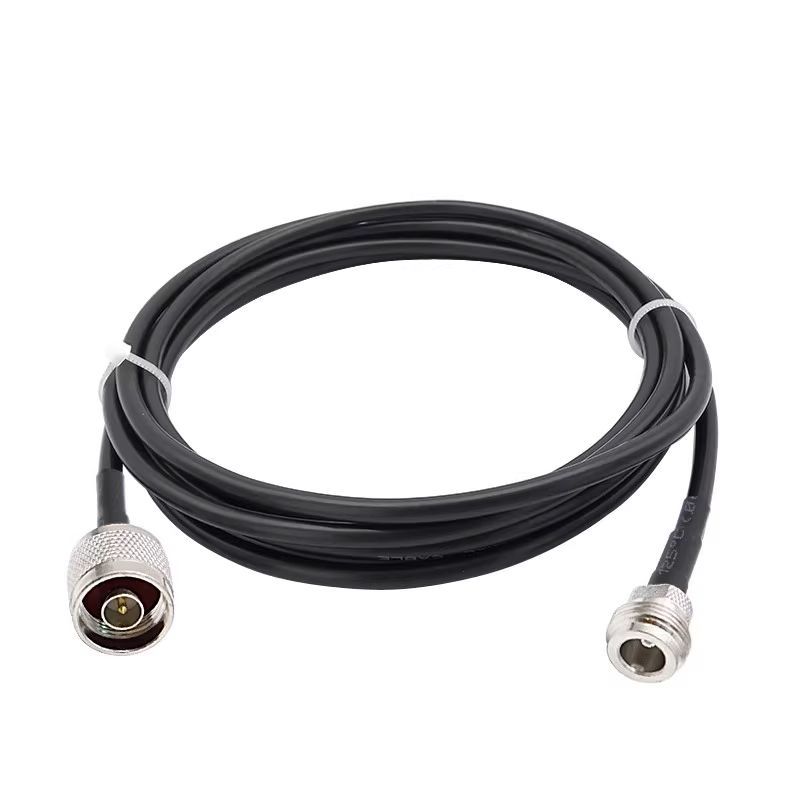

RG58 Coaxial Cable with N-Type M-F Connectors – Low Loss and High Flexibility

High-Quality RG58 Coaxial Cable with N-Type M-F Connectors

The RG58B coaxial cable covers a frequency range from DC to 6GHz. It is a low-loss, high-performance, and flexible RF coaxial cable designed for both indoor and outdoor use, featuring additional environmental protection measures. It is widely used in military and civilian communications, RFID systems, satellite communication systems, 3G base station communications, and other low-cost radar applications.

Features:

• Excellent electrical performance
• Good flexibility
• Good weather resistance, maximum operating temperature up to 85℃
• Customizable cable length/connectors

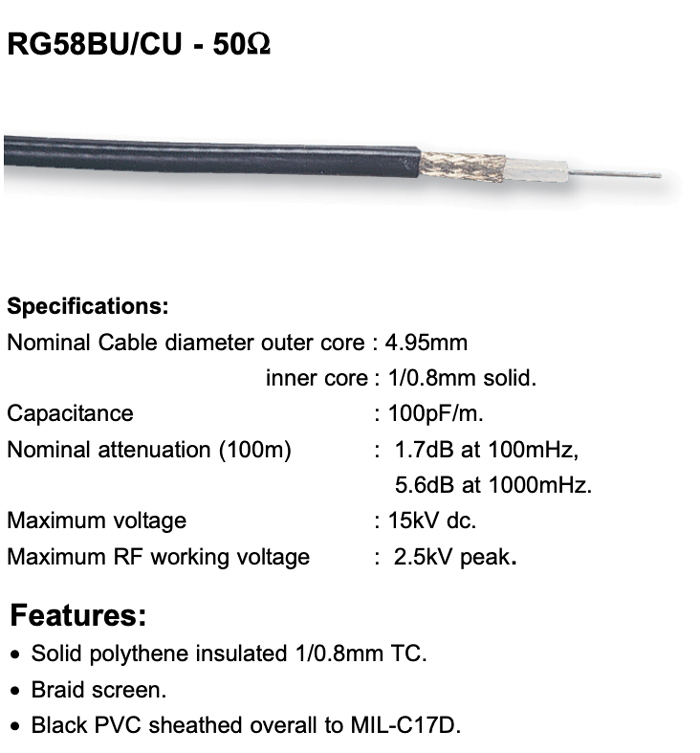

Specifications:

• Cable Type: RG58BU/CU
• Frequency Range: DC(0)-6GHz
• Typical Attenuation (100m): 1.7dB per 100MHz, 5.6dB per 1000MHz.
• Capacitance (pF/m): 100pF/m

• Maximum Voltage: 15kV DC

• Maximum High-Frequency Operating Voltage: 2.5kV peak
• Cable Outer Jacket: PVC
• Nominal Outer Diameter of Cable Core: 4.95 mm
• Operating Range: -20°C to 85°C
