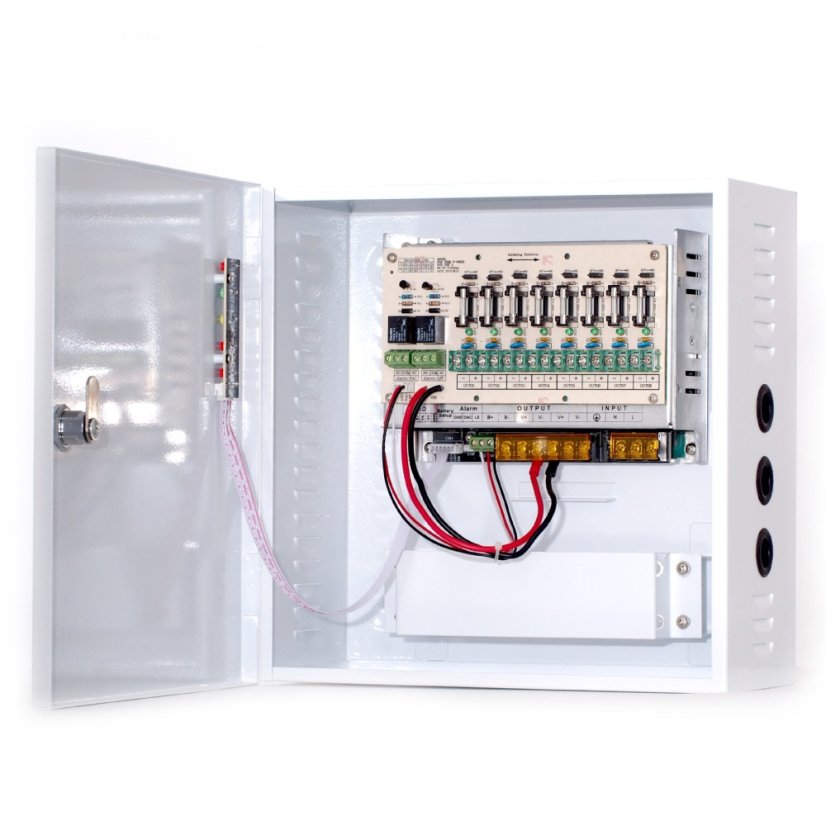

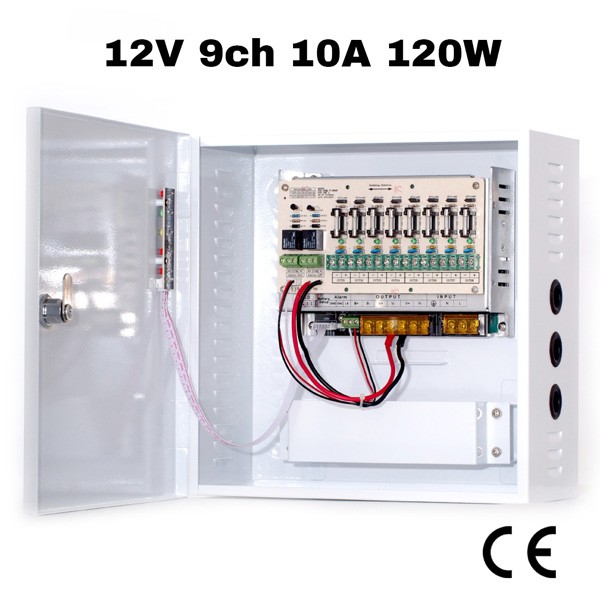

RGB-1210B-09F Switching Power Supply 12V DC 9 Ports 10A

The high-quality RGB-1210B-09F switching power supply is a modern distribution power source for CCTV that offers stable power transmission and protection for connected electrical devices. This device features 9 independent power channels and allows for the installation of surveillance cameras with a maximum current of 10A.

Specifications:

• Model: RGB-1210B-09F
• with a circuit for charging and connecting backup batteries
• metal case
• output voltage: 12V DC (±10%)
• switching
• input voltage: 230V AC, 50Hz
• total rated output current: 10A (9 x 1.1A)
• protection: 9x resettable fuses (PTC)
• number of outputs: 9
• dimensions: 285 x 285 x 125 mm (11.22 x 11.22 x 4.92 in)
• weight: 3.8 kg (8.38 lbs)
• warranty: 24 months
• CE certified

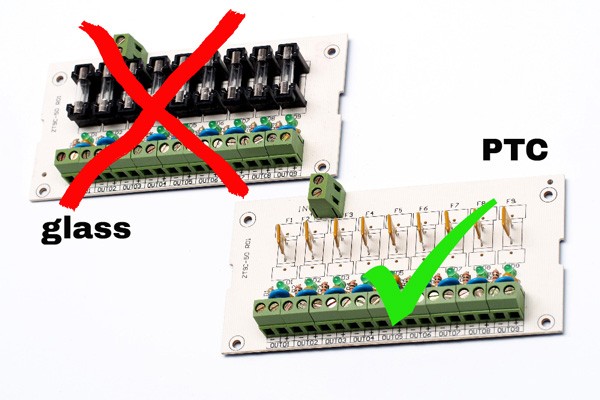

The advantage of the RGB-1210B-09F power supply for CCTV is the availability of an automatic safety system based on intelligent resettable fuses (PTC). Using the next-generation fuse not only ensures effective protection for all connected electrical equipment but also provides convenience during installation.

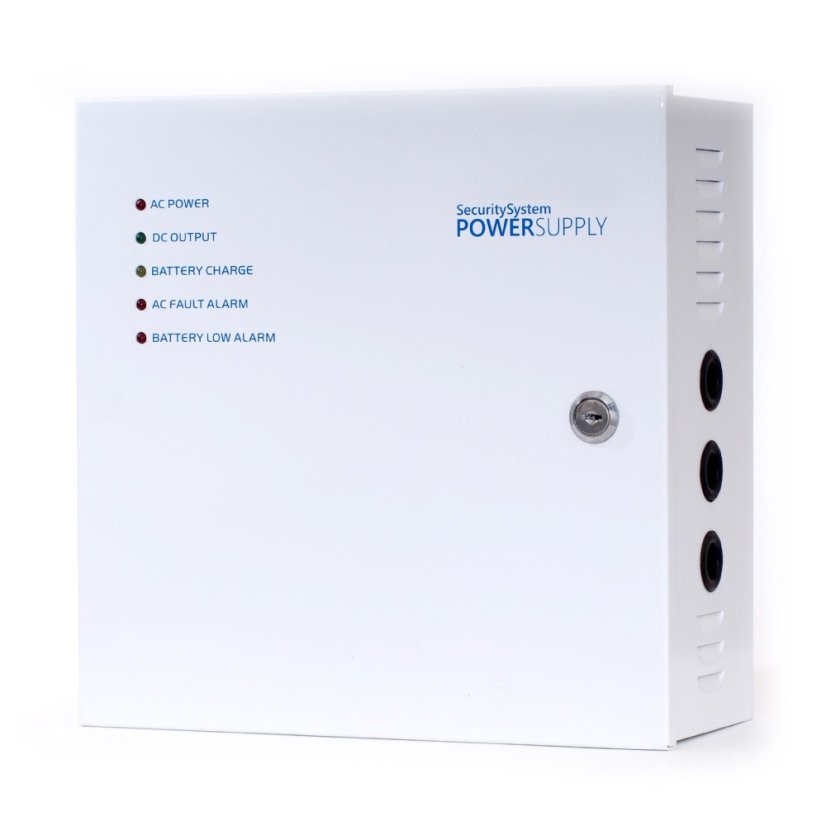

The robust enclosure and built-in metal lock ensure trouble-free operation and access to the power supply’s interior. The smart design allows for quick and efficient connection of collaborating devices.

Package includes:
1x RGB-1210B-09F power supply
2x keys
