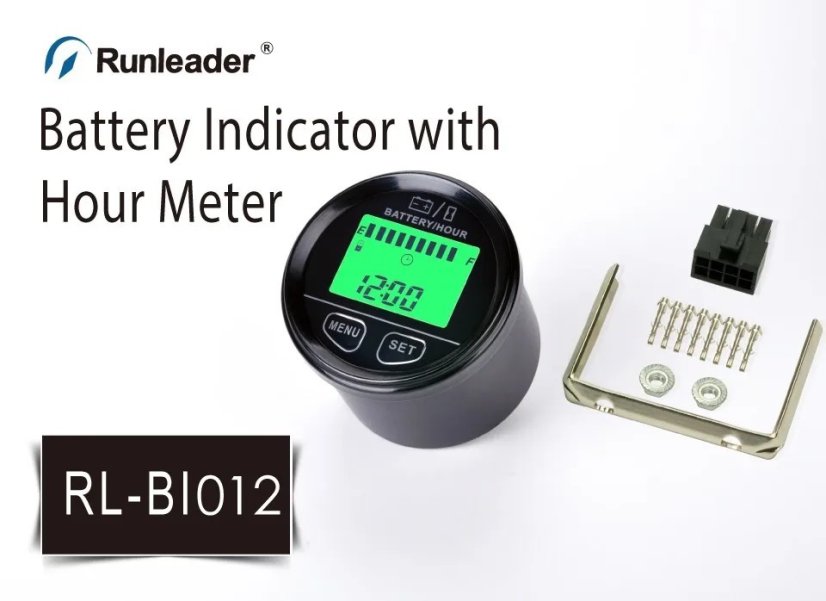

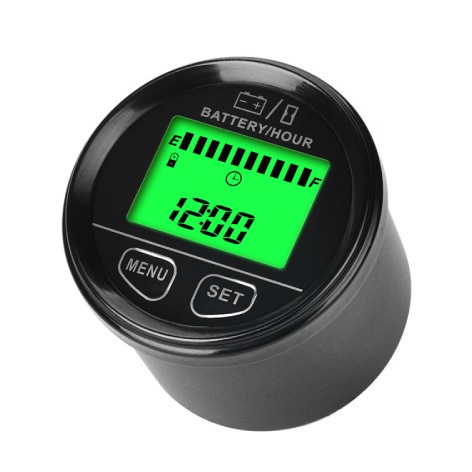

RL-BI012 Digital Battery Status Indicator

RL-BI012 Digital Battery Status Indicator

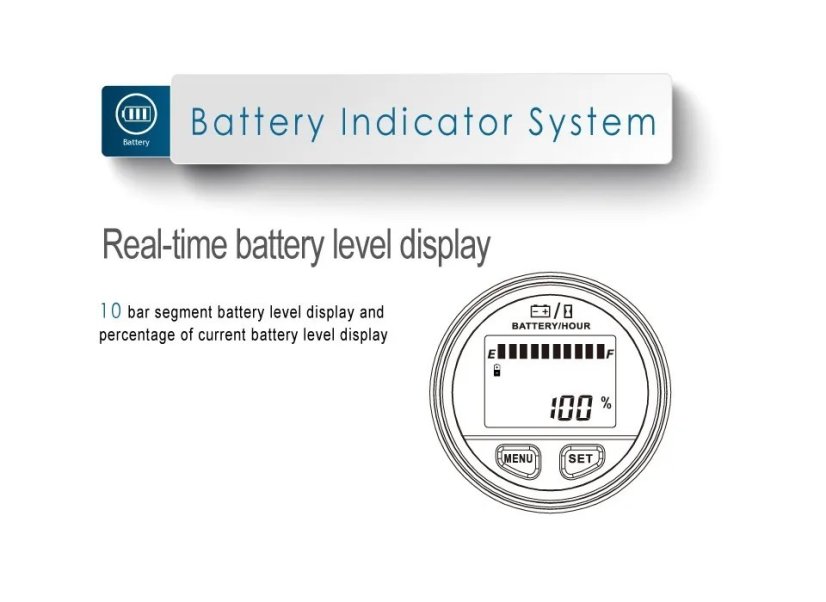

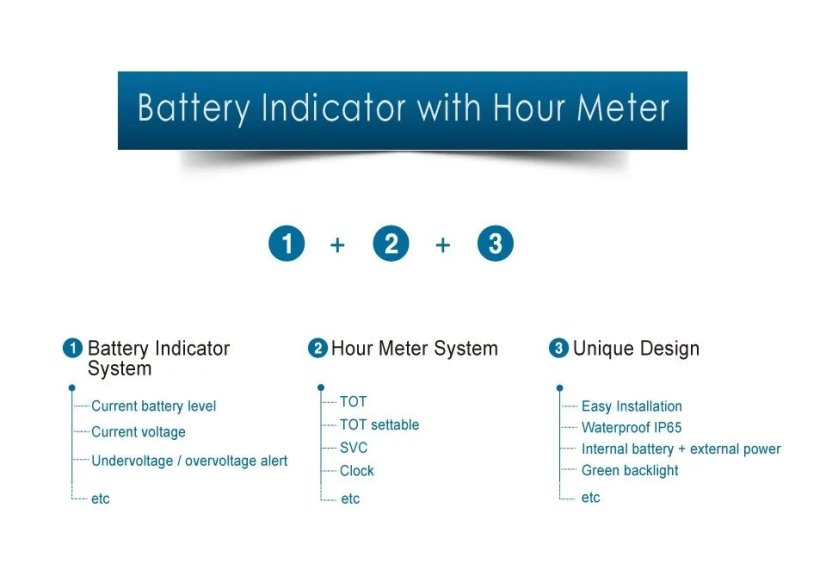

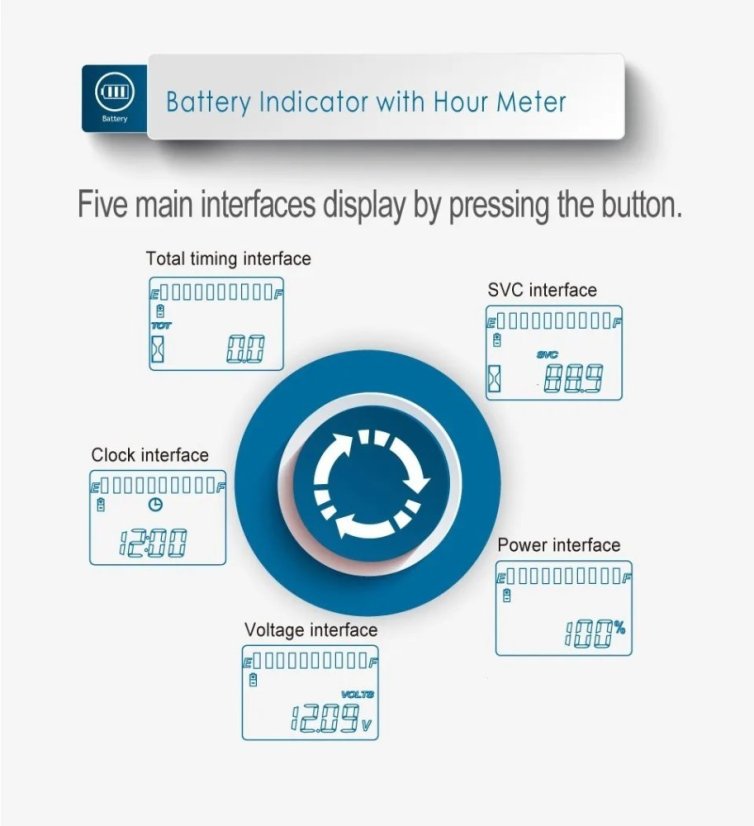

The Runleader RL-BI012 battery status indicator is a device that measures remaining energy by monitoring the voltage changes of the device and displays the current voltage and battery capacity. It also features multifunctional timing, including total time, maintenance reminders, clock, and a 10-segment LED bar to show battery status, with a resolution of 10% for each LED segment. The green backlit display is suitable for most lead-acid batteries, GEL batteries, LiFeO4 batteries, AGM batteries, and other batteries. Thanks to its IP65 waterproof rating, it is suitable for use in harsh outdoor environments.

• Battery indicator voltage range: 12V/24V/36V/48V
• Two battery modes: Normal and Custom

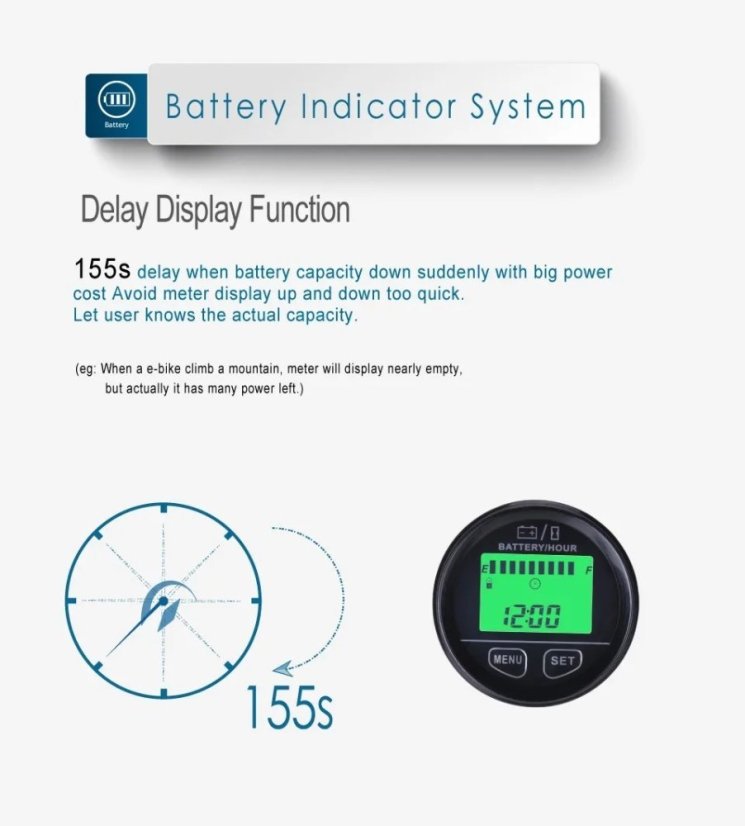

• Delay display function
• Over-voltage and under-voltage alarm functions

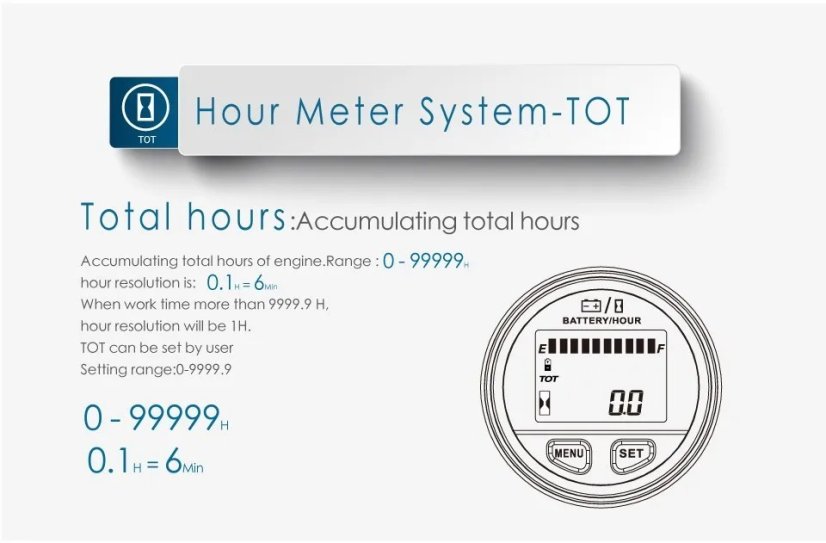

• Total range: 0-99999H, accuracy 0.1/1H

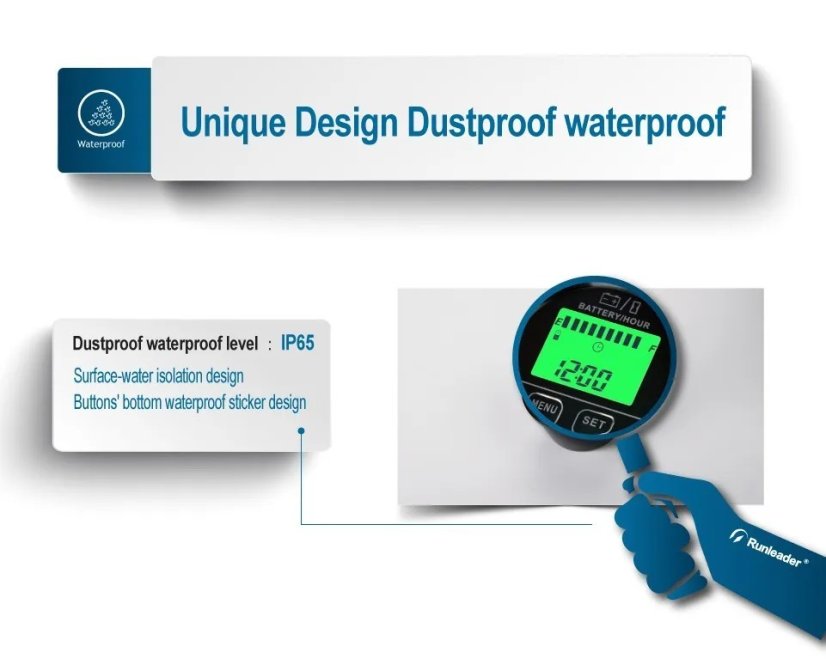

• Waterproof rating: IP65
• Products are CE and ROHS certified

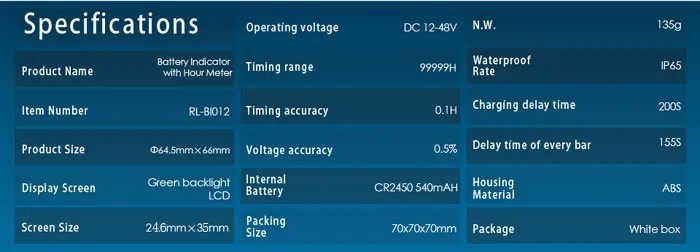

Specifications:

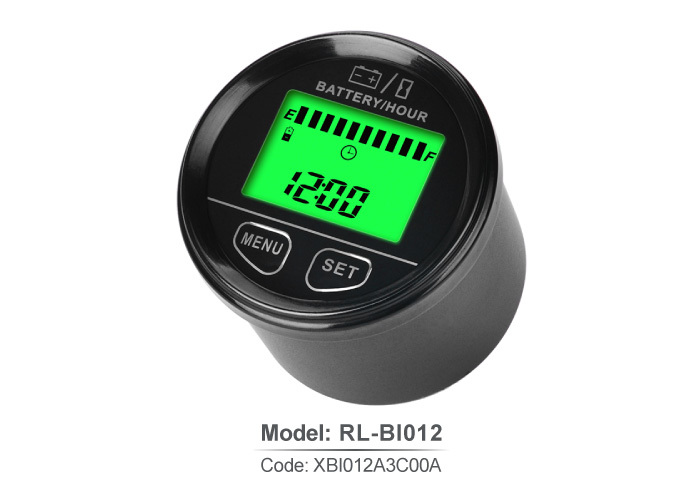

• Model: RL-BI012
• Product code: XBI012A3C00A
• Product name: Battery indicator
• Timing range: 0-99999H
• Timing accuracy: 0-9999.9H, 0.1H; 10000-99999H, 1H

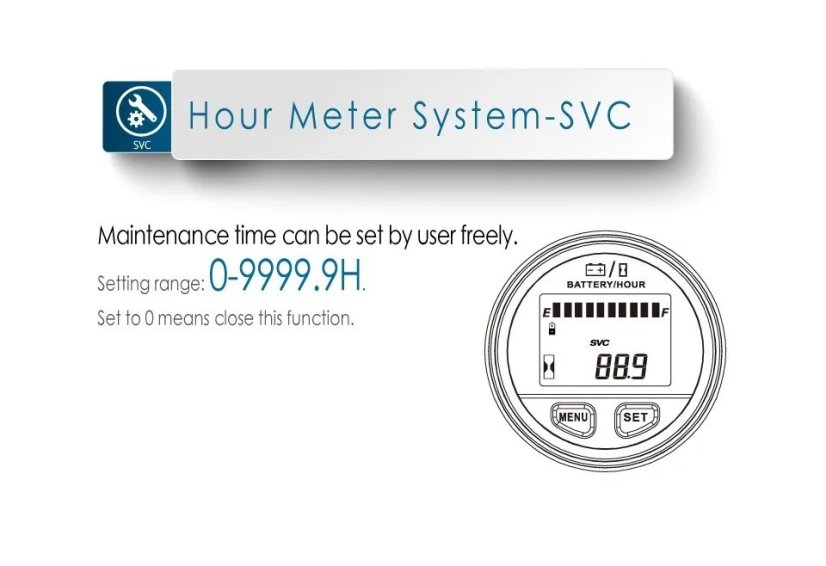

• SVC clock range: 0-9999.9H
• TOT initial time range: Yes (up to 1 hour)
• Battery type: 19 groups of battery curves + 1 group custom
• Voltage range: DC 12V / 24V / 36V / 48V
• Display mode: LCD + backlight

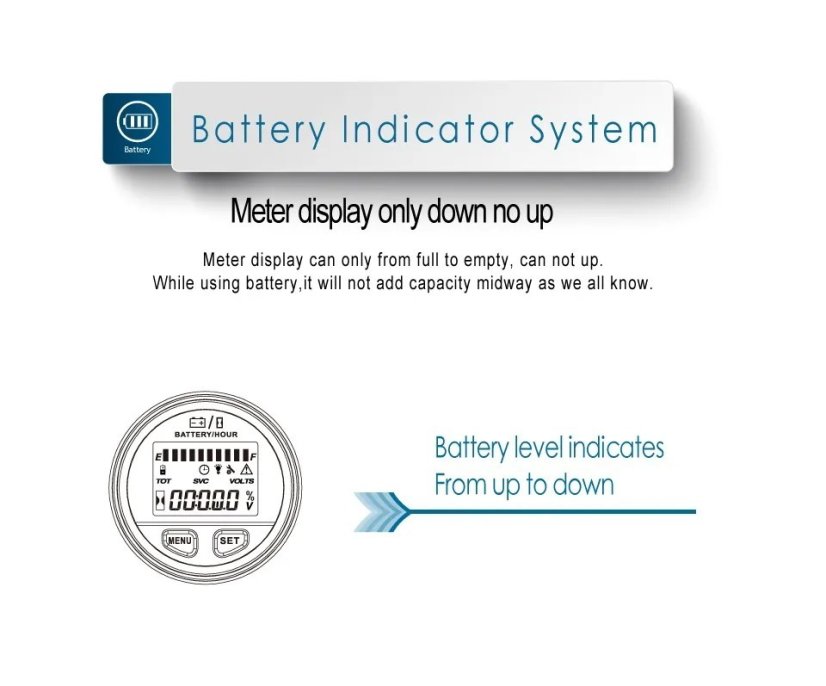

• Discharge mode: Gear down, default: 155 s

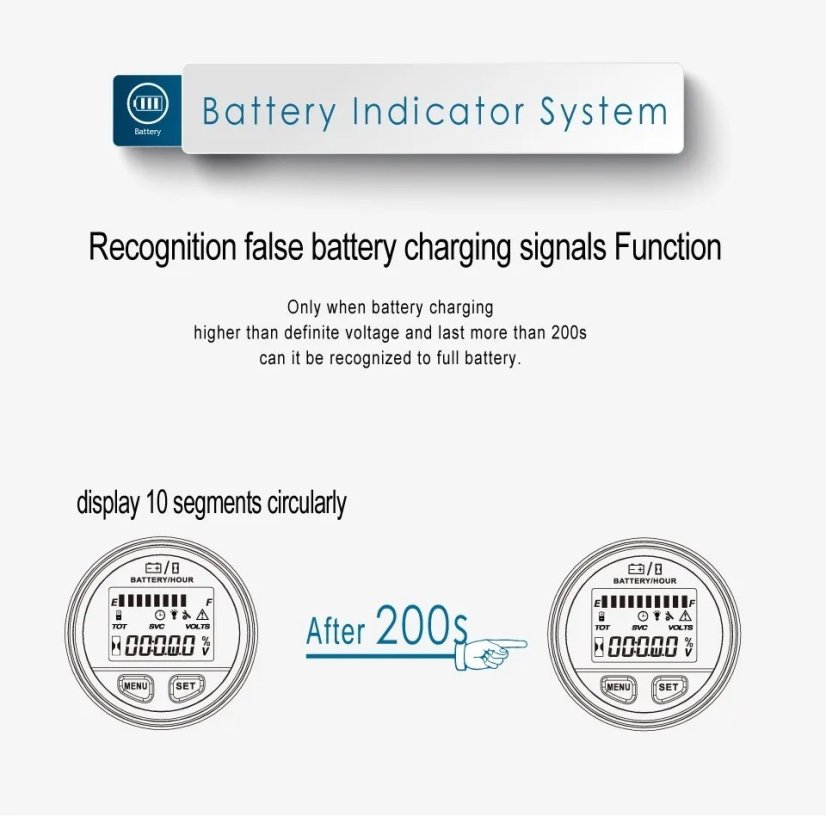

• Charge mode: Gear up, default: 200 s
• Over-voltage alarm setting range: 12-60V / OFF
• Under-voltage alarm setting range: 8.5-59V / OFF
• Voltage display accuracy: ±0.5%, 0.01V
• Operating voltage: DC 12-48V
• Operating current: ≤30mA

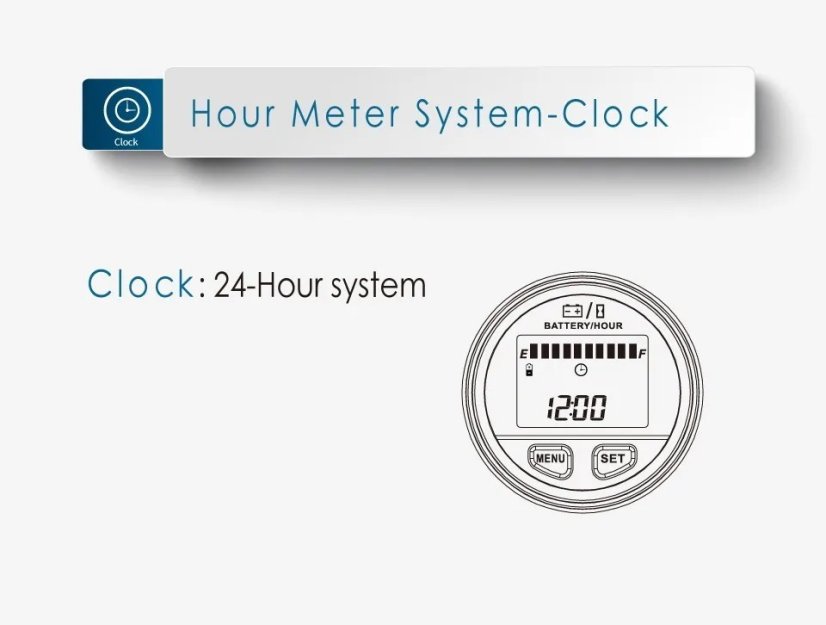

• Clock function: 24-hour format
• Operating temperature: -20 ℃ to +65 ℃
• Display window size (visible): 35mm×24.6mm

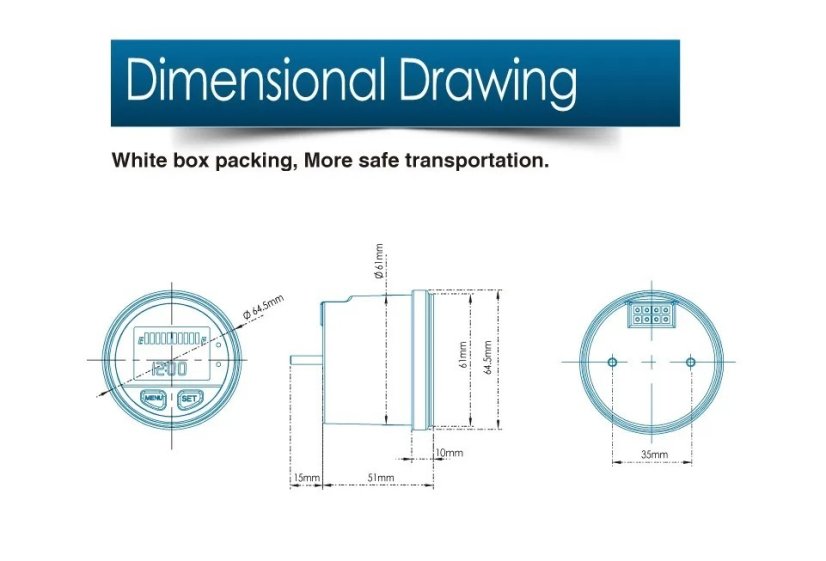

• Product dimensions: ∅64.2×66mm

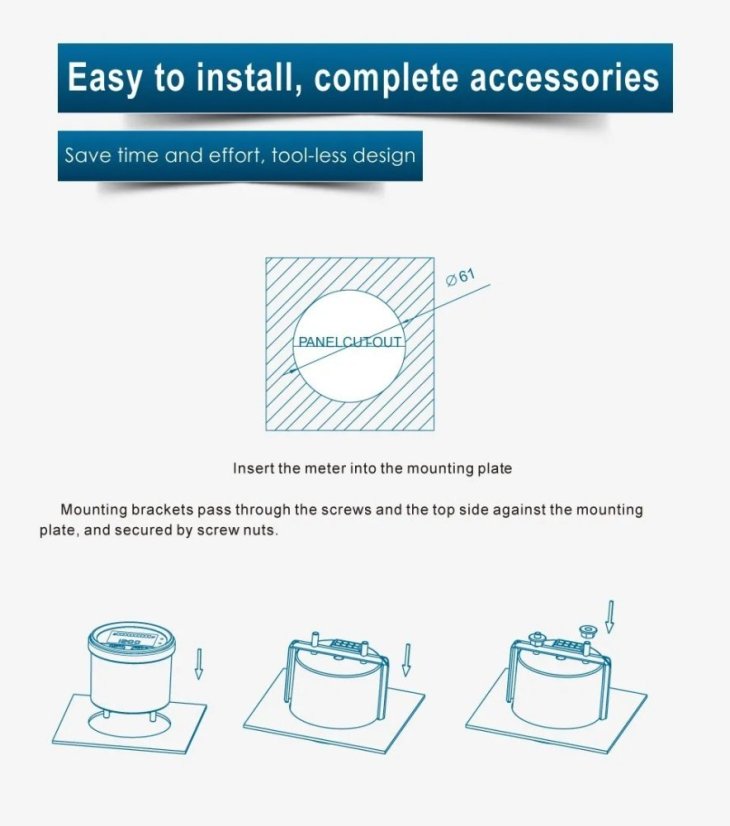

• Mounting dimensions: ∅60.5mm
• Housing material: ABS
• Waterproof rating: IP65
• Product weight: approximately 135g

Specifications: https://www.run-leader.com/bocupload/2022/09/17/166338592244210i538.pdf

User Manual (EN): https://www.run-leader.com/bocupload/2022/09/13/166305970267543bqd8.pdf
