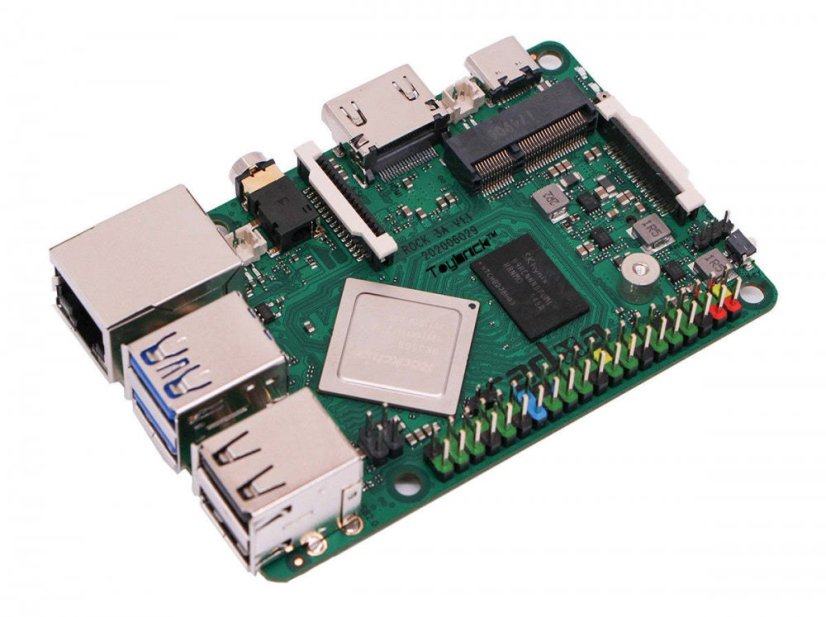

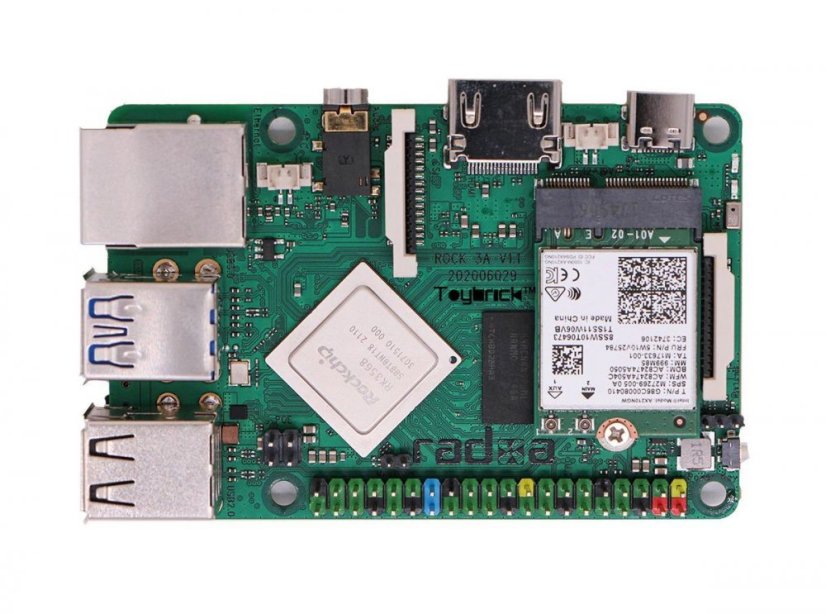

ROCK 3A Single-Board Computer RK3568
What is ROCK 3A
The ROCK 3A is from the Rockchip RK3568 chip series based on SBC (Single-Board Computer) and computing module from Radxa. It can run Android or various Linux distributions.
The ROCK 3A series features a quad-core ARM Cortex-A55 processor, 32-bit 3200 Mb/s LPDDR4, up to 4K@60 HDMI, MIPI DSI, MIPI CSI, 3.5 mm jack with microphone, USB port, GbE LAN, PCIe 3.0, PCIe 2.0, 40-pin color-coded expansion header, RTC. ROCK3 also supports USB PD and QC power supply.
Superior Performance
The ROCK 3A includes a modern and powerful six-core ARM RK3568 processor that provides significantly enhanced performance compared to other popular single-board computers. All models are equipped with LPDDR4 3200Mb/s RAM and optional high-performance eMMC modules that enhance all applications.
User-Friendly, IoT Connectivity
The ROCK 3A features user-friendly expansion options, including a 40-pin GPIO interface that allows connection to a wide range of inputs from buttons, switches, sensors, LEDs, and many more. ROCK 3A also includes Gbit LAN for networks with suitable connections and drivers. It operates seamlessly under the vast majority of network applications.
ROCK 3A also includes two USB 3.0 host ports, each 5Gbps/s, which operate independently, as well as two USB 2.0 ports.

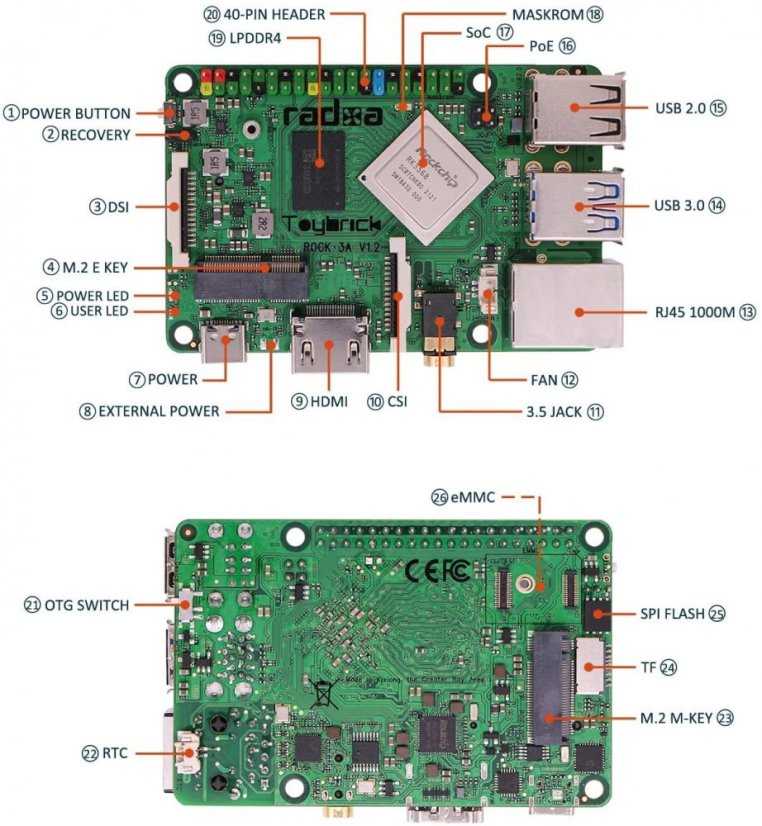

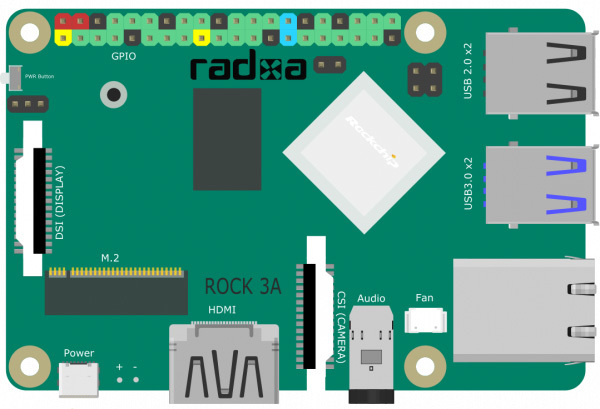

Specifications:
| Model: | ROCK 3A | |
| CPU: | RK3568 Quad-core Cortex-A55, frequency 2GHz | |
| GPU | Mali G52 | |
| VPU | 0.8TOPS NPU | |
| Memory | 2/4/8GB LPDDR4 3200MT/s, up to 1560MHz | |
| Storage | eMMC μSD card (μSD slot supports up to 128 GB μSD card) M.2 SSD (M.2 connector supports up to 8TB M2 NVME SSD) | |
| Display | HDMI 2.0 up to 4K*2K@60 MIPI DSI 2 wires via FPC connector Any two of HDMI or MIPI DSI can work simultaneously, supporting mirror or extended mode | |
| Audio | 3.5mm jack with microphone HD codec supporting up to 24-bit/96KHz audio | |
| Camera | MIPI CSI 2 wires via FPC connector, supporting up to 800 MP camera | |
| Ethernet | GbE LAN with Power over Ethernet (PoE) support additional HAT is required for PoE power | |
| Wifi/BT | No | |
| USB | USB 3.0 OTG X1, hardware switch for host/device switching, front USB 3.0 HOST X1 USB 2.0 HOST X2 | |
| IO | 40-pin expansion header | |
| Others | RTC RTC battery connector for time backup (optional) | |
| Power | USB PD, supports USB Type C PD 2.0, 9V/2A, 12V/2A, 15V/2A, 20V/2A. Qualcomm® Quick ChargeTM: supports QC 3.0/2.0 adapter, 9V/2A, 12V/1.5A | |
| OS | Android, Debian, Ubuntu | |
| Dimensions |
|
Official website: https://wiki.radxa.com/Rock3/3a/getting_started
Our product photos are available for your inspiration.
